Quick Answer
Match your FPV motor, ESC, and propeller by picking a motor size and KV for your frame, choosing an ESC with at least 20% headroom above the motor's peak current draw, then selecting a prop size that keeps RPM below the motor's rated limit for your battery voltage. The three components work as a system: get one wrong and the whole setup suffers.
Understanding Motor Specs
FPV brushless motors are described by two numbers, like 2207 or 2306. The first is the stator diameter in millimetres, the second is the stator height. Larger stators produce more torque and suit heavier builds or bigger props. Smaller stators spin faster and work well on lighter, more agile quads.
The KV rating tells you how many revolutions per volt the motor turns unloaded. A 1950KV motor on a 4S pack (16.8V fully charged) would theoretically spin at roughly 32,760 RPM, though actual RPM under load will be lower. Lower KV motors suit higher cell counts and larger propellers. Higher KV motors suit lower cell counts and smaller props.

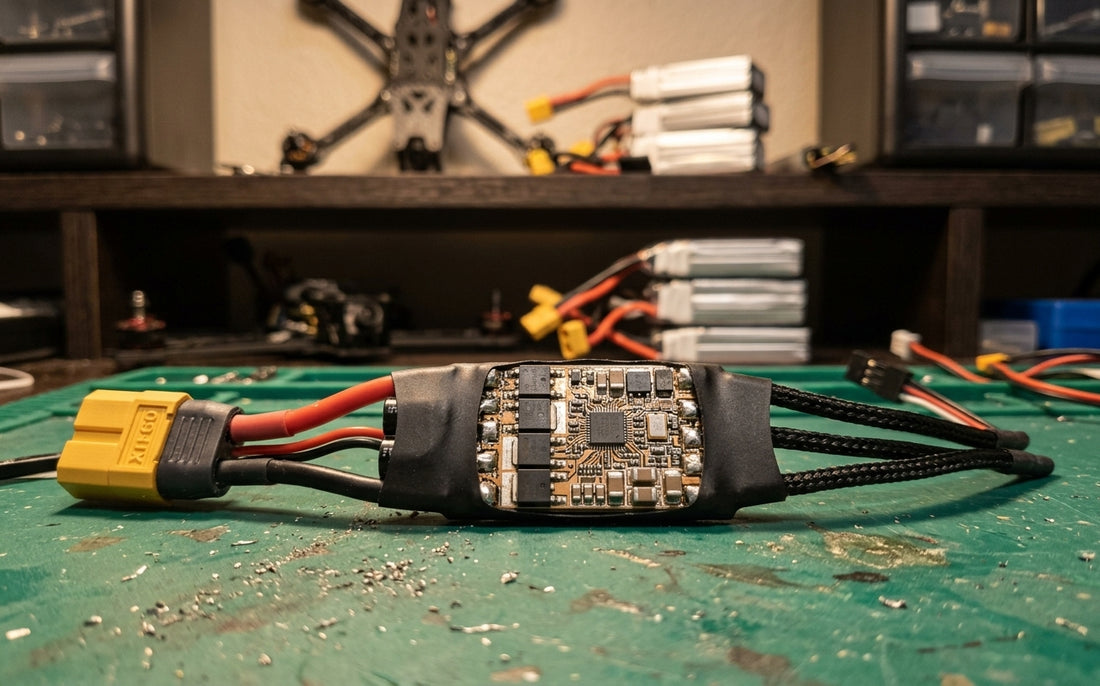

Choosing the Right ESC
The ESC controls power delivery to each motor. The single most important spec is its continuous amp rating, which must exceed the worst-case current draw of your motor. Check the motor's datasheet for peak current figures, then add at least 20% headroom. For example, a motor with a 40A peak draw needs an ESC rated for 48A or more.
A 4-in-1 ESC mounts beneath your flight controller and keeps wiring tidy on 3-inch and larger builds. Individual ESCs make more sense on micro quads where weight is critical. Firmware matters too: BLHeli_S is older but reliable, AM32 is the modern standard with better performance, and BLHeli_32 supports 6S setups and bidirectional DShot.
Picking the Correct Propeller
Prop size is dictated by your frame and motor KV. Larger props move more air and give better efficiency, but they draw more current and need lower KV motors to avoid over-revving. Smaller props spool up faster and suit racing or acrobatic flying where snappy throttle response matters.
As a rough guide, 5-inch props pair with 2207 or 2306 motors around 1950-2750KV on 4-6S. Three-inch props suit 1104-1306 motors at 4000-6000KV on 2-4S. Seven-inch builds typically use 2806 motors at 1300-1700KV on 6S. Blade count also affects performance: two blades are most efficient, three blades offer more grip, and four or more increase thrust at the cost of higher amp draw and shorter flight times.
Putting It All Together
Start with your frame size and flying style. A 5-inch freestyle quad on 4S is the most common setup and a sensible starting point for new builders. From there, select your motor size, match an ESC with sufficient amperage, and choose props that keep your motors within their safe RPM range.
| Build Type | Motor Size | KV Range | ESC Rating | Prop Size | Battery |
|---|---|---|---|---|---|
| 3-inch whoop | 1104-1306 | 4000-6000 | 12-20A | 3 inch | 2-4S |
| 5-inch freestyle | 2207-2306 | 1750-2750 | 45-60A | 5 inch | 4-6S |
| 7-inch long range | 2806-2807 | 1300-1700 | 45-55A | 7 inch | 6S |
| Cinelifter | 3115+ | 400-1050 | 60-80A | 8-11 inch | 6-12S |
What to Buy
For a 5-inch freestyle build, the T-Motor Velox V2207 V3 motor is available in KV ratings from 1750 to 2550, covering 4S and 6S setups. Pair it with the Flywoo GOKU G55M 55A ESC, which runs AM32 firmware and handles 2-6S input with DShot1200 support. On the prop front, the HQProp DP 5x4.3x3 V1S three-blade offers a solid balance of grip and efficiency for freestyle flying, while the T-Motor T5143S is a lightweight option for racing or indoor use.
Browse the full Motors and ESC collection or the Propellers collection for more options across all build sizes.
Frequently Asked Questions
What happens if my ESC is too small for my motor?
The ESC will overheat during aggressive manoeuvres and may shut down mid-flight or fail permanently. Always match your ESC's continuous rating to at least 120% of your motor's peak current draw. If you notice ESCs running hot after a flight, that is a sign you are undersized or over-propped. For more detail on ESC trouble, see our ESC fault diagnosis guide.
Can I use any propeller with any motor?
No. The prop must match your motor's shaft size (typically 1.5mm for micro, 5mm for 5-inch and above) and the KV/voltage combination must keep RPM within a safe range. Over-propping (fitting too large a prop for the motor KV) will push excessive current through the ESC and risk burning out components. If you are experiencing motor issues after changing props, our motor diagnostics article can help.
Does higher KV mean more power?
Not exactly. Higher KV means the motor spins faster per volt, which suits smaller props and lower cell counts. Lower KV motors spin slower but with more torque, making them better for larger props and higher cell counts. Power output depends on the combination of KV, voltage, and prop size, not KV alone.
