Quick Answer
The Holybro Tekko32 F4 ESC combines advanced F4 MCU technology with AM32 firmware for smooth, responsive motor control in FPV drones. Setup involves flashing AM32 firmware via Betaflight, connecting telemetry wires, calibrating current sensing, and configuring brake force for optimal performance across 2-6S LiPo batteries.

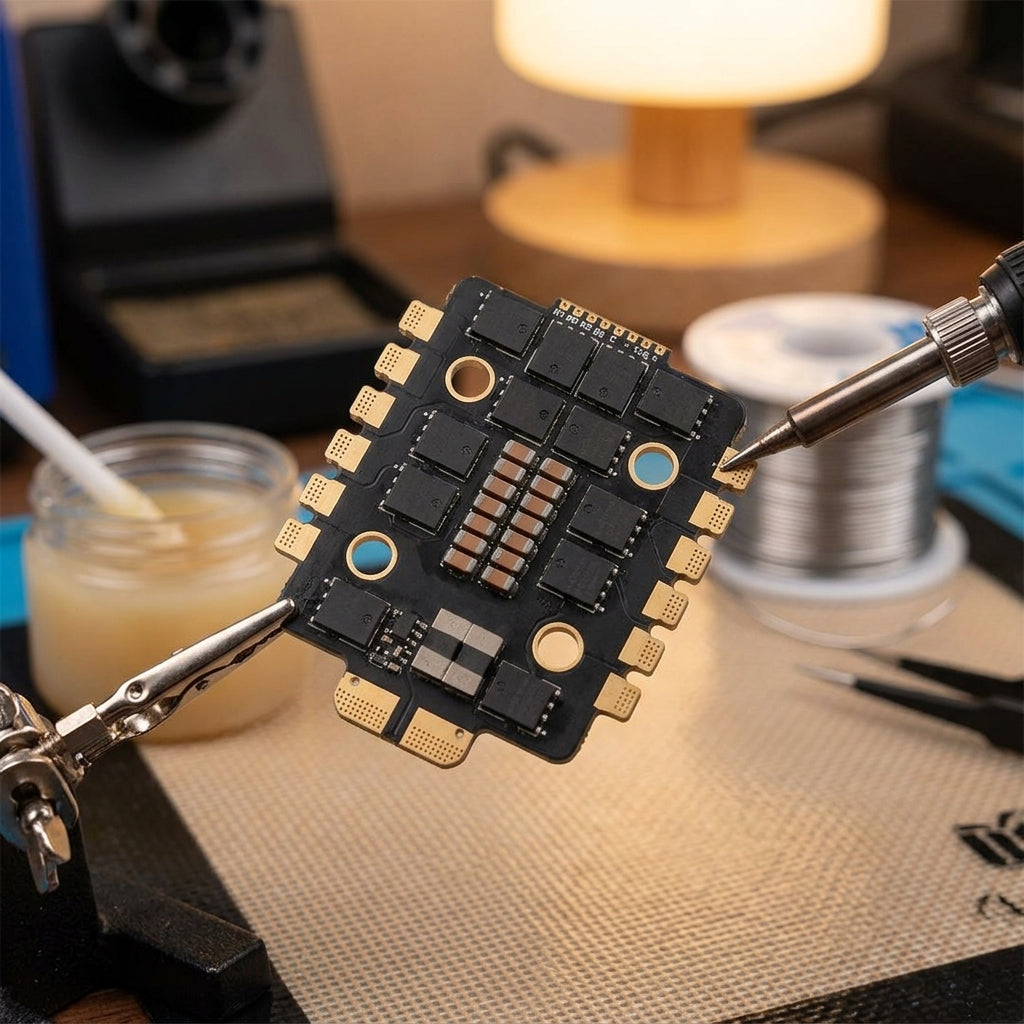

Understanding the Tekko32 F4 ESC
The Holybro Tekko32 F4 ESC represents a significant leap forward in electronic speed controller technology, designed specifically for modern FPV drones that demand precision and reliability. At its core, this ESC utilizes an ARM 32-bit F4 microcontroller unit (MCU) running at 150MHz, which delivers substantially faster processing compared to older F3 (108MHz) and F0 (48MHz) controllers. This increased processing power translates to lower latency input signals, faster response times, and smoother RPM band control – essential for both racing and freestyle flying.
The Tekko32 features separate drive and control circuit design for cleaner signal processing. It supports multiple protocols including DShot 150/300/600/1200, MultiShot, OneShot, ProShot, and PWM, making it compatible with virtually all modern flight controllers and transmitter setups. For builders looking to upgrade their power system, the Holybro Tekko32 F4 ESC offers superior performance compared to older ESC generations.
AM32 Firmware Benefits
What truly sets the Tekko32 apart is its use of AM32 firmware – an open-source alternative to proprietary options like BLHeli_32. Being open-source means it's continuously improved by a community of developers, eliminating licensing fees. Users can inspect, modify, and customize the firmware to suit their specific needs without permission barriers.
AM32 firmware delivers advanced features like variable PWM frequencies, bi-directional DShot telemetry, and sinusoidal startup mode for smoother motor control. The firmware offers customizable brake force settings, timing adjustments, and advanced telemetry options beyond basic ESC functionality. For those interested in upgrading their motor controllers, the Holybro Tekko32 F4 BigFET variant offers even higher current capacity for demanding applications.
Physical Setup and Wiring
The Tekko32 comes in various form factors including 20x20 Mini (7.2g) and standard 30x30 versions (15.6g), with current ratings from 45A to 60A continuous. Mount using anti-vibration silicone grommets to minimise motor vibrations that could affect performance.
Wiring follows standard ESC protocols. The Tekko32 includes onboard analog current sensing for real-time amperage data. Connect the telemetry wire to an appropriate UART on your flight controller – check your specific flight controller's pinout diagram as UART assignments vary by model. When planning your complete power system, consider the standard 50A version for builds requiring higher current capacity.
Firmware Flashing and Configuration
Flashing AM32 firmware is typically done using Serial Passthrough via the Betaflight Configurator or AM32 Configurator web tool. For standard setup, connect the ESC to your flight controller and use the serial flashing method. The AM32 ESC Tool is used for recovery scenarios or when direct serial access isn't available.
Configuration is done through the AM32 Configurator web interface, allowing adjustments to timing, brake force, PWM frequency, and telemetry parameters. For most users, the default settings work well, but experimenting with timing can improve efficiency with specific motor types.
Telemetry Integration
The Tekko32's built-in analog current sensor provides valuable telemetry data that can enhance your flying experience and help monitor your power system health. When properly configured, this data appears in your Betaflight OSD, showing real-time amperage draw, voltage, and estimated flight time remaining.
To enable ESC telemetry in Betaflight, navigate to the 'Configuration' tab and ensure the appropriate UART is selected for ESC telemetry. Then in the 'Ports' tab, enable 'TElemetry' for that UART. For comprehensive troubleshooting guidance, our current sensor guide explains advanced telemetry techniques.
FAQ
Q: What's the difference between Tekko32 F4 and Tekko32 F3 ESCs?
A: The F4 version uses a faster 150MHz F4 MCU compared to the F3's 108MHz processor. This results in lower latency, faster response times, and support for higher PWM frequencies up to 96kHz versus the F3's 48kHz maximum.
Q: Do I need special programming skills to flash AM32 firmware?
A: No, the AM32 ESC Tool provides a user-friendly interface for flashing. The process is similar to flashing BLHeli firmware and requires only basic computer skills and a USB adapter.
Q: Can I use the Tekko32 with 2S batteries?
A: The single ESC version supports 2-6S LiPo configurations, but the more common 4-in-1 F4 Mini and 60A versions are typically rated for 3-6S or 4-6S. Always check your specific ESC's voltage rating before using with lower voltage configurations.
Q: How does AM32 firmware compare to BLHeli_32?
A: AM32 is open-source and community-driven, while BLHeli_32 is proprietary. AM32 offers more customization options and advanced features like sinusoidal startup, but BLHeli_32 may have more polished documentation.
