The X14 Adds 3.2g. What Does It Actually Fix?
Quick Answer
Choose the Happymodel X14 for a new 75-85mm 1-2S analogue whoop when 16MB blackbox logging and more UARTs justify a 3.2g weight increase. Do not buy it merely for UART ExpressLRS: the 5.1g X12 ELRS Pro already has a separately flashable serial receiver.
“X12” Describes Two Different ELRS Designs
Our catalogue contains three names that search results often collapse into one board. The original Happymodel X12 ELRS 5-in-1 AIO uses an SPI receiver tied to the CRAZYBEEF4SX1280 Betaflight target. The later X12 ELRS Pro V1.1 keeps the STM32F411 flight processor but adds an ESP32 and UART-based ELRS that can be flashed over Wi-Fi.

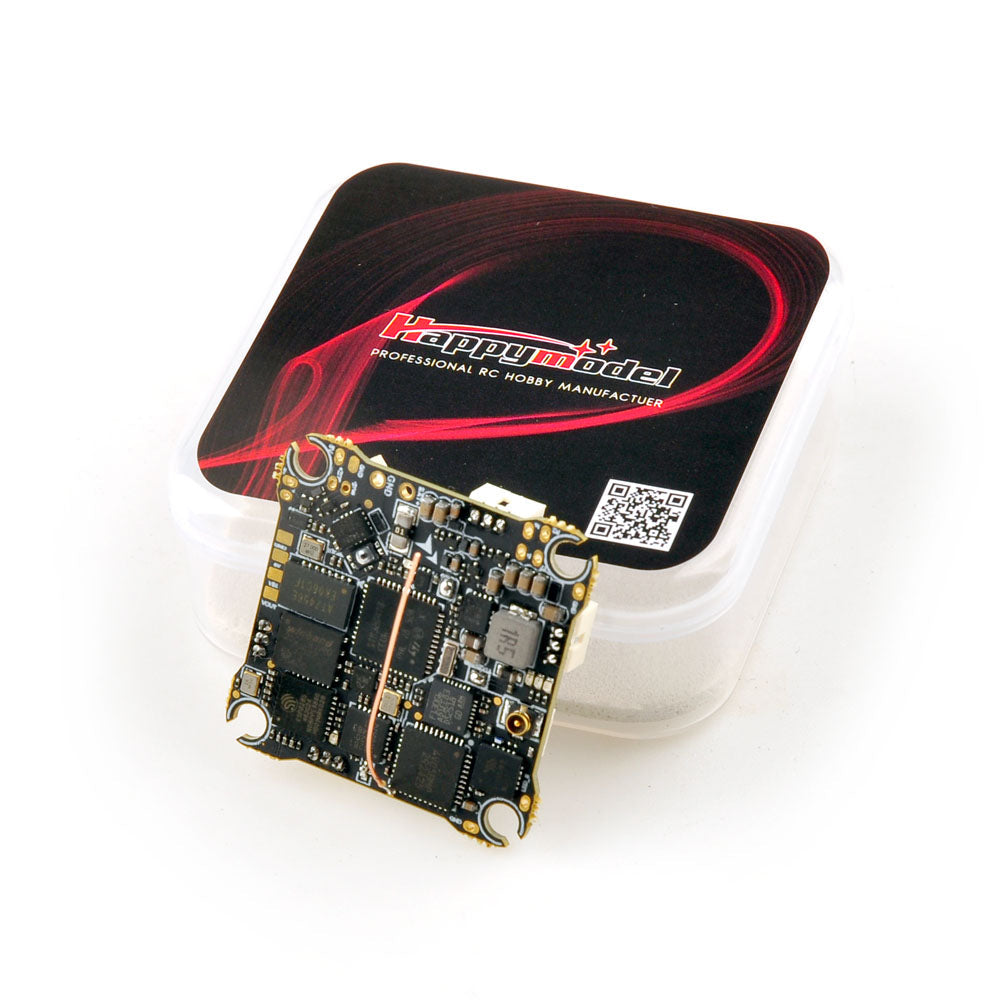

The Happymodel X14 ELRS 5-in-1 AIO is Happymodel’s stated successor to the X12 Pro. Its meaningful changes are the STM32G473 MCU, 16MB blackbox memory and four listed UARTs—not simply the move from SPI to serial ELRS, because the Pro had already made that move.
All three accept 1-2S batteries, use a 25.5×25.5mm mounting pattern, combine 12A four-in-one ESCs with analogue OSD, and include 5.8GHz OpenVTX rated up to 400mW. Our X14 listing still carries “X12 Lite” in its legacy URL, but the visible title, images and specification identify X14 hardware; buy by the product title, not the handle.
| Feature | X14 | X12 Pro V1.1 | X12 ELRS V2 |
|---|---|---|---|
| MCU | STM32G473CEU6 | STM32F411CEU6 | STM32F411CEU6 |
| ELRS connection | Serial/UART, Wi-Fi flashable | Serial/UART, Wi-Fi flashable | SPI, coupled to Betaflight |
| Blackbox | 16MB | Not listed | Not listed |
| Listed board weight | 8.3g without pigtail or VTX antenna | 5.1g | 5.1g |
| ESC and input | 12A continuous, 1-2S | 12A continuous, 1-2S | 12A continuous, 1-2S |
| Analogue VTX | OpenVTX, up to 400mW | OpenVTX, up to 400mW | OpenVTX, up to 400mW |
When 3.2g Matters More Than Blackbox
The X12 Pro remains the sharper weight-first choice on paper. It gives you UART ELRS, Wi-Fi receiver updates and the same mounting, current and headline video-power figures at 5.1g. For a light analogue build that needs no extra peripherals or onboard logging, we would not add 3.2g just to own the newer name.
The original SPI X12 still makes sense as a like-for-like repair, but check the exact receiver architecture and firmware target first. Current ExpressLRS documentation says SPI limitations depend on the Betaflight version: 4.5.1 and newer add F500 and F1000, while D-mode and Full Res rates remain unsupported. Do not diagnose a binding fault until transmitter and receiver packet modes match.
What We Would Actually Buy
For tuning, fault diagnosis or a build needing spare serial connections, we would choose X14. The 16MB log and named UART allocation have practical value over the aircraft’s life. For minimum board weight with independently updateable ELRS, we would choose X12 Pro instead; that is the comparison most product summaries miss.
Our flight-controller collection includes less integrated boards if you need digital video or replaceable modules. Read our AIO versus stack explanation before changing the electronics layout, and use our UART wiring guide if peripheral capacity is driving the upgrade.
FAQ
Q: Is every Happymodel X12 an SPI ELRS board?
A: No. The older X12 ELRS V2 listing is SPI, while the X12 ELRS Pro V1.1 uses serial/UART ELRS with separate Wi-Fi firmware updates.
Q: Is the X14 a direct X12 replacement?
A: The boards share the 25.5×25.5mm pattern and 1-2S brief, but confirm connectors, pinout, battery lead and firmware target before treating an AIO swap as plug-and-play.
Q: Can the X14 run digital video?
A: Its integrated transmitter is 5.8GHz analogue OpenVTX. Choose hardware designed around your digital air unit rather than paying for an analogue VTX you will not use.
