Quick Answer
Use 12 AWG silicone wire for XT60 battery leads on 6S builds (up to 45A continuous), and 14 AWG for XT30 leads on smaller quads (up to 30A). Signal wires can be 20-26 AWG. Undersized power wire is the most common fire risk we see in customer builds, and it is entirely preventable.
The Melted Wire on Our Bench
A customer sent us a 5-inch freestyle quad for repair. The build looked clean: tidy solder joints, proper XT60 connector. But the 16 AWG power leads from the battery pad to the PDB had fused their insulation together under load. Five more flights and that wire would have shorted against the carbon frame.
The cause was simply wire too thin for the current. A 6S 1300mAh pack at full throttle on 2306.5 motors pulls over 80A burst. Sixteen AWG silicone is rated for roughly 18A continuous. We see this weekly. Builders spend hours picking motors and tuning PIDs, then run thin wire from the battery to a 100A-rated PDB. The PDB handles it. The wire cannot.
AWG Sizes and Current Ratings
AWG (American Wire Gauge) works backwards: smaller number, thicker wire. Here is what we use, based on clamp meter measurements on real builds.
12 AWG (2.05mm): Battery leads on 5-inch+ builds with XT60/XT90. Handles 40-45A continuous, 60A burst. Minimum for any 6S build drawing over 30A sustained.
14 AWG (1.63mm): Battery leads on 3-4 inch builds with XT30 connectors. Carries 25-30A continuous. Our go-to for ESC-to-motor wires.
16 AWG (1.29mm): FC-to-VTX power runs, micro build battery leads. Rated for 15-18A. Never use as a main battery lead above 3S.
20-28 AWG: Signal wires, camera, GPS. Milliamps, not amps.
Silicone vs Everything Else
Every power wire in an FPV build should be silicone insulated. Not PVC, not whatever came in a random electronics kit. Silicone stays flexible after hundreds of bends, resists heat up to 200°C, and does not stiffen in cold weather. We fly year-round in the UK, and PVC wire that was supple in July turns rigid and crack-prone by December.

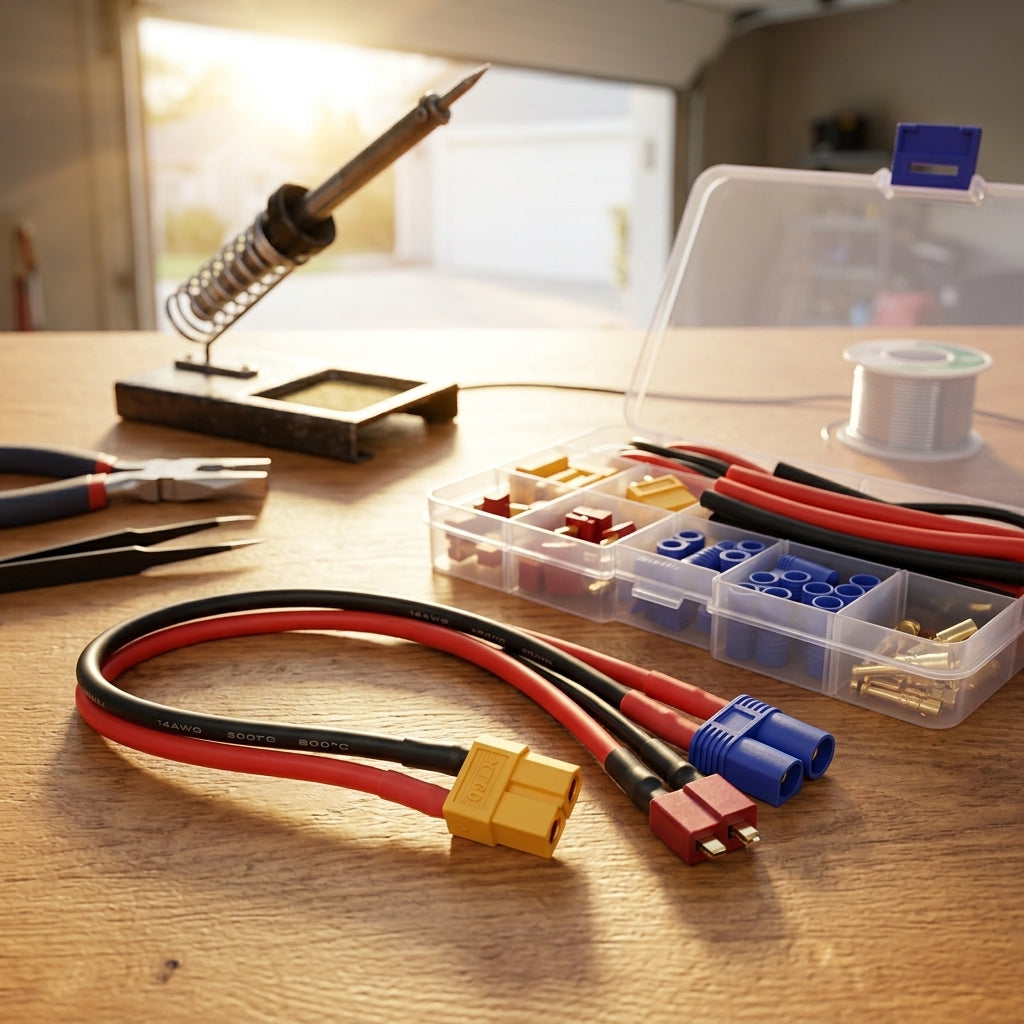

PVC melts at 80-105°C. A battery pad solder joint can exceed that during heavy throttle. We have seen PVC melt back, expose bare copper, and short against adjacent pads. Under CAA rules, a drone fire from negligent construction could void your insurance cover. Our battery connector set with pre-cut silicone wire includes correctly-gauged wire matched to each connector rating.
Common Gauge Mistakes
Matching gauge to connector size, not current draw. XT30 is rated for 30A, but that does not mean 16 AWG is fine. If your motors pull 30A sustained, use 14 AWG. The connector rating is a ceiling, not a recommendation.
Ignoring wire length. Resistance increases with length. On long-range rigs or cinewhoops with top-mount batteries, step up one gauge. We use 12 AWG on all 7-inch builds regardless of cell count.
Reusing old wire. Wire that has been heated, bent, and resoldered has degraded insulation and work-hardened copper. Fit new wire when rebuilding. The cost is negligible compared to replacing a burnt power distribution board or entire frame.
What We Would Actually Use
Most forum threads recommend 14 AWG for 5-inch builds. We think that is too thin for 6S. A 2306.5 motor on 6S pulls 20-25A each. Four through one battery lead is 80-100A burst. Fourteen AWG handles 25-30A. That is a gamble.
For 5-inch freestyle on 6S with XT60: 12 AWG battery lead, 14 AWG motor wires. For a 3-inch toothpick on 4S with XT30: 14 AWG battery lead, 16 AWG motors. If unsure, go one size thicker. Thicker wire adds a gram. Undersized wire adds a fire. See our connectors range for pre-made leads, and our power distribution guide for PDB and BEC selection.
FAQ
Q: Can I use 14 AWG wire with an XT60?
A: You can physically fit it, but not for anything pulling over 25A sustained. XT60 is rated for 60A. Use 12 AWG. See our battery connector ratings guide for the full breakdown.
Q: Does wire gauge affect flight performance?
A: Yes. Undersized wire causes voltage sag under load. Stepping from 14 AWG to 12 AWG on a high-current build reduces sag by 0.1-0.2V at the FC, translating to crisper throttle response.
Q: What about wires pre-attached to ESCs and motors?
A: Typically sized correctly by the manufacturer. If extending motor wires, use the same gauge. Never splice thinner wire into a motor run. Our wiring guide covers the full process.
Q: How do I identify unlabelled wire gauge?
A: Measure the conductor diameter (excluding insulation) with calipers. 12 AWG is 2.05mm, 14 AWG is 1.63mm, 16 AWG is 1.29mm. Silicone insulation is thicker than PVC, so the overall diameter will be larger.
