Quick Answer
A smoke stopper sits between your battery and your FPV drone when you power on for the first time. If there is a short circuit, it limits or cuts the current before components fry. It costs less than a coffee and has saved hundreds of pounds of electronics on our workshop bench.
Why We Never Power On Without One
Every build that leaves our workshop gets its first power-up through a smoke stopper. No exceptions. We have seen a reversed ESC wire melt a flight controller pad in under two seconds. We have watched a stray motor wire strand bridge two pads and kill a VTX instantly. Without one, that is your flight controller, ESC, or video transmitter gone before you can unplug the battery.
The "magic smoke" nickname sounds harmless. That wisp means you have vapourised a component costing more than the smoke stopper would have. We keep a jar of dead boards in the workshop as a reminder. Most died on first power-up.
What It Actually Catches
Here are the faults we see most on our bench, all of which a smoke stopper saves you from:
Solder bridges between adjacent pads. The most common culprit. You tin two pads close together and a microscopic blob bridges them. Visually invisible, electrically fatal.
Reversed polarity. Plugging a JST connector backwards or wiring positive to ground. Happens more often than anyone admits.
Stray wire strands. One strand curls back and touches an adjacent pad when you push the connector home.
Manufacturing faults. Occasionally a brand new ESC presents as a dead short out of the box. Without protection, this cascades into everything on the same power rail.
What it will not catch: a connection feeding voltage to the wrong pin without shorting (like 5V into a 3.3V pad). For those, a digital multimeter is your second line of defence. Keep both in your tool kit.
Bulb vs Electronic: What We Use
The traditional approach uses a 12V automotive bulb (21W) in series with the battery. The filament limits current. Cheap but fragile, and it still passes some current before the filament saturates.

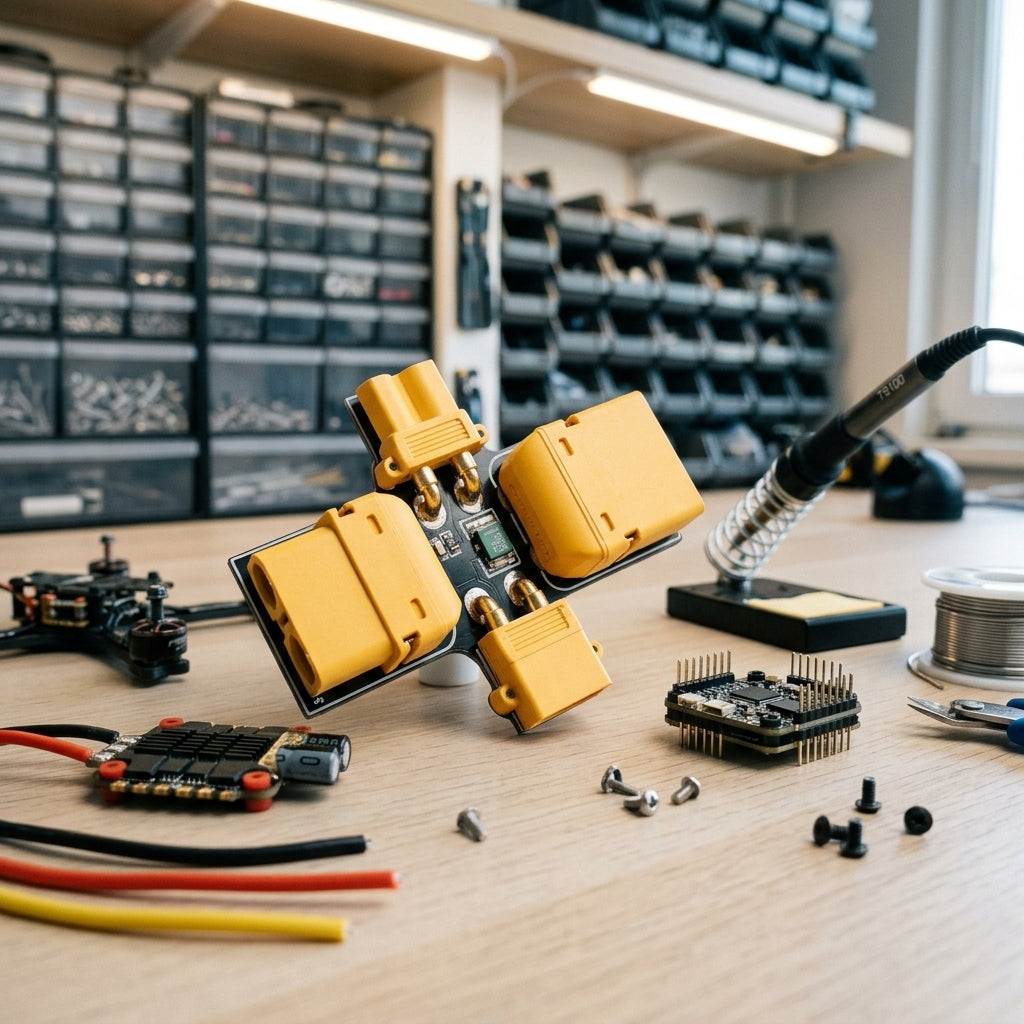

Electronic smoke stoppers use a PTC resettable fuse. When current exceeds the trip threshold, resistance spikes and throttles flow to near zero. The Amass smoke stopper we stock handles 1S through 6S, has XT60 and XT30 connectors, and resets itself once the fault clears. No bulbs to replace, no glass to break in your field kit.
We use the electronic type exclusively in the workshop. It reacts faster than a filament, covers a wider voltage range, and fits in a pocket.
The Workshop Routine
Here is our exact sequence on every new build or repair involving wiring changes:
First, remove all propellers. Non-negotiable. If the FC is misconfigured and motors spin, you do not want props attached.
Second, connect the smoke stopper between battery and drone. Power on.
Third, watch and listen. If the FC boots normally, wiring is sound. If the smoke stopper trips (the LED shows a fault on the electronic type), disconnect immediately and hunt the short with your multimeter.
Fourth, once the drone passes, run through our full bench check routine: motor direction, receiver channels, OSD, and arm test. We also use a smoke stopper after any soldering on the power rail. For more on wiring pitfalls, see our FPV wiring guide and our breakdown of build mistakes after 200 repairs.
FAQ
Q: Do I need a smoke stopper if I am experienced?
A: Yes. The gap between pads on some flight controllers is under 1mm. Even experienced builders create solder bridges. We have been building for years and still use one every time.
Q: Can I make my own with a car bulb?
A: You can. A 12V 21W automotive bulb wired in series works as a current limiter. But the electronic type is faster, more compact, self-resetting, and covers a wider voltage range.
Q: My smoke stopper tripped. What now?
A: Disconnect the battery. Set your multimeter to continuity mode and probe between positive and negative pads on the FC and ESC. Look for solder bridges, stray strands, and check connector orientation. Fix the short, then re-test before connecting the battery directly.
