DJI Goggles 3 vs N3: The Compatibility Trap Before You Buy

DJI Goggles 3 vs N3: The Compatibility Trap Before You Buy

Quick Answer

Choose DJI Goggles 3 if you need one headset for O3 and O4 Air Units; choose Goggles N3 if you only need O4 and want to keep your prescription glasses on. Goggles 3 uses dual micro-OLED panels at up to 100Hz, while N3 uses one wider 3.5-inch 60Hz LCD.

DJI Goggles 3 vs N3: Start With Compatibility

The DJI Goggles N3 can look like a simpler version of the Goggles 3, but that shortcut leads to the wrong purchase. N3 is an O4-only headset; Goggles 3 also supports the O3 Air Unit after a firmware update.

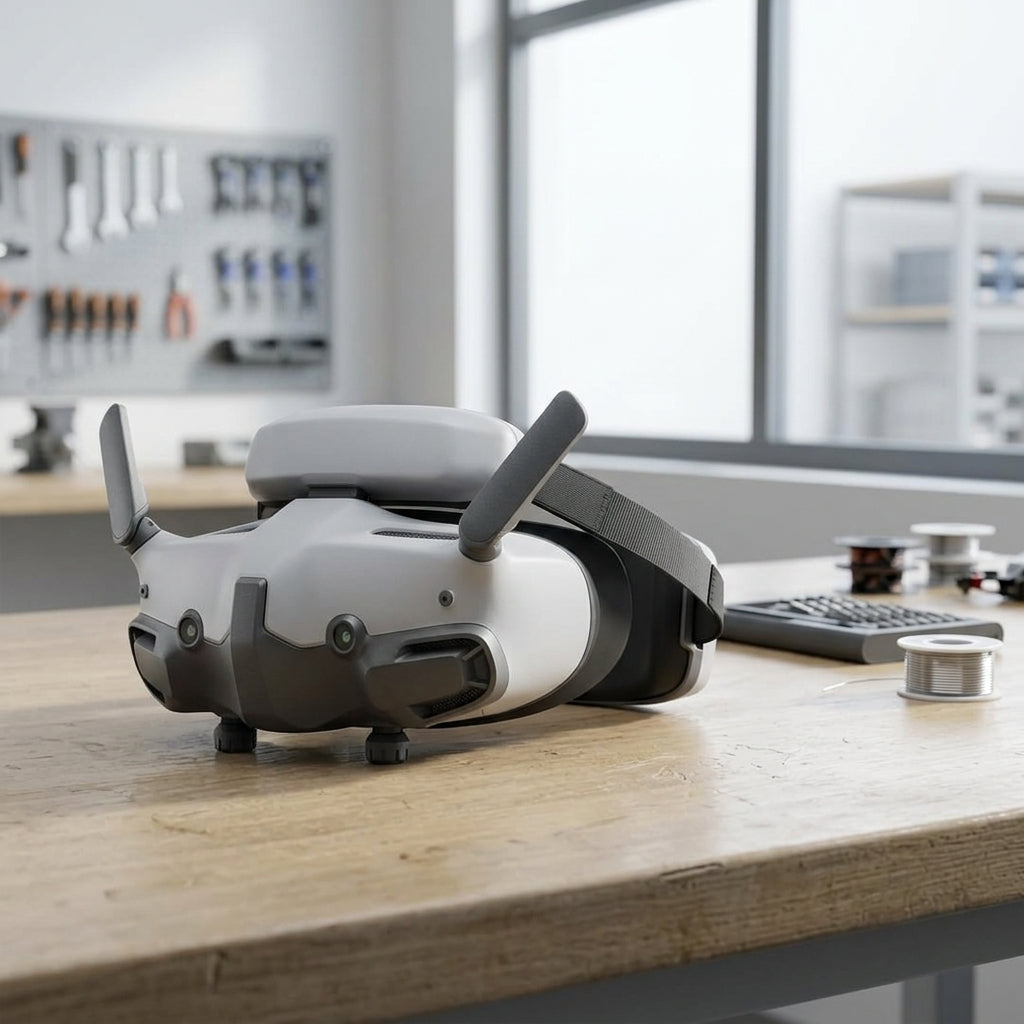

DJI Goggles 3 with folded antennas and integrated forehead pad
Goggles 3 adds dual micro-OLED panels, adjustable IPD and dioptres, Real View PiP and O3 support.
Specification DJI Goggles 3 DJI Goggles N3
Display Dual 0.49-inch micro-OLED Single 3.5-inch LCD
Resolution 1920×1080 per eye 1920×1080 single screen
Refresh rate Up to 100Hz 60Hz
Field of view 44° 54°
Published Avata 2 latency Minimum 24ms Minimum 31ms
Complete weight About 470g About 536g
Vision adjustment 56–72mm IPD; −6.0D to +2.0D No IPD or dioptre adjustment; fits over glasses
Extra features Real View PiP and Wi-Fi One-Tap Defogging

The Current Compatibility Matrix

DJI currently lists N3 for Avata 2, Neo, Neo 2 and the O4 Air Unit Series. Neo 2 needs its optional Digital Transceiver for goggles use. Goggles 3 adds the O3 Air Unit, Air 3 and Mini 4 Pro on compatible current firmware. The matrix separates video from control: an ELRS receiver is not part of the goggles link.

Aircraft or video system Goggles 3 Goggles N3 Control requirement
O4 Pro or O4 Wide Air Unit Yes Yes ELRS or another separate receiver works; DJI control uses FPV Remote Controller 3
O4 Air Unit Yes Yes ELRS or another separate receiver works; DJI control uses FPV Remote Controller 3
O3 Air Unit Yes, after firmware update No Use the aircraft's receiver or a supported DJI controller
DJI Avata 2 or Neo Yes Yes RC Motion 3 or FPV Remote Controller 3 for the goggles pairing
DJI Neo 2 with Digital Transceiver Yes Yes RC Motion 3 or FPV Remote Controller 3
DJI Air 3 or Mini 4 Pro Yes No Use a supported camera-drone controller
Analogue, Walksnail, HDZero or OpenIPC No No Use goggles made for that video system

Neither headset receives analogue, Walksnail, HDZero or OpenIPC. Our analogue versus digital FPV explanation and FPV goggles collection cover those alternatives.

A 60-Second Compatibility Check

  1. Read the transmitter name, not the drone brand. An O3 Air Unit rules out N3; any O4 Air Unit works with either headset.
  2. Separate video from control. A custom O3 or O4 quad can keep its ELRS receiver and radio. DJI's FPV Remote Controller 3 is an alternative control link, not a requirement for receiving video.
  3. Check camera-drone pairings separately. Both headsets work with Avata 2, Neo and a Neo 2 fitted with its optional Digital Transceiver. Air 3 and Mini 4 Pro are Goggles 3 pairings; DJI says their live feed moves to Goggles 3 rather than remaining on the RC 2 screen.

Use this order before comparing display quality or glasses fit. Firmware can add pairings, but it cannot turn N3 into an analogue or third-party digital receiver.

DJI Goggles N3 single-screen headset with integrated headband battery
N3 trades O3 compatibility and dual OLED panels for a wider single-screen view that accommodates prescription glasses.

What We Would Buy

For Avata 2, Neo, Neo 2 or a new O4-only build, N3 is the practical value choice, especially for glasses wearers. For custom FPV, existing O3 aircraft or the sharper 100Hz view, we would buy Goggles 3. Do not choose N3 in the hope that a future firmware release will add O3.

Both headsets work with an O4-equipped BNF such as the Pavo20 Pro II. Its ELRS receiver remains the control link; the goggles receive video. The DJI FPV Remote Controller 3 is only needed if you choose DJI control rather than a separate receiver.

For more context, see our full FPV goggles buying guide, O4 Pro, O4 and O3 comparison, and O4 Air Unit setup guide. Browse complete FPV drones only after checking the fitted video system.

FAQ

Can Goggles N3 connect to an O3 Air Unit?

No current DJI compatibility list includes O3 support for N3. Goggles 3 is the option for both O3 and O4.

Which headset has better range?

The headset is not the deciding factor. With Avata 2, DJI publishes 13km FCC and 10km CE for both. For custom builds, DJI publishes 8km CE for O4 Pro/Wide and 6km CE for O4. These unobstructed test limits are not practical or legal flight targets.

Can I use ELRS with either headset?

Yes. The O3 or O4 system carries video while your ELRS receiver and radio carry control. Configure and test each link separately.
