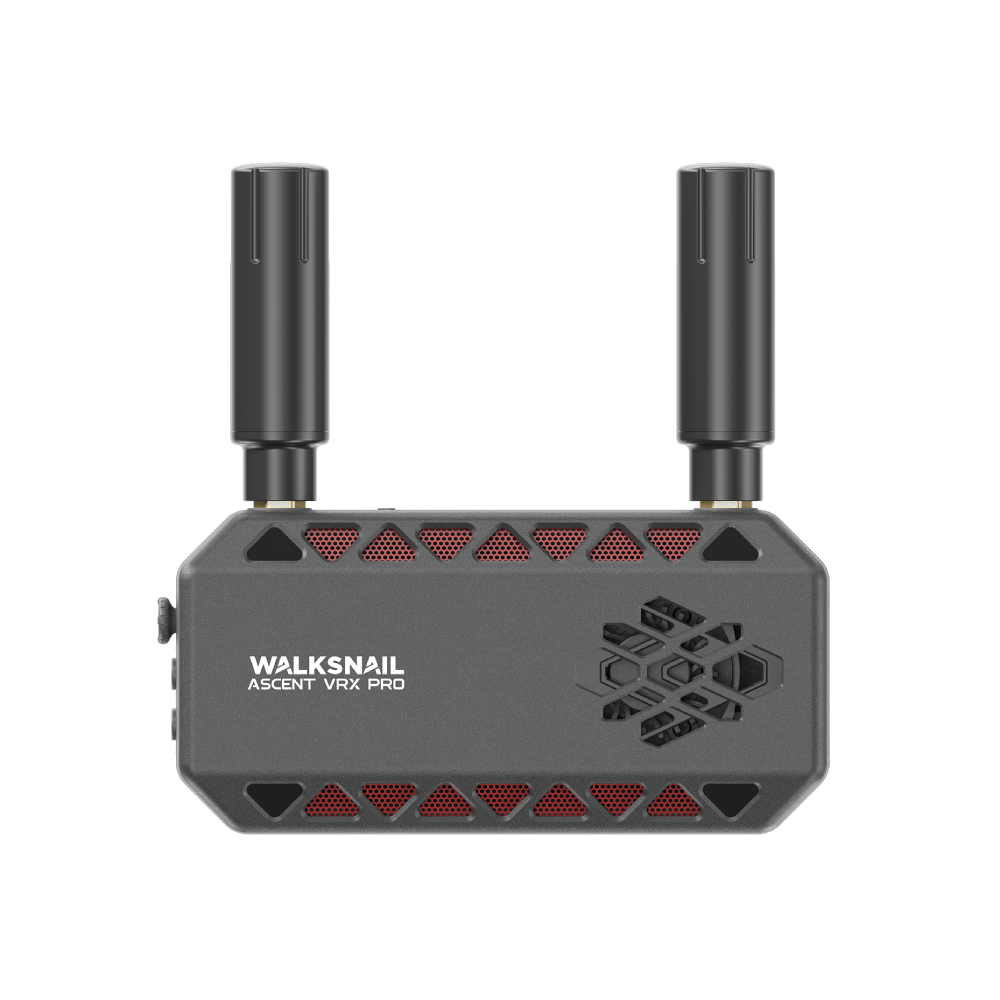

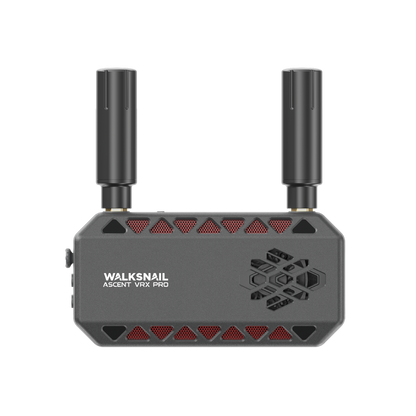

Walksnail Ascent FPV VRX Pro Receiver

Still clinging to analog static like it is 2015, or did your current video receiver catch fire? Welcome to the Walksnail Ascent FPV VRX Pro. Here at Unmanned Tech, we have spent ten years in the UK FPV scene separating actual kit from overhyped garbage. This standalone 5.8GHz digital receiver pumps buttery-smooth 1080p/120fps HD video straight into your favourite HDMI-capable FPV goggles, ground station, or external display. Dual 2.8dBi antennas guarantee stable digital reception, while built-in UVC output lets your mates spectate your sketchy flying live on a smartphone. Stop making excuses for blurry feeds—plug in 2S-6S power and join the digital master race.

Highlights

• Stable Dual-Antenna Reception

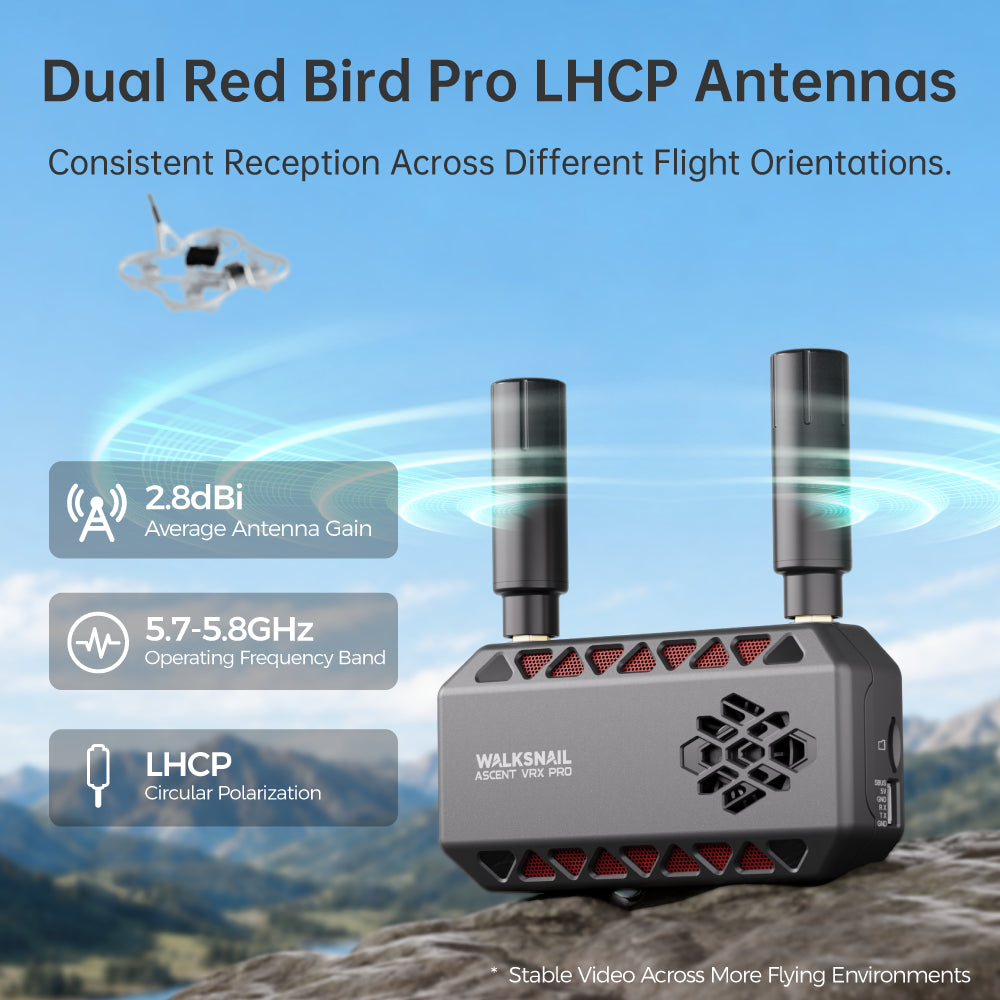

  Two 2.8dBi circularly polarized antennas provide broader reception coverage and help maintain a stable digital video link

• Sharp Detail Smooth Motion

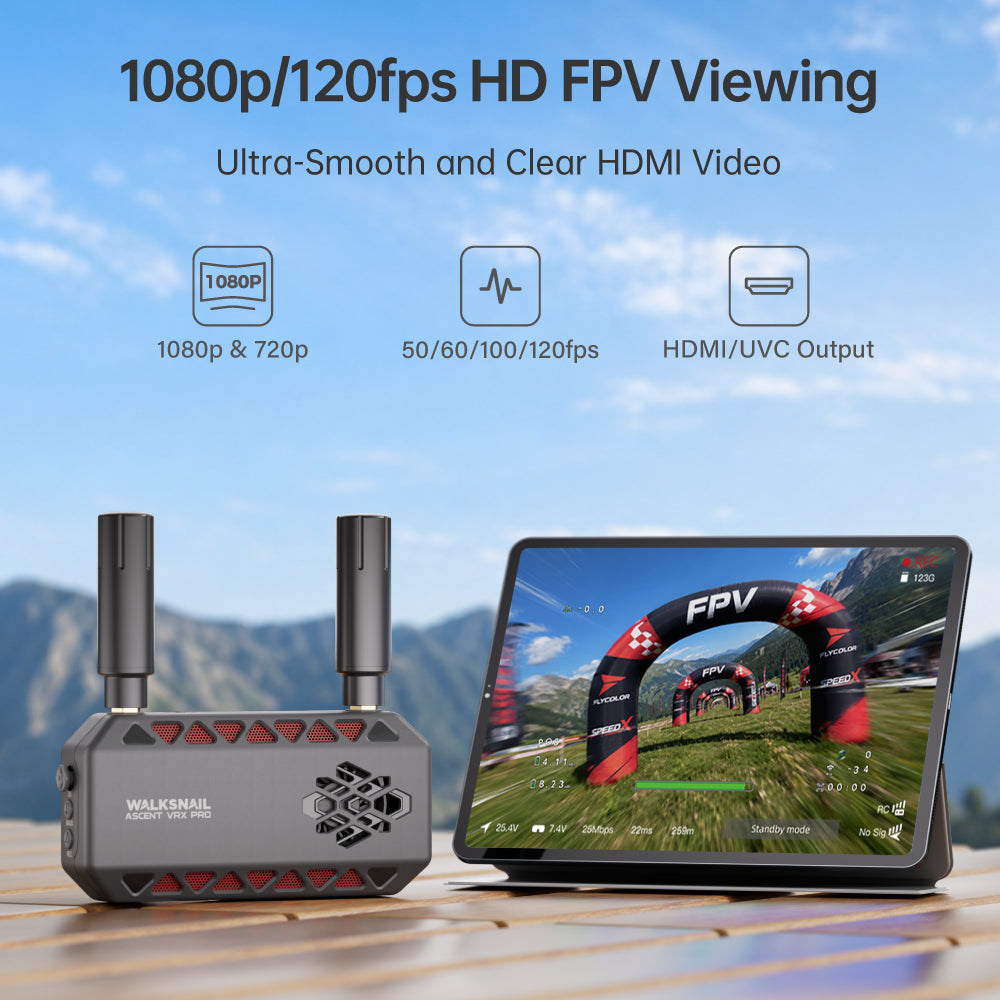

  Enjoy full HD video at up to 1080p/120fps for crisp detail and smooth motion during fast-paced action. Multiple video modes let you choose the right settings for your FPV setup

• Smart Connectivity & Control

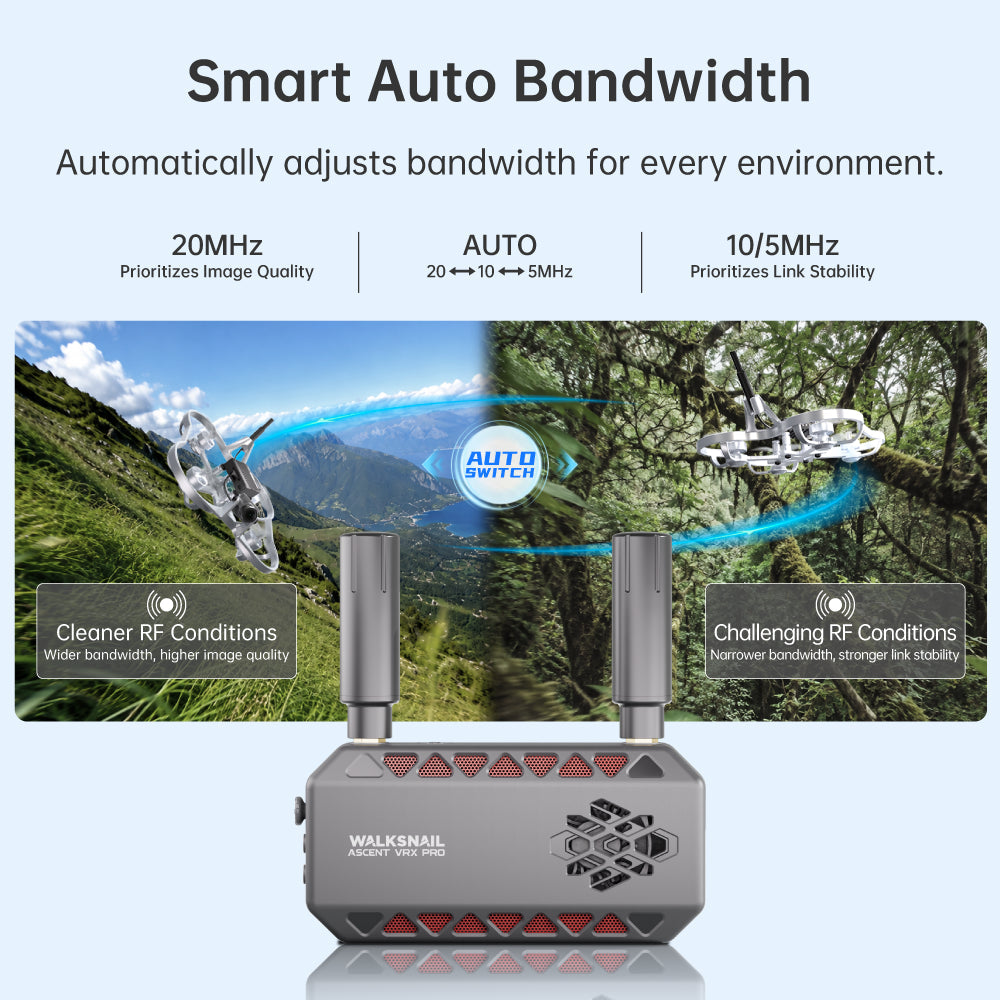

  HDMI and UVC output, adaptive bandwidth, OSD recording, and live audio support give you more ways to view, share, capture, and manage your FPV feed

• Portability & Reliability

• Expand Your FPV Experience

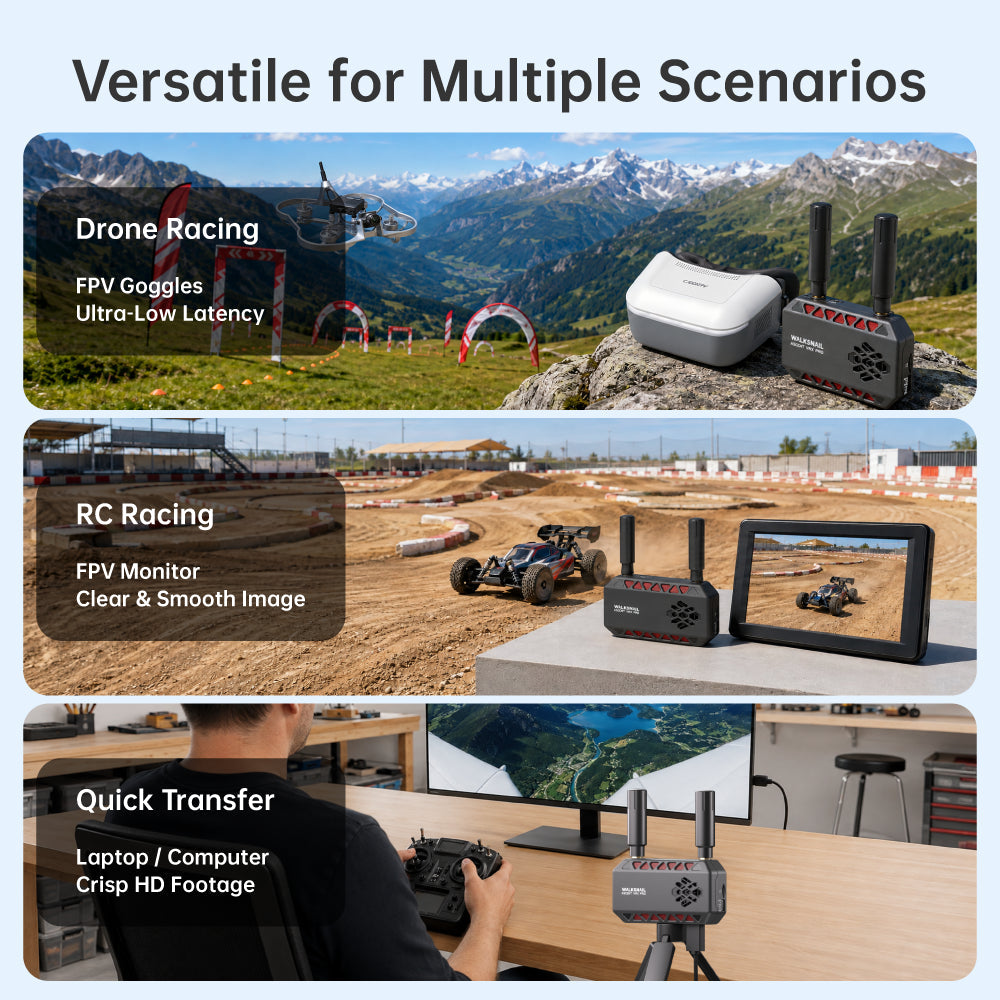

  Bring clear, smooth digital FPV video to RC cars, FPV drones, and fixed-wing aircraft—all with one versatile receiver

Why You Want It

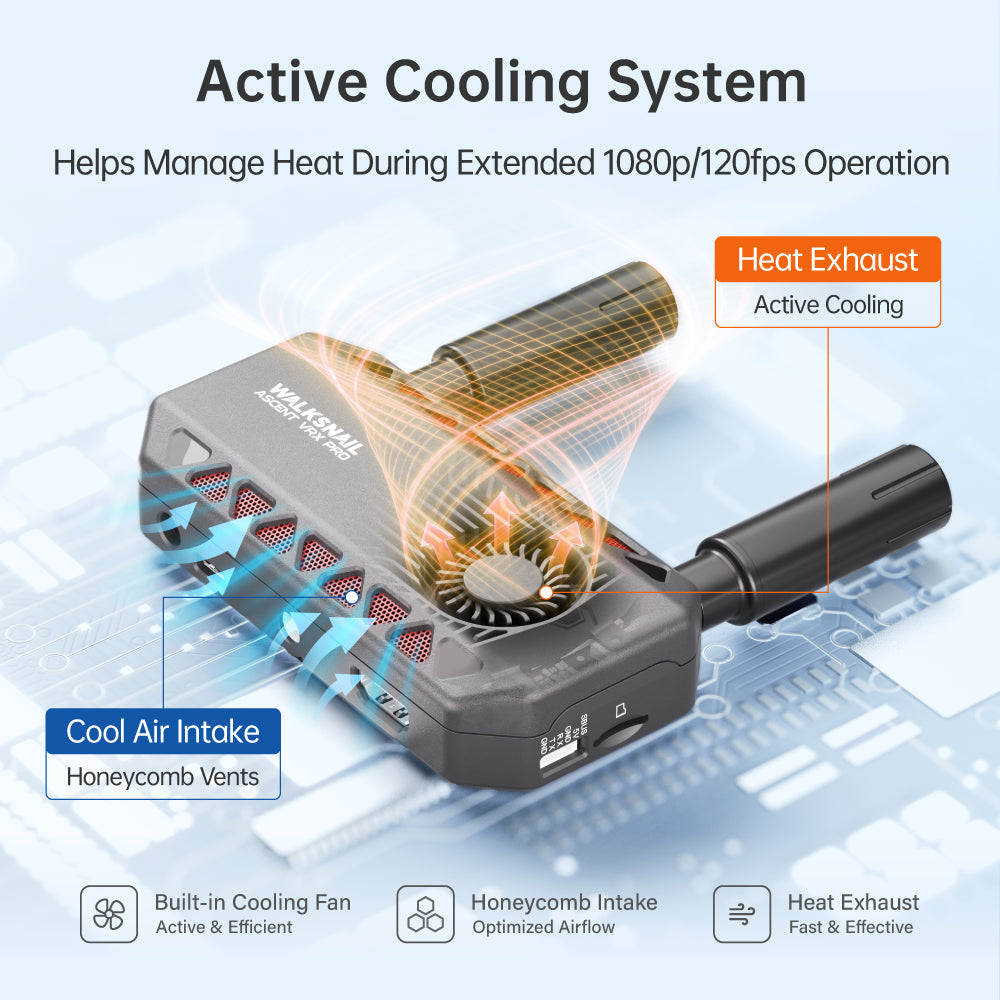

Upgrading to Walksnail Avatar digital video doesn't mean binning your trusty modular goggles. The Ascent VRX Pro gives you top-tier digital image quality, live audio, and broad 7.4V-25.2V power compatibility in a compact active-cooled unit. It is the cheapest way to ditch analog interference without mortgaging your house for whole new digital goggles.

Specs

• Model / SKU: Ascent VRX Pro / WN02-FP028
• Communication Frequency: 5.725 - 5.829 GHz
• Transmitter Power (EIRP): FCC/SRRC: <30dBm; CE: <14dBm
• Power Input Range: DC 7.4V - 25.2V (2S-6S LiPo compatible)
• I/O Interfaces: HDMI, MicroSD Card Slot, DC 5.5x2.1mm, SH1.0 6-Pin, USB Type-C
• HDMI Output Resolutions: 1080p @ 50/60/100/120fps, 720p @ 50/60/100/120fps
• Storage: MicroSD card slot (Up to 256GB supported)
• Antennas: Dual 2.8dBi Omni Antennas

FAQ

Will this work with my current FPV goggles?

Yes, provided your goggles have an HDMI input port that accepts standard 720p or 1080p display signals.

How do I power the Ascent VRX Pro module?

Supply direct power using a standard 2S to 6S LiPo battery (7.4V - 25.2V) via the DC 5.5x2.1mm connector.

In the Box

• 1x Walksnail Ascent FPV VRX Pro Receiver Unit
• 2x 2.8dBi 5.8GHz Antennas

Walksnail #DigitalFPV #FPVVRX #FPVDrones #UnmannedTech

What is the FPV VRX Pro?
The FPV VRX Pro is a portable digital FPV receiver that outputs HD video to compatible HDMI-equipped FPV goggles, monitors, and TVs. It supports up to 1080p/120fps viewing, onboard recording, and multiple RC applications.

Does the Ascent FPV VRX Pro support live audio over HDMI?
Yes. With firmware V18.21.10 or later and Ascent Lite+ paired, live audio can be heard through a compatible HDMI display with built-in speakers.

Does the Ascent FPV VRX Pro support audio recording?
Yes. When paired with Ascent Lite+, the FPV VRX Pro supports audio recording at 720p/60fps, 720p/100fps, 720p/120fps, and 1080p/60fps. Audio and video are recorded in sync.

Can I mount the Ascent FPV VRX Pro on Goggles X?
Yes. A dedicated 3D-printable mount file is available for attaching the Ascent FPV VRX Pro to Goggles X. Download the file and print the bracket locally for a clean, secure installation.

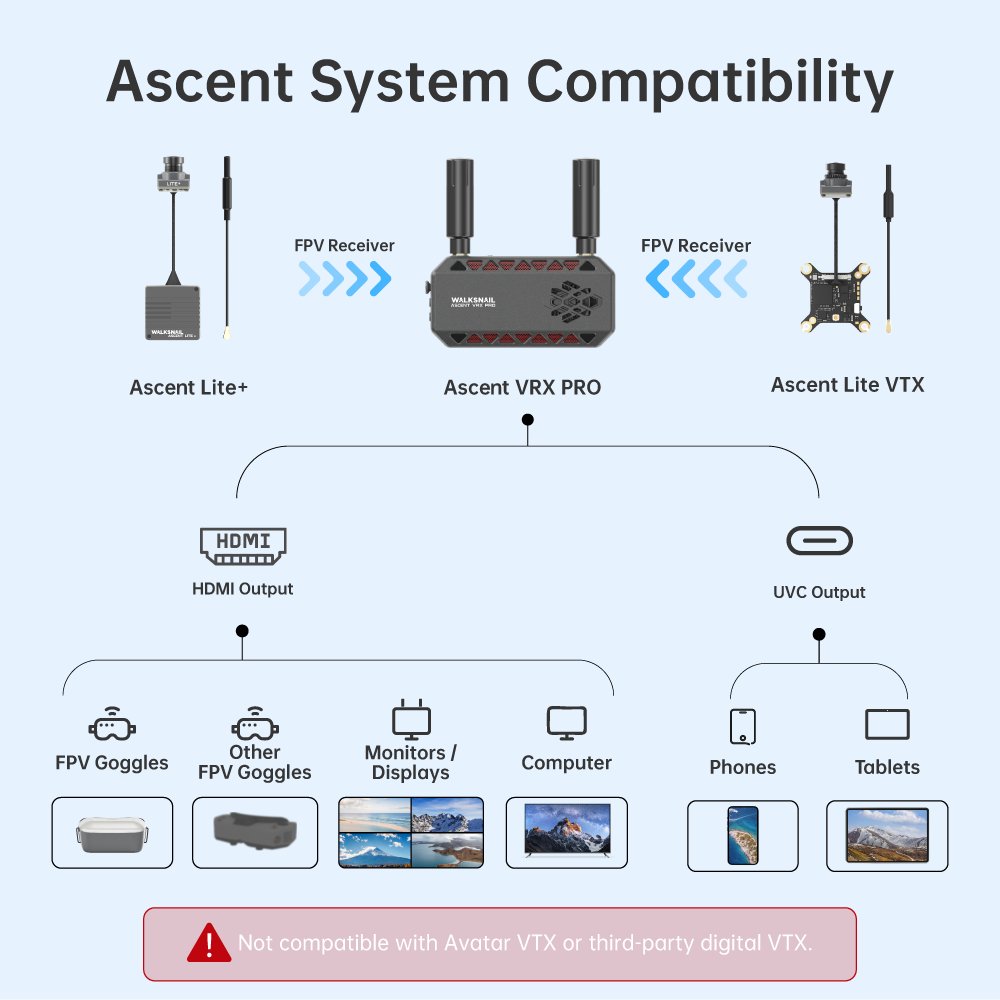

Does the Ascent FPV VRX Pro require an Ascent video transmitter?
Yes. The airborne or vehicle-side unit must use a compatible Ascent video transmitter.

Can it be used with other FPV video transmitters?
No. The Ascent FPV VRX Pro requires an Ascent video transmitter on the transmitting side. Compatibility with analog VTX units or other digital FPV systems is not supported.

Does the FPV VRX Pro support onboard recording?

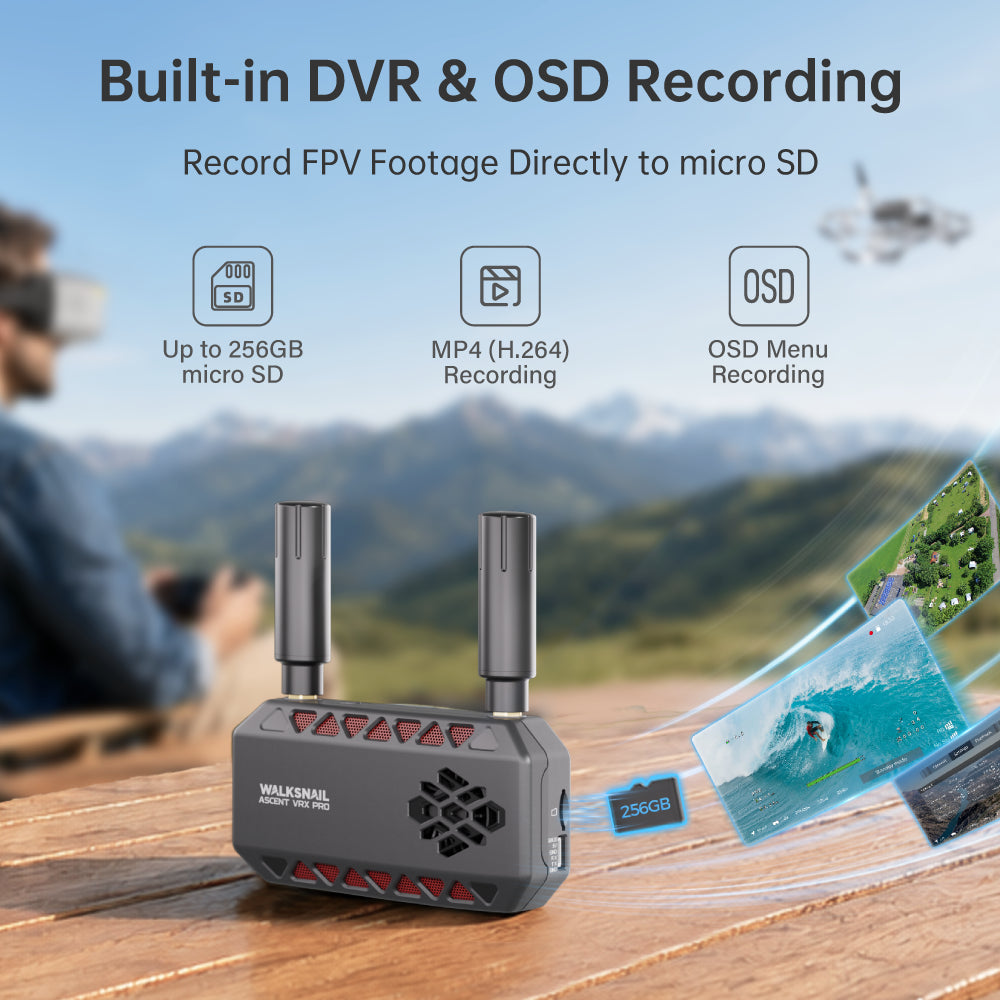

Yes. It can record HD FPV footage directly to a microSD card, allowing you to review and share your footage without an external recorder.

What antennas does the receiver use?
The Ascent FPV VRX Pro features dual 2.8dBi antennas for broader reception coverage and a more stable digital FPV video link.
