Product Details
Specifications
- Brand name: Airbot

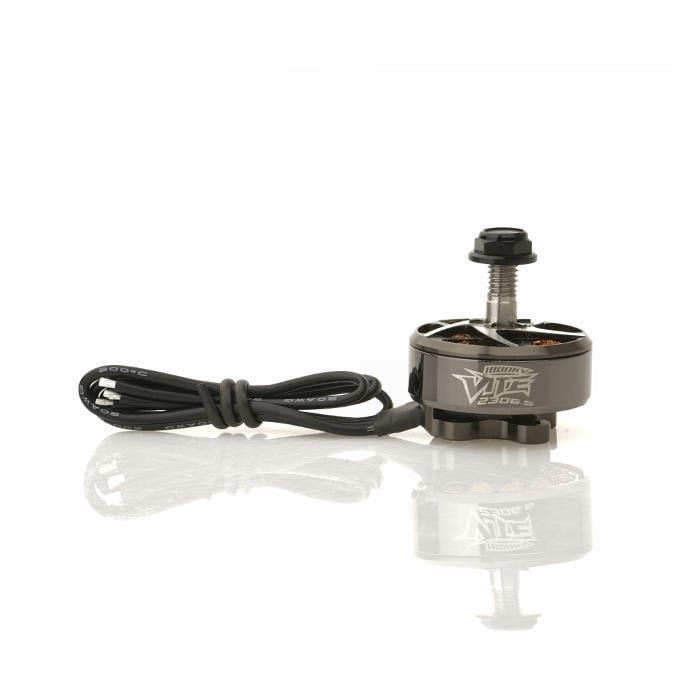

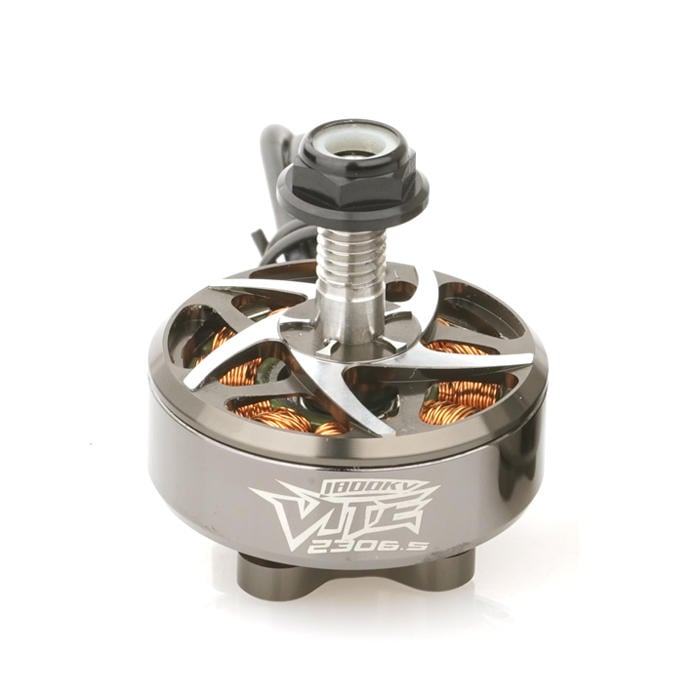

- Item name: VITE 2306.5 Brushless Motor
- KV: 1800/2500

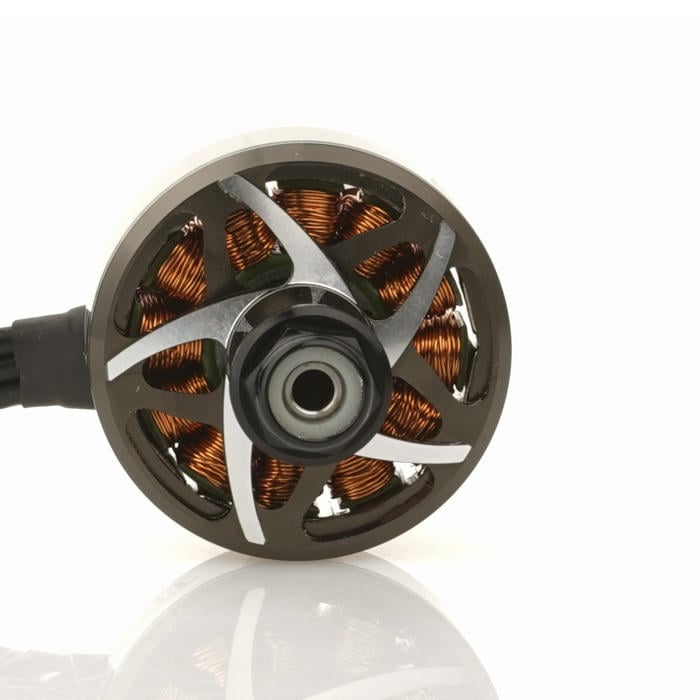

- Configuration: 12N14P
- Stator Diatmeter: 23mm
- Stator Length: 6.5mm
- Shaft Diameter: 4mm (Hollow)

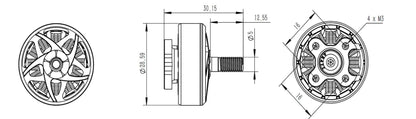

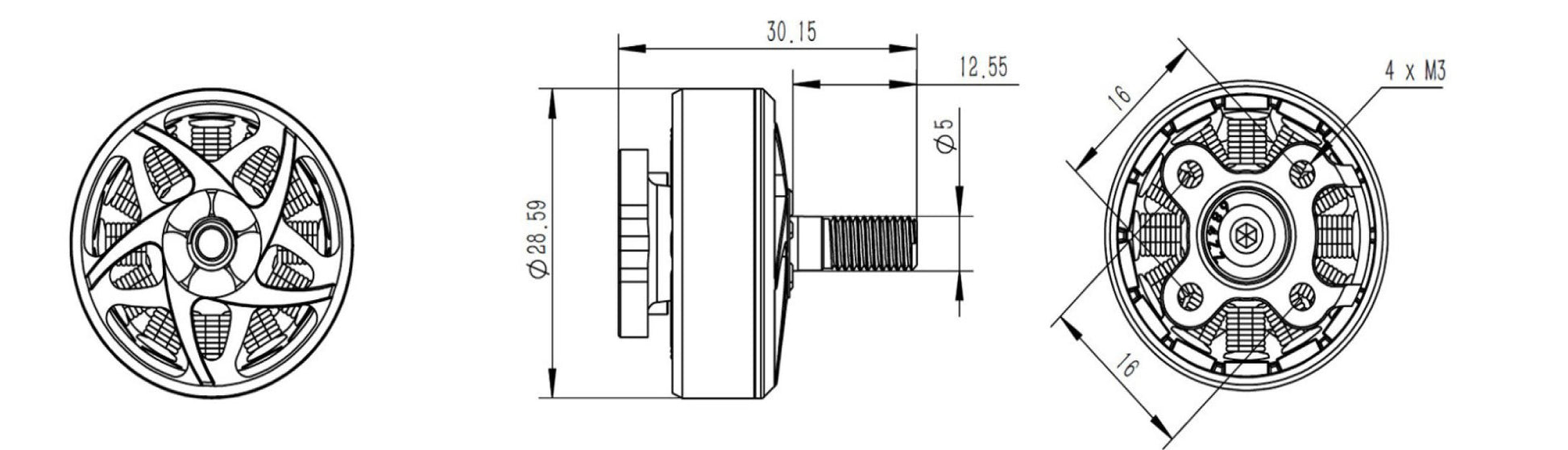

- Motor Dimension(Dia.Len): 28.6x30.15mm
- Weight: 33.5g (3cm Wire)
- Idle current(10)@10V(A): 1.1(1800KV) 2.1(2500KV)
- No.of Cells(Lipo): 5~6S(1800KV) 3~5S(2700KV)
- Max Continous Power(W)180S: 960 (1800KV)
- Max Continous Power(W)15S: 950 (2500KV)
- Internal Resistance: 70mΩ (1800KV)
- Internal Resistance: 40mΩ (2500KV)
- Max Current(30S): 40A(1800KV)
- Max Current(15S): 45A (2500KV)
- Max. Efficiency Current: (3-6A)>85%
Pack Includes:
- 1 x VITE Motor
- 1 x prop nut
