Product Details

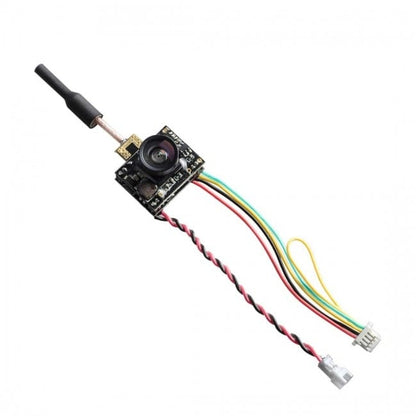

This is a micro all in one FPV camera that has a 25mW - 200mW switchable VTX, giving you unprecedented range and video signal from your tiny whoop drone. The VTX also support smart audio which makes changing the video channel and power a breeze via the OSD menu. Pitmode is also supported making it lead for tiny whoop events.

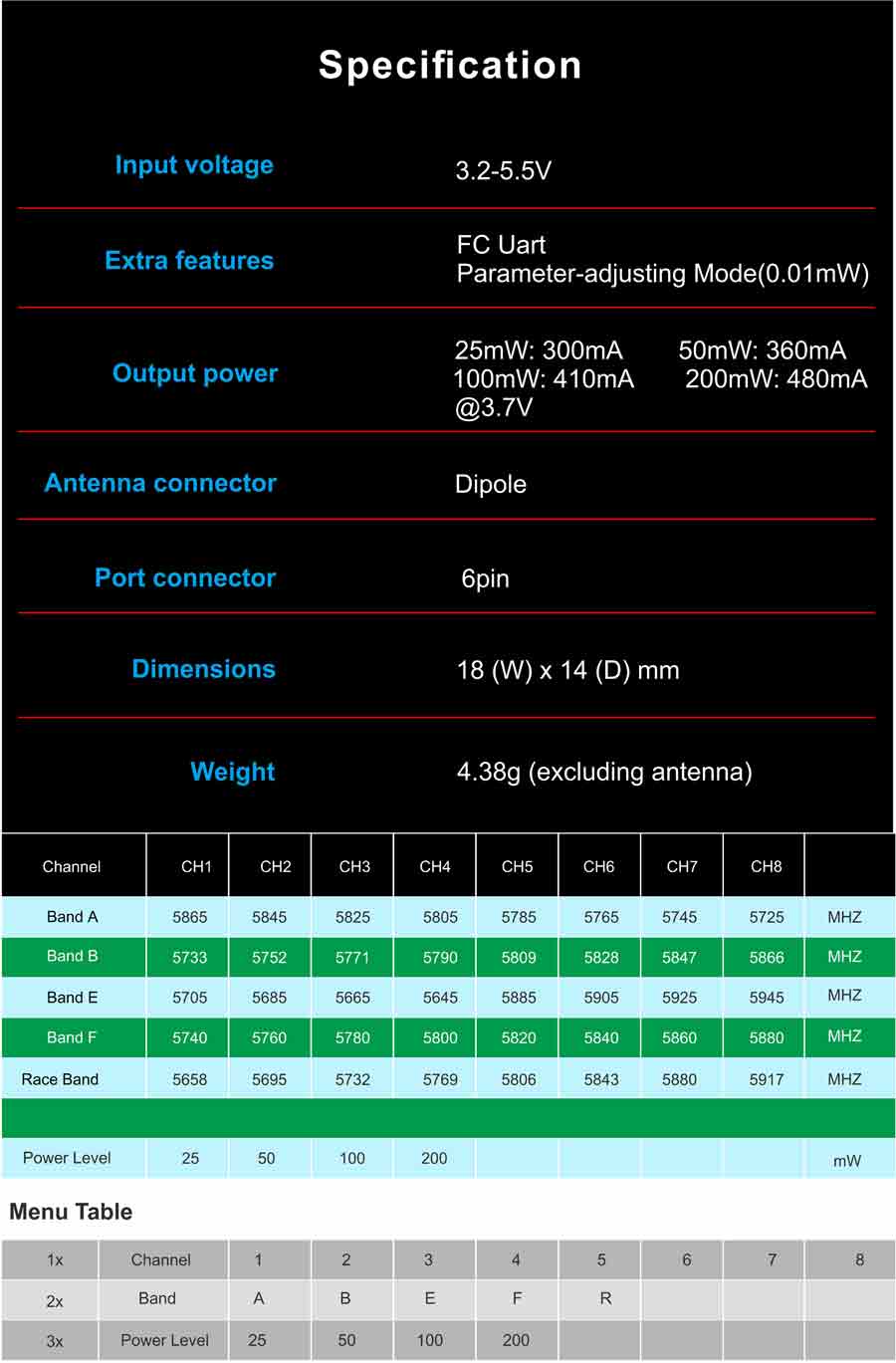

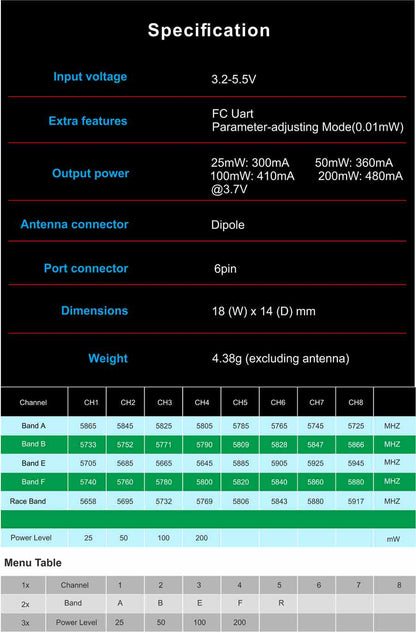

Specifications
-
Output power: 25mW, 50mW, 100mW, 200mW switchable
-
Input power: 3.2-5.5V
-
Current consumption:300-480mA depending on output power
-
Camera resolution: 600TVL
-
Video system: NTSC
-
Mini illumination: 1 lux
-
Field of view: 120°viewing angle
-
Antenna dimensions: 22mm X 29mm diameter
-
Antenna: dipole
-
Frequency: 5.8GHz 5 bands 40 channels,
with Raceband: 5658-5917MHz -

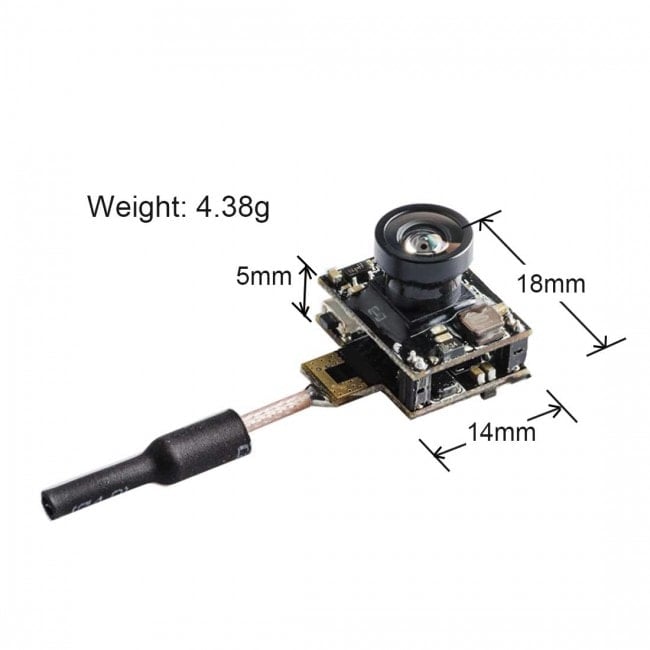

Size: 18mm x 14mm (L*W)
-
Weight: 4.38g (without antenna)
