Product Details

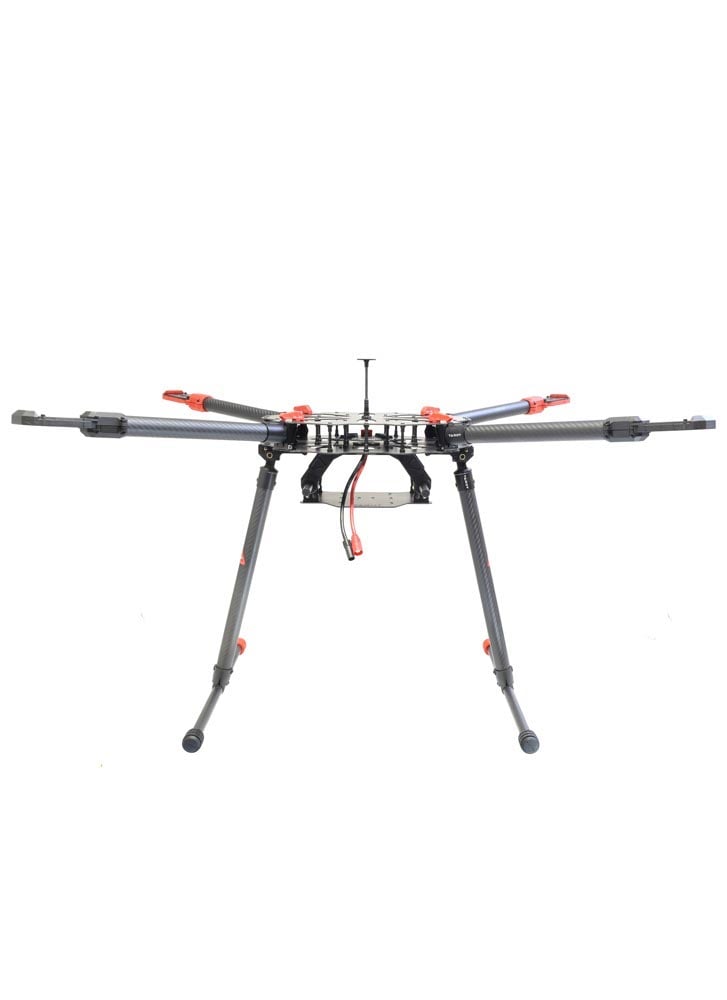

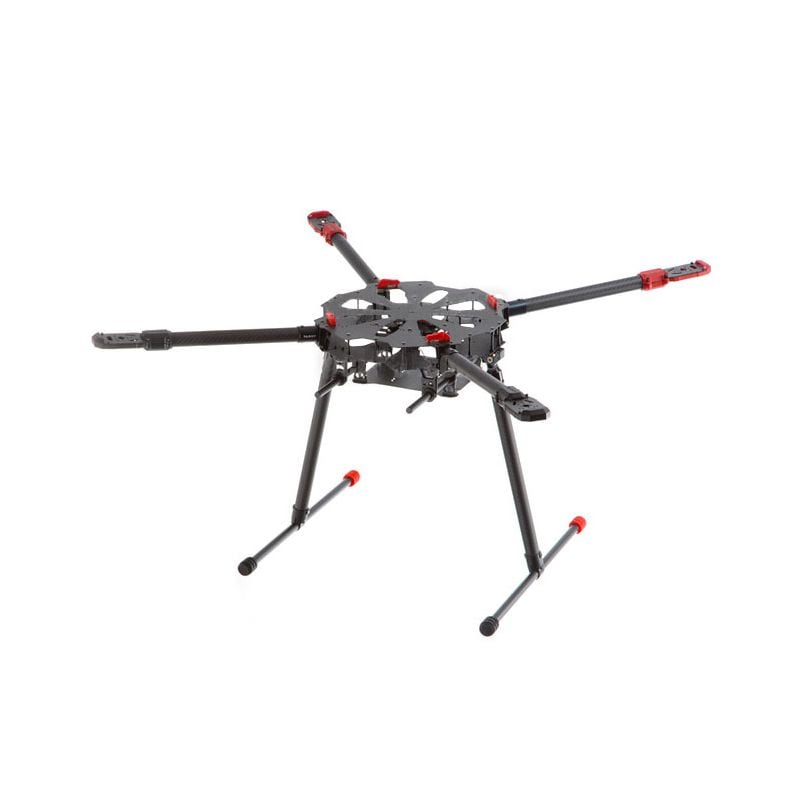

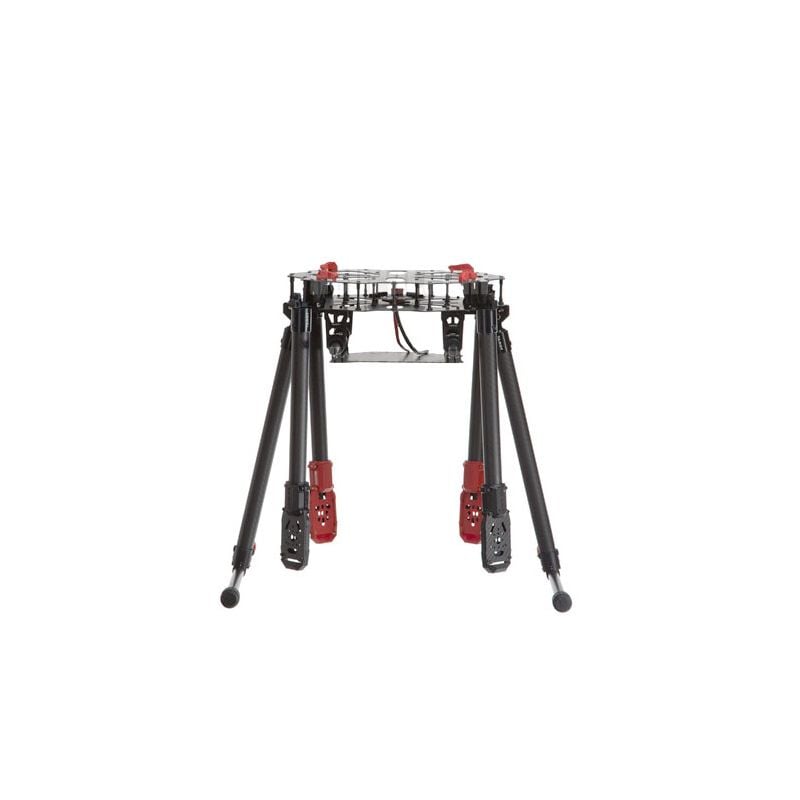

Tarot X4 quadcopter is a heavy lift frame designed for professional use. New electric retractable landing gear and umbrella-type arm combine to enable a wide range of shooting angles and camera motions.
Highly integrated PCB board simplifies the cabling. Adequate space is for all kinds of flight controller and extra sensor installation.
Features:

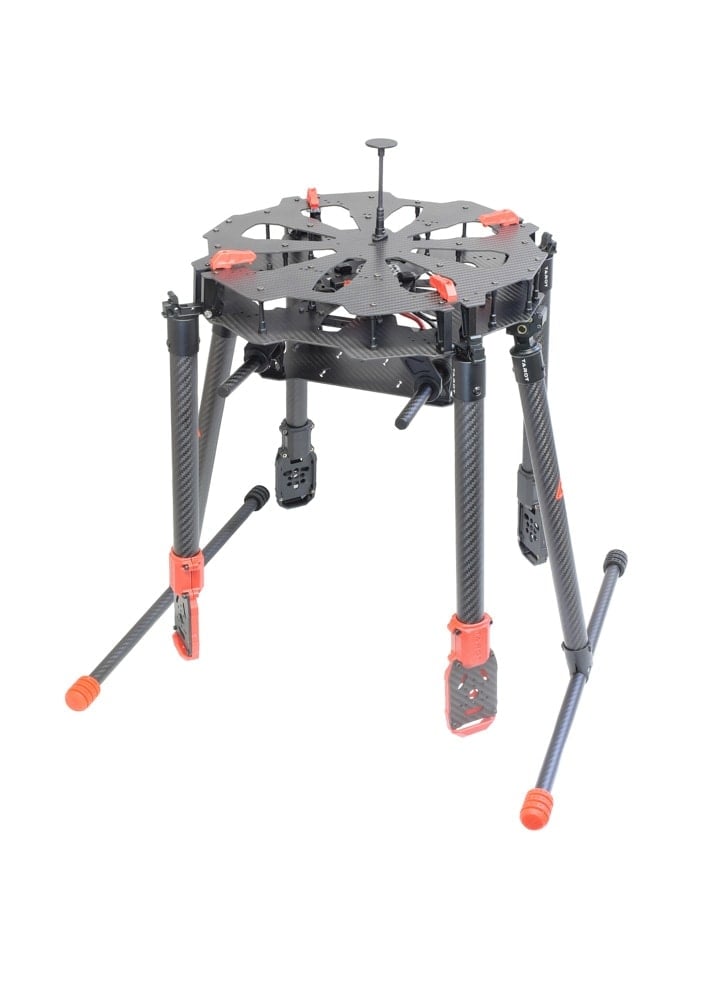

- Umbrella type folding arm
- Integrated PCB cable board

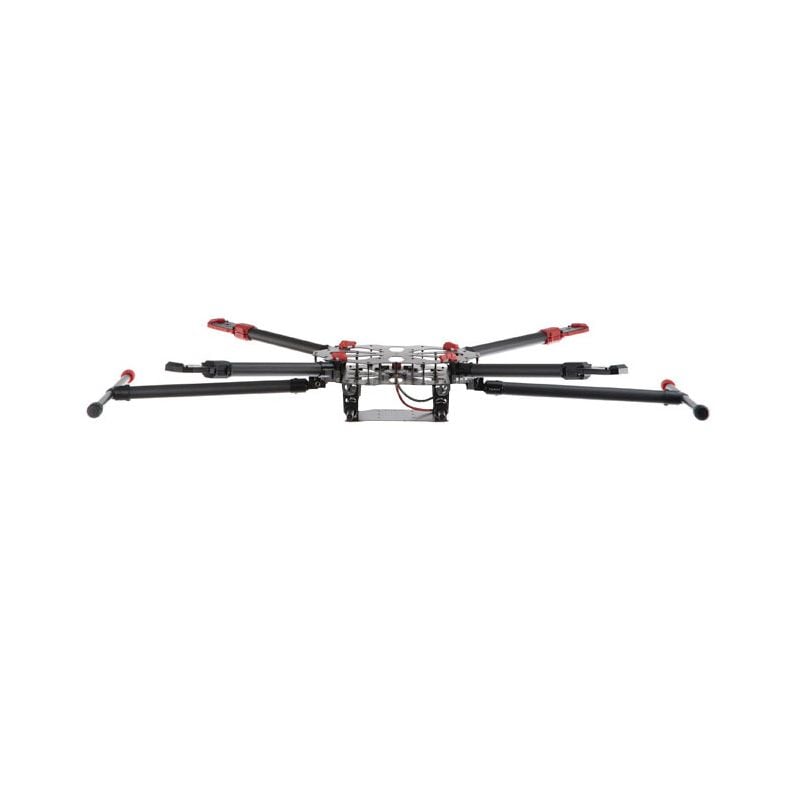

- Downward battery mounting design
- 4-direction arm locking design
- Electric retractable landing gear
- Anti-vibration motor mounting seat
Specifications:
- Wheelbase: 960mm
- Propeller: 22-24inch
- Single arm length: 392mm
- Single arm weight: 113g
- Center plate diameter: 328mm
- Landing gear height: 395mm
- Battery: 15C 22.2V 10000-20000mAh
- ESC : 60A
- Working temperature: -10℃~40℃
- Max.take off weight: 8kg
- Flight time: 42mins(no payload)
- N.W.: 1600g
- G.W.: 2200g
Suggested Electronics
- Pixhawk 2.1 Autopilot (Cube Black/ Orange)
- 6115 Motors 320kV
- 2255 Carbon Fibre Props
- 60A ESC
