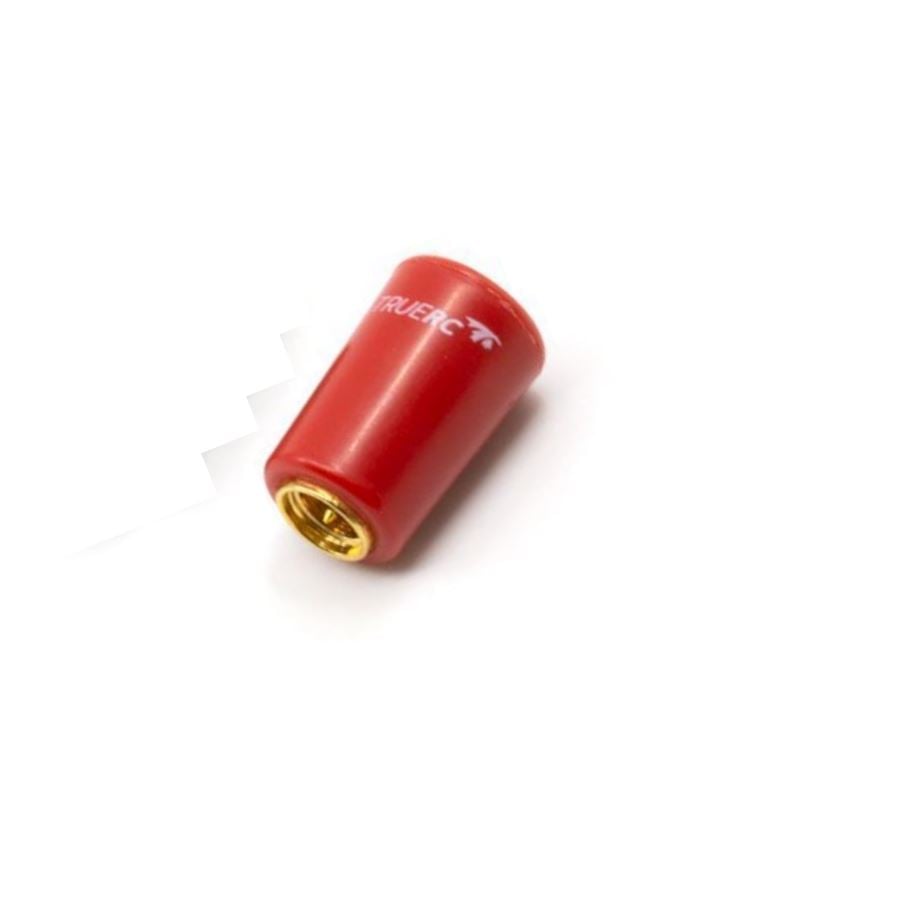

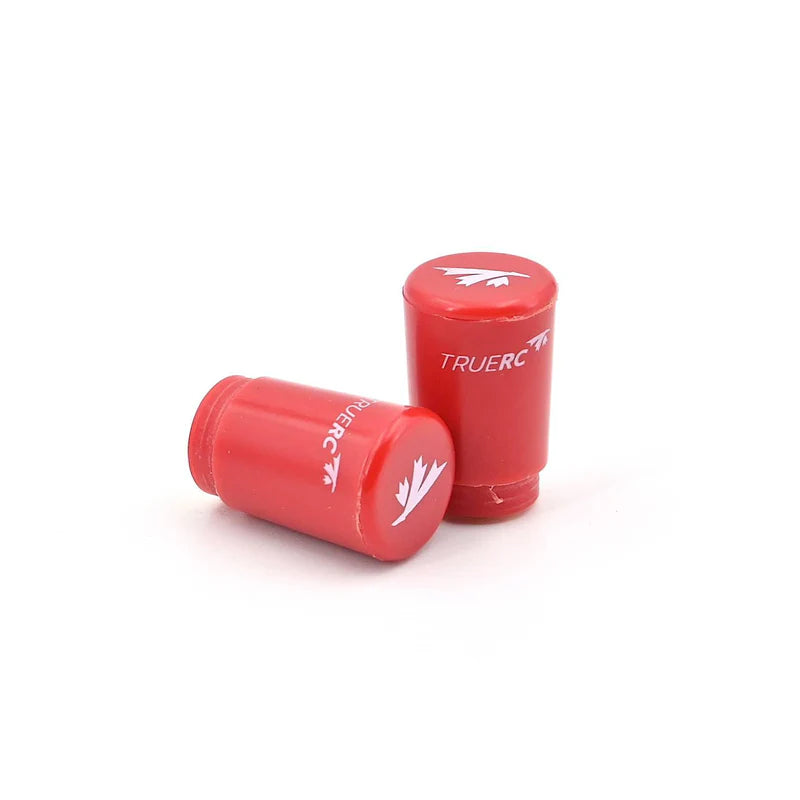

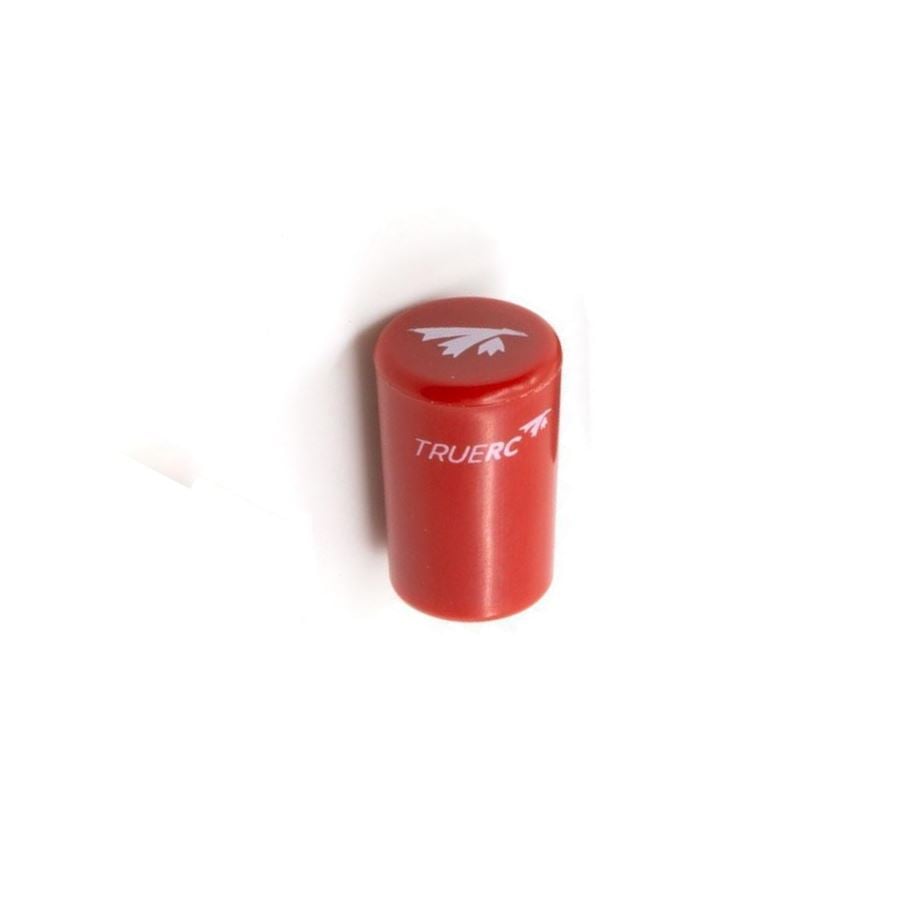

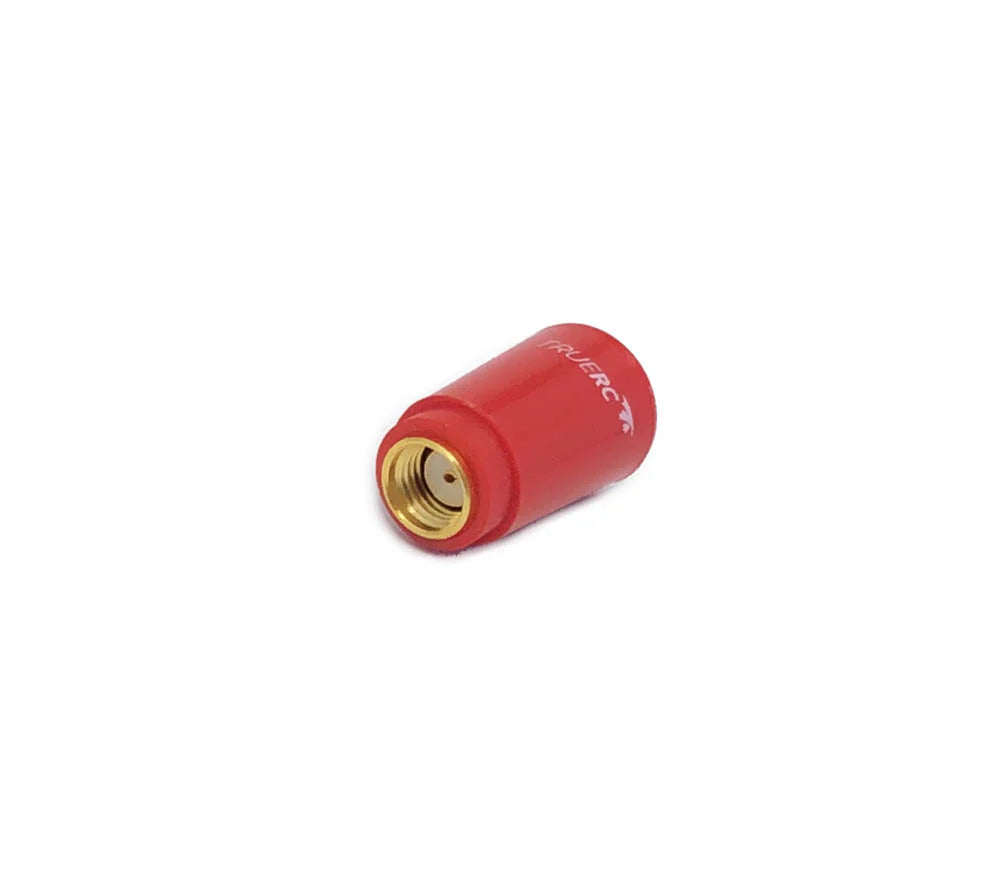

Singularity 5.8 Stubby FPV Antenna (SMA) - Durable & Compact Video Transmitter Antenna
Searching for a high-performance 5.8GHz FPV antenna that combines reliability with a compact design? Look no further than the Singularity 5.8 Stubby Antenna . Based on the popular Singularity design, this stubby antenna version is specifically engineered for FPV pilots who demand durability and a low profile.
The standout feature is its extra-thick, durable case , significantly tougher than the original version. This makes the Singularity Stubby exceptionally crash-resistant , perfect for FPV racing drones and freestyle quads that frequently encounter obstacles (and the occasional unplanned landing!). Its small size ( 12.7mm x 20mm ) reduces the risk of snagging and damage during flight or transport.
Despite its compact form, the Singularity Stubby delivers excellent performance. With 1.9dBi gain , outstanding Radiation Efficiency (99%) , and very low SWR (<=1.5:1) across the 5.6GHz-6.0GHz bandwidth , you get a clear and reliable video signal. Available in both RHCP (Right-Hand Circular Polarization) and LHCP (Left-Hand Circular Polarization) , ensure you choose the correct option to match your goggles or receiver antenna for optimal cross-polar rejection (-15 to -30dB).
Weighing only 3.7 grams and featuring a standard SMA connector , this lightweight VTX antenna is an easy upgrade for most FPV video transmitters. Get the signal clarity you need in a package built to last.
Key Features:
- Stubby Form Factor: Compact and low-profile design reduces drag and snagging.
- Extreme Durability: Features an extra-thick casing for enhanced crash resistance.
- Proven Singularity Performance: Reliable 5.8GHz signal transmission.
- High Efficiency: 99% radiation efficiency for minimal signal loss.
- Low SWR: Ensures efficient power transfer from your VTX.
- Lightweight: Weighs only 3.7 grams.
- Polarization Options: Available in RHCP or LHCP.
- Standard SMA Connector: Compatible with many FPV video transmitters.
Specifications:
- Gain: 1.9dBi
- Polarization: RHCP or LHCP (Selectable option)
- Cross-Polar Rejection: -15 to -30dB (1.9%)
- Bandwidth: 5.6GHz - 6.0GHz
- Radiation Efficiency: 99%
- SWR: <=1.5:1
- Weight: 3.7 g
- Size: 12.7mm (Diameter) x 20mm (Height)
- Connector: SMA
What's in the Box:
- 1 x Singularity 5.8 Stubby Antenna (in selected polarization)
Disclaimer: Package contents and included accessories are subject to change based on manufacturing updates and supply availability. The specific antenna received will match the polarization selected at the time of order.
