Product Details

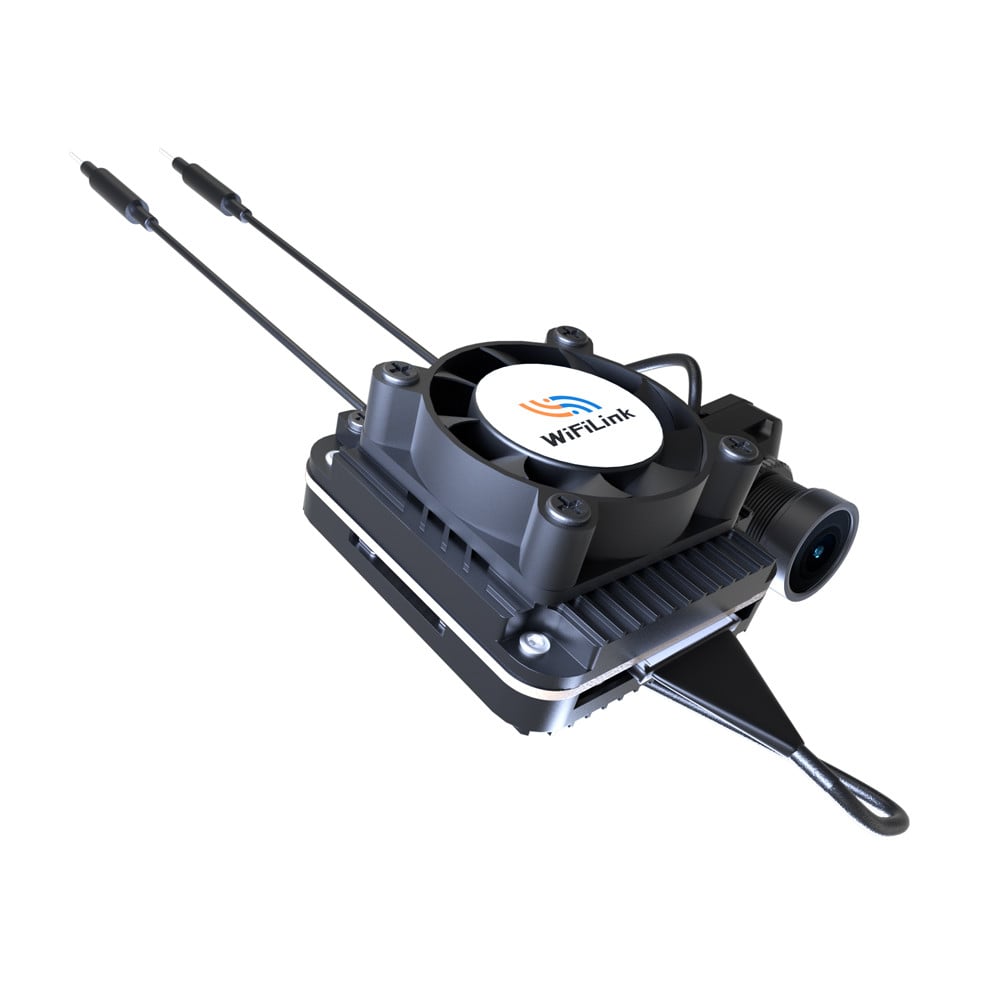

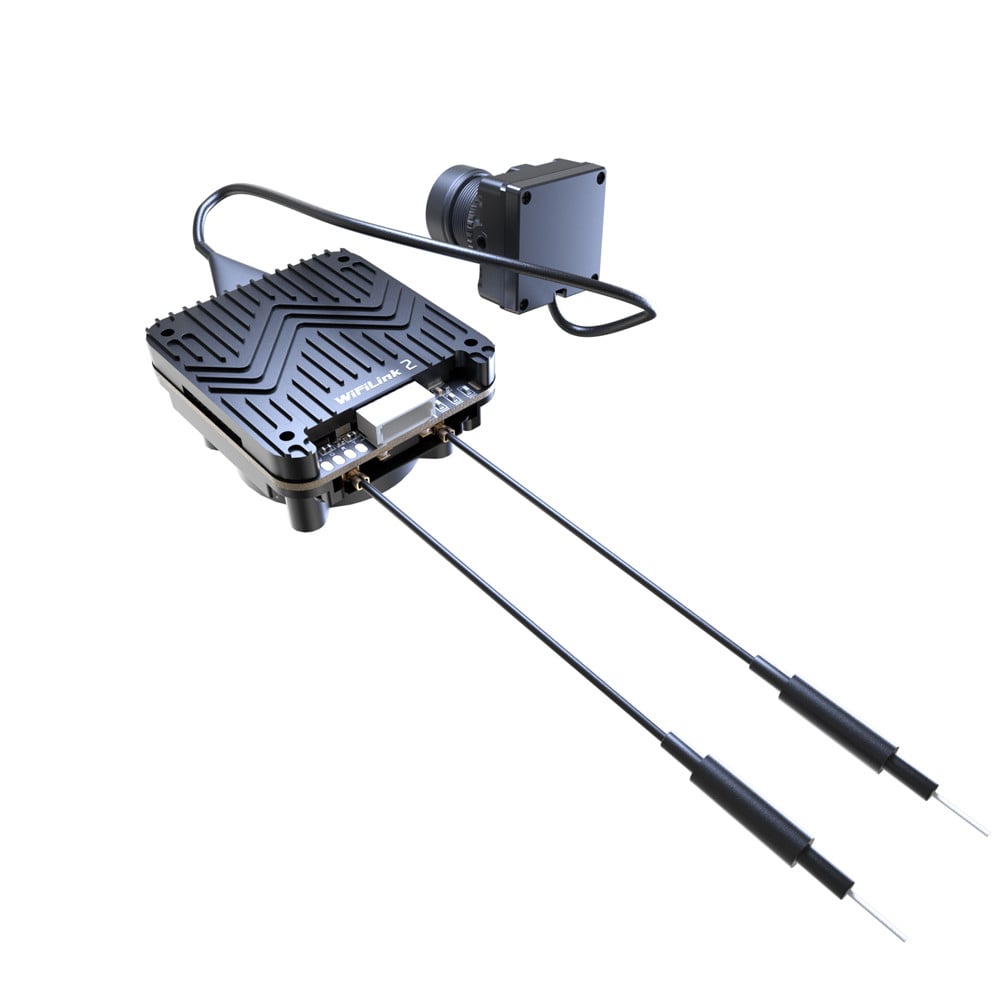

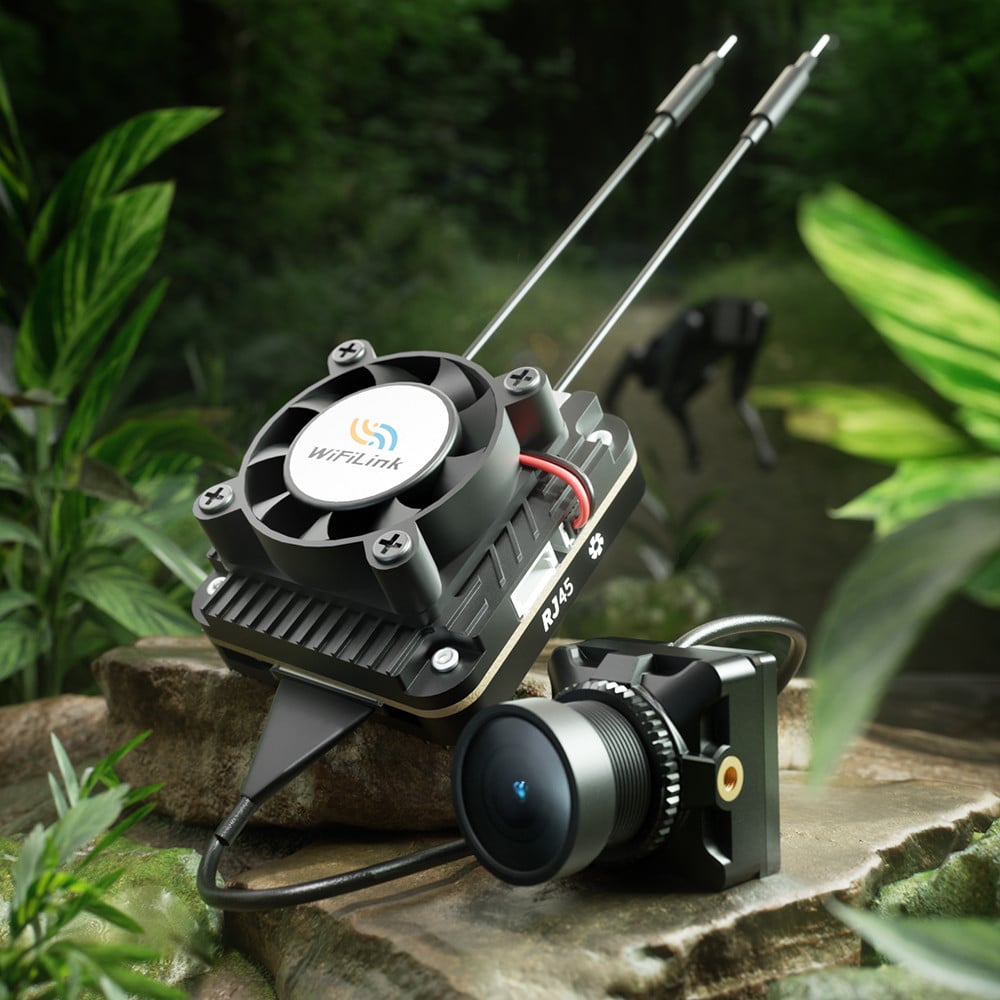

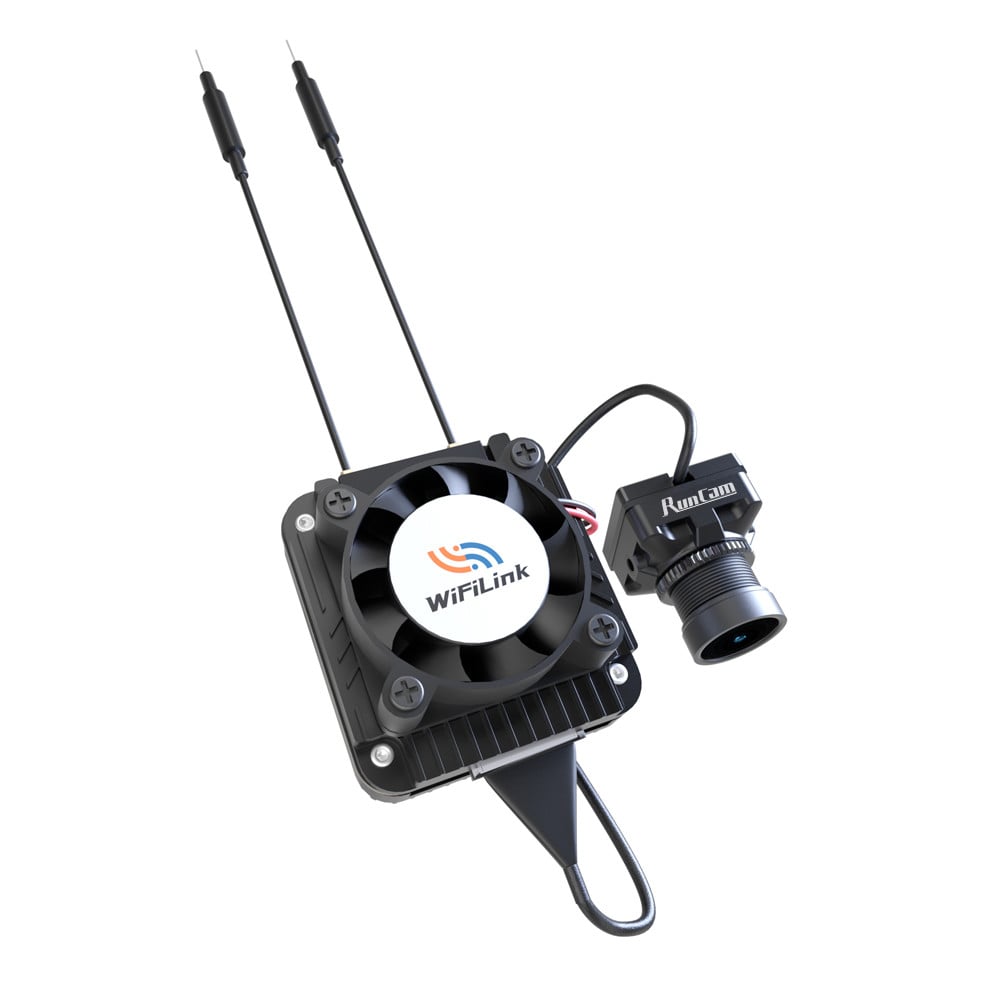

Tired of pixelated video feeds that make your drone adventures look like they were filmed with a potato? Enter the RunCam WiFiLink 2 , the game-changing HD FPV system that brings crystal-clear 1080p video straight to your device. Designed for FPV enthusiasts who demand quality without breaking the bank, this system leverages the open-source prowess of OpenIPC for unparalleled customization.
Key Features:
-
Stunning HD Video: Capture your flights in breathtaking detail with 1080p resolution at up to 90 frames per second. Say goodbye to grainy footage and hello to cinematic clarity.
-

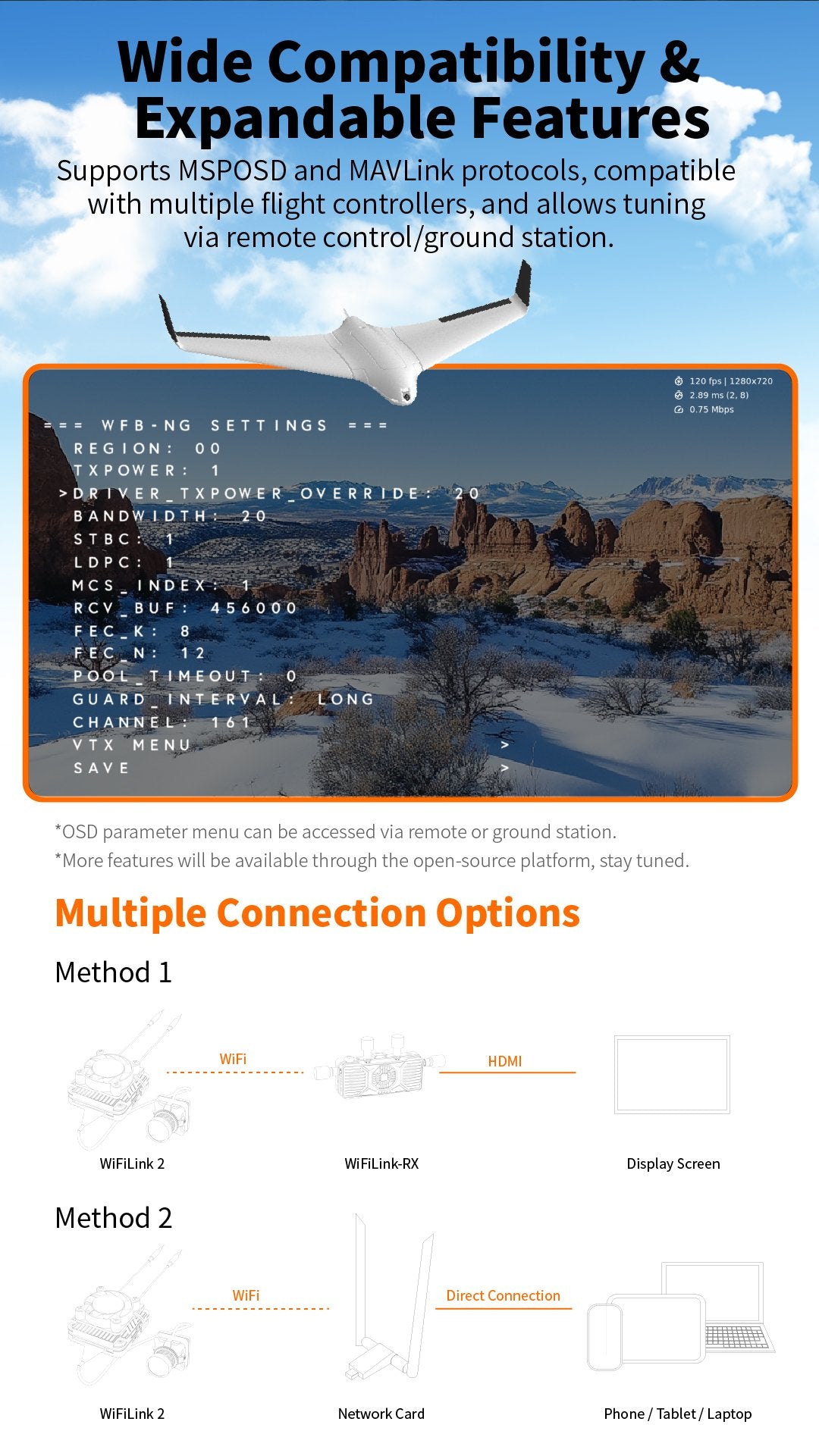

Open-Source Flexibility: Built on the OpenIPC platform, the WiFiLink 2 offers endless customization possibilities. Tweak, modify, and personalize your setup to suit your unique flying style.
-
Low Latency Transmission: Experience real-time video feedback with minimal lag, ensuring your piloting is as responsive as your reflexes.
-
Wide Compatibility: Operating within a DC 9-30V range, it's compatible with 3S to 6S LiPo batteries. A BEC power supply is recommended for optimal performance.
-

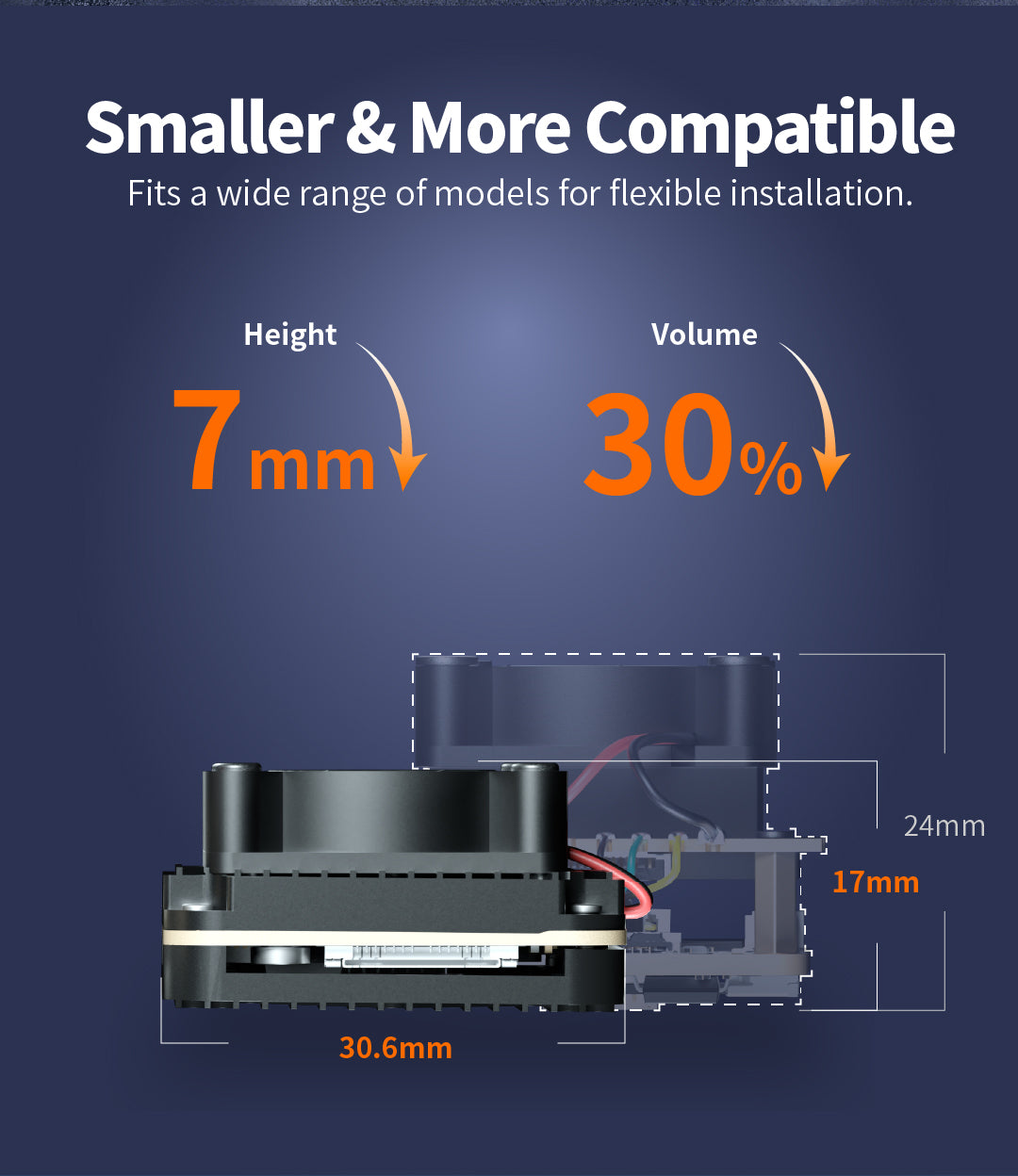

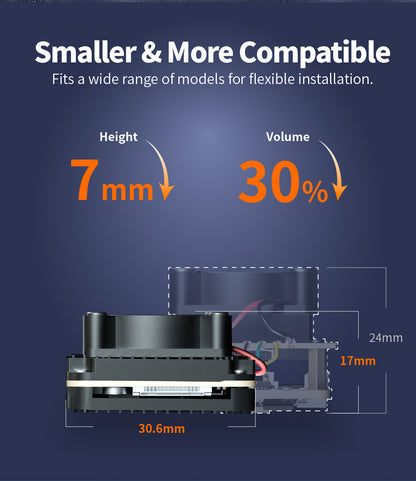

Compact and Lightweight: Weighing in at just 30g, the sleek design minimizes impact on your drone's agility, letting you perform those daring maneuvers with ease.
HD
Light Status Indicators:
| Light Status | Indication |
|---|---|
| Green Off | Audio off |
| Green Solid | Audio on |
| Green Fast Flash | Firmware upgrade |
| Green Slow Flash | Recording on |
| Blue Solid | WiFiLink Startup |
| Blue Fast Flash | WiFi Error |
| Blue & Green Alternating Flash | High Temp Warning (>90°C) |
Specifications:
-
Model: WiFiLink 2
-
Sensor: IMX415
-
Field of View (FOV): 160°
-
Resolution:
-
1080P @ 60FPS
-
1080P @ 90FPS
-
720P @ 120FPS
-
-
Power Supply: 9-22V
-

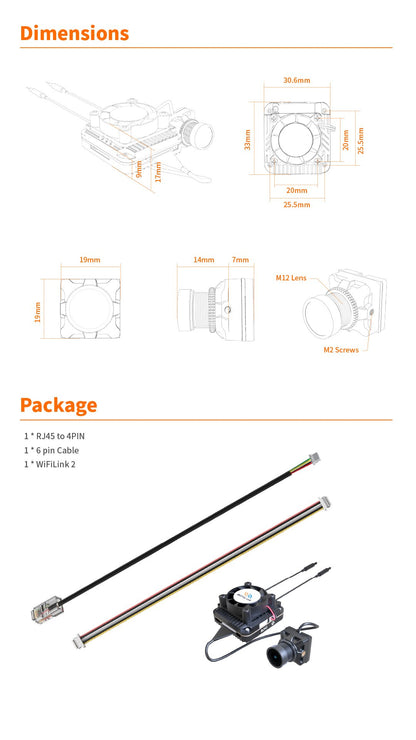

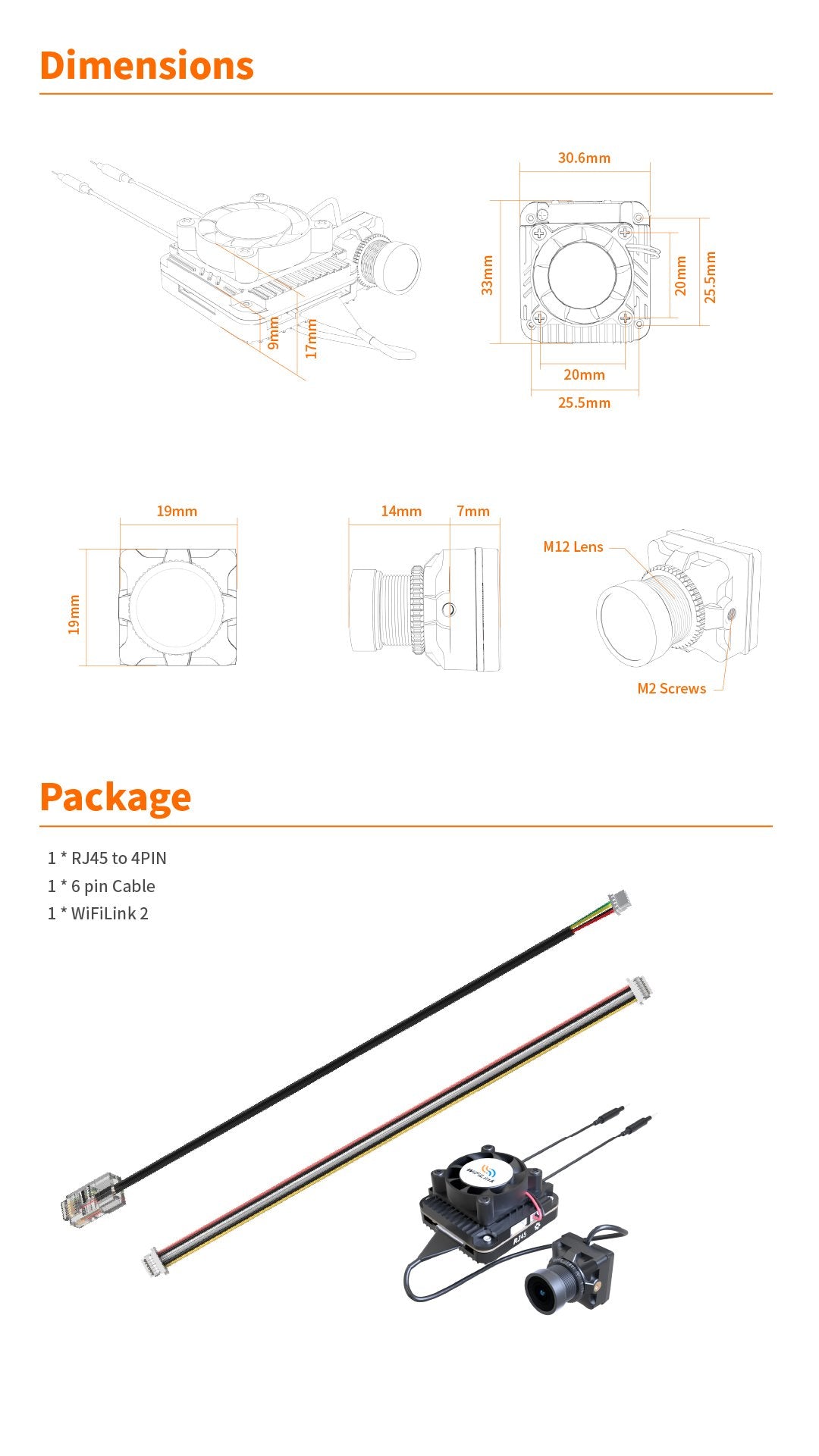

Lens Module: 19×19mm / M12 Lens / MIPI Cable 130mm
-
Hole Distance: 25.5 × 25.5mm
-
PCB Size: 30.6 × 33mm
-
Weight:
-
30g (with fan)
-
25g (without fan)
-
-
Antenna: 2dB / IPEX1 (5G)
-
Transmission Power:
-
5.8 GHz: ≤28dBm (FCC), ≤20dBm (CE)
-
