Product Details

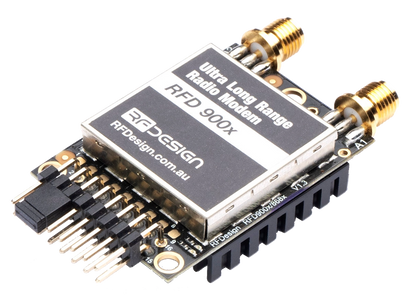

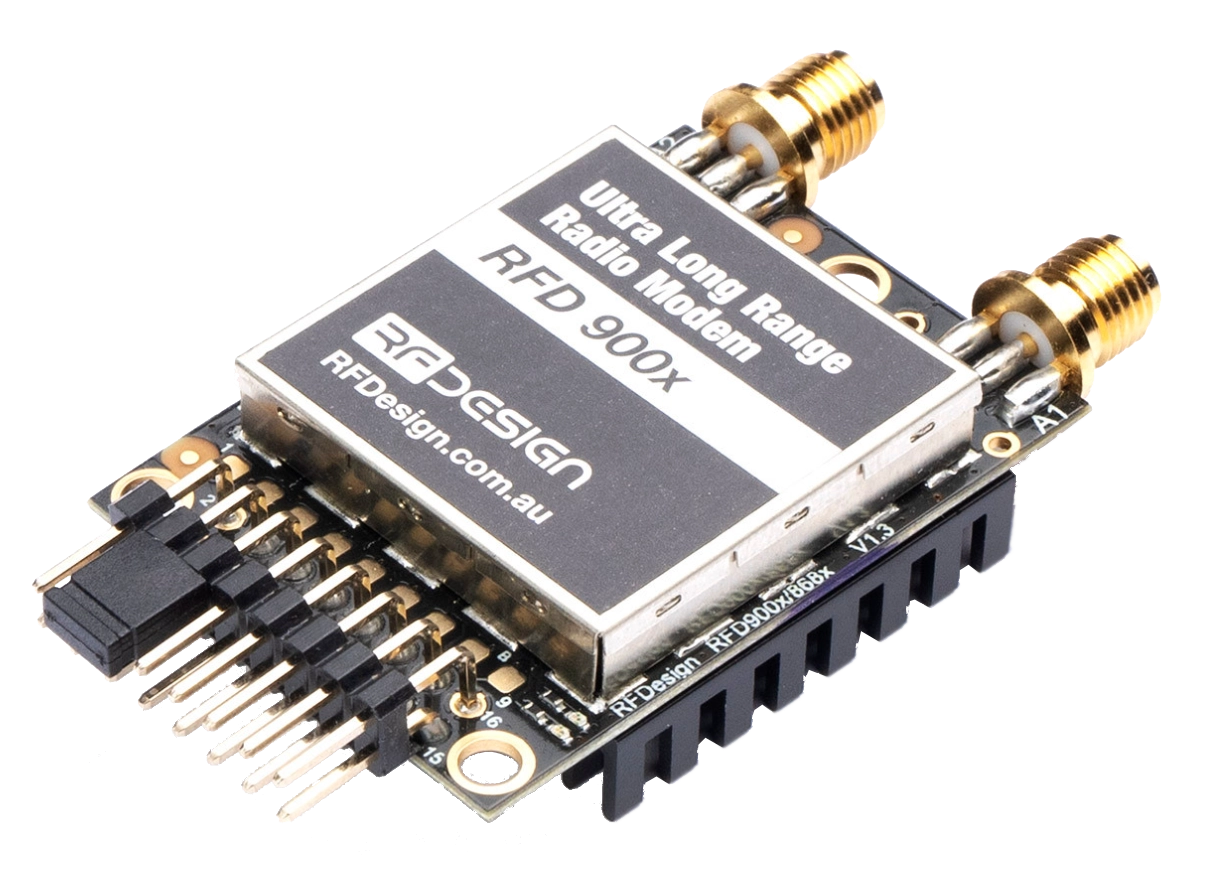

The RFD900x Radio Modem V2 is a high-performance, long-range wireless communication module operating in the 902-928 MHz ISM band. Designed for applications requiring robust data links over extended distances, it offers a line-of-sight range exceeding 40 km, depending on antenna configuration and environmental conditions.
Key Features:
- Extended Range: Capable of maintaining communication links over 40 km, with potential for greater distances under optimal conditions.
- High Data Throughput: Supports air data rates up to 500 kbps, facilitating efficient data transmission.
- Flexible Networking: Compatible with various firmware options, including Point-to-Point and Multipoint SiK firmware, allowing for diverse network topologies.
- Enhanced Security: Incorporates AES hardware-accelerated encryption to ensure secure data communication.
- Diverse Firmware Options: Compatible with Peer-to-Peer (SiK), Asynchronous Mesh, and Multipoint Network firmware, allowing for flexible network architectures
Specifications:
- Frequency Range: 902-928 MHz
- Transmit Power: Adjustable up to 1 Watt (+30 dBm) in 1 dBm increments
- Receiver Sensitivity: Better than -121 dBm at lower data rates
- Dimensions: 30 mm x 57 mm x 12.8 mm
- Weight: Approximately 14 grams
- Operating Voltage: 5V nominal (5V min, 5.5V max)
- Current Consumption: ~1A peak at +30 dBm transmit power; 60 mA typical in receive mode
- Operating Temperature: -40°C to +85°C
In the Box:
- 1x RFD900x Radio Modem
- 2x RP-SMA Antennas
- 1x FTDI Cable for configuration and firmware updates
- Assorted mounting hardware
Disclaimer: Accessories may vary depending on supply.
