Product Details
This is a BLheli_S 4in1 ESC from JHE MCU that runs BLheli_S firmware, or JESC / JazzMaverick firmware for bi-directional Dshot for unmatched performance while still running at Dshot600 speed.
Please take care when connecting this ESC to your flight controller as this ESC connector uses a non standard connection order
Specifications
- Brand: JHEMCU

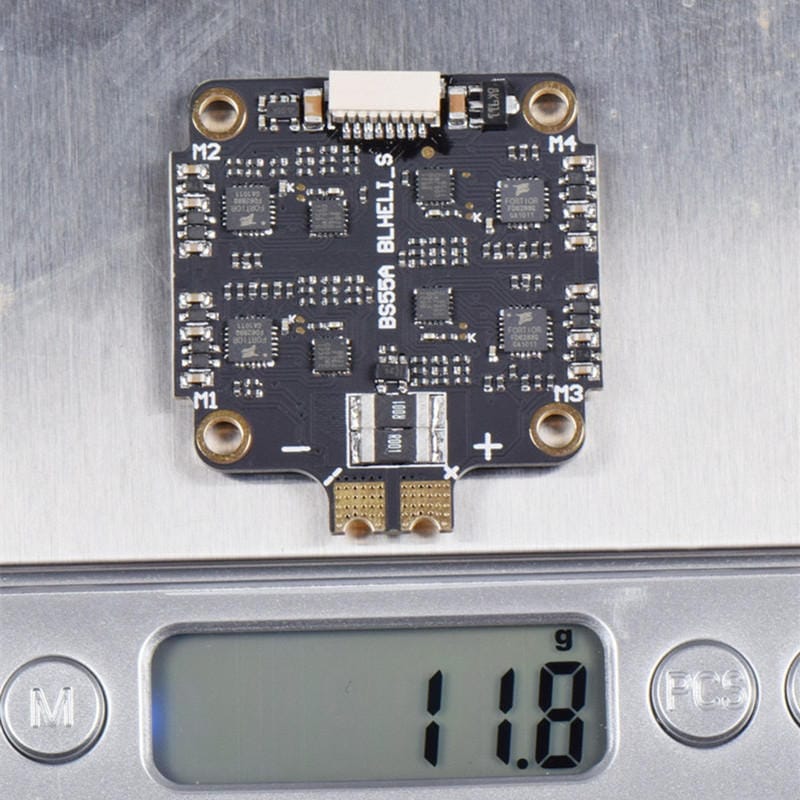

- ESC Weight: 11.8g
- Support Dshot150, Dshot300, Dshot600 (BB21MCU,48Mhz)
- Support Oneshot / Multishot /Dshot BLHELI-S
- Lipo: 2~6S
- Con. Current: 55A
- Board Size: 36x36mm

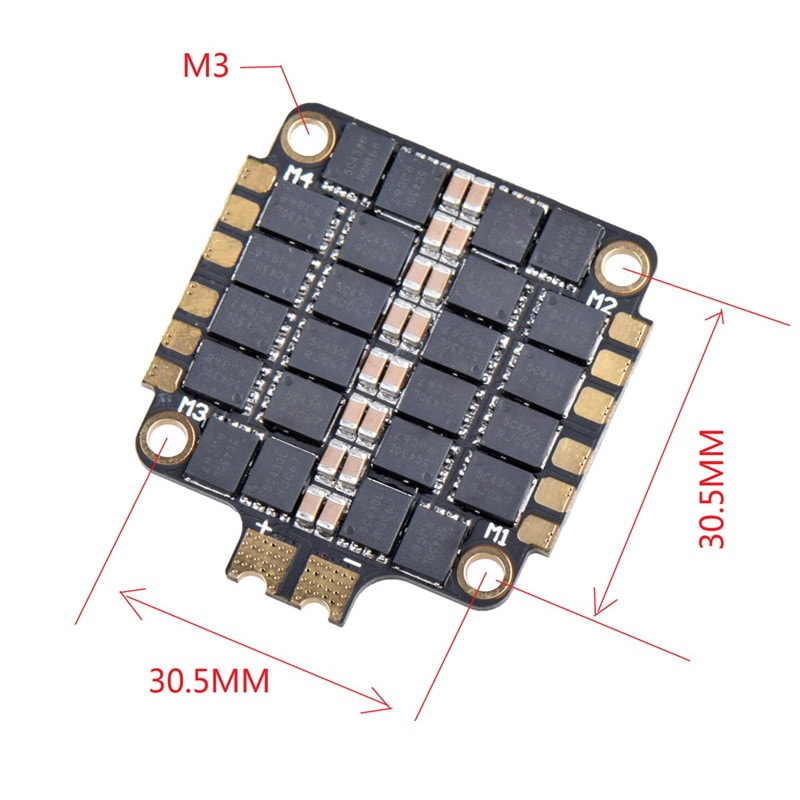

- Mounting Hole Distance: 30.5mm

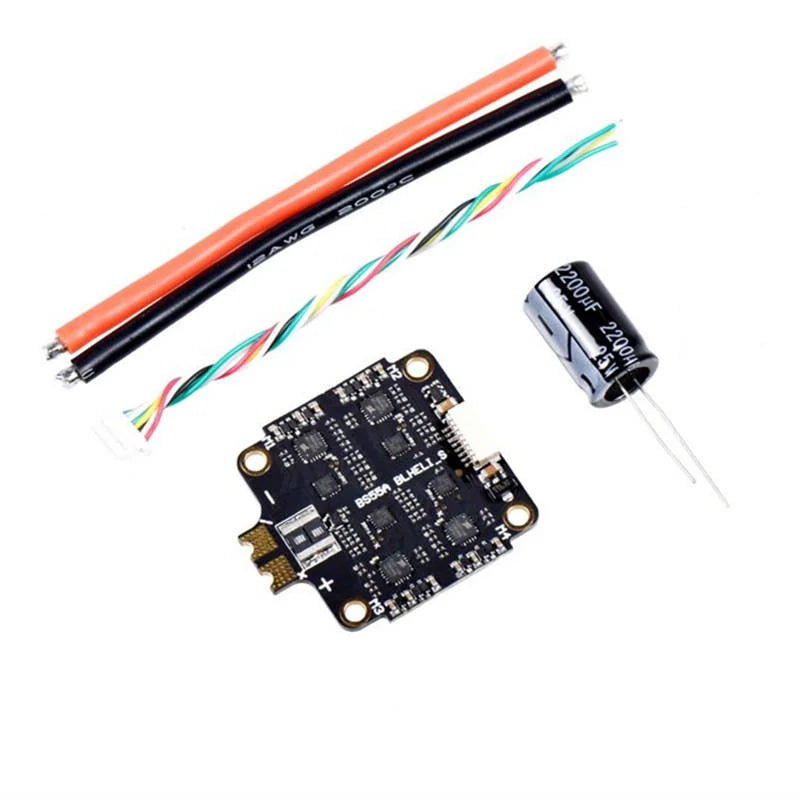

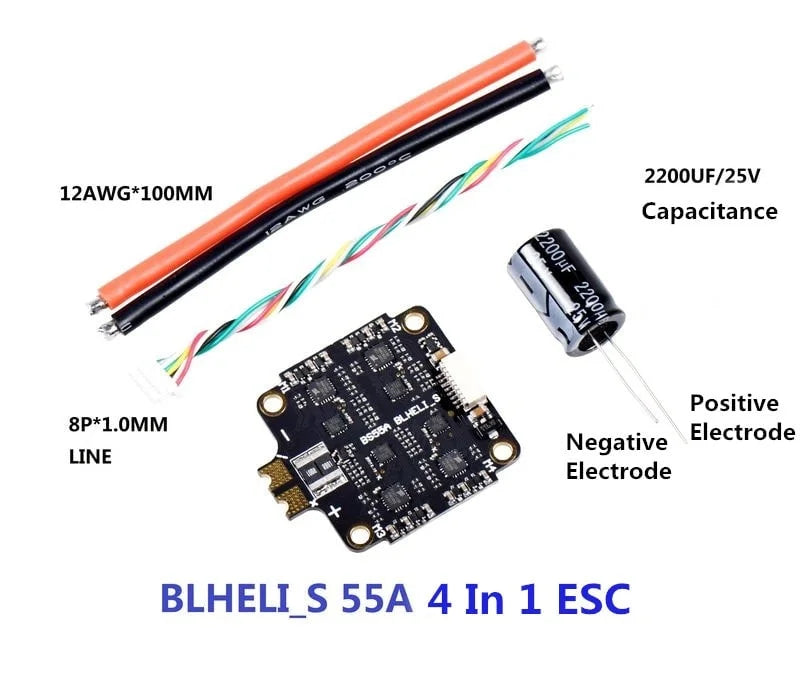

Included
- 1 X ESC Board
- 1 X 12AWG*100MM
- 1 X 8P*1.0MM Line
- 1 X 2200UF/25A Capacitance

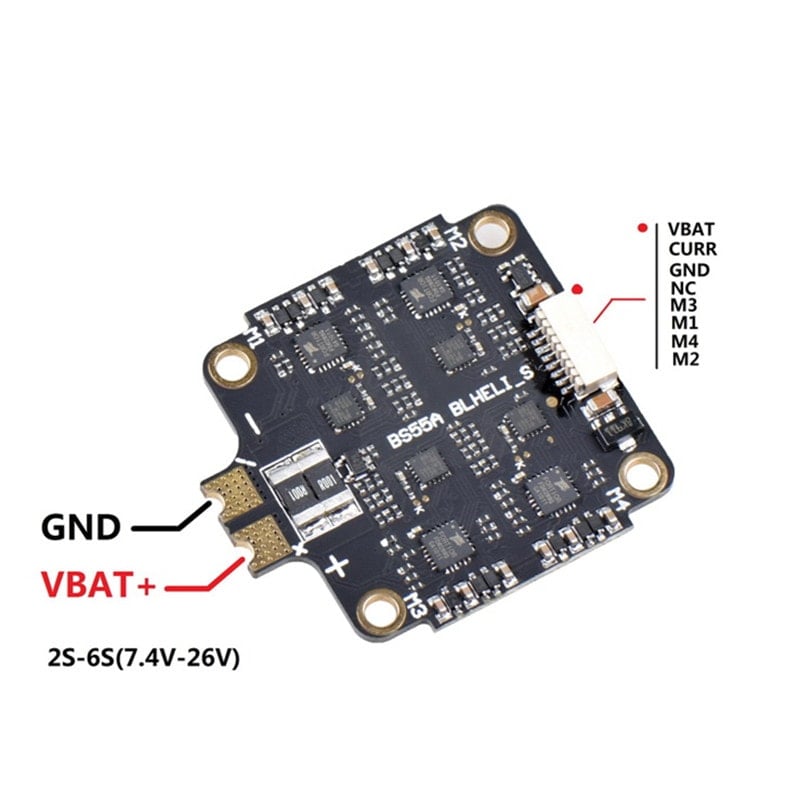

Pinout
Please take care when connecting this ESC to your flight controller as this ESC connector uses a non standard connection order
