Product Details

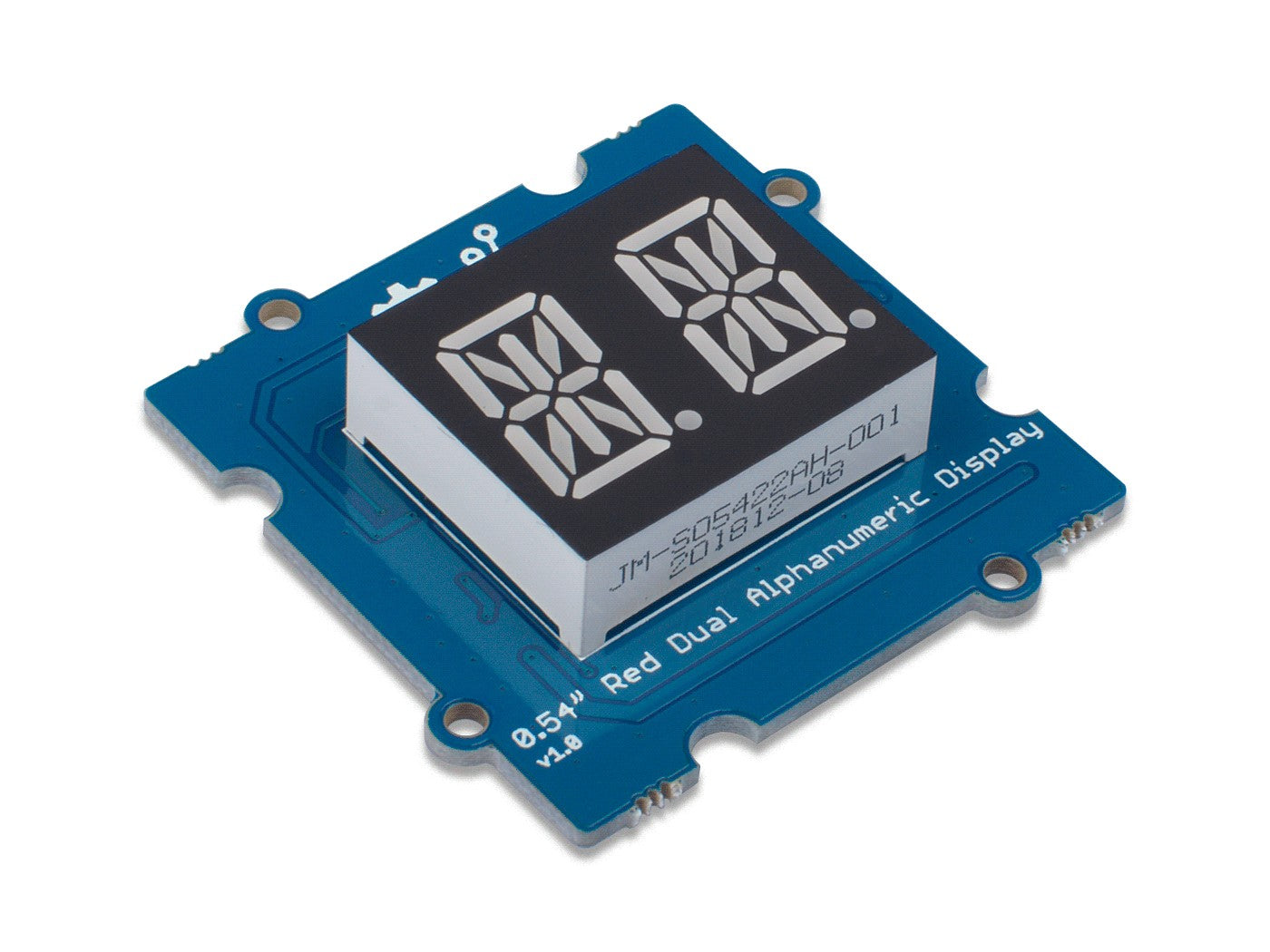

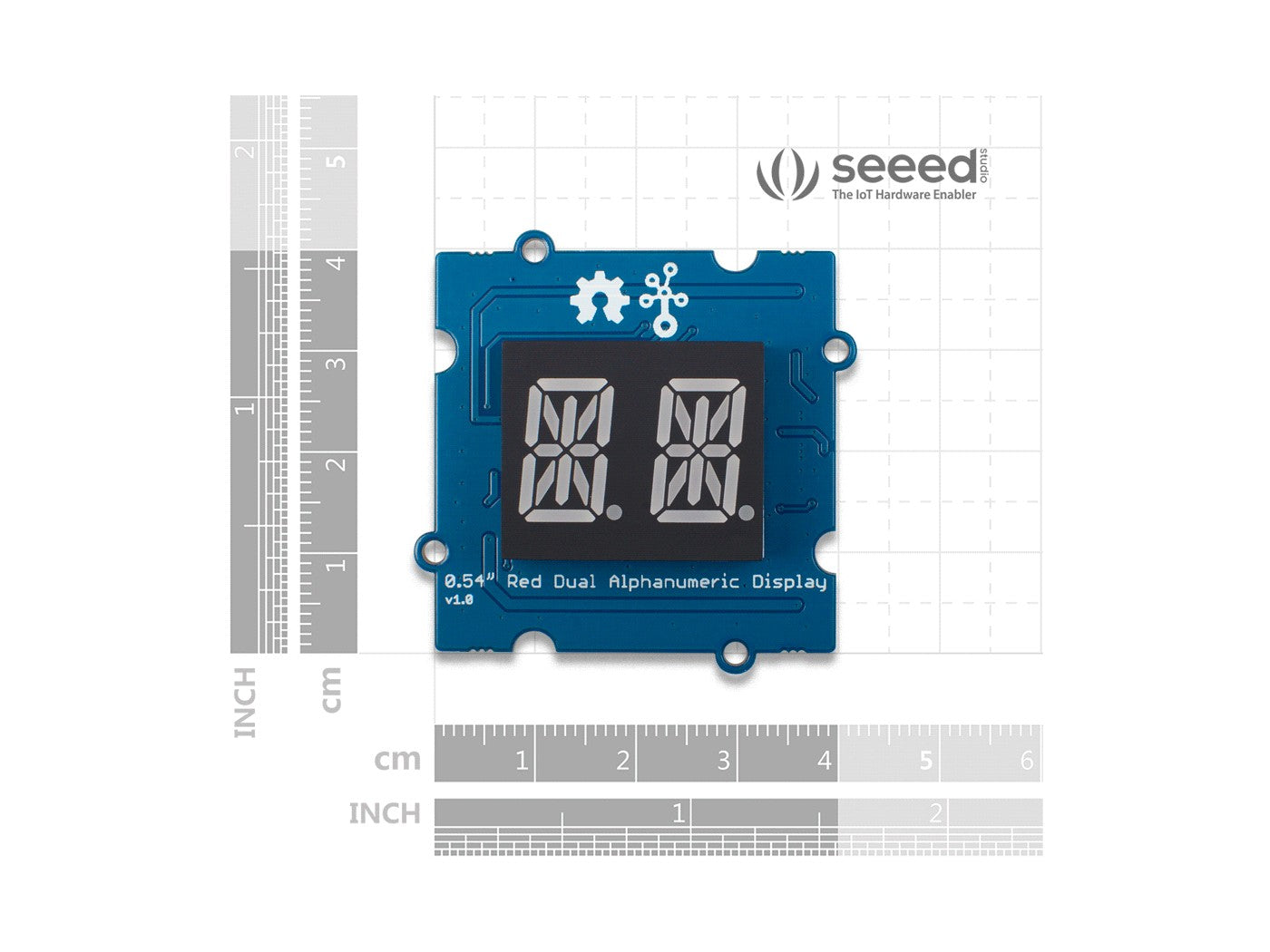

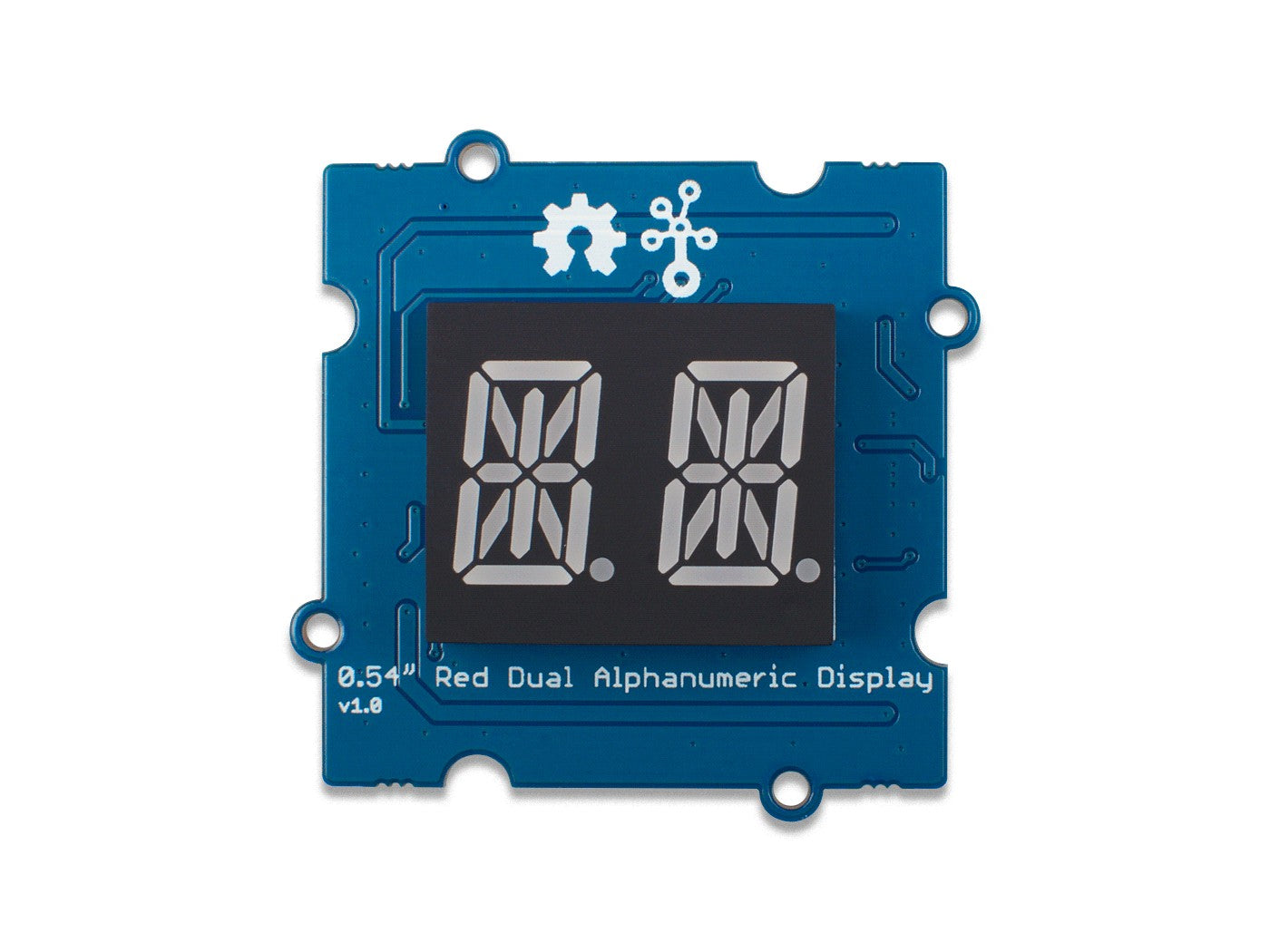

This module is a 2 digit alphanumeric display with high brightness and red backlight, each digit is consists of a 14-segment digital tube. The commonly used 7-segment display can only display the numbers 0-9 and a limited number of letters. In contrast, the 14-segment digital display does not have this limitation, it can display all the characters, that's why we call it alphanumeric display. The digit height is 0.54 inch and the red LED used in this module has super high brightness, so you can see it a few meters away.
Usually, the 14-segment display needs to use 17 or more wires to control the display, which means that a large amount of IO of your main control board (such as Arduino) will be occupied. With the help of on-board HT16K33 chip and Grove connector, we made it an i2c display, only four wires are enough. No troublesome soldering and no complicated wiring
Features
- Can display all letters and numbers
-
Ultra-high brightness:30mcd
-
Grove I2C, only takes two IO pins
-
Onboard drivers, easy to use
- Cathode display
Applications
- Clock display
- Display speed, temperature, etc.
- Letter display

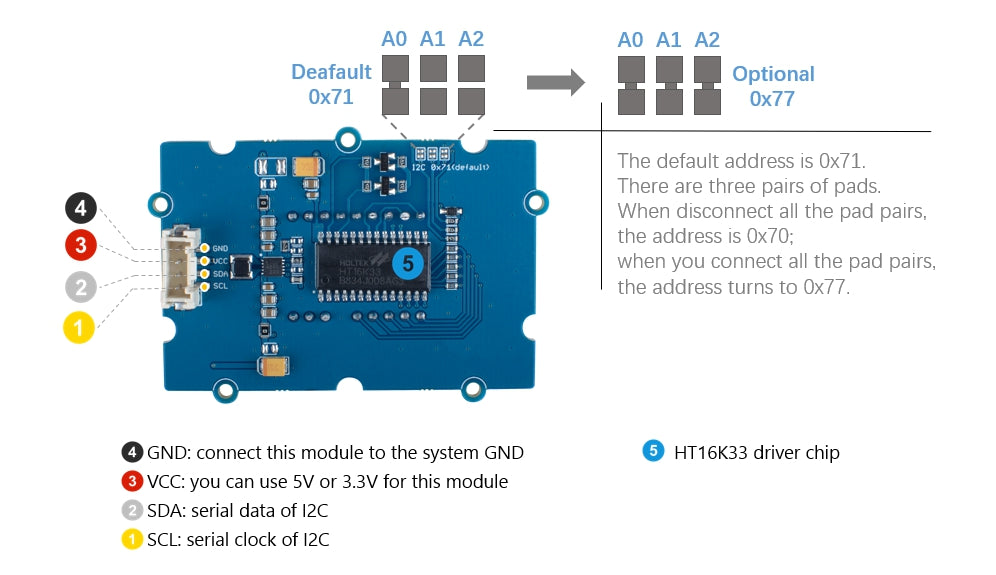

Pinout
Resources
MPN 104020132
