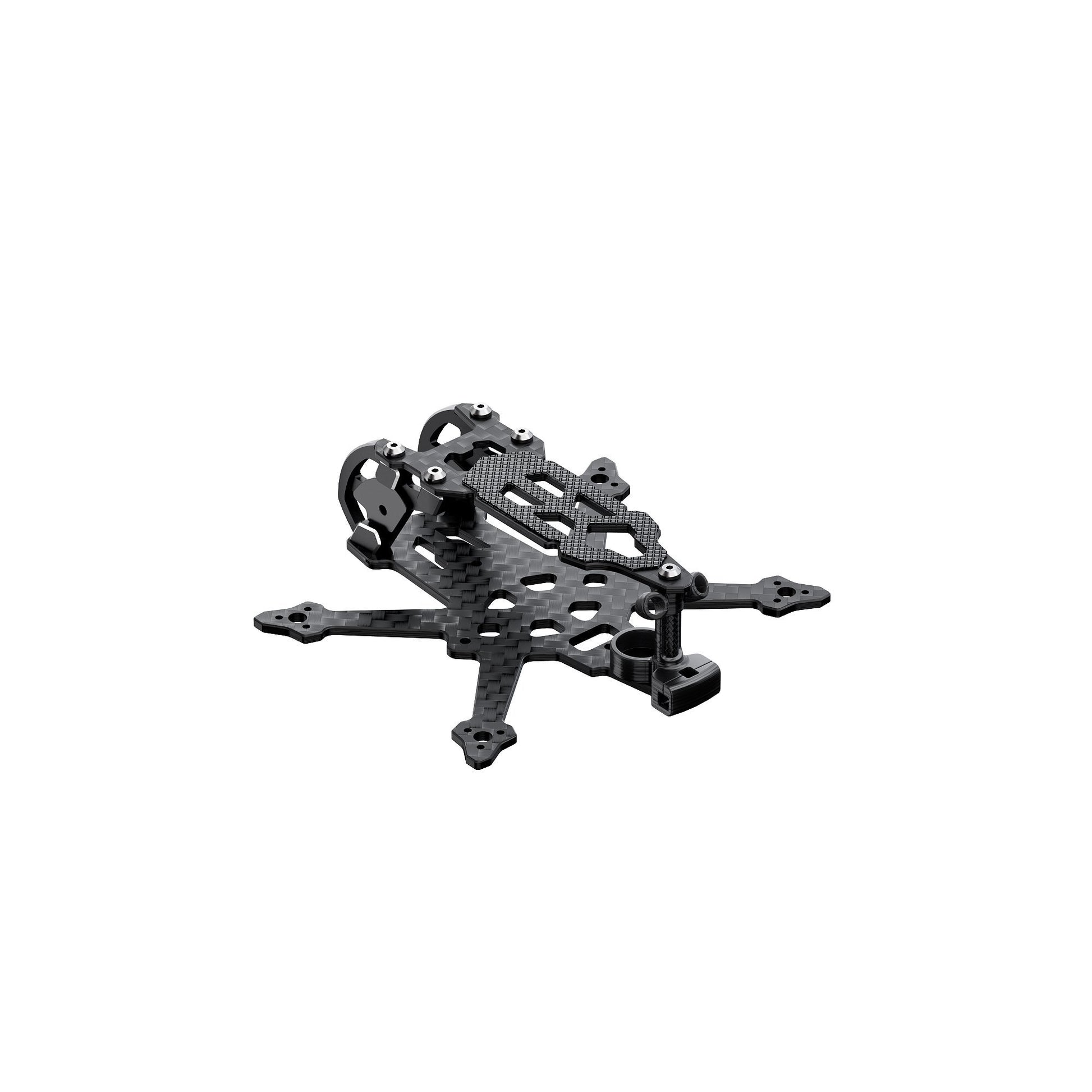

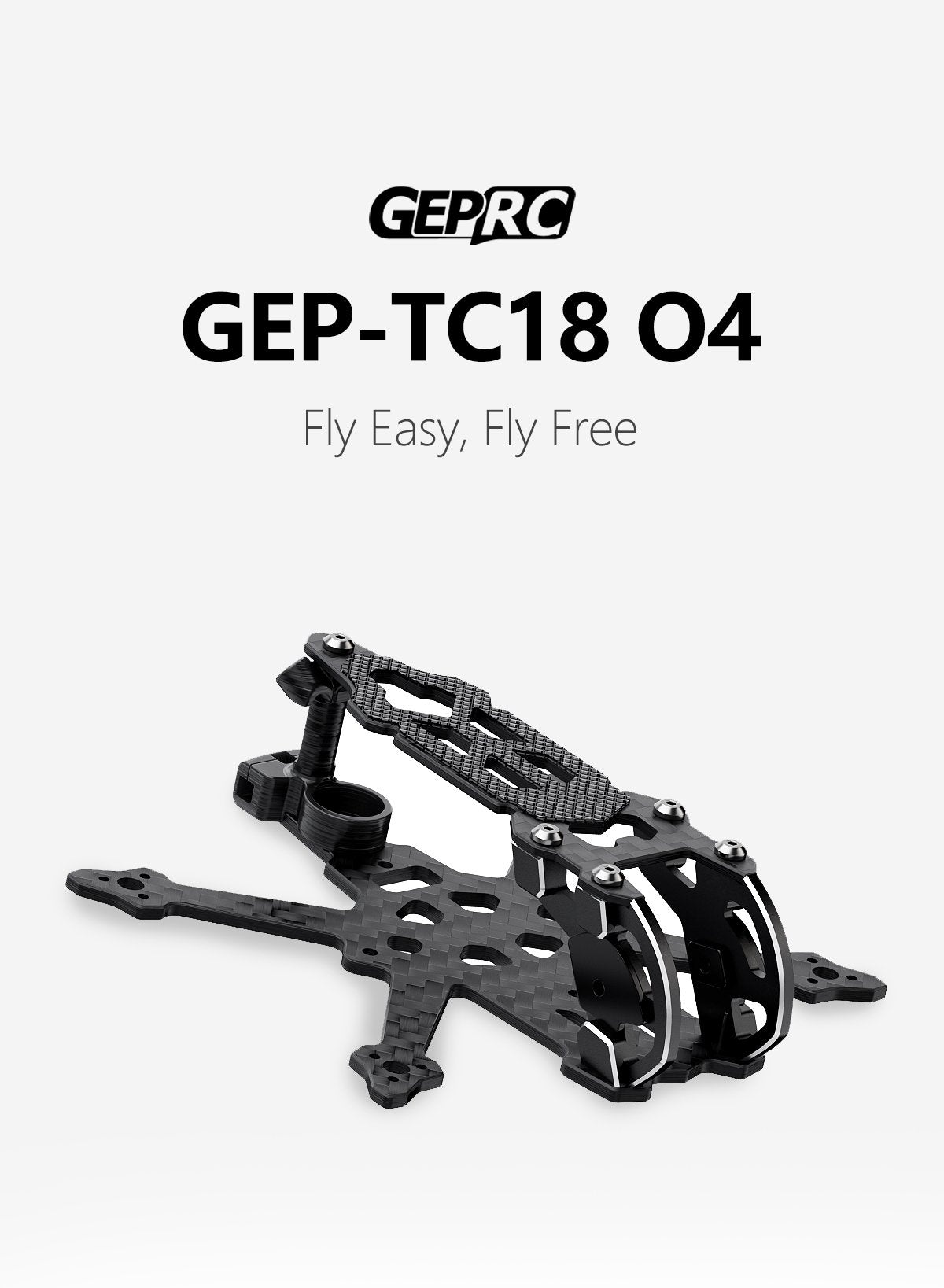

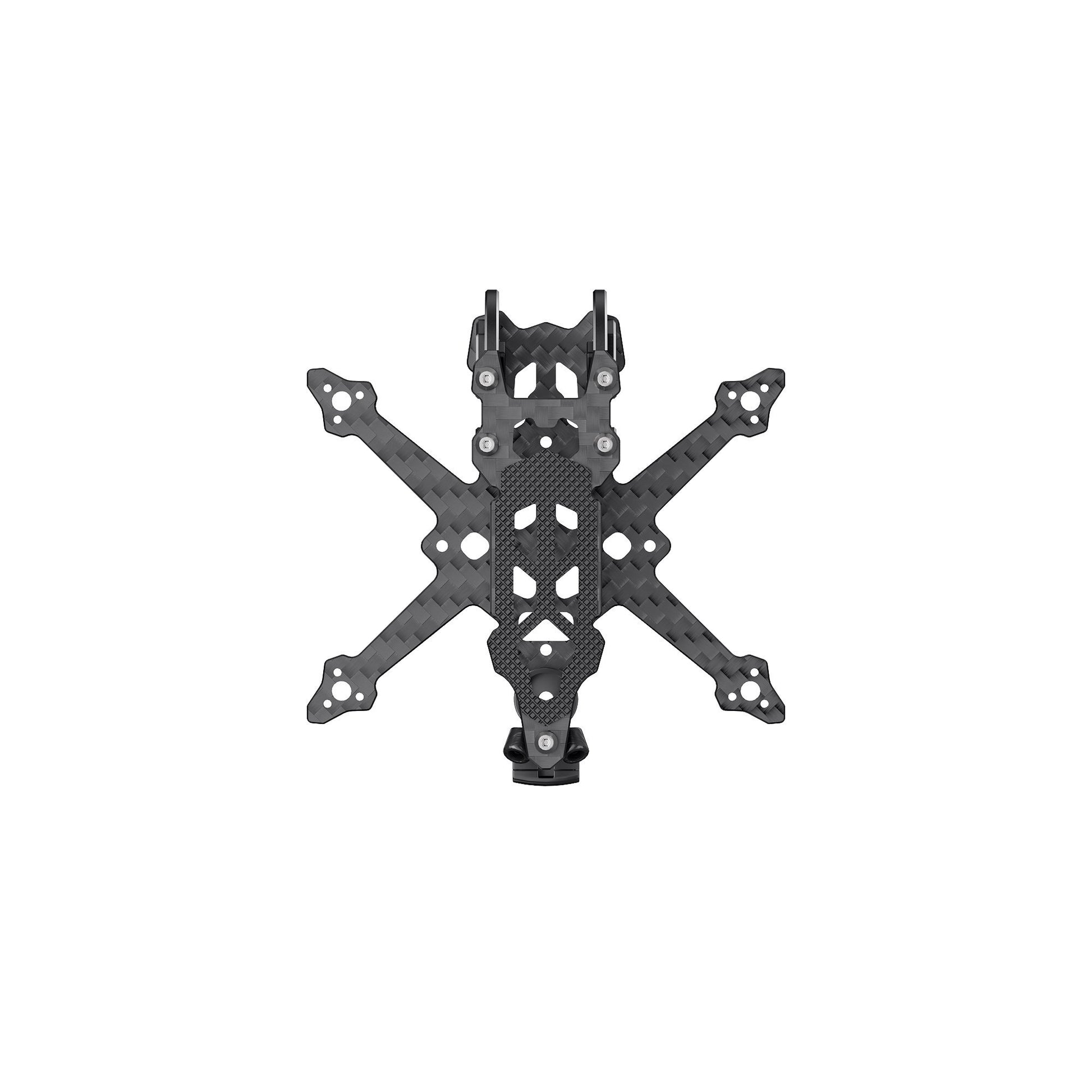

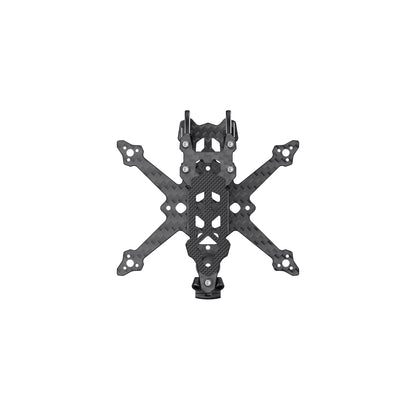

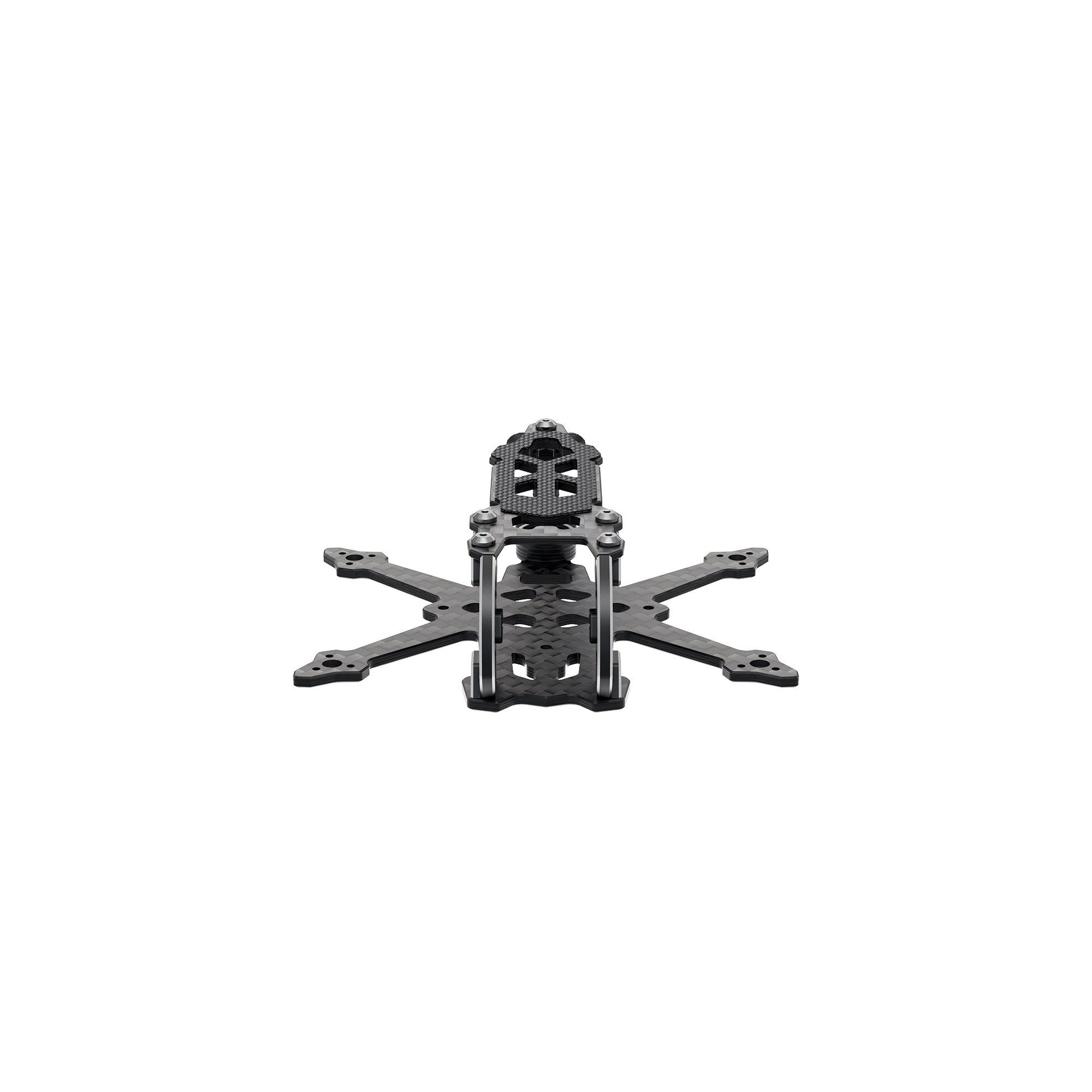

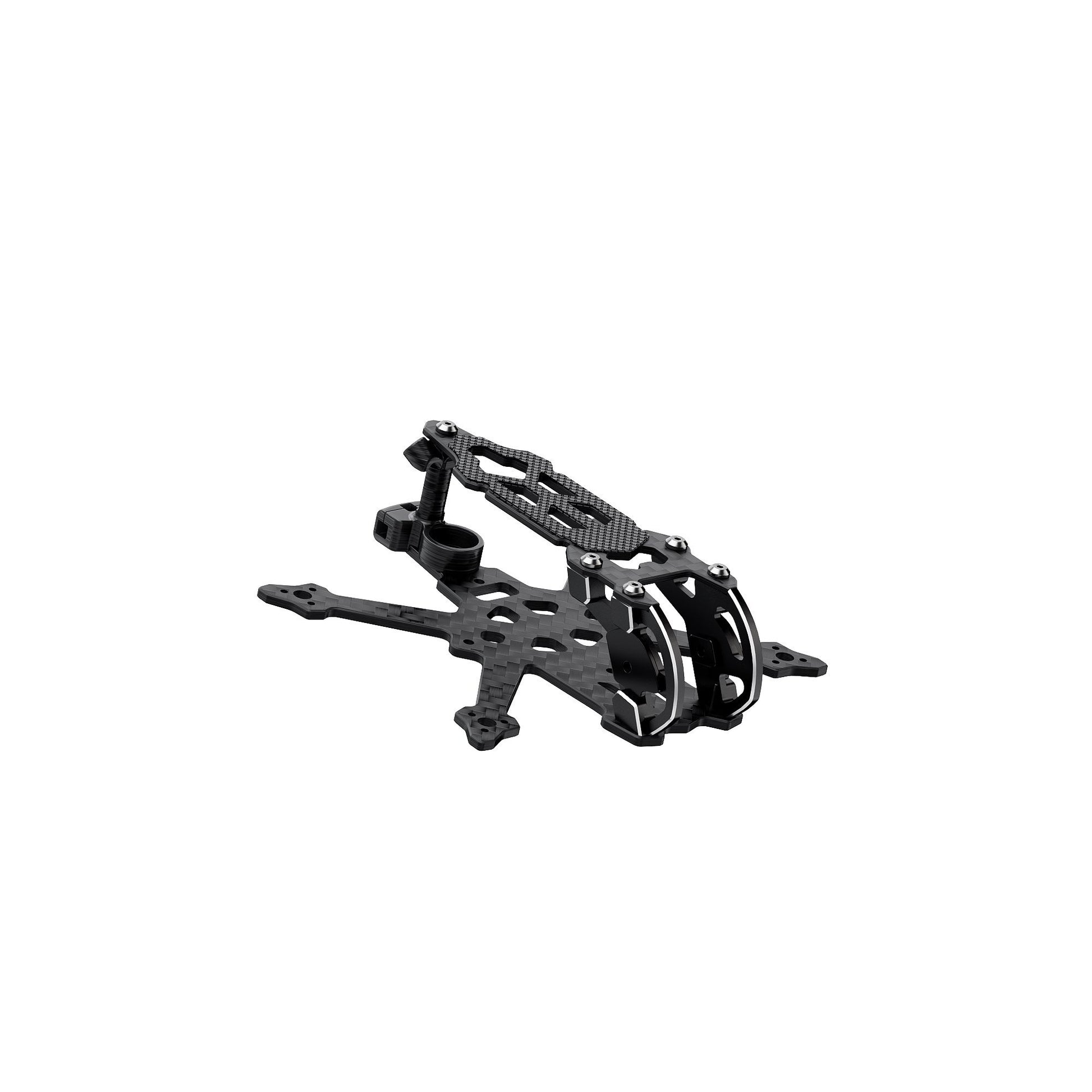

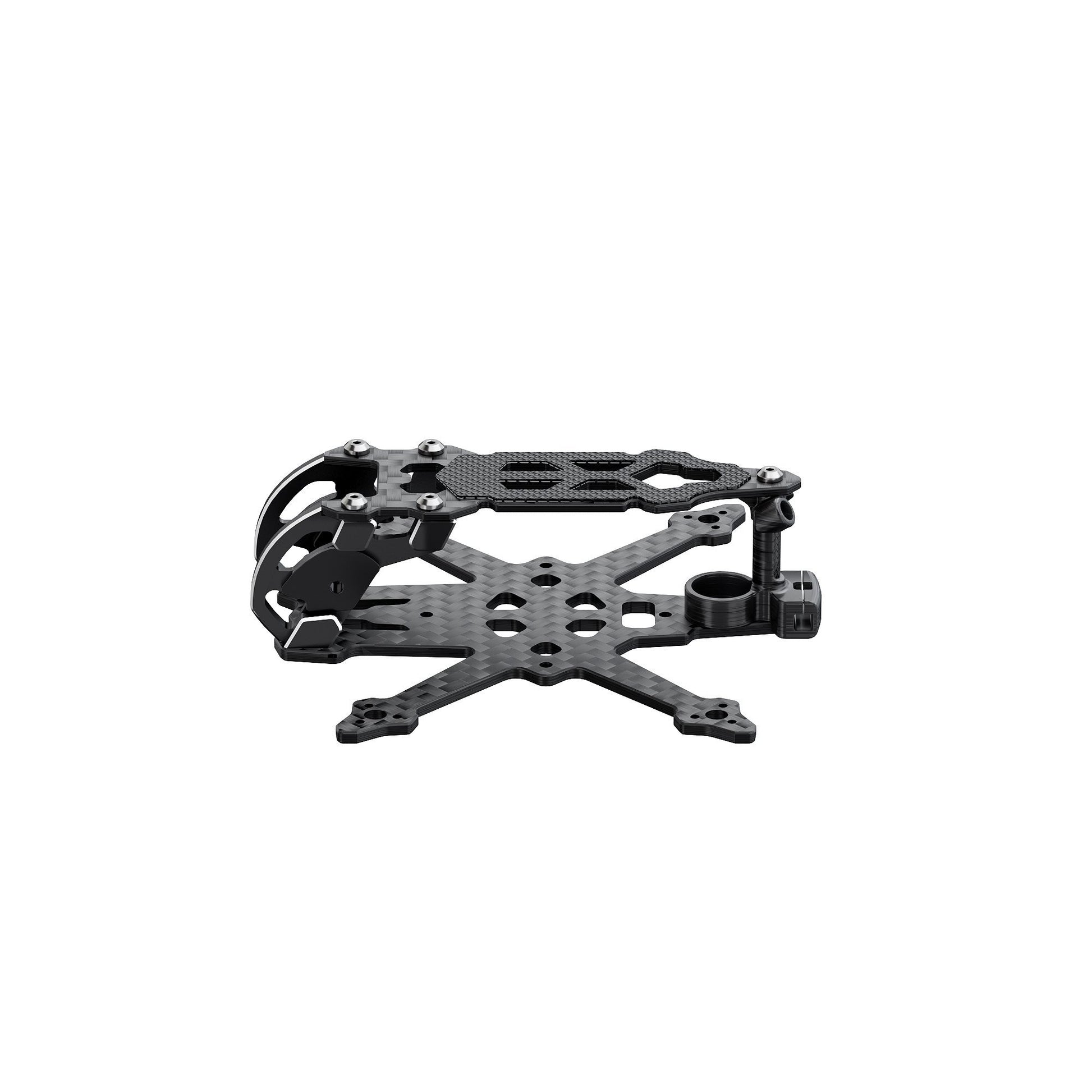

GEPRC GEP-TC 18 O4 Micro Frame Kit - Optimized for DJI O4 & HD Whoop Builds
Build the ultimate HD Tiny Whoop or micro FPV drone with the GEPRC GEP-TC 18 O4 Frame Kit ! Specifically engineered around the DJI O4 Air Unit , this frame incorporates specialized dampening silicone to ensure incredibly steady, shake-free HD footage, even on such a small platform. Say goodbye to jello and hello to crisp digital video!
This 1.8-inch class frame (87mm wheelbase) features a robust 7075 aluminum camera mount for superior durability and protection for your expensive FPV camera and VTX. The thoughtful integrated rear design neatly accommodates a buzzer and dual antennas, keeping your build clean and components secure. With sturdy 2mm thick carbon fiber bottom plate/arms and a Wide X geometry, this frame is built tough for both indoor acrobatics and outdoor cruising.
If you're searching for the best DJI O4 Whoop frame , a micro frame for DJI O4 , or a durable 1.8-inch FPV frame , the GEP-TC 18 O4 provides the perfect foundation. Its lightweight design (only 15g) and optimized layout make it ideal for creating powerful yet agile HD micro drones .
Key Features:
- Optimized for DJI O4: Features special dampening silicone for stable, jello-free HD recording.

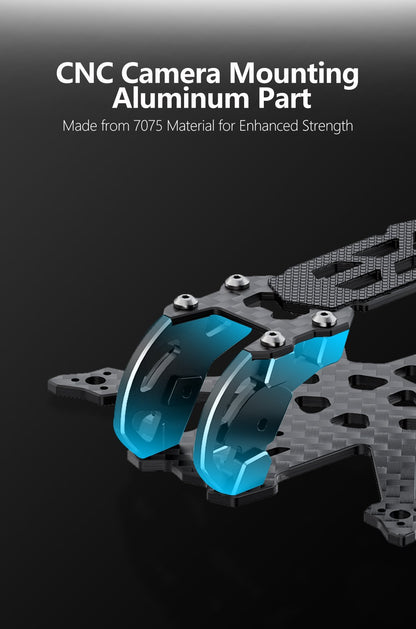

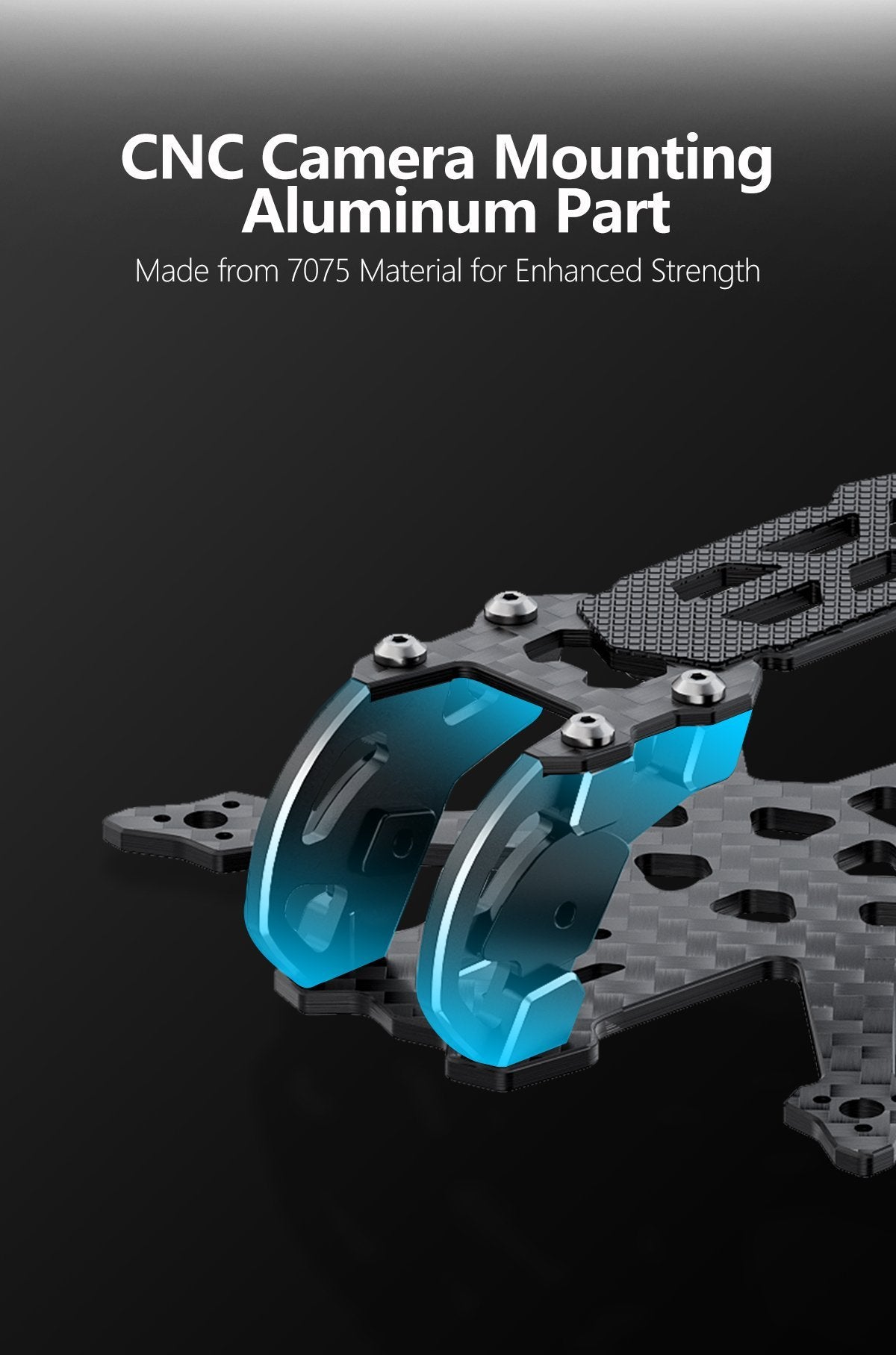

- Durable Construction: Robust 7075 aluminum camera mount and 2mm thick carbon fiber arms/bottom plate.

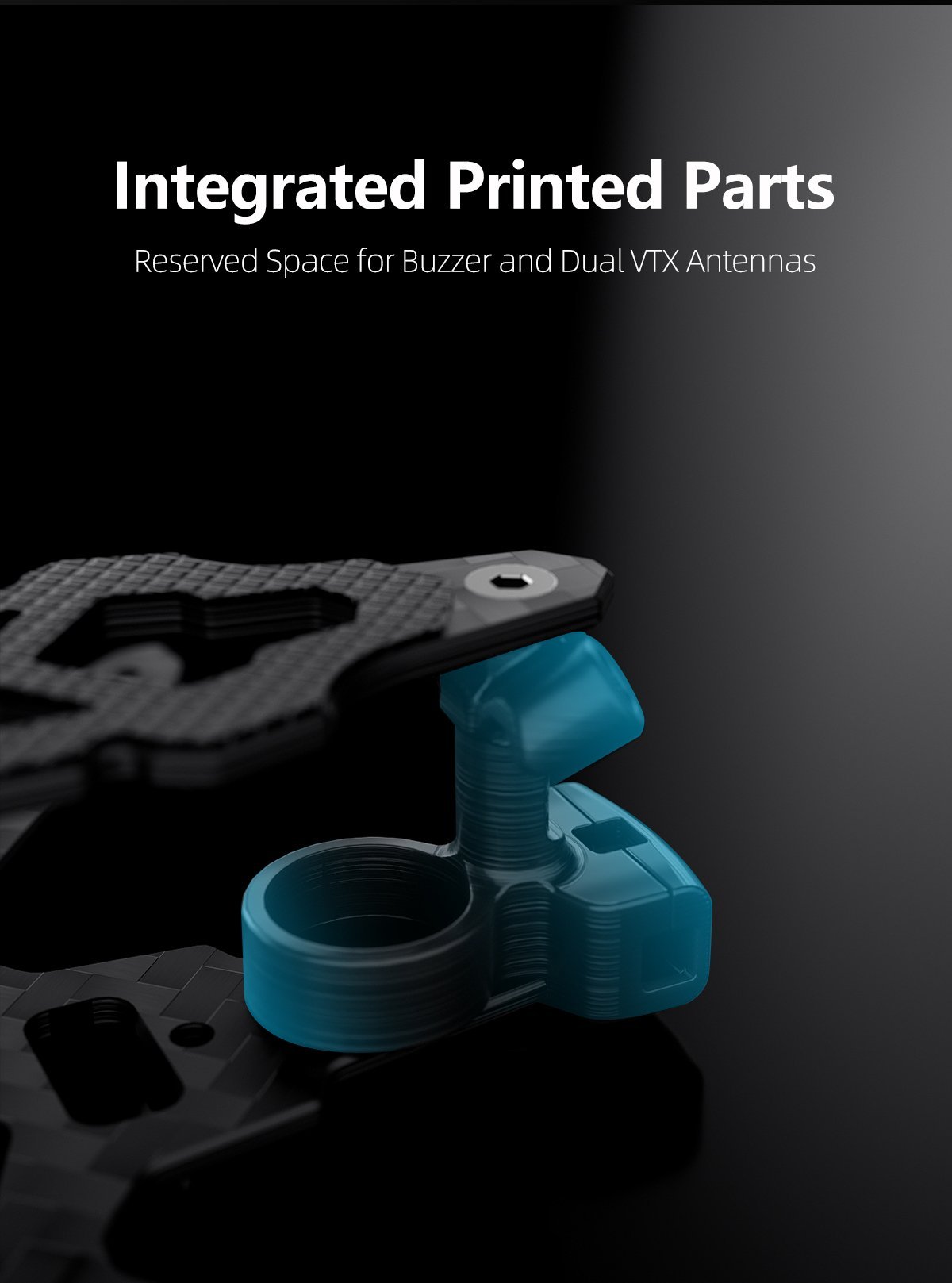

- Integrated Rear Design: Dedicated space for buzzer and dual VTX antennas for a clean build.
- Wide X Geometry: Provides balanced flight characteristics suitable for micro freestyle and cruising.
- Micro Class: 87mm wheelbase perfect for 45mm propellers (1.8-inch).
- Lightweight: Weighs only 15g, ideal for performance-oriented micro builds.
- Standard Mounting: 25.5x25.5 M2 mounting for FC/VTX stacks.

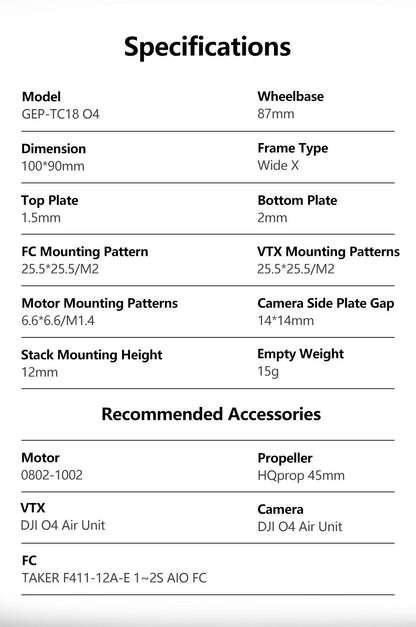

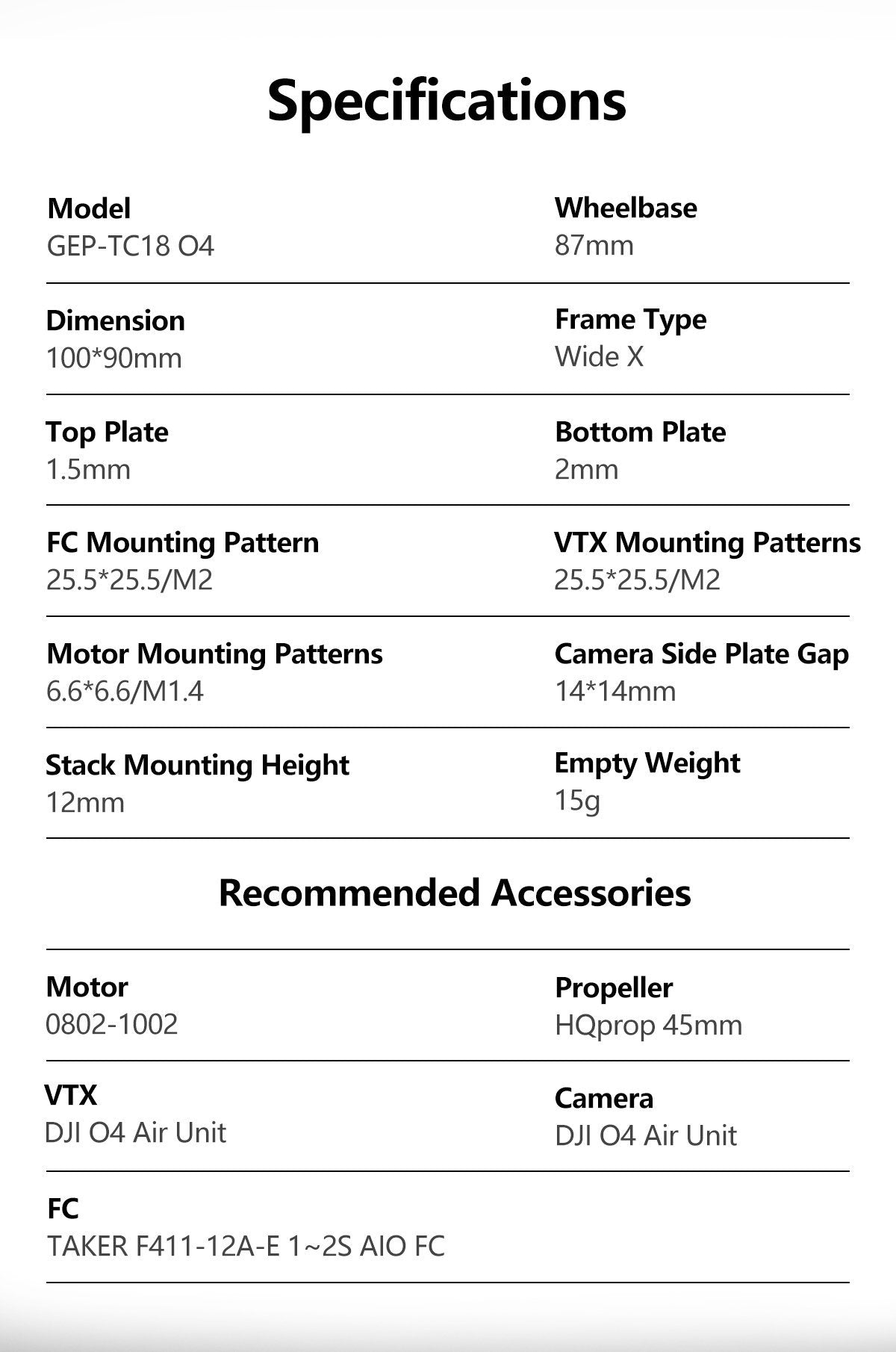

Specifications:
- Model: GEP-TC 18 O4 Frame

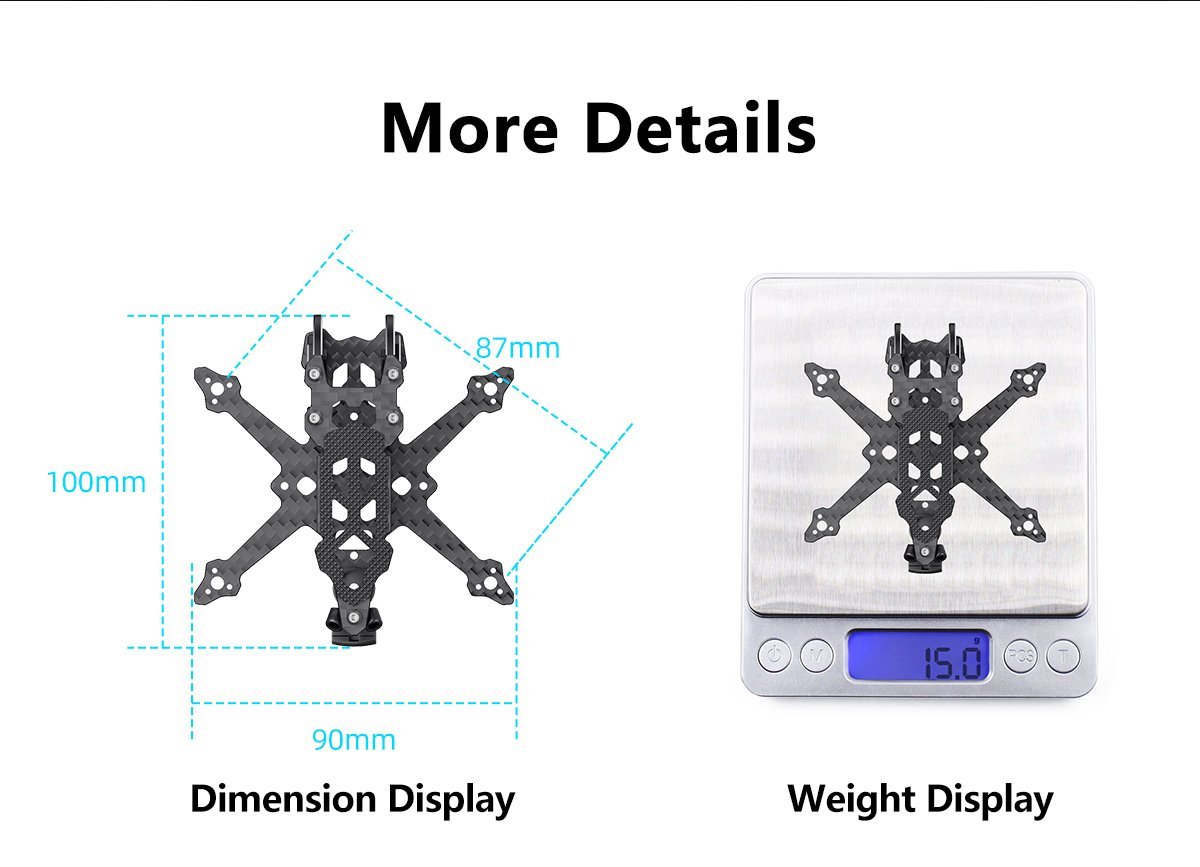

- Wheelbase: 87mm
- Dimensions: 100mm x 90mm (Approx.)
- Frame Type: Wide X
- Top Plate Thickness: 1.5mm
- Bottom Plate/Arm Thickness: 2mm
- FC Mounting Hole: 25.5mm x 25.5mm (M2)
- VTX Mounting Hole: 25.5mm x 25.5mm (M2)
- Motor Mounting Hole: 6.6mm x 6.6mm triangle (M1.4 screws, suitable for 0802-1002 motors)
- Camera Side Plate Gap: 14mm x 14mm (Micro camera size)
- Stack Mounting Height: 12mm
- Weight: 15g
Recommended Accessories (Not Included):
- Motors: 0802 - 1002 size brushless motors
- Flight Controller/ESC: TAKER F411-12A-E 1~2S AIO or similar 25.5x25.5 AIO
- VTX: DJI O4 Air Unit digital VTX
- Propellers: HQprop 45mm or similar 1.8-inch props
What's in the Box:
- 1 x GEP-TC 18 O4 Frame Kit (Top Plate, Bottom Plate/Arms, Aluminum Camera Mounts)
- 1 x Pack of Screws and Hardware
- 1 x Dampening Silicone Set for DJI O4
- (Likely includes TPU antenna mounts or similar small parts)
Disclaimer: Please note: Included accessories such as screw types, TPU part colors, or specific hardware may vary slightly based on manufacturer supply and batch.
