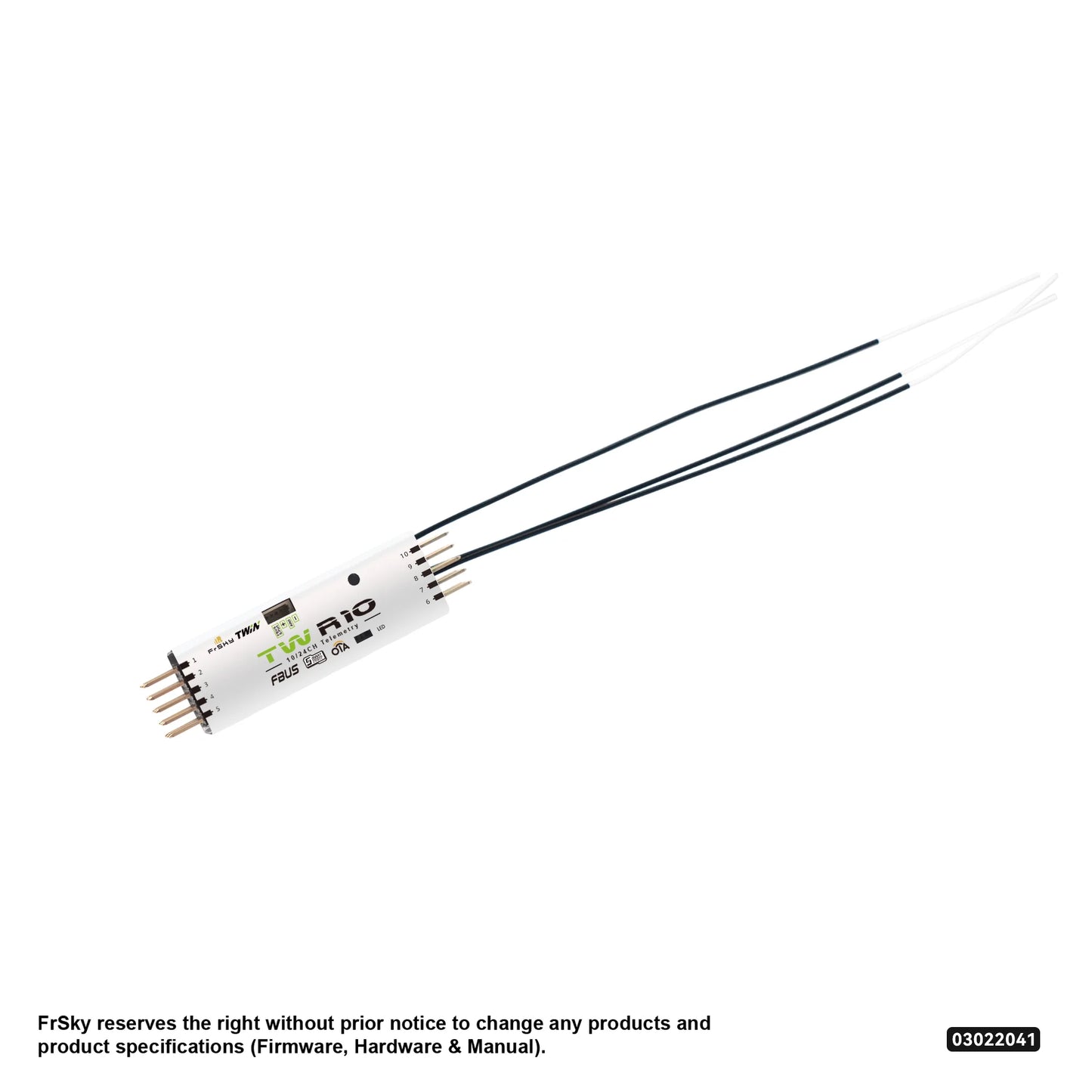

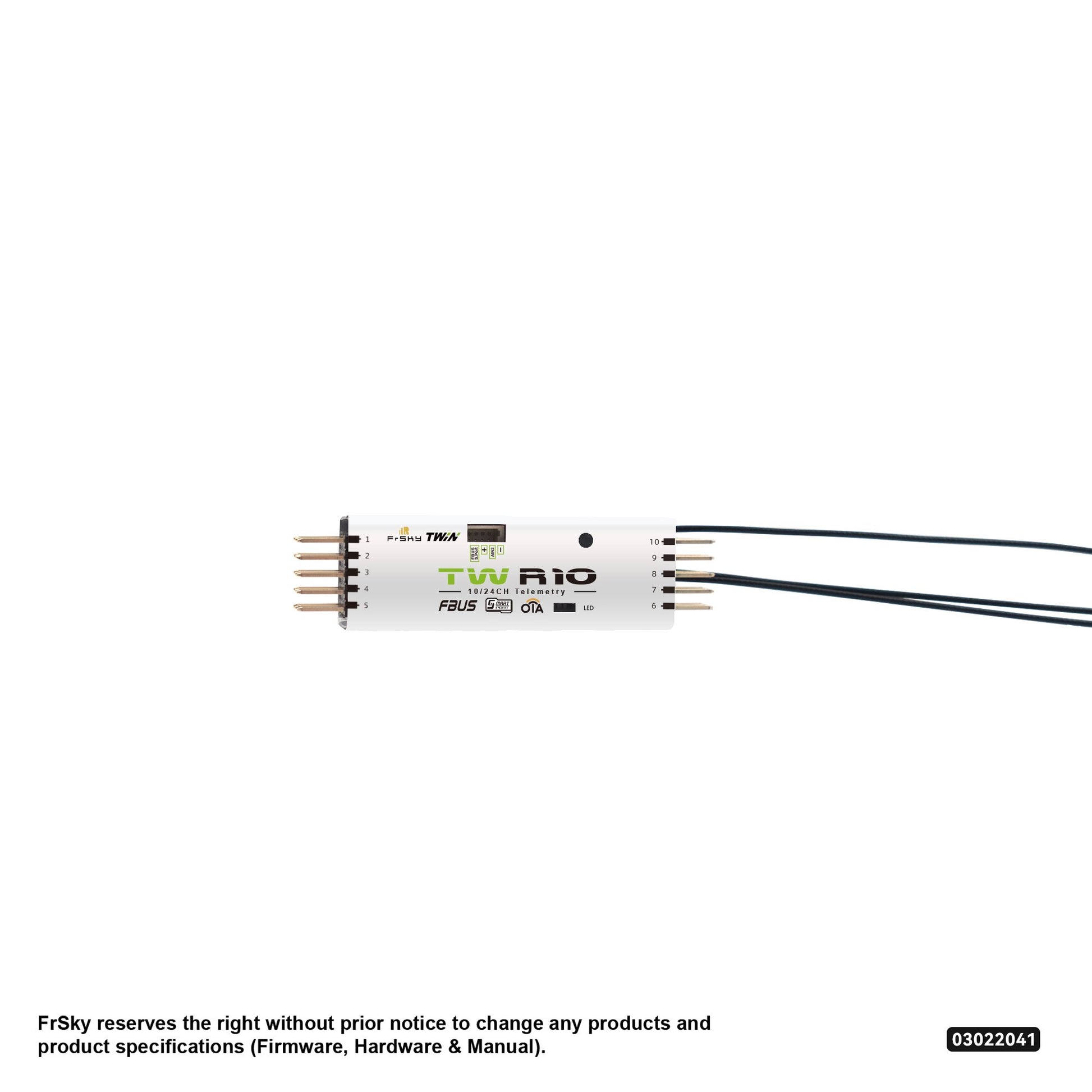

FrSky TWIN R10 2.4GHz Dual-Band Receiver - 10 Channel, Long Range, FBUS/SBUS/PWM Support
When one 2.4GHz band just won't cut it, the FrSky TWIN R10 receiver says, "Why not two?" Engineered for serious RC pilots who value range, resilience, and redundancy, this compact powerhouse features the all-new TW protocol—FrSky's bold answer to signal reliability. Unlike your typical active-standby setup, this beast runs both 2.4GHz bands simultaneously, meaning you get real-time dual-band reception with none of the commitment issues.
Designed with flexibility in mind (because your RC builds never stick to one script), the R10 comes with 10 fully configurable channel ports. Each one can handle PWM, SBUS, FBUS, or S.Port, so you can wire your build your way—or wire less of it, thanks to FBUS one-line connectivity that handles signal and telemetry at once. Fewer cables, more clean.
OTA firmware updates, black-box logging, and triple 2.4GHz antennas seal the deal. Whether you're flying drones, planes, or RC Frankenstein experiments, the TWIN R10 is the receiver that won't ghost you mid-air.
🔧 Specifications:
-
Protocol: Dual-band 2.4GHz (Simultaneous TW Mode)
-

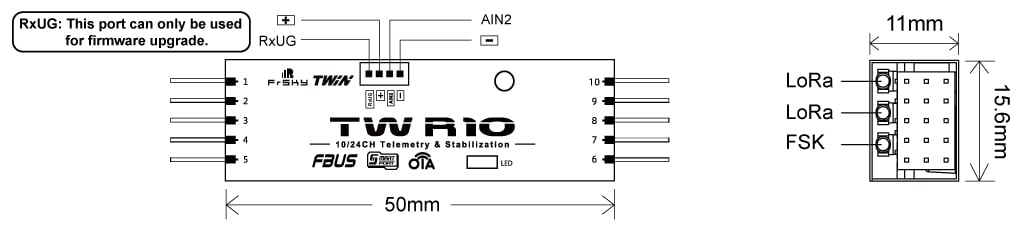

Dimensions: 64.6 × 16.6 × 12.4 mm
-
Weight: 9.4g
-
Operating Voltage: 3.5-12V (Optimized for 2S LiPo)
-
Current Draw: ≤120mA @5V
-
Voltage Measurement via AIN: 0-35V (1:10 divider ratio)
-
Compatible With: FrSky TWIN series radios & TW-capable RF modules
-
Antenna Setup: 3x 2.4GHz antennas (IPEX1 connectors)
-
Channels: 10 configurable ports (CP1-CP10)
-
-
CP1: PWM / SBUS OUT / FBUS / S.Port / SBUS IN
-
-
-
CP2-10: PWM / SBUS OUT / FBUS / S.Port
-
-
Telemetry: SBUS/FBUS/S.Port support
-
Firmware Updates: Over-the-Air (OTA)
-
Other Perks: Built-in black-box logging for basic diagnostics
📦 What's in the Box:
-
1x FrSky TWIN R10 Receiver
-
3x 2.4GHz Antennas (IPEX1)
-
Documentation
Disclaimer: Accessory contents may vary slightly depending on supplier availability. Batteries, servos, or any hopes and dreams not included.
