Product Details
Introducing the 4-in-1 TX module - the ultimate solution for all your remote control needs! This module is designed specifically for the FRSKY X-Lite and integrates four powerful RF chips (CC2500, NRF24L01+, A7105, CYRF6936) into a single circuit board. Whether you're flying a Futabas S-FHSS or navigating a Hisky, this module has got you covered with support for a variety of remote control protocols.
Notice: Before you use it with FrSky Ethos radios, please download the LUA script and put it into the SD card Scripts file.
LUA script download link： https://github.com/FrSkyRC/ETHOS-Feedback-Community/archive/refs/heads/main.zip
Here are just a few of the key product highlights:
- Compatibility with multiple remote control protocols, including Futabas S-FHSS, Walkera DEVO, Spektrum DSM2, DSMX, Flysky, Frsky, WLToys, Hubsan, Hisky, Esky, and Assan.
- ARM microcontroller-based design, compatible with the Multi-module project on Github.
- Seamless integration with telemetry-capable transmitters for a truly immersive flying experience.
With this module, you can experience ultimate flexibility and control over your model. And with its user-friendly serial protocol, the model protocol selection and binding process is a breeze. So, why wait? Get your 4-in-1 TX module today and take your flying experience to new heights!
Specification
- Operating voltage:5-9V
- Operating current: <=180mA
- Operating frequency: 2.4G ISM band
- RF power: +22dBm
- MCU: ARM CORTEX-M(128K ROM, 20K RAM)
- Weight: 32g
Included

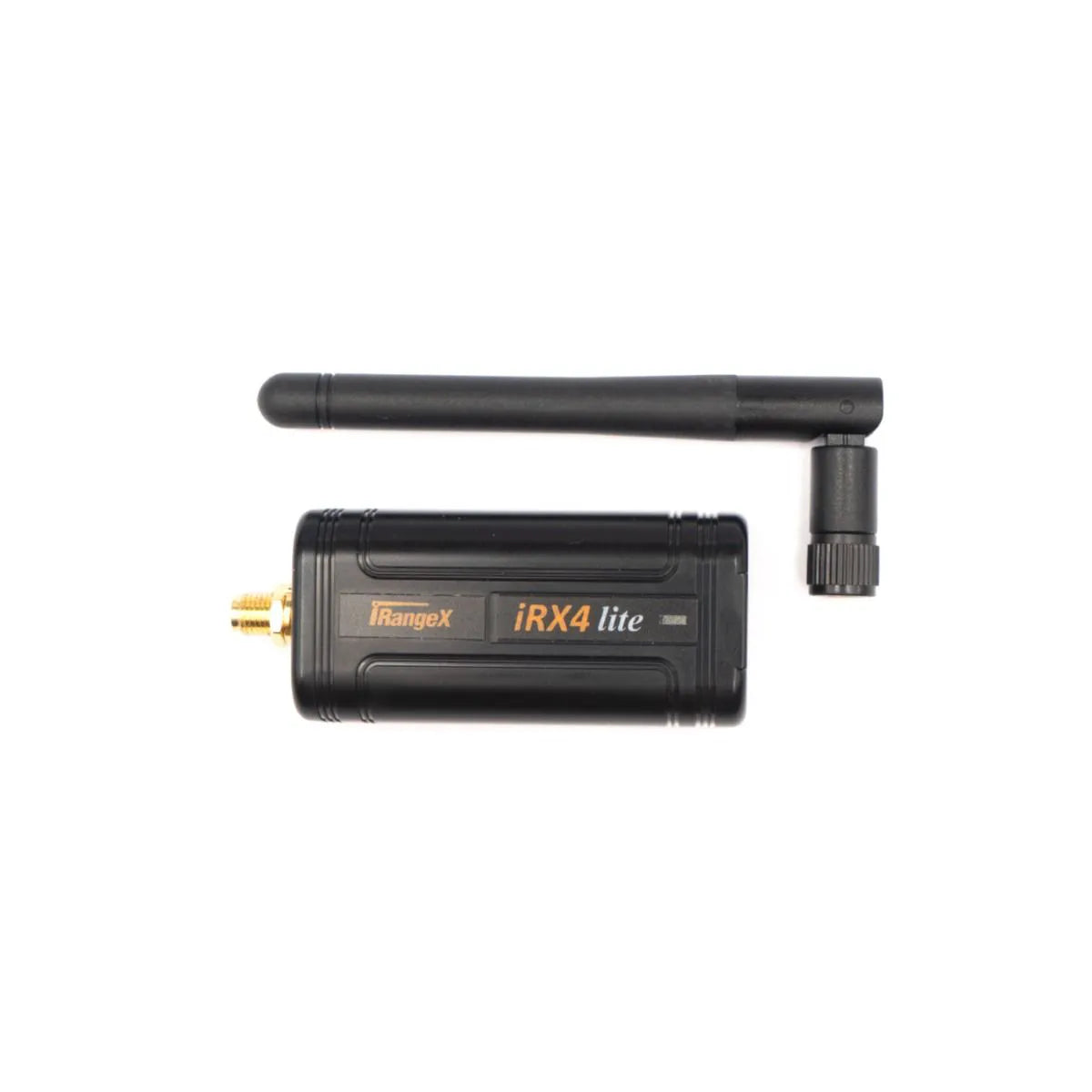

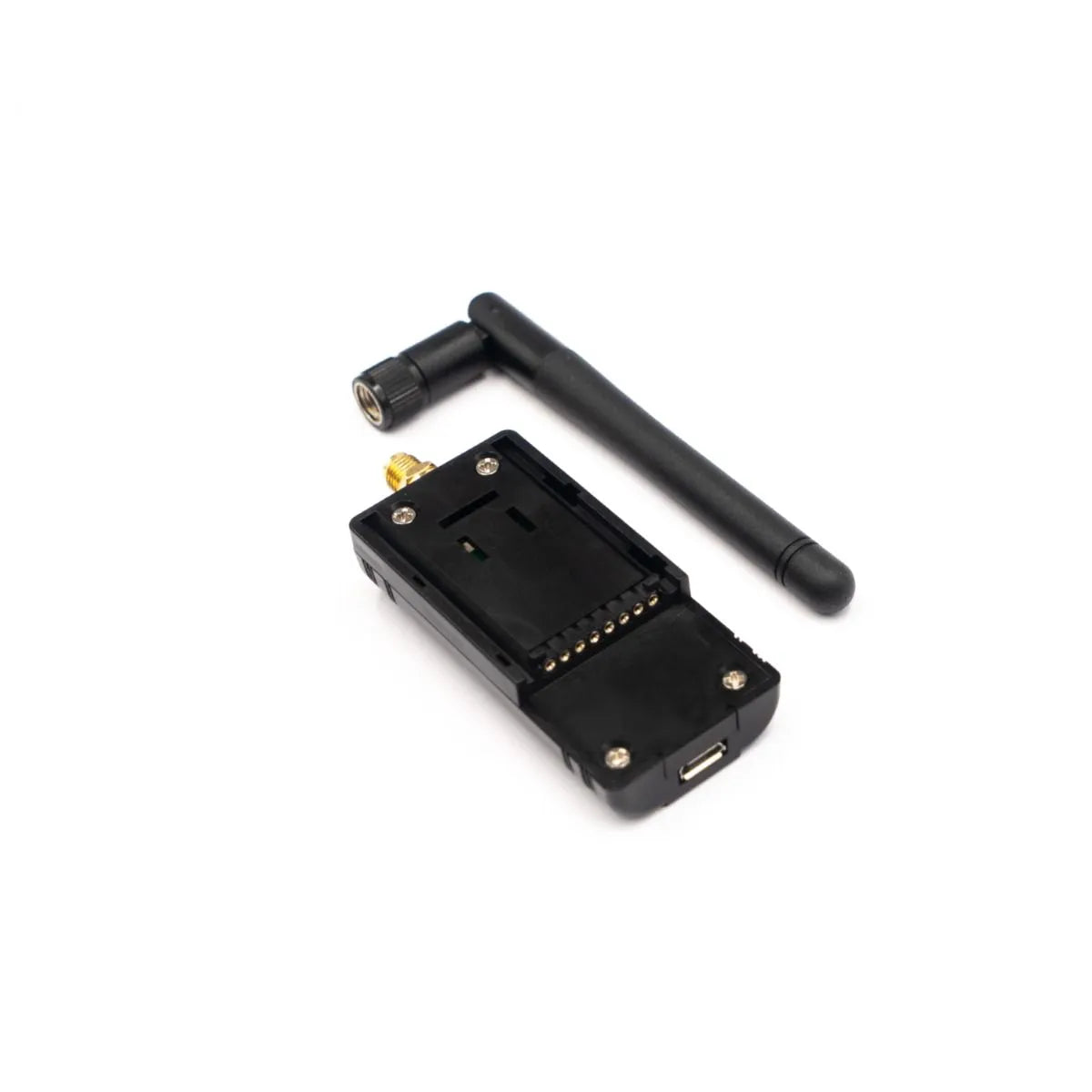

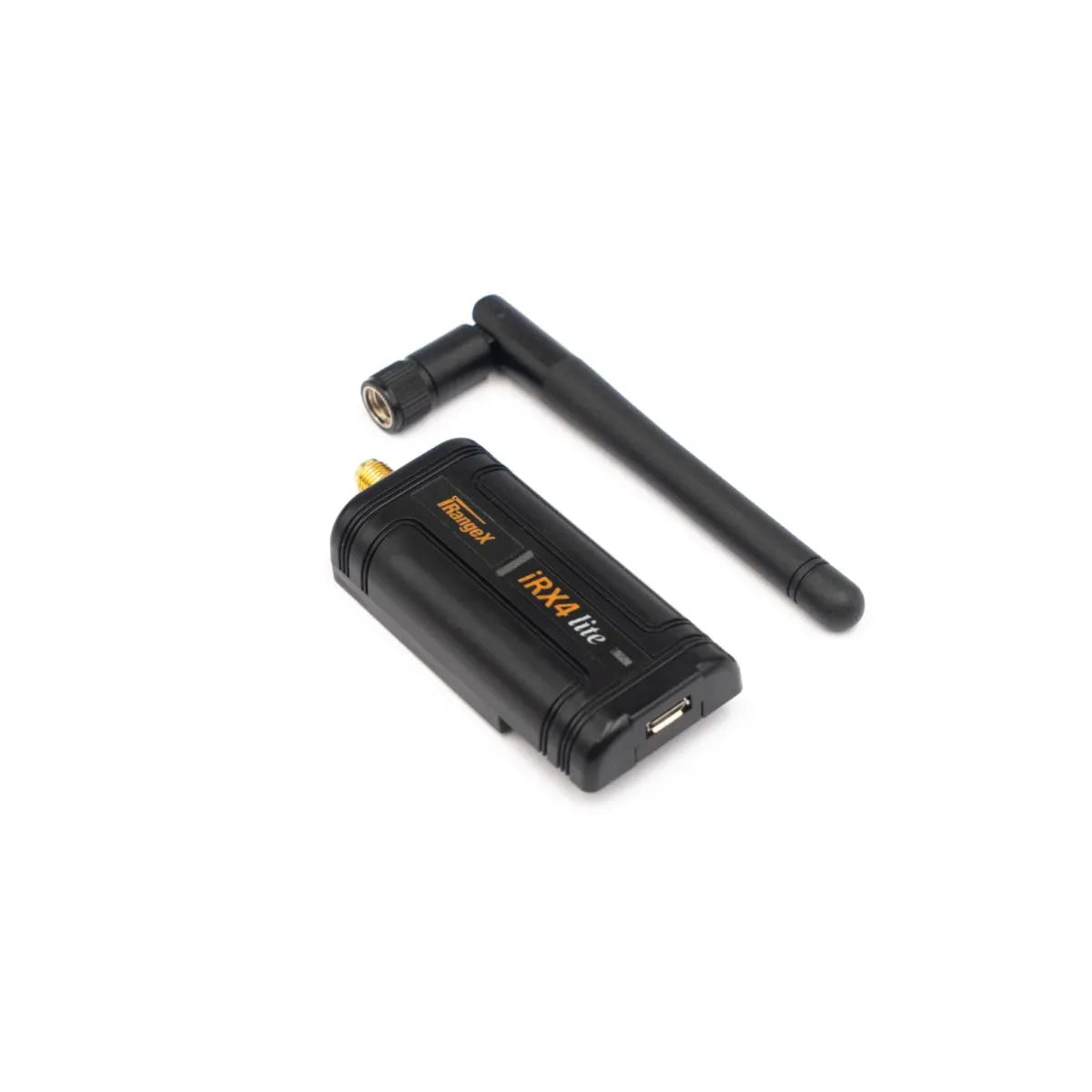

- 1 x IRX4 LITE TX Module
