Long-Range FPV Ground Station Repeater V2

Welcome to the ultimate WFH setup for drone pilots. This long-range FPV ground station repeater lets you mount your antennas on a freezing, wind-swept summit while you sit up to 300m away in a heated van, sipping tea and scrolling TikTok. Packed with a factory-set ELRS 868MHz TX and a 5.8GHz VRX (custom frequencies available if you ask nicely), this drone signal relay ensures your video feed stays crisp when dipping behind a bando. It’s like having Joshua Bardwell hold your antennas up high, minus the awkward silence. Say goodbye to failsafes and hello to legally questionable comfort.

Why You Want It

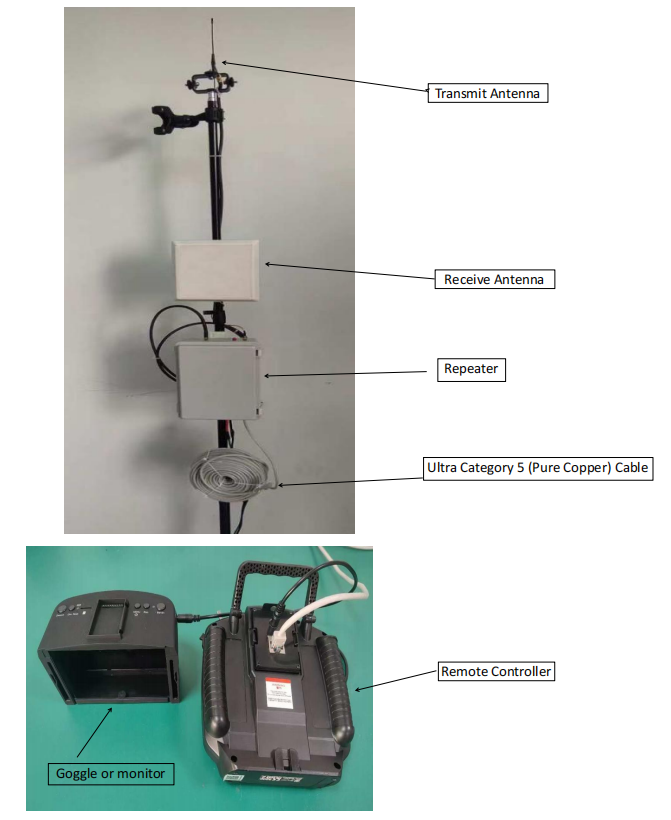

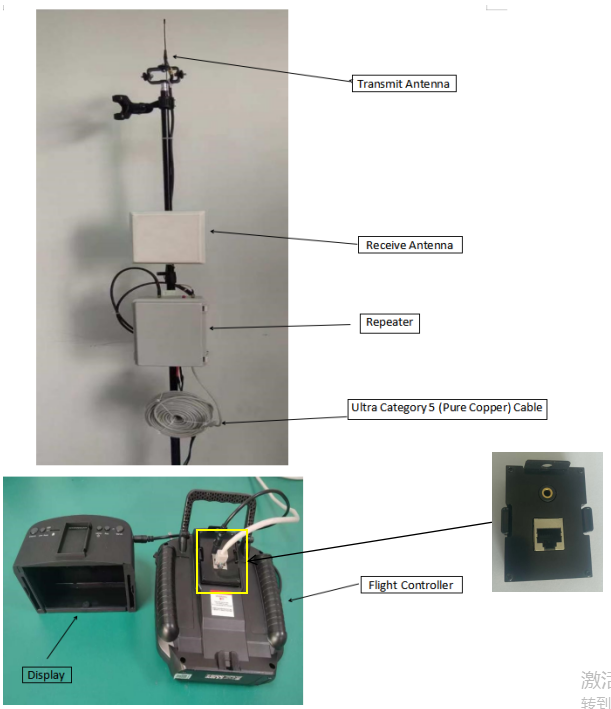

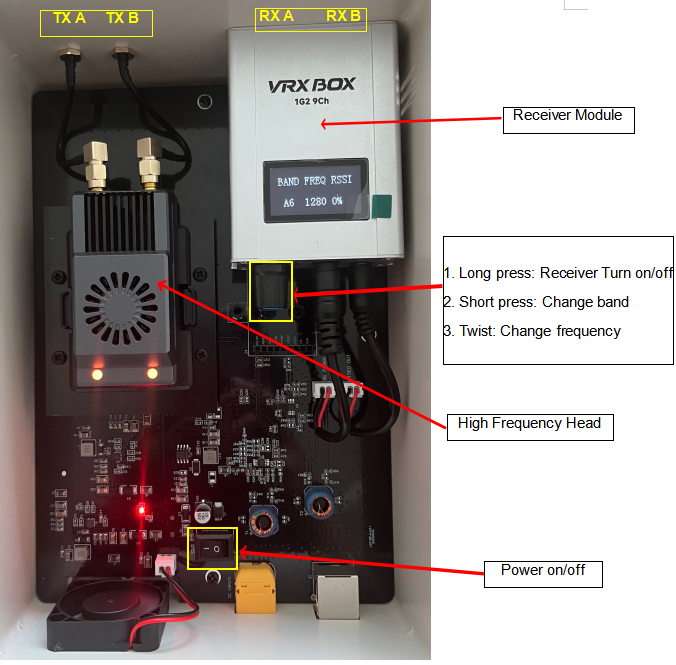

Because physics is a harsh mistress and radio waves hate trees. This hefty magic box acts as your personal proxy. You mount the VRX and TX module on a tripod at the peak of transmission perfection, run a Cat5 cable down to your hidey-hole, and plug the other end into your goggles and Radiomaster. It’s perfect for cinematic pilots who refuse to hike, or anyone who’s ever lost a quad because they stood behind a slightly damp bush. We're essentially selling you the ability to cheat line-of-sight (metaphorically, CAA, we promise).

Please note:  Frequencies can be changed on request 1.2G, 1.7G, 3.3G, 5.8G etc.. please contact us for more info.  This listing is configured to 868Mhz ELRS TX, and 5.8Ghz VRX for video.

Specifications

• Weight: 0.95 kg (Heavy enough to double as a weapon against curious hikers)
• Input Voltage: DC 10V - 35V (Feed it whatever sketchy LiPos you have rolling around in the boot)

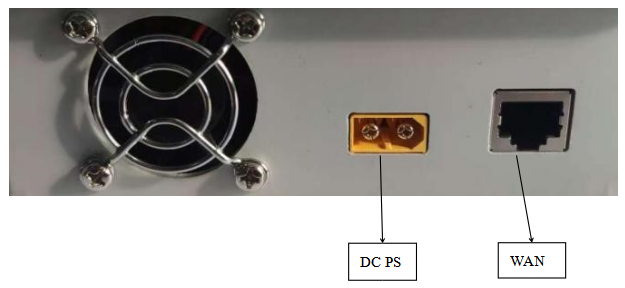

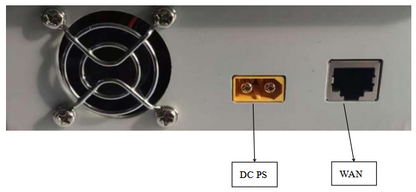

• Power Interface: XT60 (Because we're not monsters)

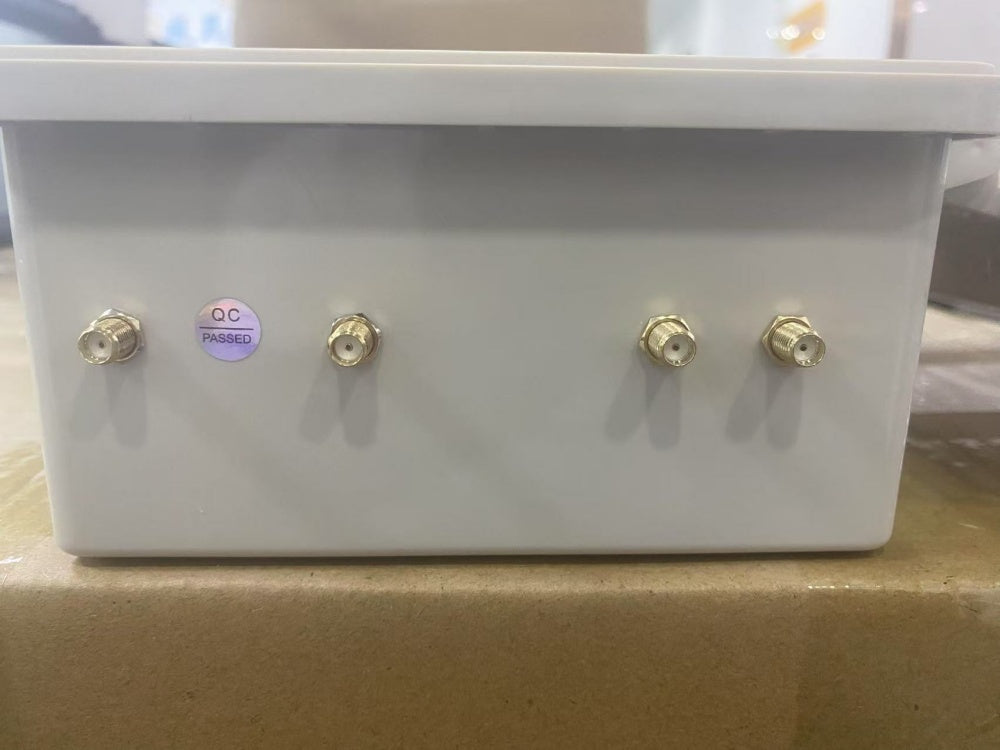

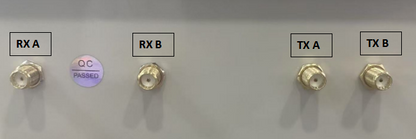

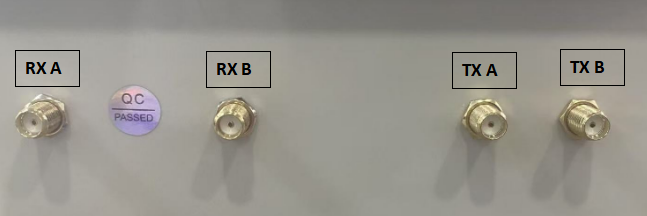

• RF Ports: SMA-F (For both your TX and RX ends, tighten them properly or cry later)
• Transport Distance: Up to 300m via RJ45 (That's a 300-meter leash to hide from your responsibilities)

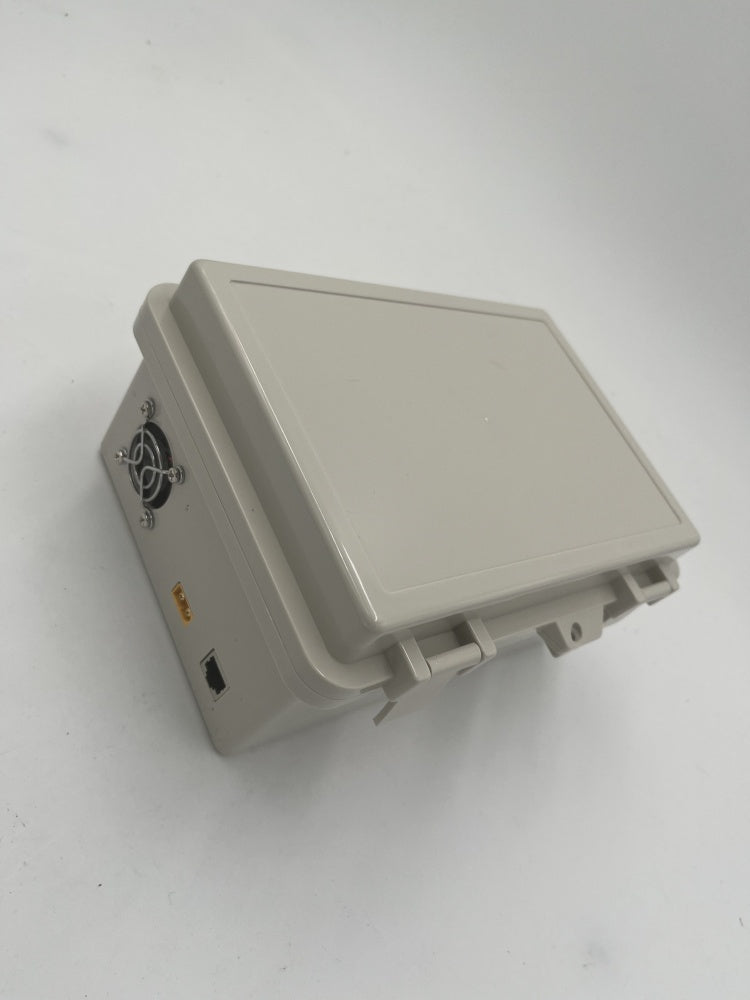

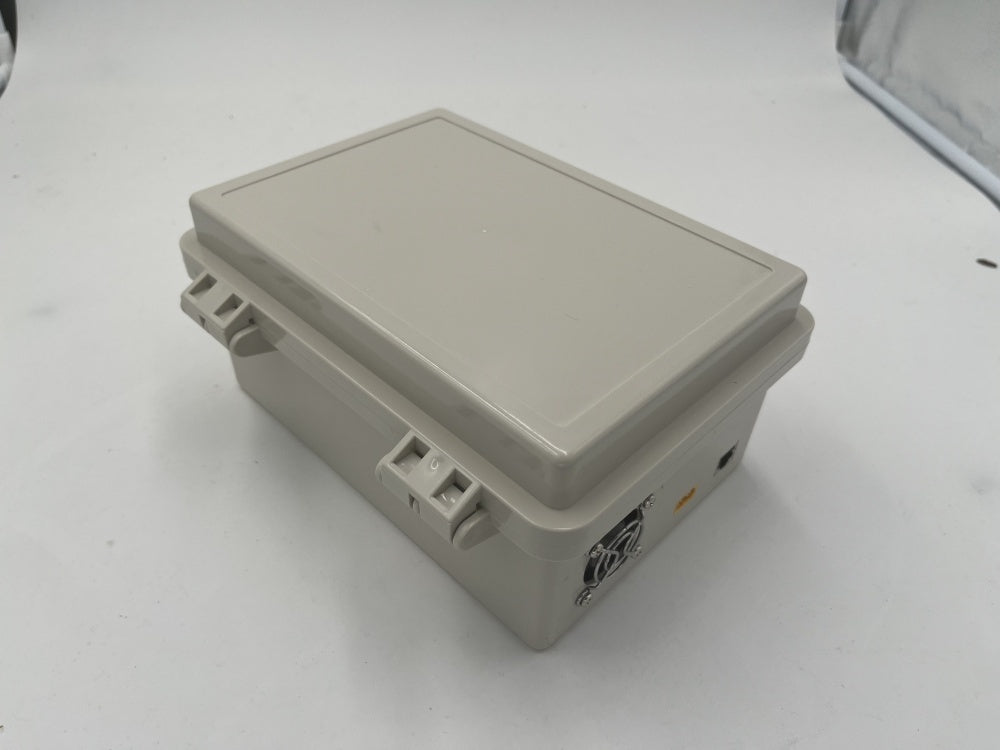

• Dimensions: 240 × 170 × 110 mm (Chunky, rugged, and completely unapologetic)
• Operating Temp: -20°C to 70°C (Survives British winters and whatever the opposite of a British winter is)

What’s in the Box*

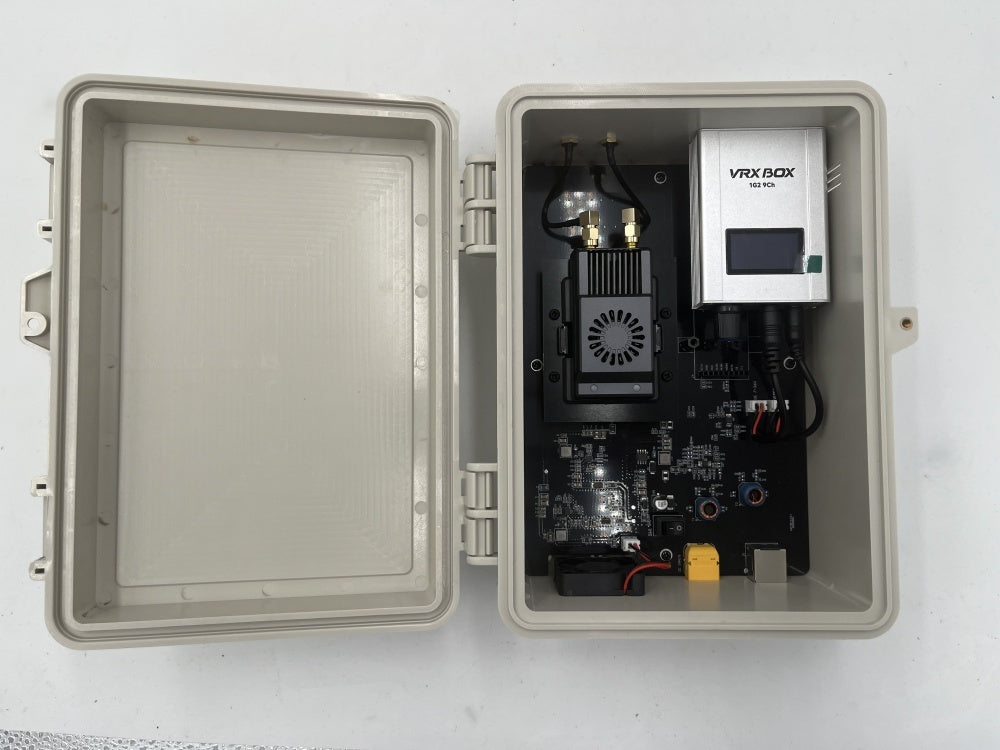

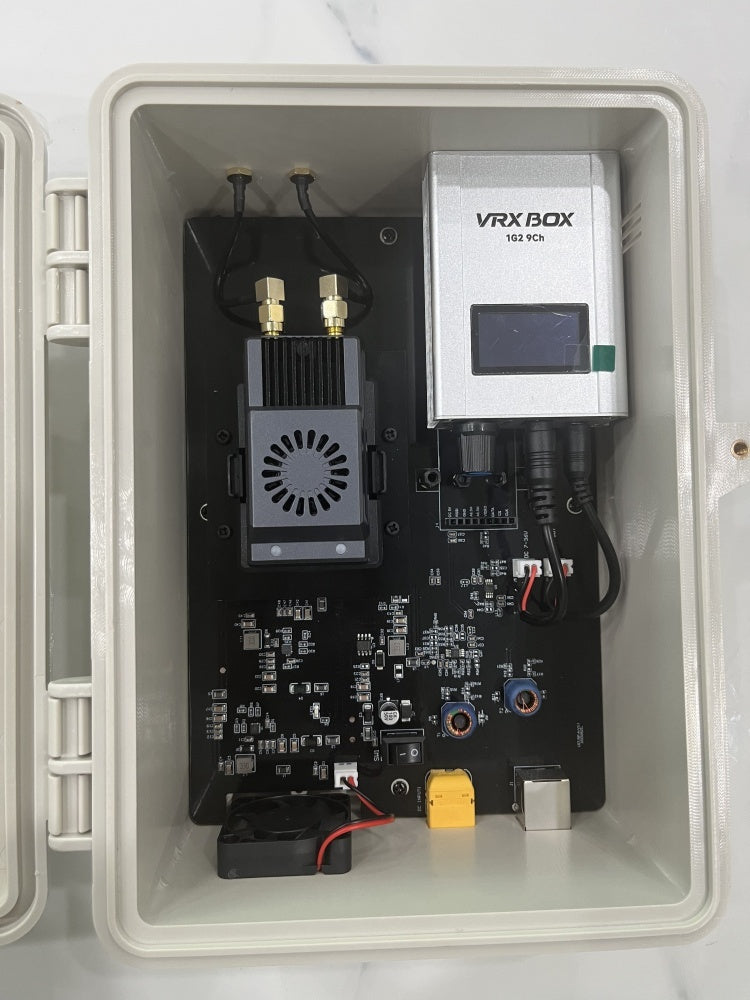

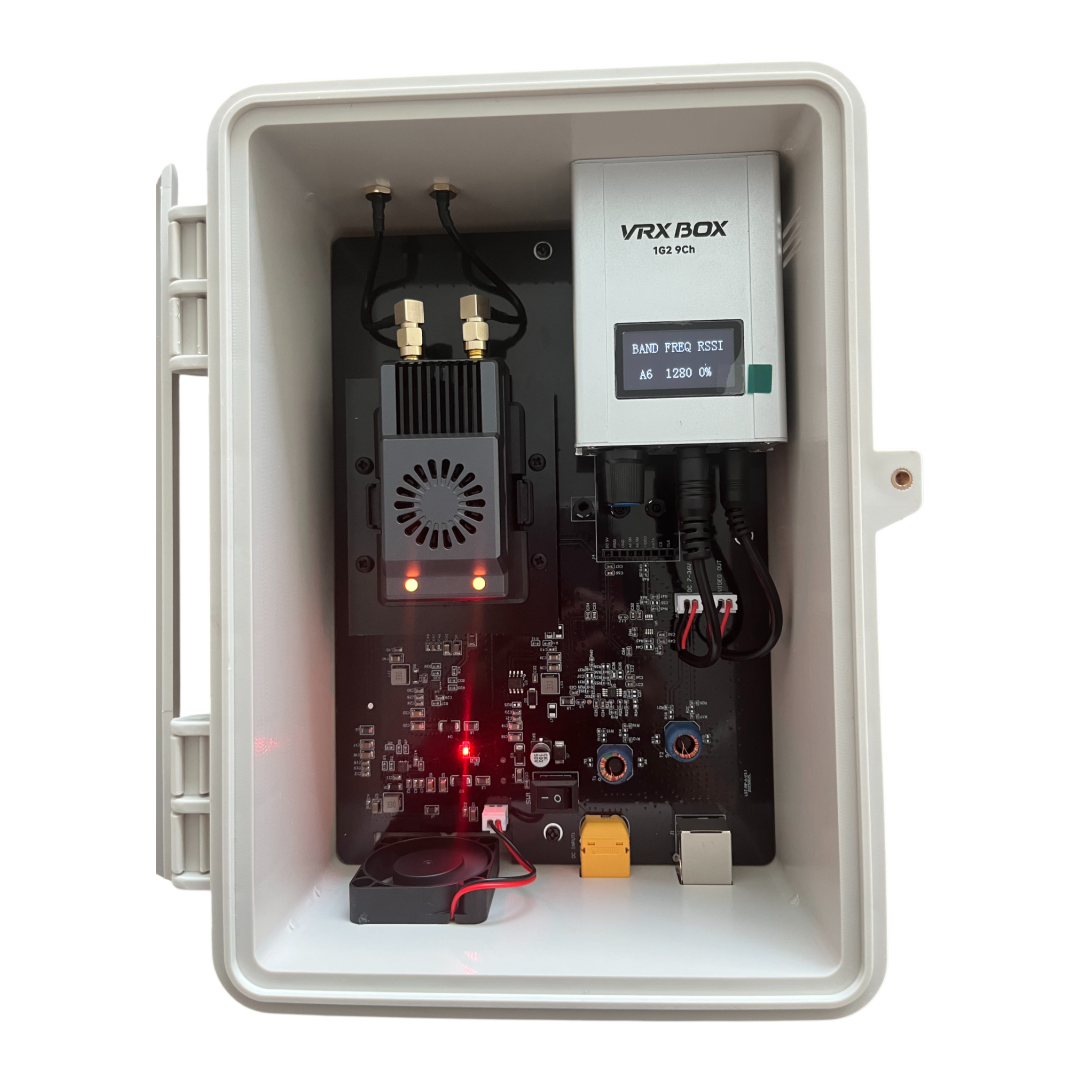

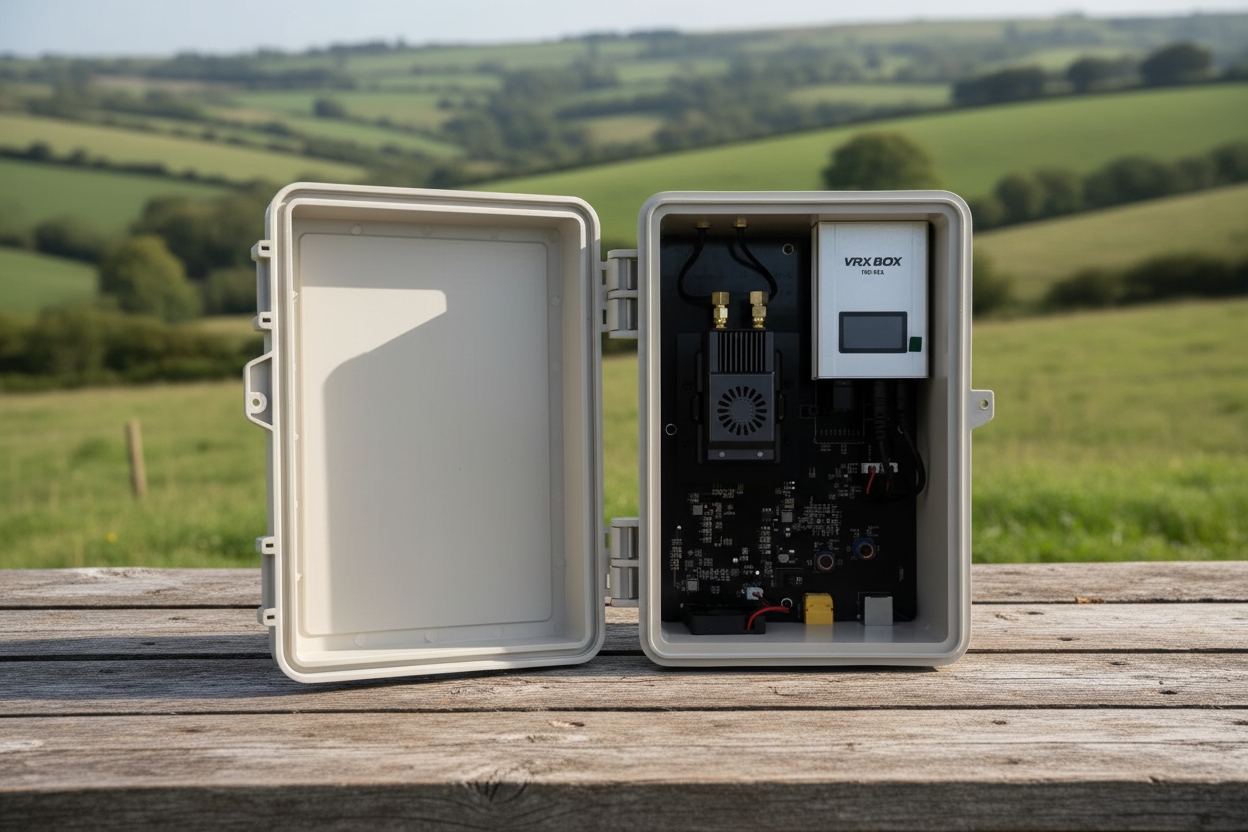

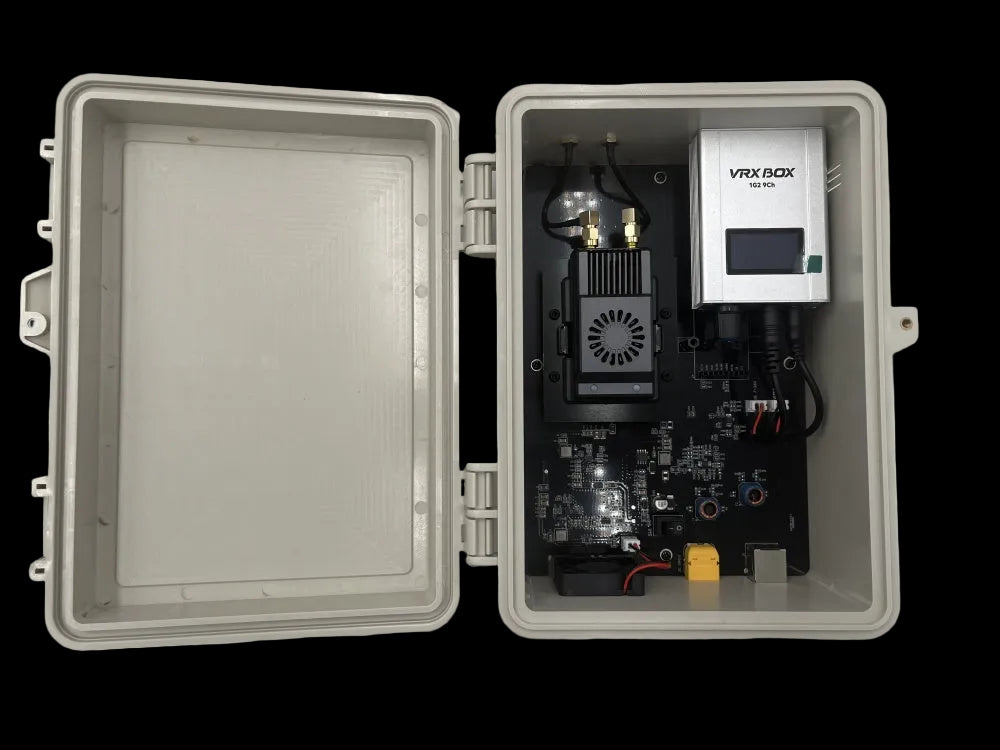

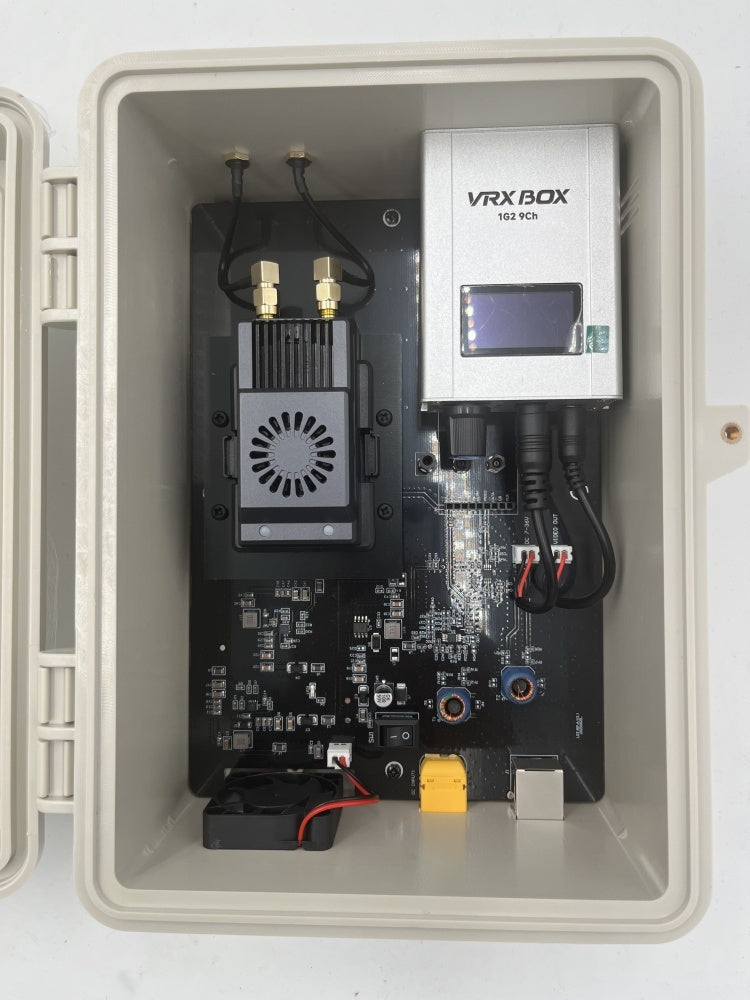

• 1× FPV Repeater Main Unit (ELRS 868MHz / 5.8GHz standard)

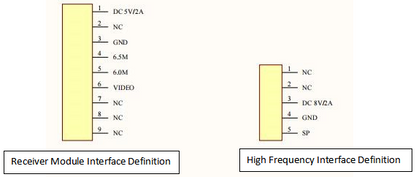

• 1× HF Head & Receiver Module Mounting Provisions

Antennas, googles and radio are sold separately.

Compatibility

Plays nice with Radiomaster controllers. Ships with ELRS 868MHz and a 5.8GHz VRX out of the box, but we can customize frequencies if your mission requires it. Talk to our support team; they love human interaction.

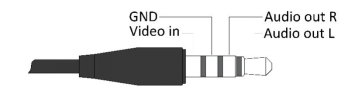

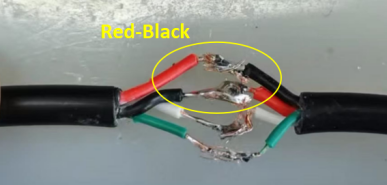

Please note that the ground, video lines on the video out cable is reversed.  If using standard monitors such as Skyzone, you will need to swap the pinout since most 3.5mm video jacks have ground on the base of the connector.  Contact us if you have any questions about this.

Features and Highlights

• Dual Diversity VRX — Because trusting a single antenna is a rookie mistake.
• Cable-Tethered Freedom — Send your signals up the hill over standard copper ethernet cable while you stay warm.

Product Notes

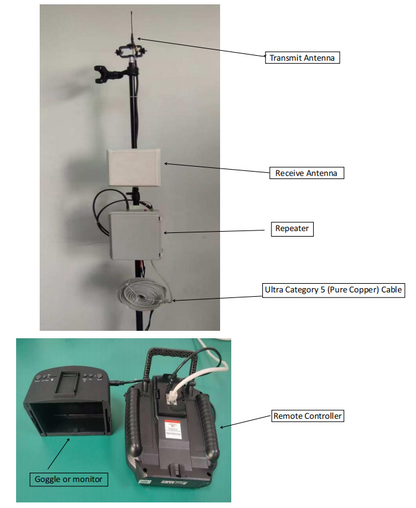

Keep at least 60cm vertical separation between your TX and RX antennas on the tripod. If you mount them side-by-side, they will scream at each other and your goggles will go darker than a Game of Thrones night scene.

FPV Ground Station Repeater Disclaimer

Tripods, cables, and dignity are sold separately; this FPV ground station repeater core unit is guaranteed to work, but your piloting skills aren't.

Still Here?

You’ve read down to the footer of an FPV ground station repeater product page. Either your boss thinks you're working, or you’re desperately searching for validation to drop cash on a professional long-range drone signal relay system. Well, consider yourself validated. Stop squinting at the specs, buy the box, and finally enjoy flying from the cozy, heated sanctuary of your car. Add to cart before the CAA bans comfort altogether.
