Product Details
Features
- Toray T700 Carbon with silky green coating
- 210mm wheelbase (supports 5" propellers)
- Supports Analog/Vista/Avatar FPV systems
- 19x19mm FPV camera support
- 20x20 or 25.5x25.5mm M2 flight stack mounting holes
Specifications
| Material | Toray T700 green carbon with silky coating |
| Wheelbase | 210mm |
| Mouting hole | 20x20/25.5x25.5 M2 |
| Camera size | 19x19mm Micro Size |
| System | Analog Cam/ HD Vista digital system |
| GPS Mount | BN180 |
| Weight | Around 71g(excluded TPU Kit) |
| Recommend Motor | 2104~2105.5 12*12mm |

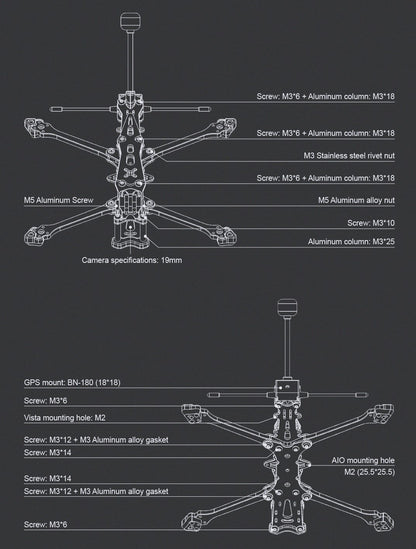

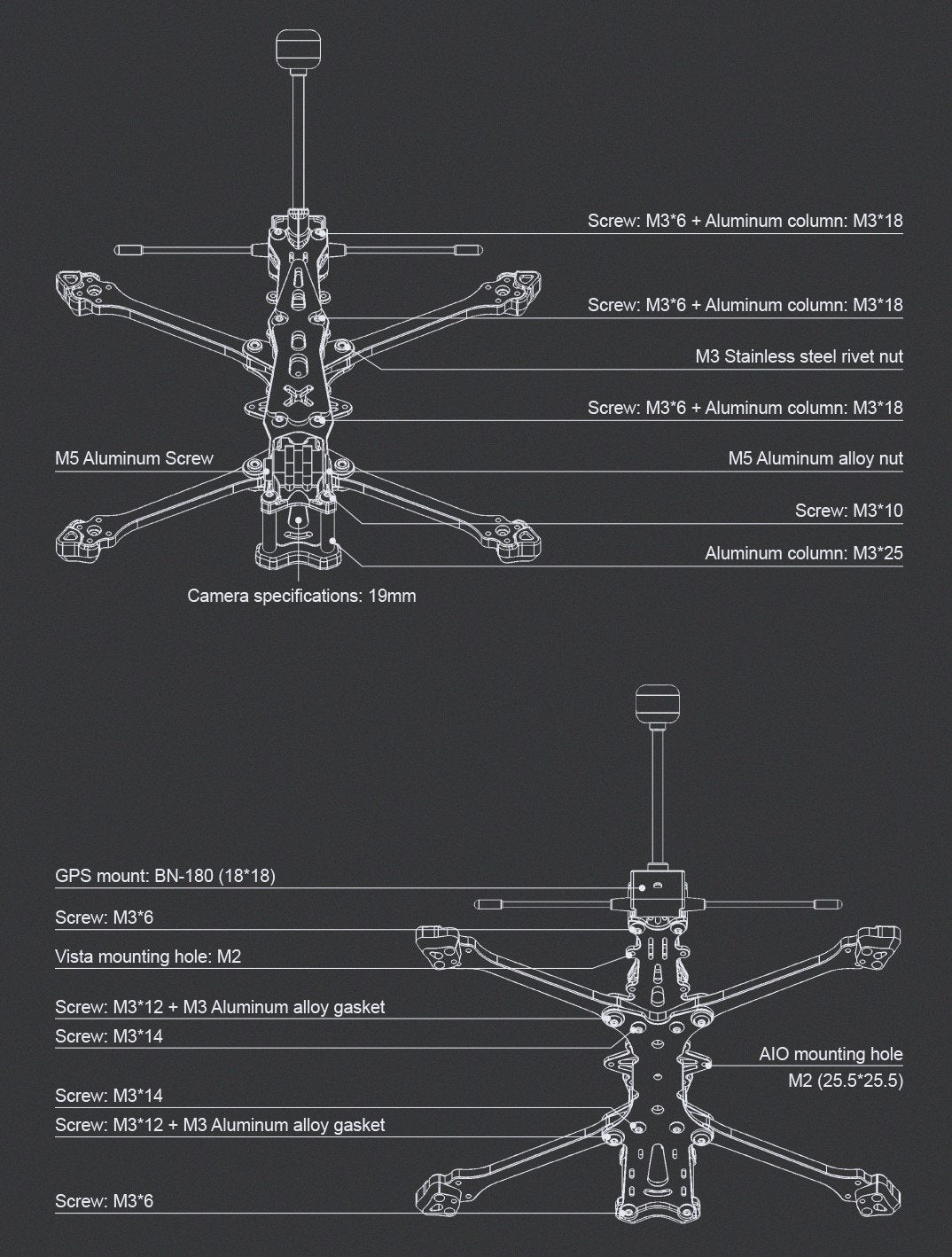

| Packing List | |
| 5mm Arm 12*12 mm mounting - 4 | |
| 1.5mm Top Plate - 1 | |
| 1.5mm Cam Mount - 2 | |
| 2mm middle plate - 1 | |
| 2mm Bottom Plate - 1 | |
| Aluminum Column M3*18 - 6 | |
| Aluminum Column M3*25 - 2 | |
| TPU Receiver & Antenna Mount - 1 | |
| TPU Arm guard/Motor Mount - 4 | |
| TPU UFL Antenna Mount - 1 | |
| TPU Bottom Plate Front Protective Mount - 1 | |
| TPU GPS Mount - 1 | |
| M3*6 Screw - 10 | |
| M3*10 Screw - 2 | |
| M3*12 Screw - 4 | |
| M3*14 Screw - 4 | |
| M3 Spacer Screw - 4 | |
| M3 Self-clinching Nut - 4 | |
| M5*20 7075 column - 1 | |
| M5 Nut - 1 | |
| Battery Anti-slip Mat -1 | |
| 220*20mm Strap - 1 |
