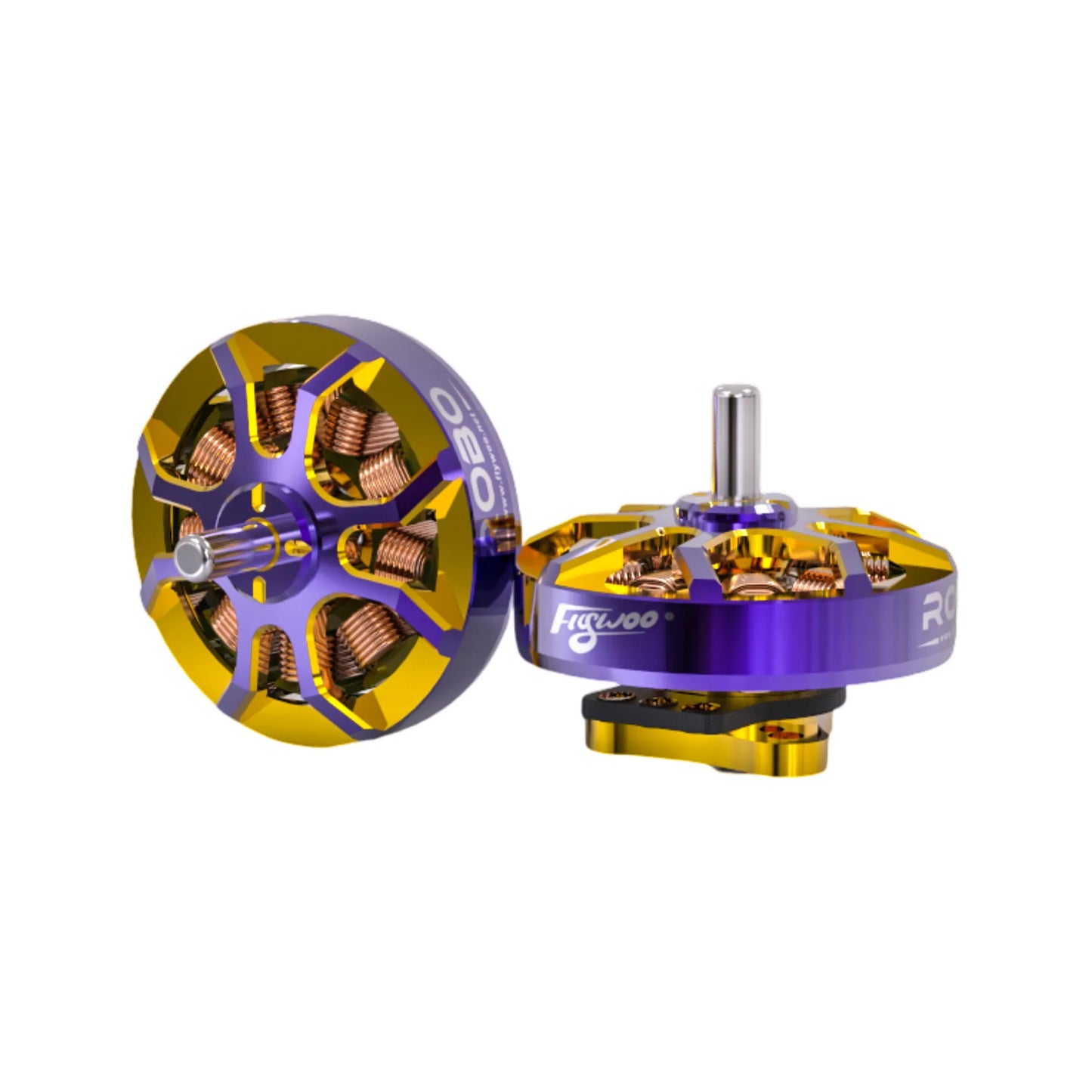

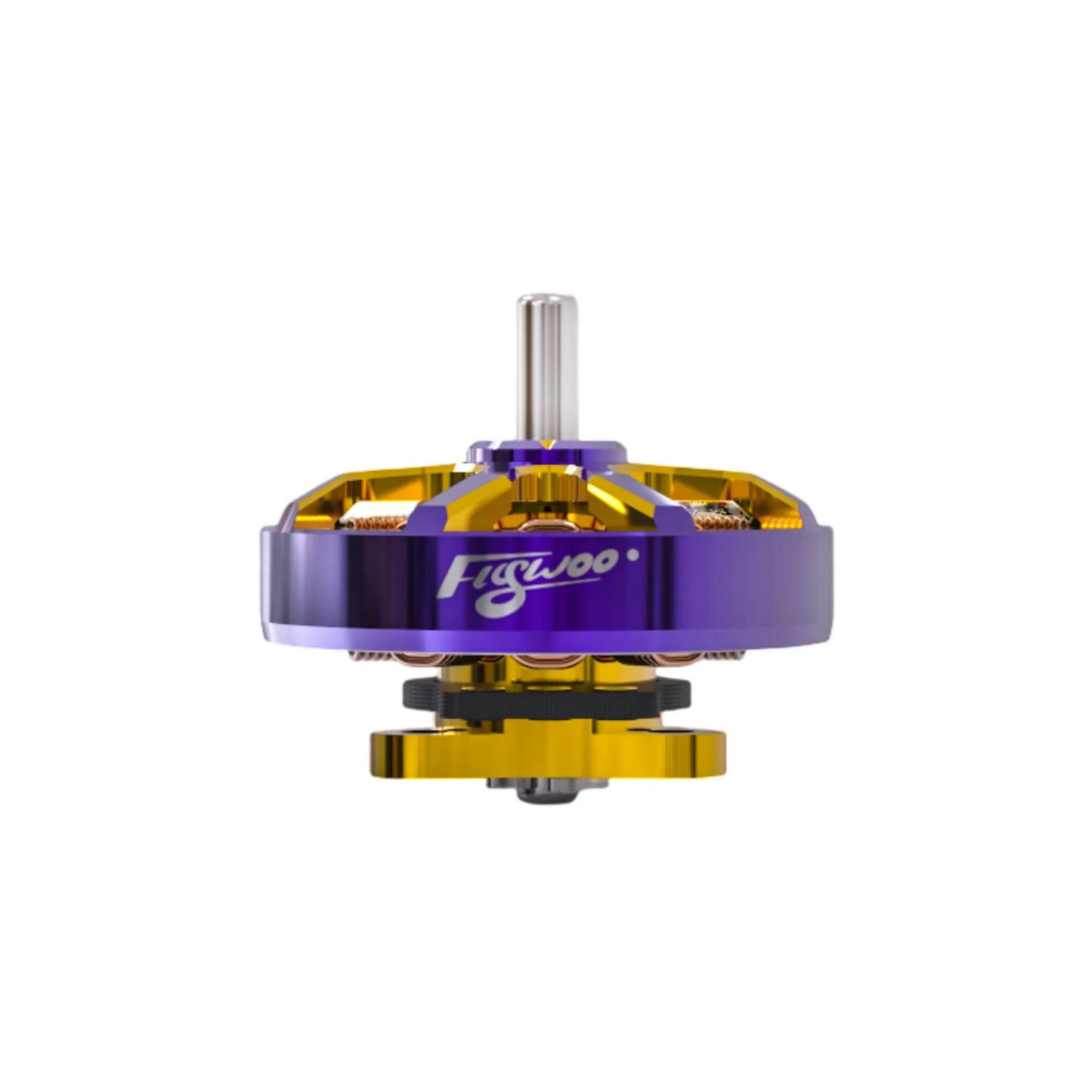

Flywoo ROBO 1002 23500KV FPV Motor: Unmatched Power in a Tiny Package
The Flywoo ROBO 1002 23500KV FPV Motor is engineered for those who demand peak performance from their ultralight drones. With a compact design and powerful output, this motor is perfect for high-speed, high-efficiency flight in 1S configurations.
Key Features
- High KV Rating: 23500KV provides incredible thrust and speed, ideal for ultralight FPV builds.
- Precision Engineering: 9N12P configuration with a 10mm stator diameter and 2mm stator length ensures smooth and efficient operation.
- Compact and Lightweight: Weighing just 2.5 grams with a 5cm wire, this motor keeps your build light and agile.
- High Efficiency: With a max efficiency current of 2-4A at over 84%, this motor delivers power where you need it most.
- Durable Construction: Featuring a robust design with a Φ13.5*7.75mm motor dimension and a 1.5mm shaft diameter.
Specifications
- Configuration: 9N12P
- Stator Diameter: 10mm
- Stator Length: 2mm
- Shaft Diameter: 1.5mm
- Motor Dimension (Dia. x Len): Φ13.5 x 7.75mm
- Weight: 2.5g (with 5cm wire)
- Idle Current @ 5V: 1.5A
- No. of Cells (Lipo): 1S
- Max Continuous Power (3S): 52W
- Internal Resistance: 75mΩ
- Max Current (3S): 14A
- Max Efficiency Current: (2-4A) > 84%
Package Includes
- 1 x Flywoo ROBO 1002 23500KV FPV Motor
- Accessories
