Product Details

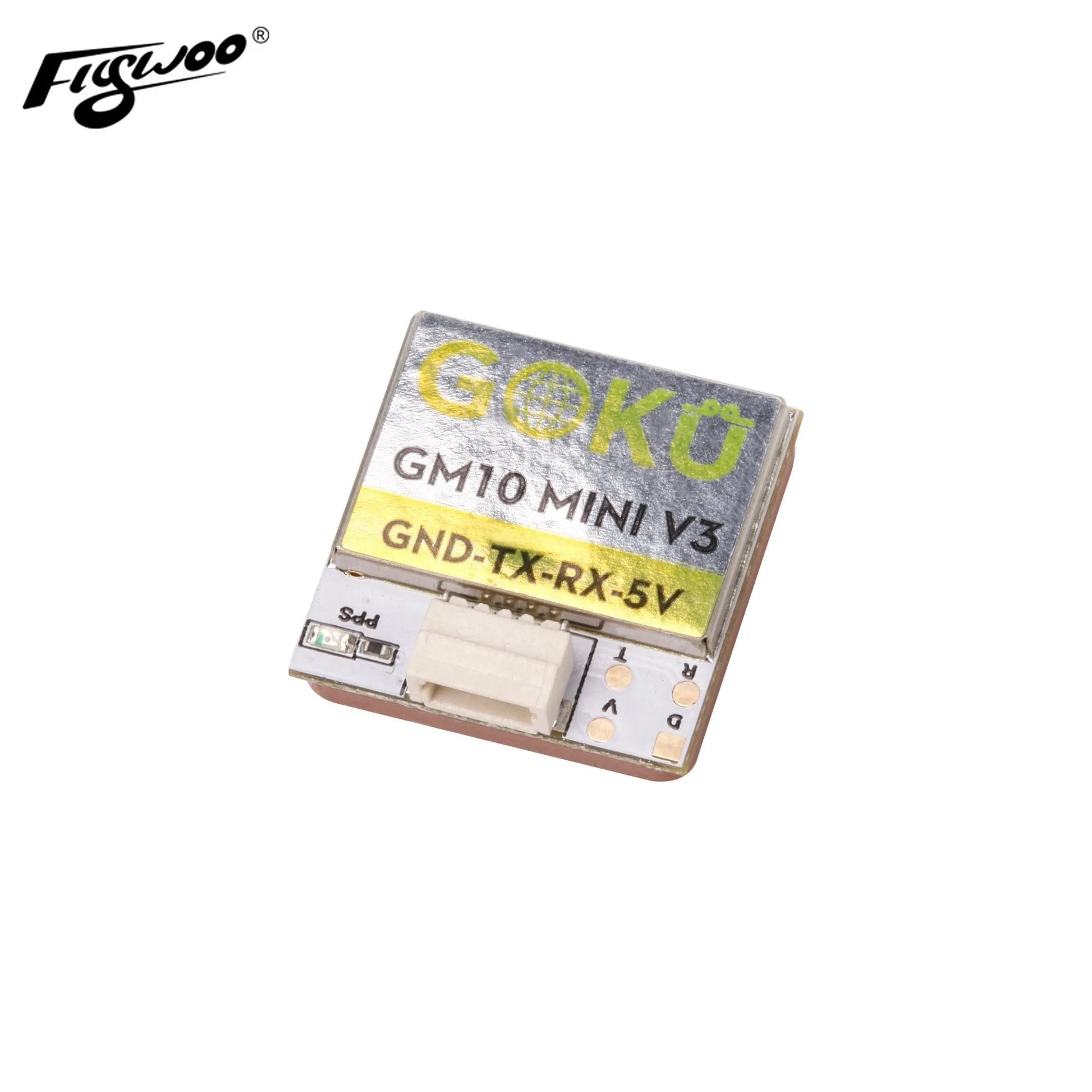

The Flywoo GOKU GM10 Mini V3 GPS is the latest innovation in GPS technology, equipped with the advanced M10050 GNSS chip. This next-gen GPS module ensures superior accuracy and faster satellite acquisition compared to its predecessor, the GM8 V2. Ideal for drone enthusiasts and hobbyists who demand top-notch performance.
Key Features
- Advanced M10050 Chipset: Enhances positioning accuracy and satellite search speed.
- Multi-Constellation Support: Compatible with GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS.
- High Sensitivity: Tracks signals down to -162dBm and reacquires at -160dBm.
- Robust Data Handling: Supports data rates from 4800bps to 921600bps (default 115200bps) with a default output frequency of 10Hz.
- Wide Operational Limits: Operates up to 50,000m altitude and 500m/s velocity, withstanding acceleration under 4g.
- Versatile Compatibility: Works seamlessly with Betaflight 4.3.x and later, and INAV firmware 5.0.0 and above.

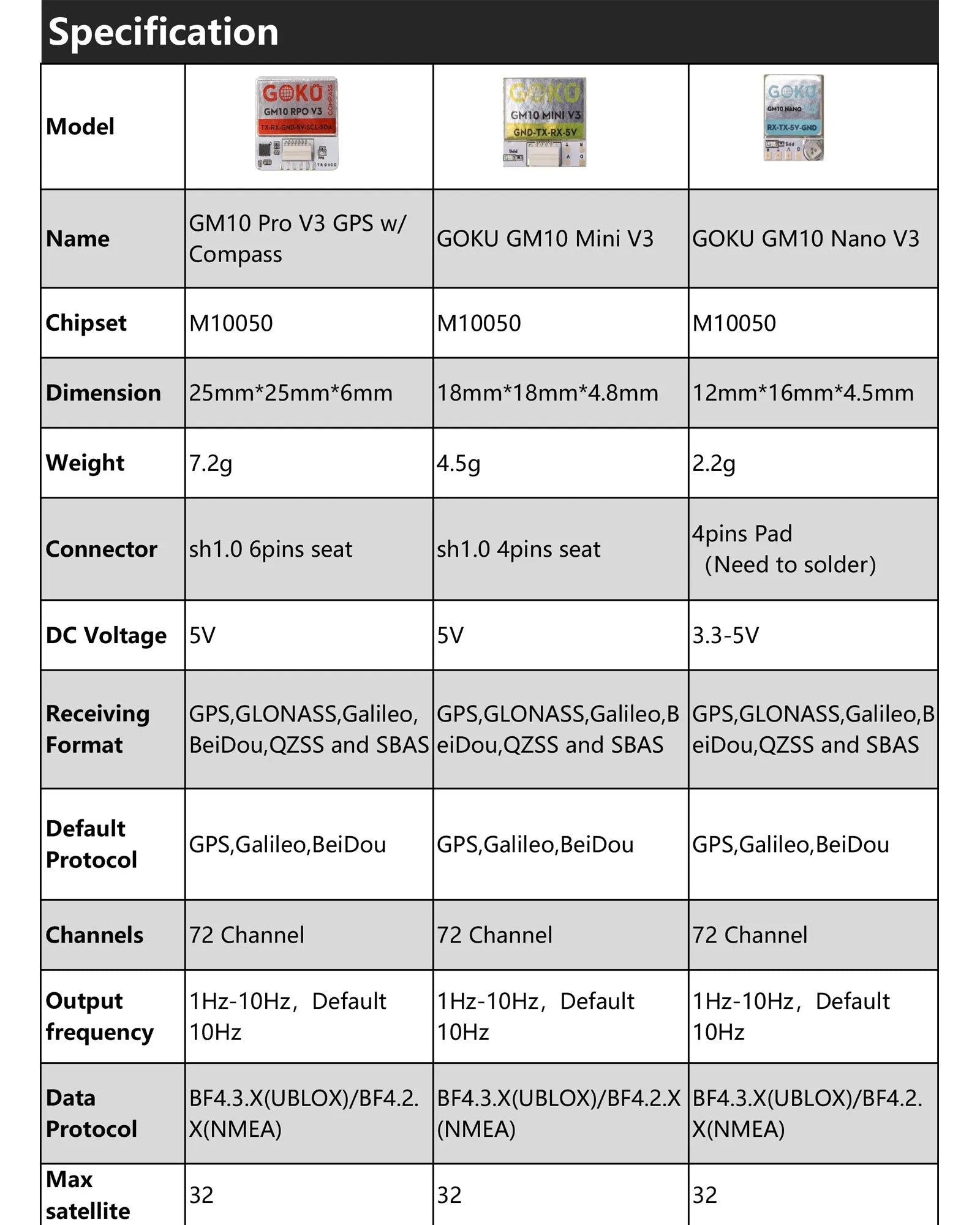

Specifications

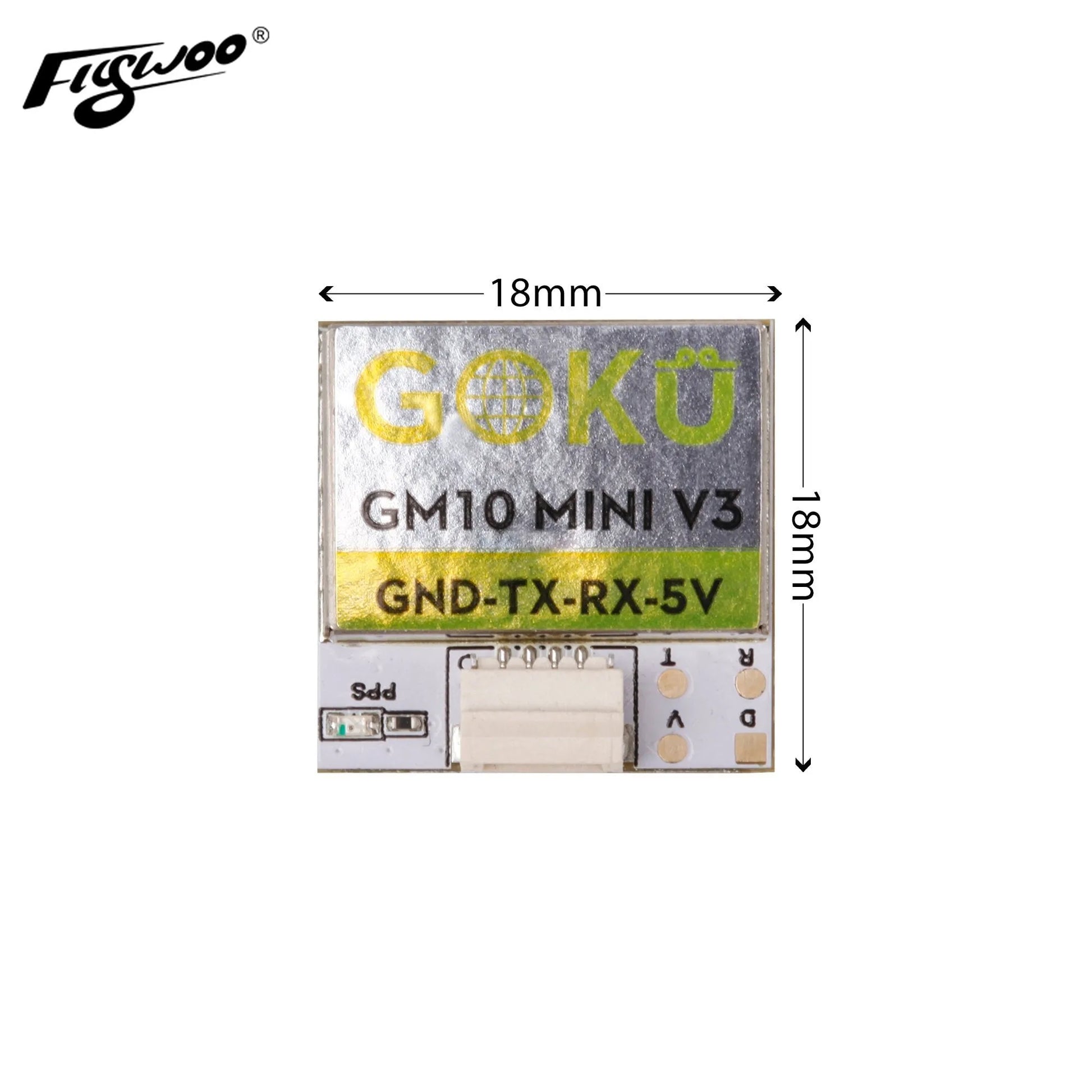

- Dimensions: 18mm x 18mm x 4.8mm
- Weight: 4.7g
- Connector: 1.00mm spacing between the 4 pins patch seat
- Frequency Bands: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
- Channels: 72 searching channels
- Power Consumption: 5V DC
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +105°C
- Indicator: PPS LED (yellow): Not lit when GPS not fixed, flashes when fixed

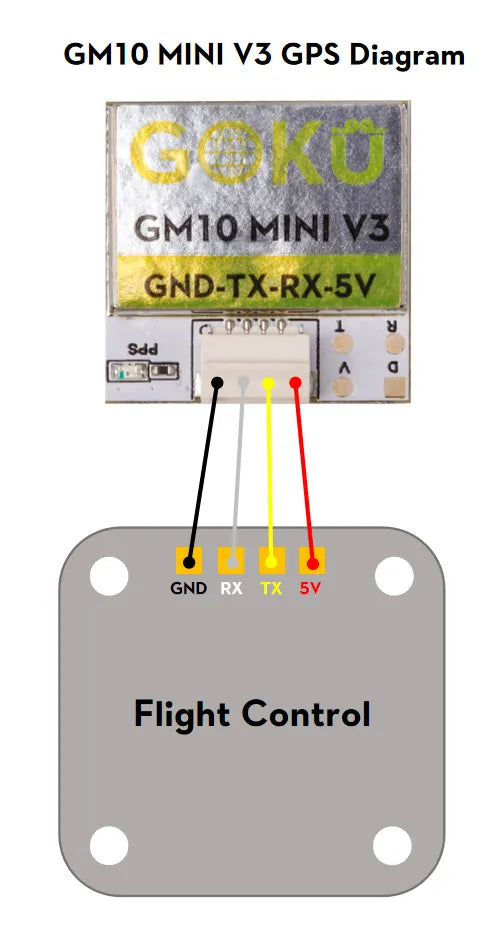

- Module Pins: GND, TX, RX, 5V

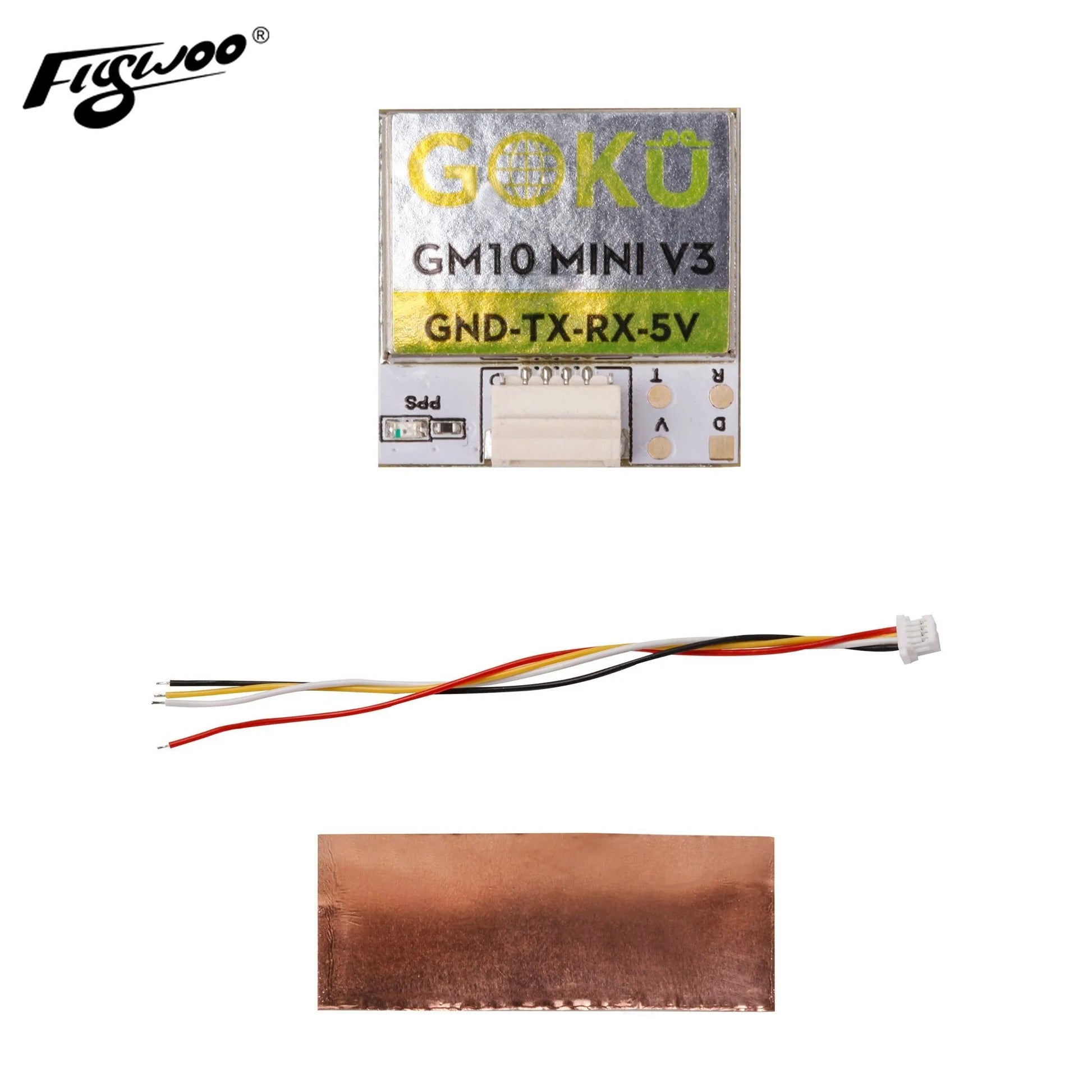

What's in the Box?
- 1x GM10 MINI V3 GPS
- 1x 100mm Cable
- 1x Copper Foil
Note: Accessories may vary based on supply.
