Product Details
The Ultimate GPS Upgrade You've Been Waiting For

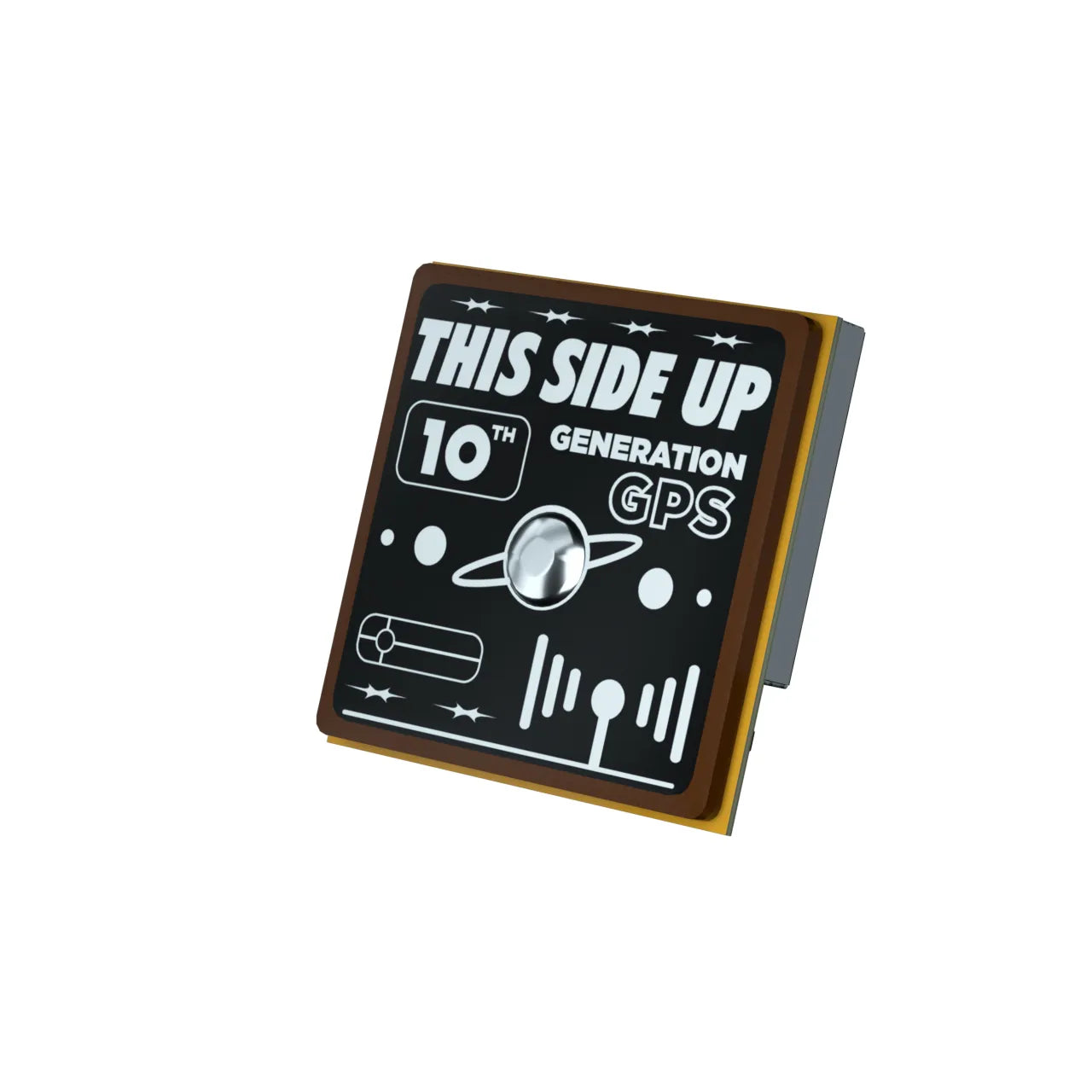

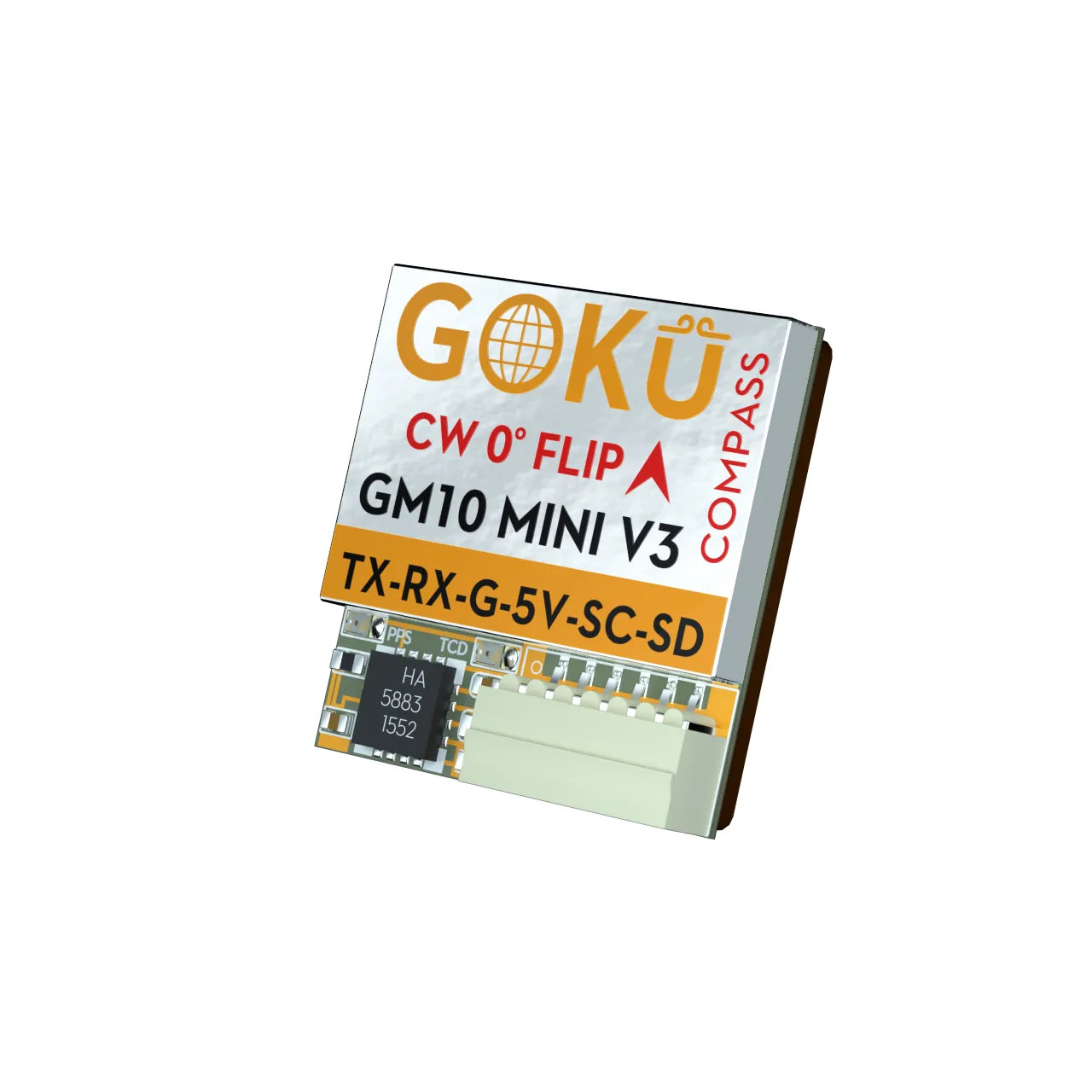

If you're tired of getting lost in your own backyard, the GOKU GM10 Mini V3 GPS w/ Compass is here to save the day. Same compact size as the original GM10, but now with a handy compass for those who like to know which way is up. Weighing a feather-light 4.1 grams, it won't weigh down your drone or your spirits.
Key Features
- Integrated Compass : Perfect for navigation enthusiasts who need precise direction.
- Lightning-Fast Satellite Search : Connects to up to 32 satellites in no time.
- Multisystem Compatibility : Supports GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS.

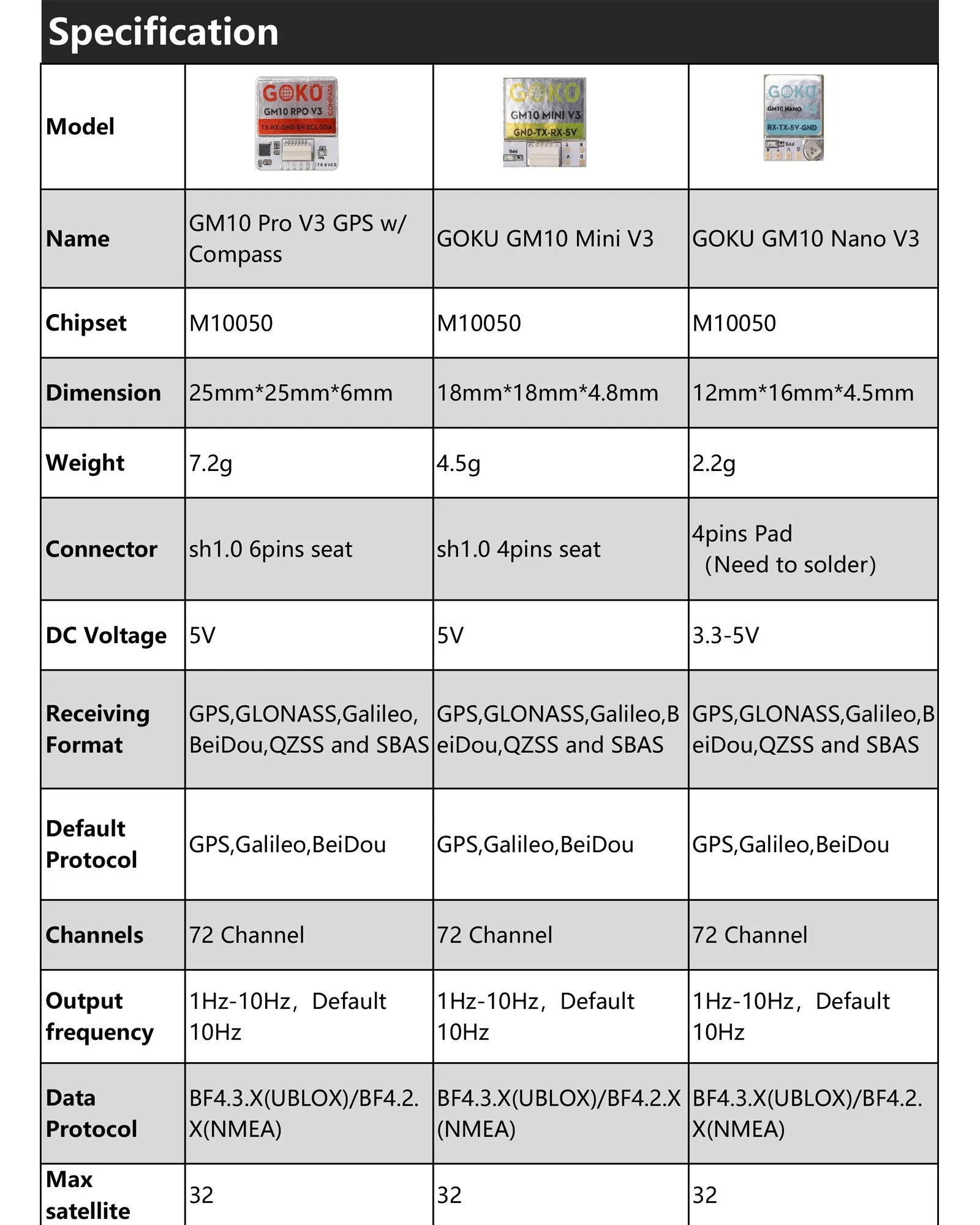

Specifications
- Brand : FLYWOO
- Model : GM10 Mini V3 GPS w/ Compass
- Dimensions : 18mm x 18mm x 4.8mm
- Weight : 4.1g
- Connector : 1.00mm spacing between the 4-pin patch seat
Electrical Characteristics
- Chipset : M10050 (10th Generation Chip)
- Receiving Formats : GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
- Default Protocol : GPS, Galileo, BeiDou
- Frequency : GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
- Channels : 72 Searching Channels
Sensitivity
- Tracking : -162dBm
- Reacquisition : -160dBm
Data and Update Rate
- Support Rate : 4800bps to 921600bps, Default 115200bps
- Data Level : TTL or RS-232, Default TTL level
- Data Protocol : BF4.3.X (UBLOX)/BF4.2.X (NMEA)
- Output Frequency : 1Hz-10Hz, Default 10Hz
Operational Limits
- Altitude : 50,000m Max
- Velocity : 500m/s Max
- Acceleration : Less than 4g
Power Consumption
- VCC : DC Voltage 5V
- Operating Temp : -40°C to +85°C
- Storage Temp : -40°C to +105°C
Indicator
- PPS LED : Yellow. Remains unlit when GPS signal is not fixed; flashes when fixed.
In the Box
- 1x GM10 Mini V3 GPS w/ Compass
- 1x 150mm Cable
- 1x Copper Foil
Disclaimer: Accessories may vary based on supply.
