Product Details

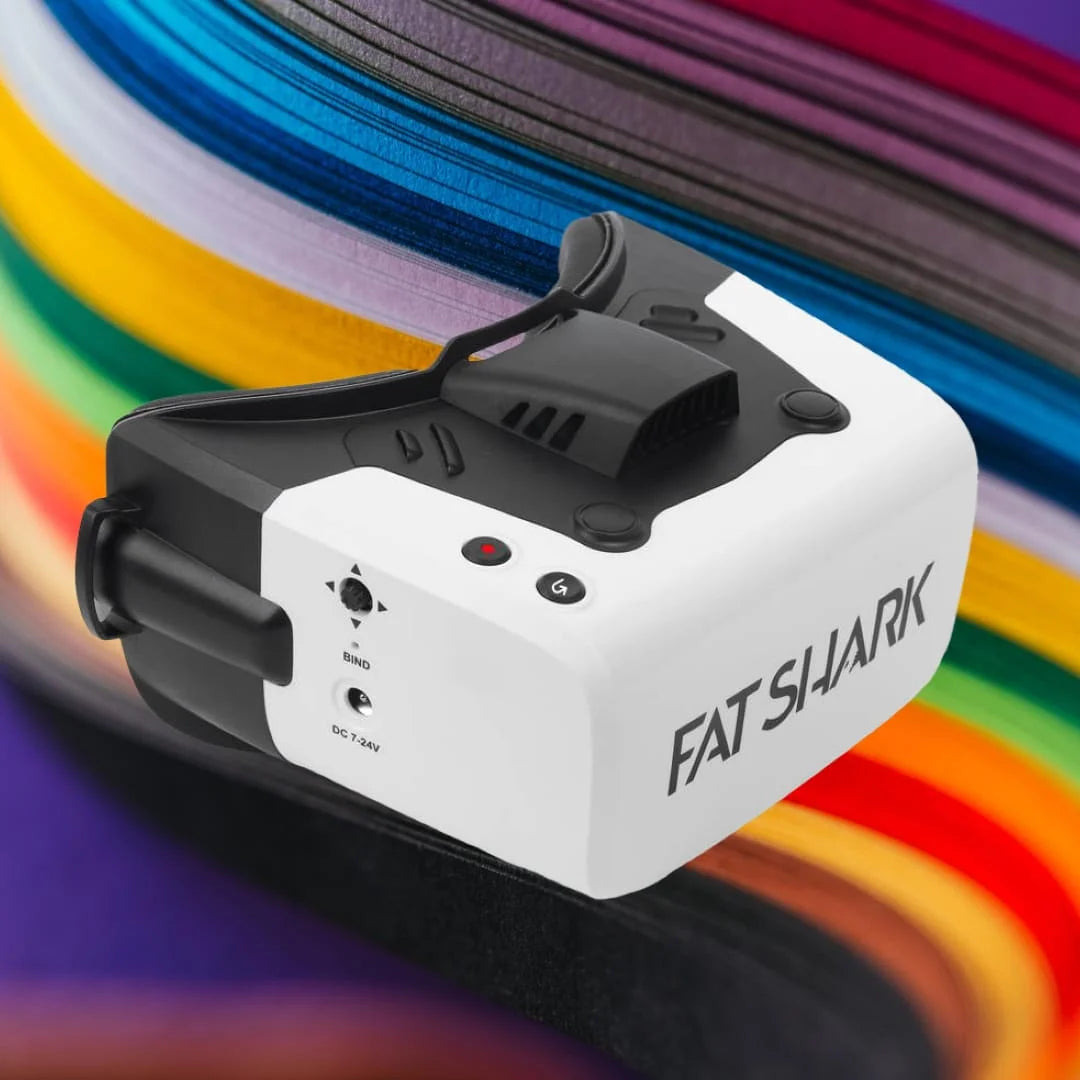

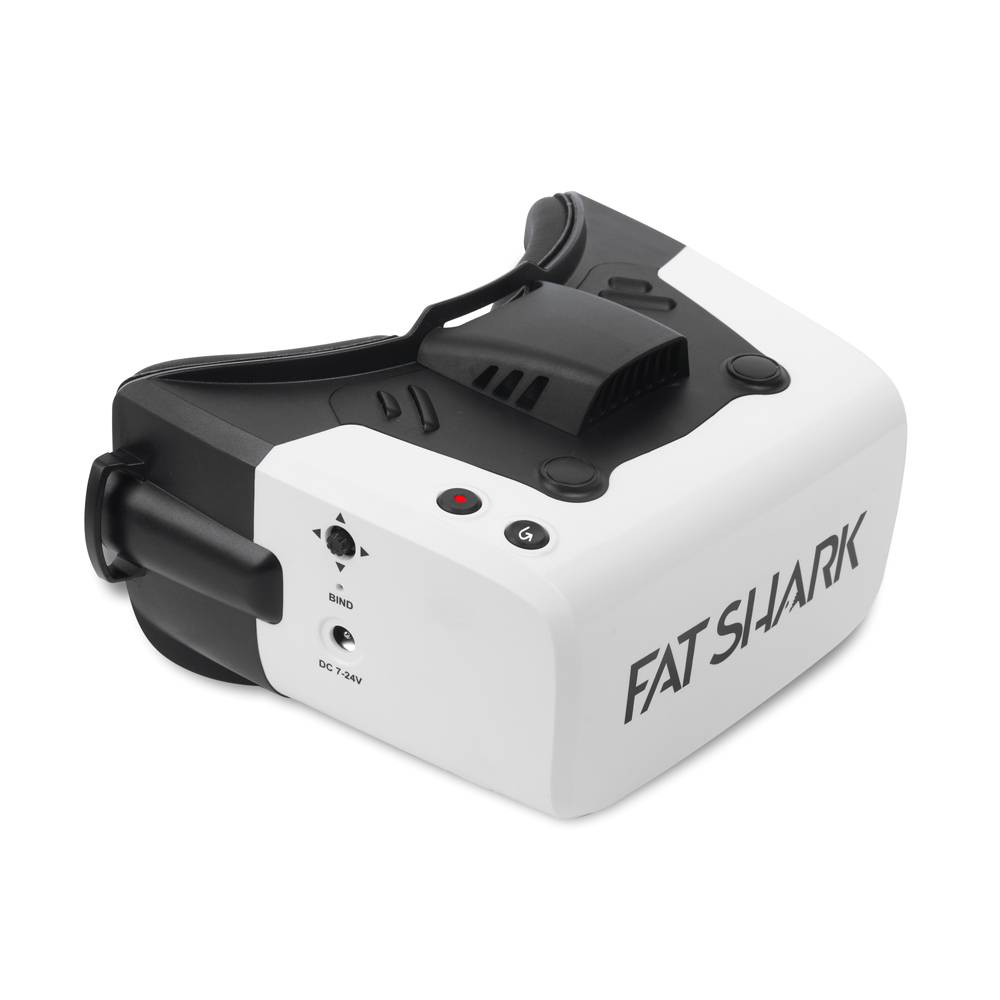

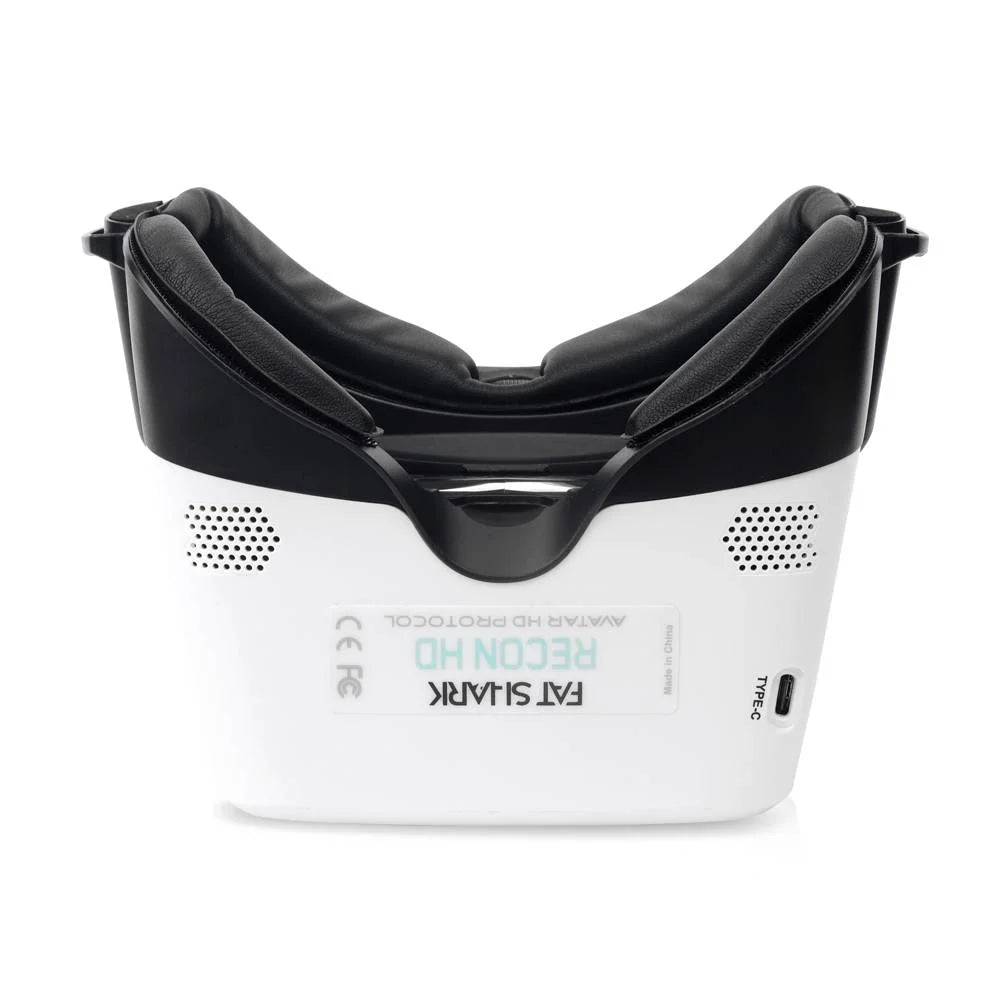

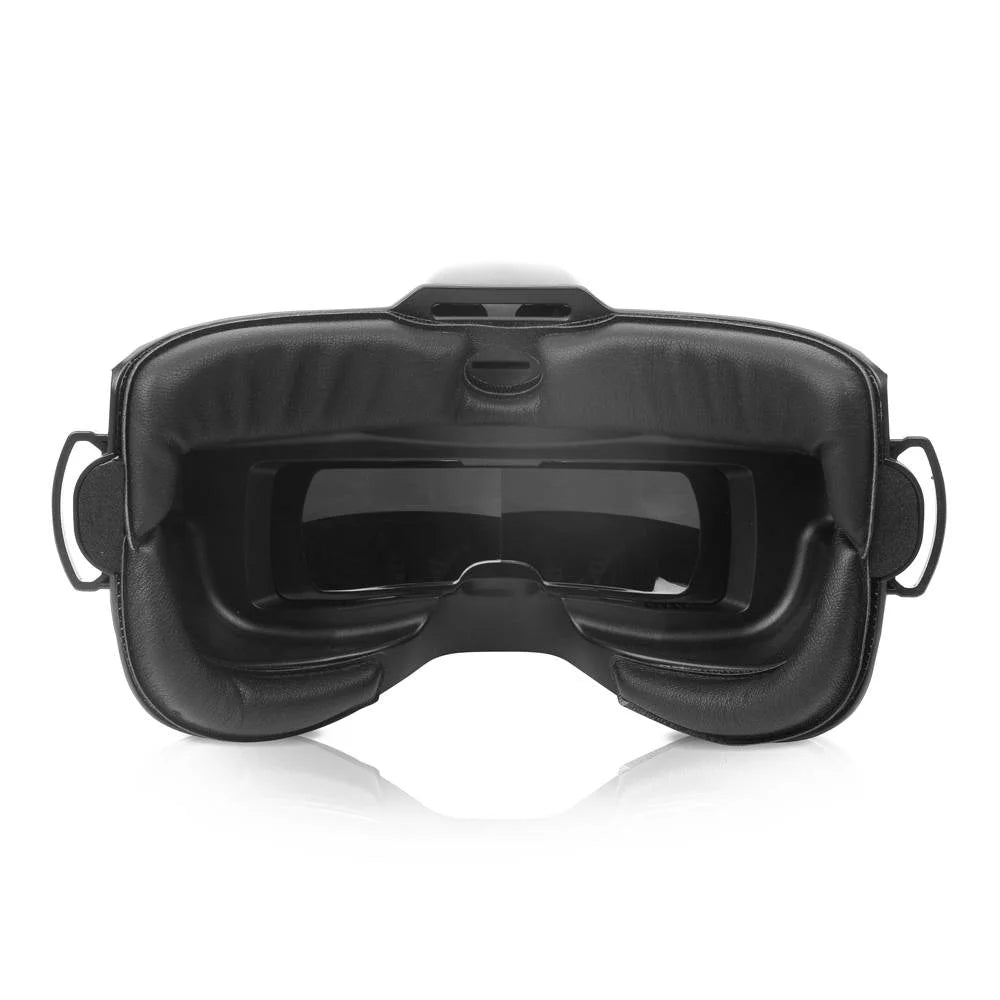

The Fat Shark Recon HD is a high-performance goggle with a 1080p display and a patented folded optical engine for exceptional image quality. The 3.5-inch panel provides a clear 44-degree field of view at 60 fps and is compatible with WalkSnail Avatar transmitters.

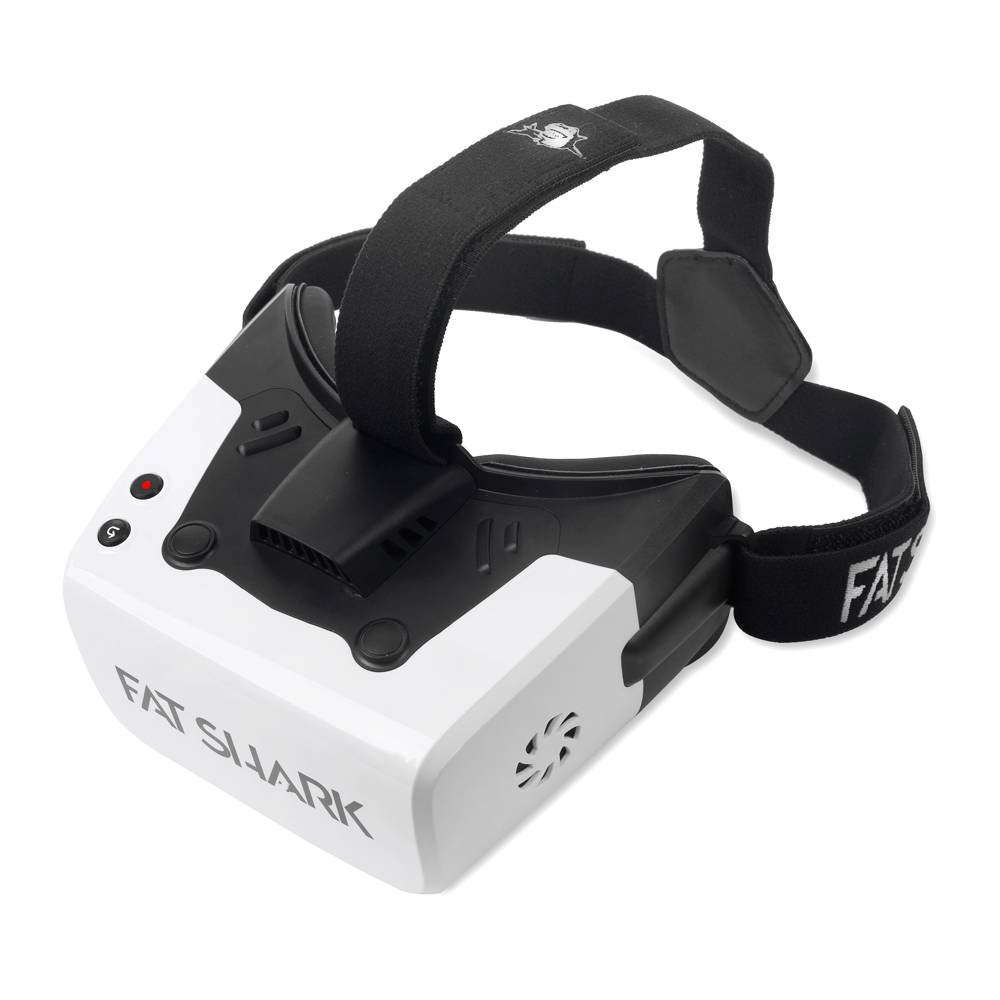

The goggle has an ergonomically moulded headset with an adjustable headband and features 4 internal wide beam width directional antennas for improved signal reception. It is positive upgradeable via SD card and has a 5-way OSD button navigation system for easy control.
The Recon HD also has a DVR record button and a black menu button, and it comes with a USB-C video out port. It has a 44-degree diagonal field of view and a fixed inter-pupillary distance of 55-76mm. It is powered by a 5.1mm barrel connector and can be used with a 2-6s battery (not included). The goggle has a weight of 336.5 grams and comes with accessories such as a power cable and cleaning cloth.
Warning: Exposing the lens to direct sunlight will result in LCD damage.
Features
- Ergonomically Molded Headset w/ Adjustable Headband
- 4 Internal Wide Beam Width Directional Antennas
- Positive Upgradeable via SD Card
- 5-Way OSD Button Navigation
- 1920x1080 TFT 4" Display
- DVR Record Button
- Black Menu Button
- 44° Diagonal FOV
- USB-C Video Out
Specifications
- Power Supply: 5.1mm Barrel Connector, 7-21V (2s - 5s) Center Pin
- RF: 4 Internal Wide Beam Width Directional Antennas
- Inter-Pupillary Distance (IPD): 55 - 76mm (fixed)
- Operating Frequencies: 5.725-5.850GHz
- Package Size: 517g, 180 x 128 x 98mm
- Positive Upgradeable: via SD Card
- Field of View (FOV): 44° Diagonal
- Dimensions: 170 x 120 x 90mm
- OSD Navigation: 5-Way Button
- 4 Inch TFT (1920 X 1080)
- Record Button: DVR
- Menu Button: Back
- Memory: MicroSD
- Video Out: USB-C
- Weight: 336.5 g
Includes
- 1x Fat Shark Recon HD FPV Goggles
- 1x Lens Cleaning Cloth
- 1x Goggle Strap
- 1x Power Cable
You will need to add your own battery to use these goggles, it inlcudes a XT60-Barrel adapter in the kit so you can use any 2-6S battery with XT60 connector to power them.
