Product Details
Introducing the First Ever Gemini Dual-Frequency Diversity Transmitter
The BETAFPV SuperG Nano Transmitter Module emerges as a groundbreaking innovation in the realm of remote control aviation. Developed in collaboration with the ExpressLRS (ELRS) developer team and based on ELRS V3.3, this transmitter is the first to offer the Gemini Dual-Frequency Diversity feature. It's a game-changer for enthusiasts seeking unparalleled link quality and stability in diverse applications such as FPV racing, long-range flights, and professional aerial photography.
Unique Selling Points:
- Gemini Dual-Frequency Diversity: This state-of-the-art technology ensures unmatched signal strength and reliability, positioning the SuperG Nano at the forefront of transmitter innovation.
- Dual 1W Transmit Power: With its robust anti-interference capability and enhanced stability, it stands as the ideal solution for challenging remote control scenarios.
- Optimized for Diversity Receivers: Fully compatible with receivers like SuperD and SuperP, it activates the Gemini mode for consistent signal stability in complex radio environments.
Product Specifications:

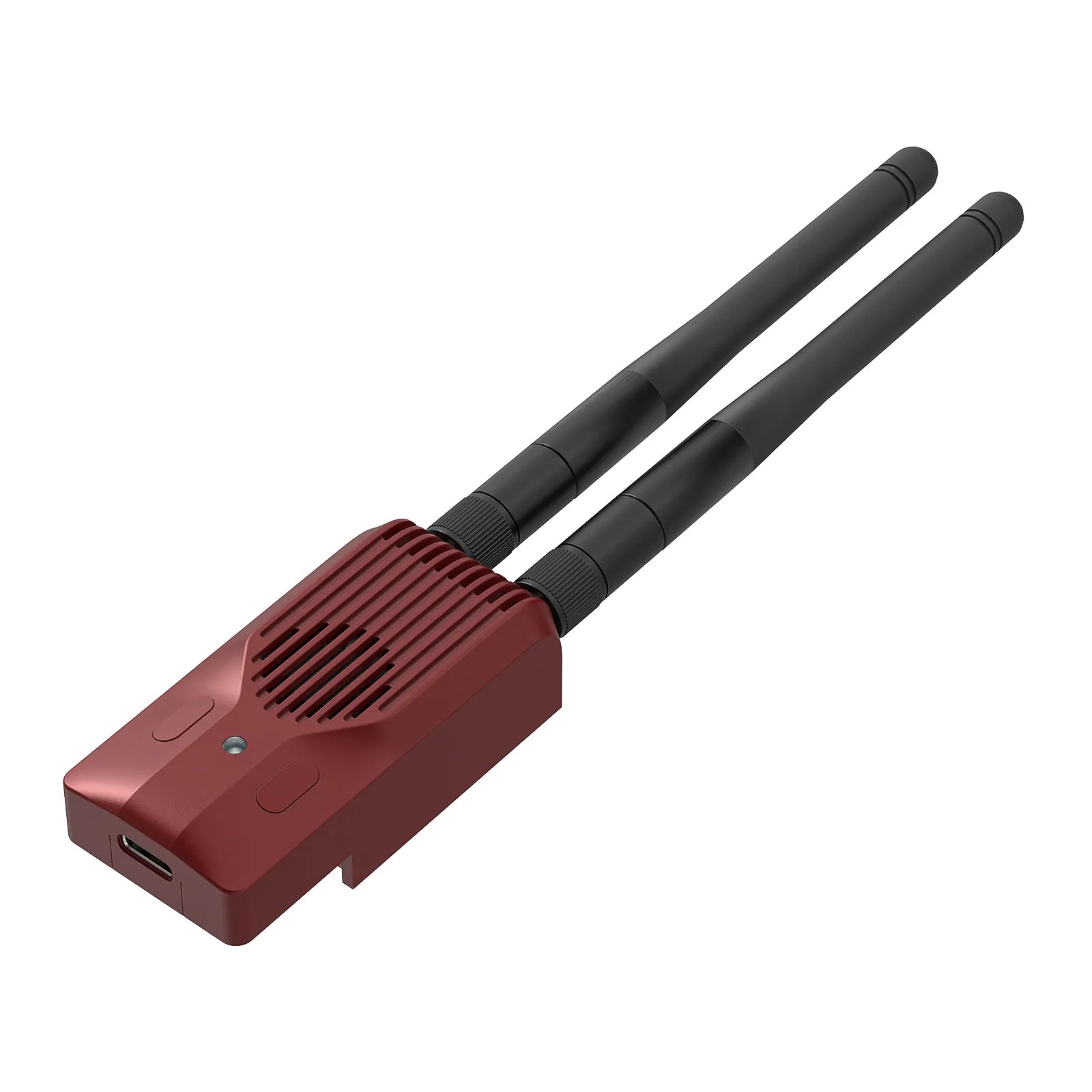

- Item: BETAFPV SuperG Nano Transmitter Module | ELRS 2.4G

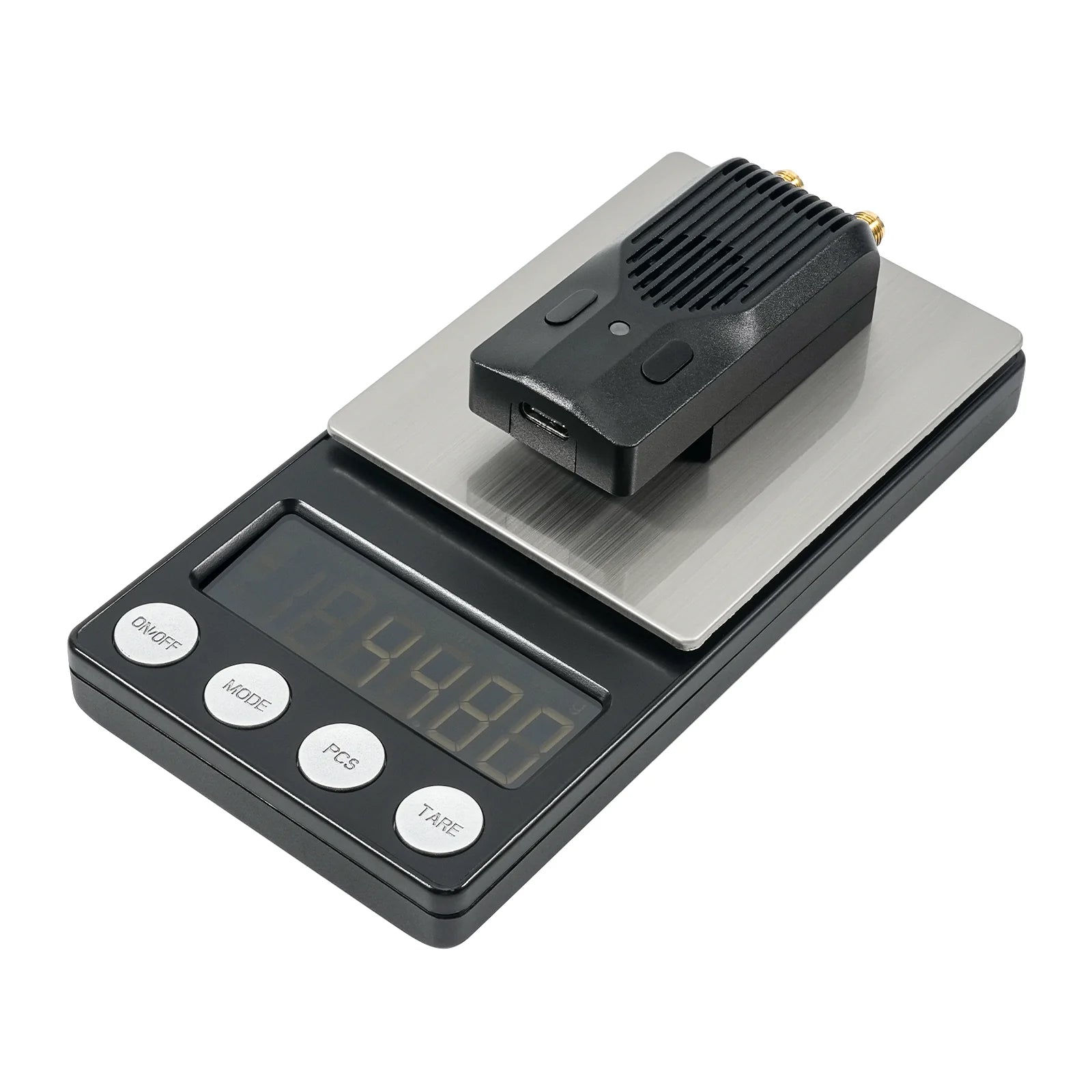

- Weight: 44.8g
- Color: Black, Red, Grey
- Antenna Connector: 2* RP-SMA
- RF Power: 25mw/50mW/100mW/250mW/500mW/1000mW
- Packet Rate: 50Hz/100Hz/150Hz/250Hz/333Hz/500Hz/D250/D500/F500/F1000
- Frequency Band: 2.4GHz ISM
- Backpack: support
- Input Voltage: 7V~13V DC
- Rated Current: 8V,1000mA@1000mW, 1:128, Gemini mode
- USB Port: Type-C
- Fan Voltage: 5V
- Default Firmware Version: ExpressLRS V3.3.0
- Target Name: BETAFPV SuperG Nano 2.4GHz TX
Advanced Features:

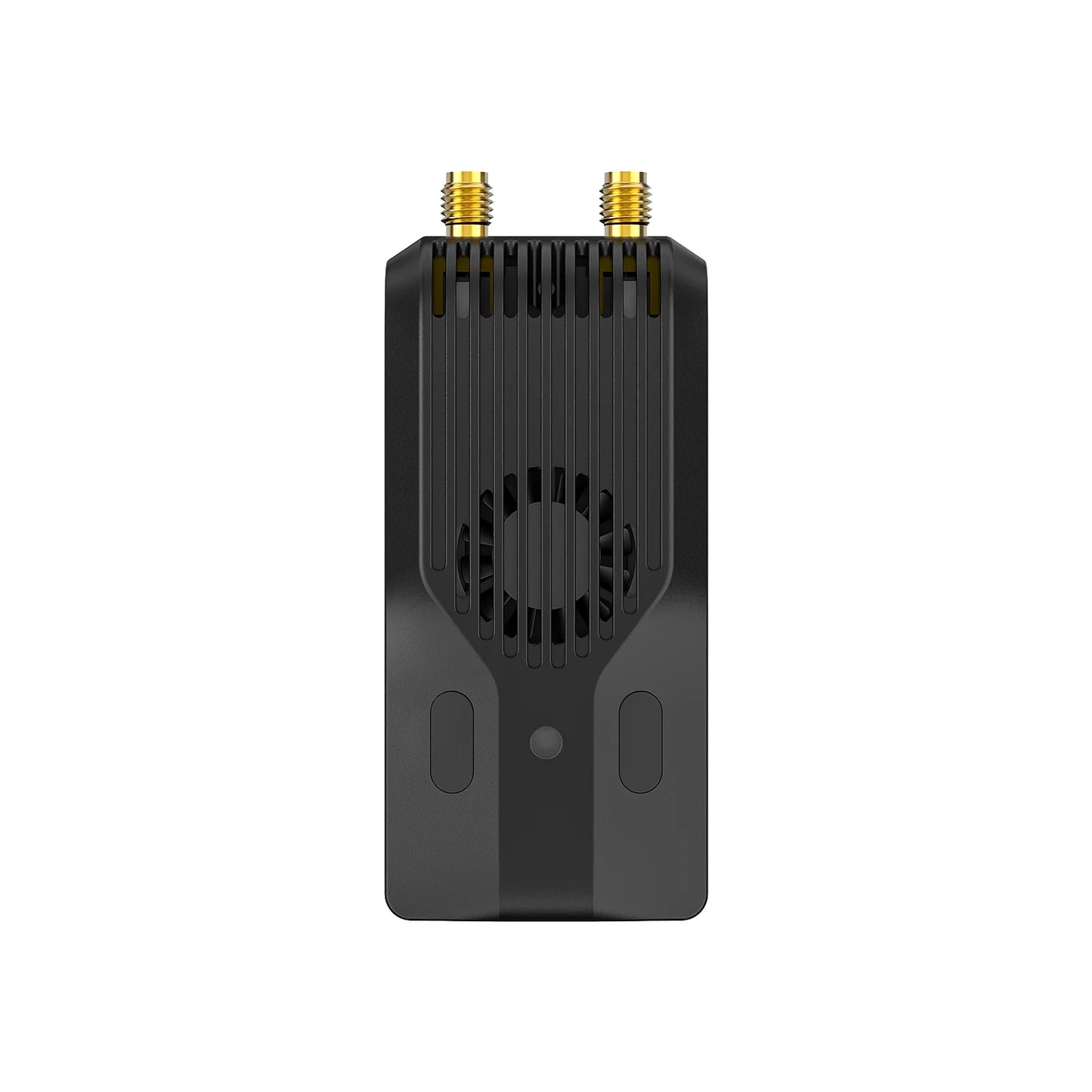

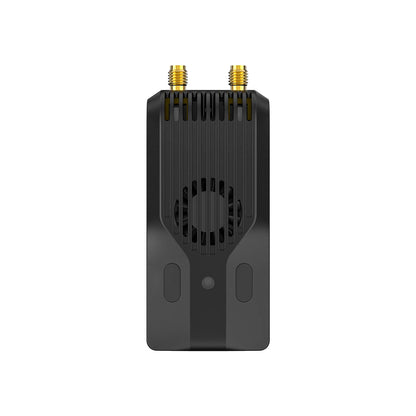

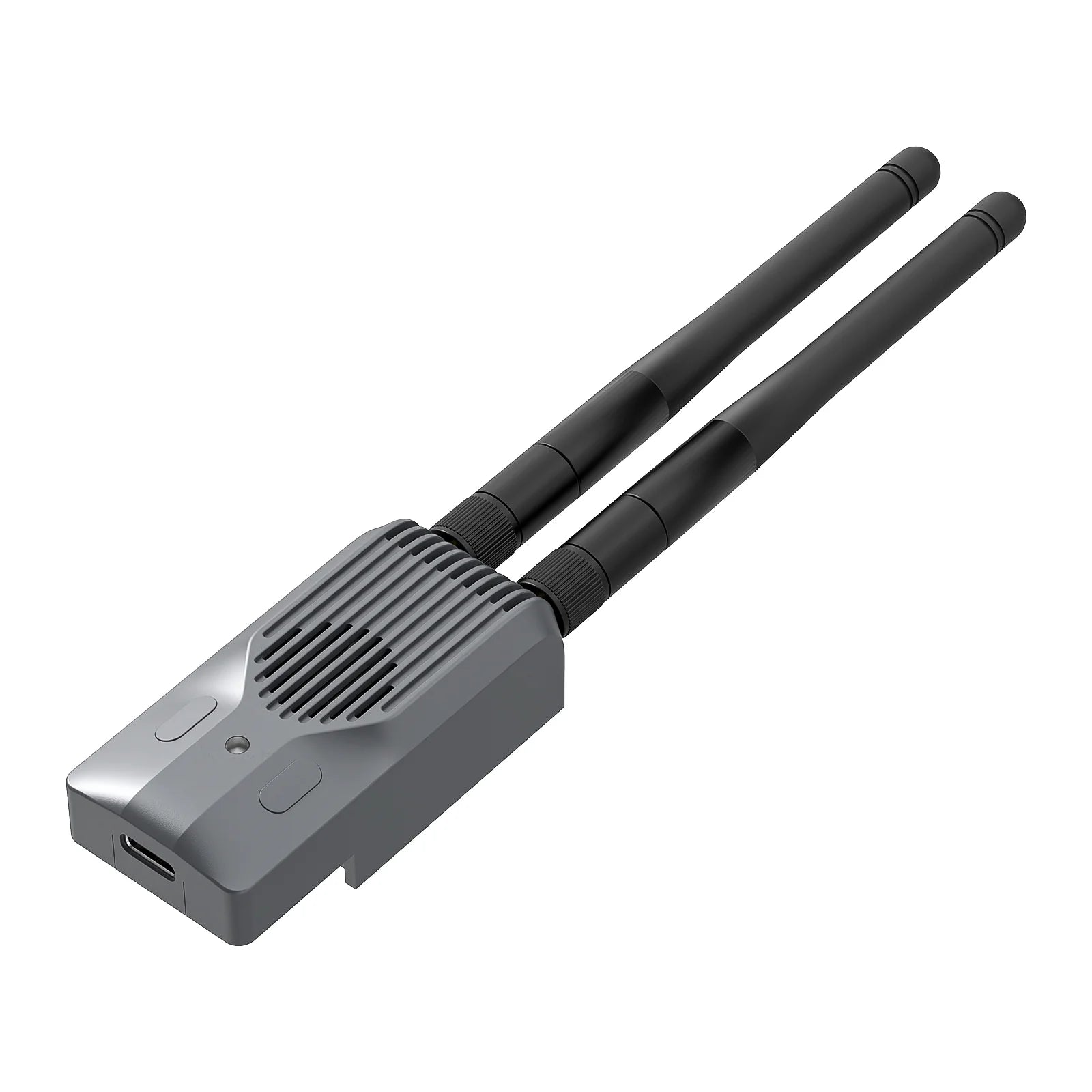

- CNC Aluminum Alloy Casing: Designed for efficient thermal conductivity, the transmitter casing is complemented by a high-performance Heatsink system for optimal heat dissipation.

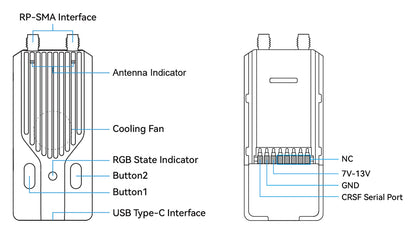

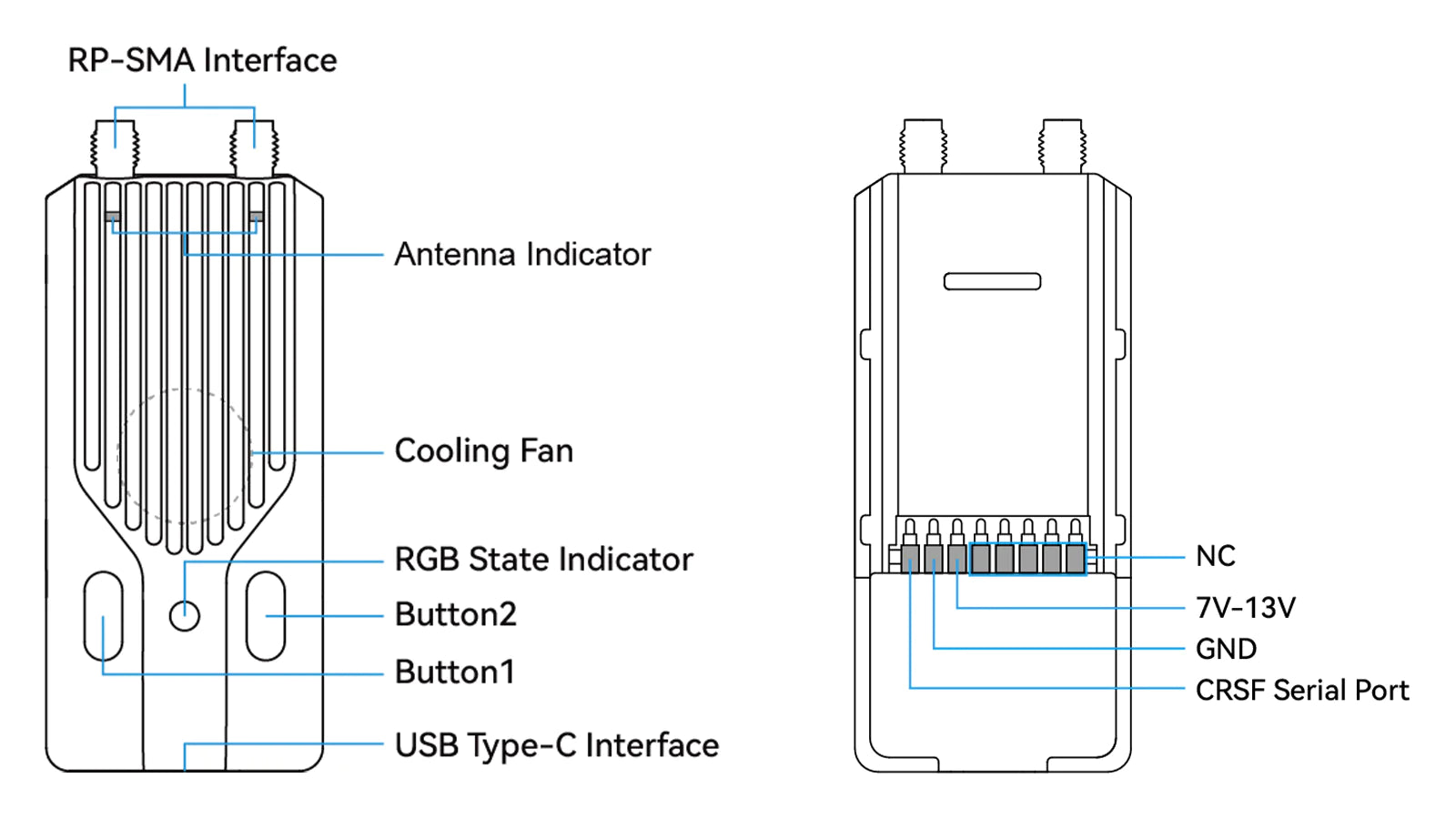

- Customizable Buttons and Connectivity: It features 2 customizable buttons and 1 USB port, accommodating external power sources for extended use.
Compatibility and Usage:

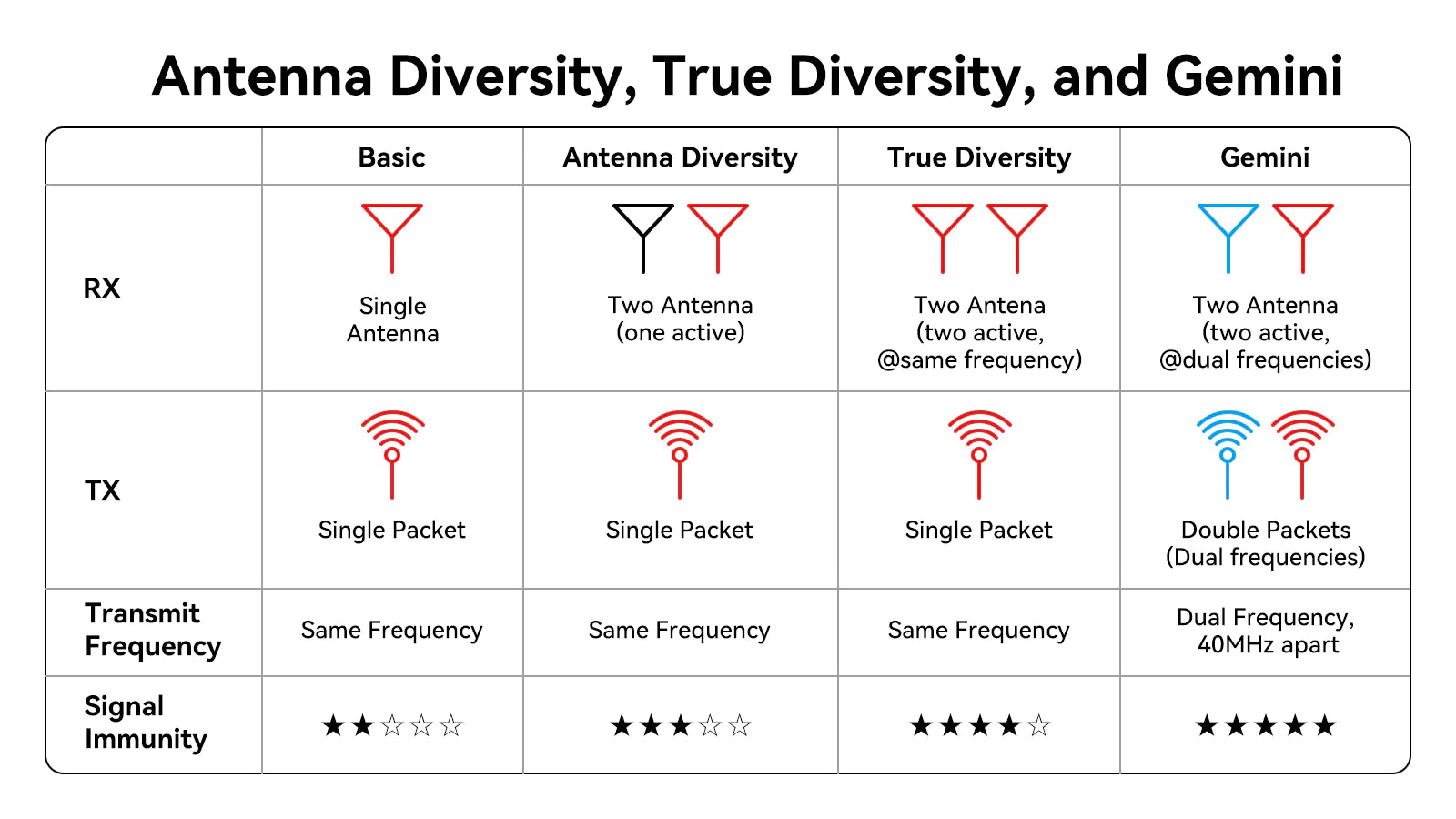

- Diverse Modes: Supports various modes including Antenna Diversity, True Diversity, and the advanced Gemini mode for enhanced performance in complex radio environments.

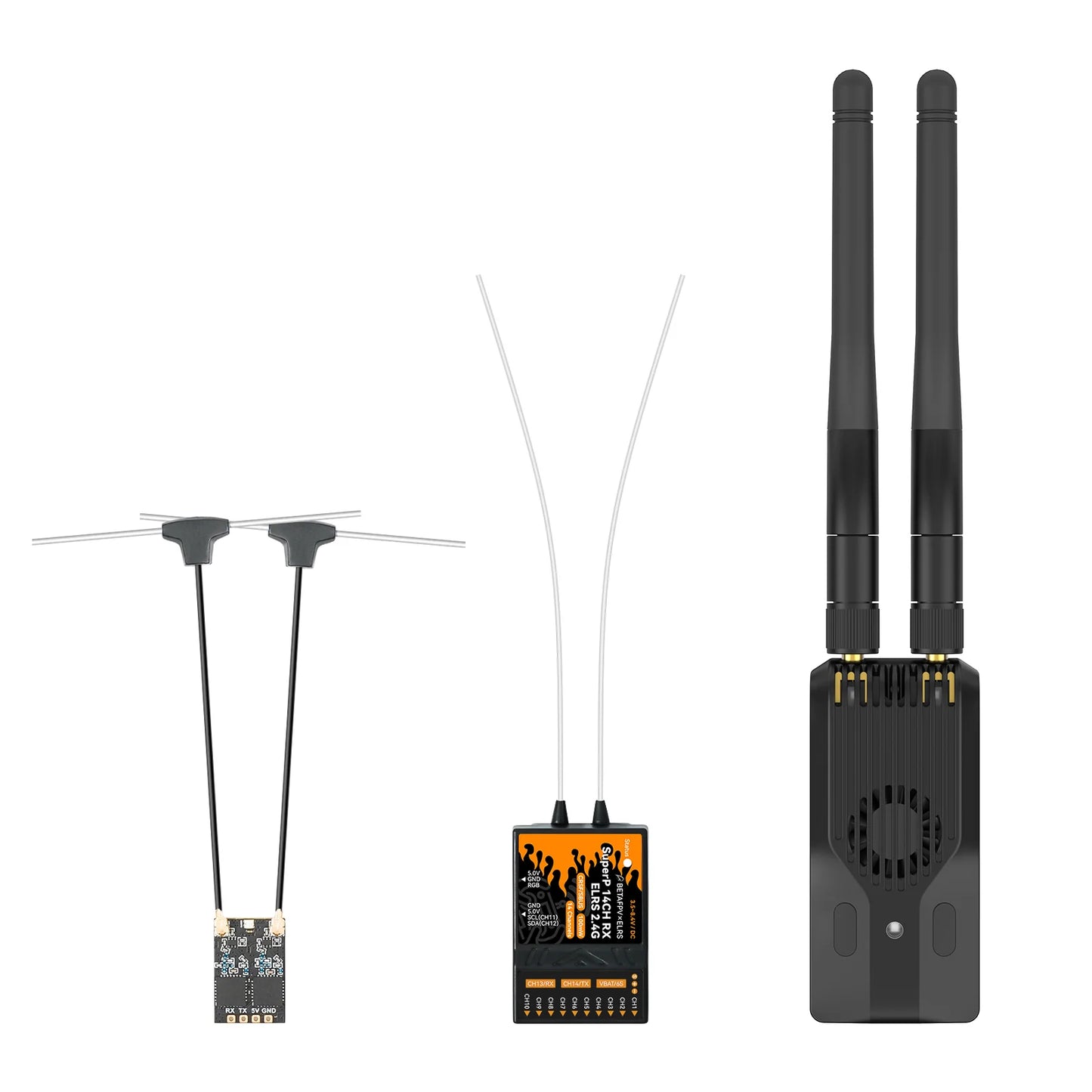

- Combination with Diversity RX: Ideal for use with Super series products, maximizing the benefits of Gemini mode for stable and strong radio links.
Package Contents:
- SuperG Nano Transmitter (Black/Red/Grey)
- 2 x 2.4G Glue Stick Antennas
- USB to Type-C Data Cable
- Type-C Male to XT30U Male Power Cable
- GH1.25 Male to FUTABA Male Signal Cable

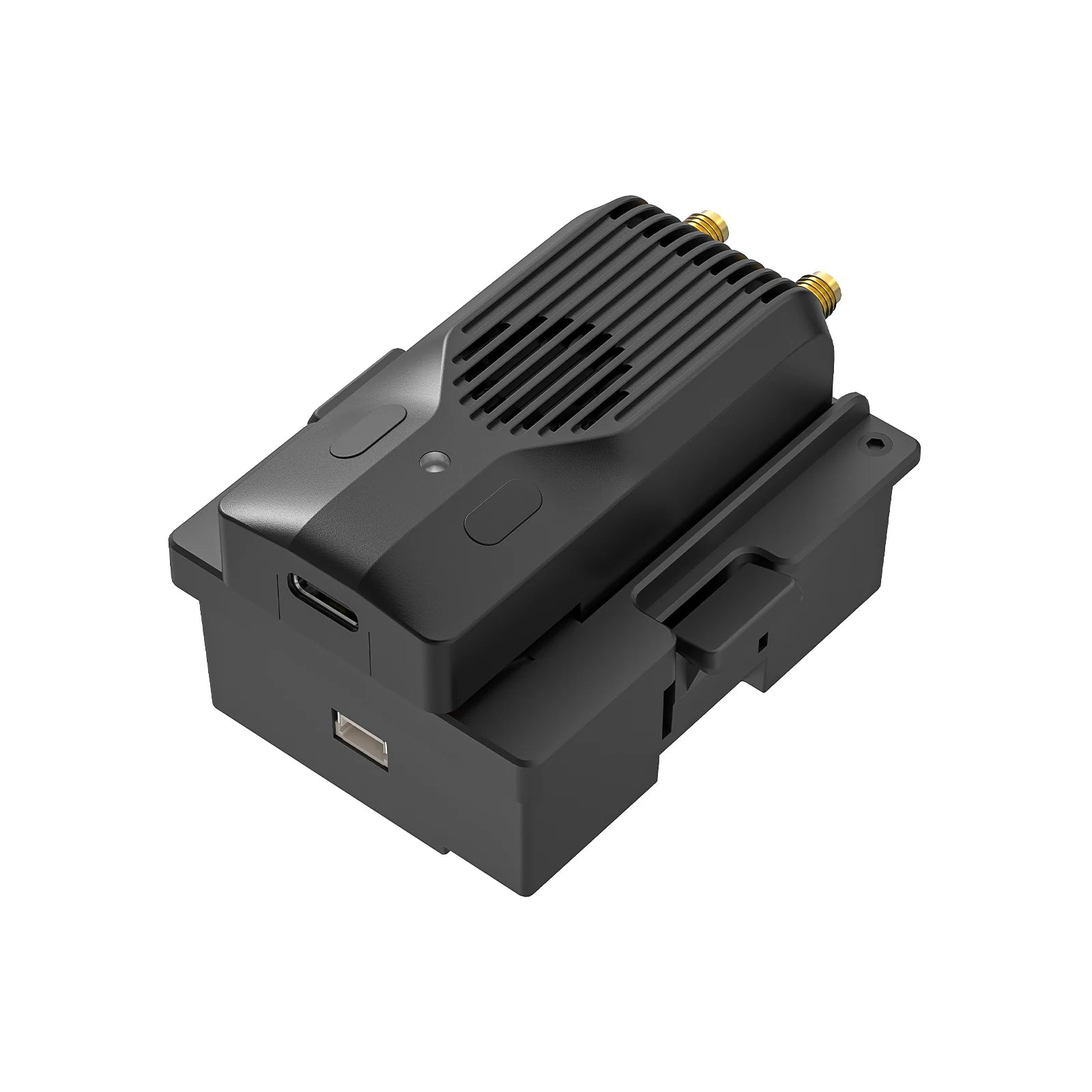

- Micro-Nano Module Adapter (Standard Version)
- Double Side EVA Foam Tape
- Instruction Manual
- Service Card
Safety Note:
- Ensure the antenna is assembled before powering on to protect the PA chip in the transmitter.
