Product Details

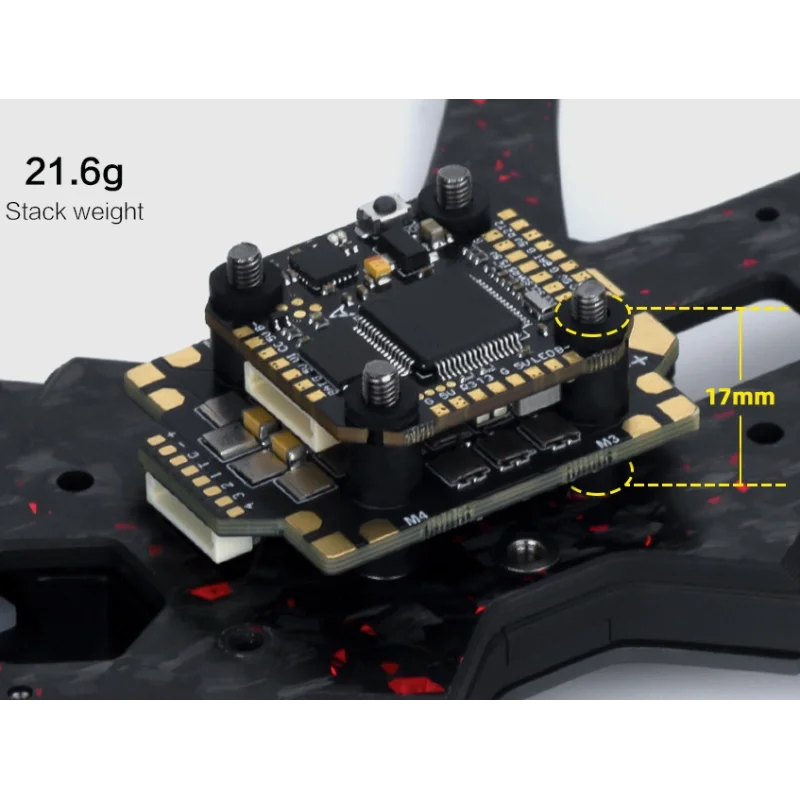

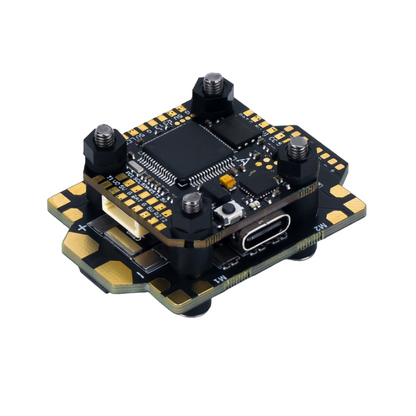

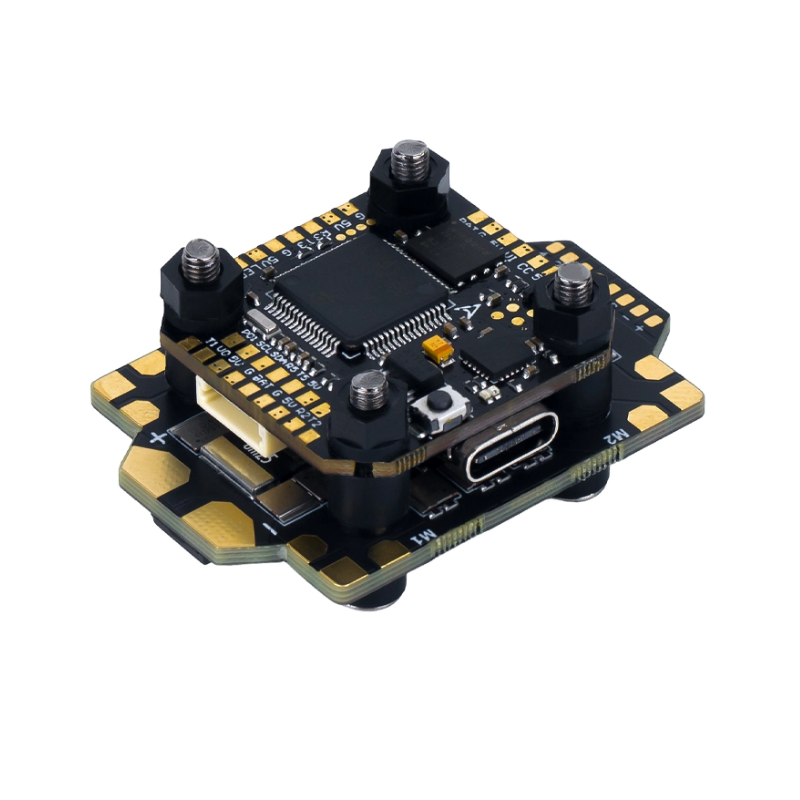

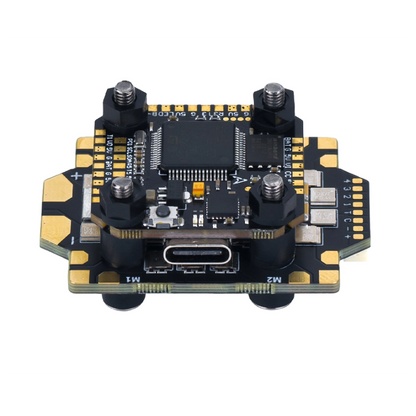

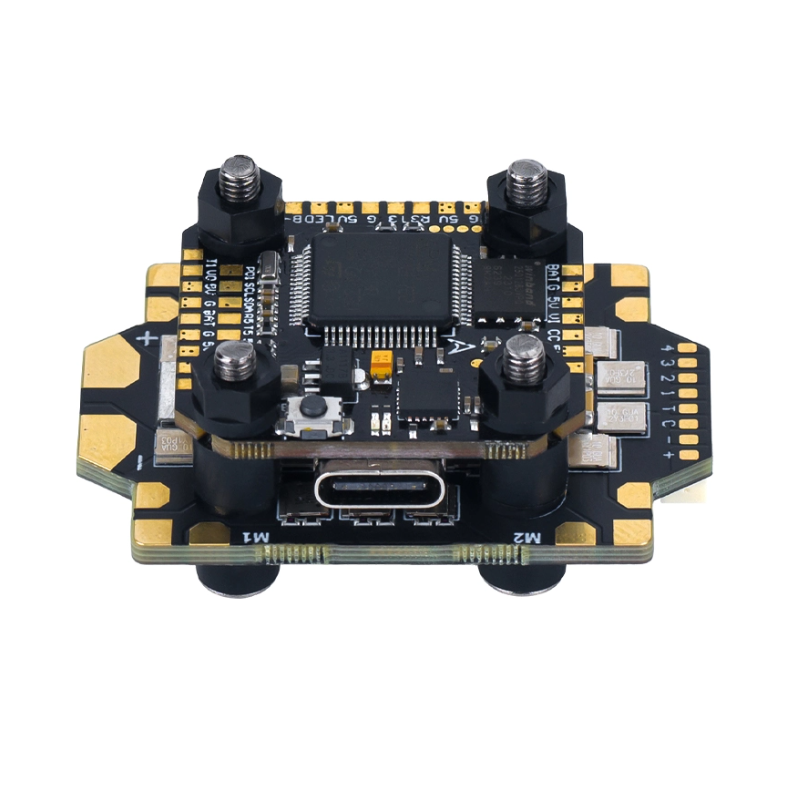

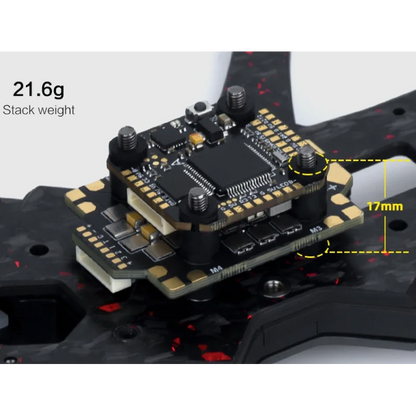

Argus Mini Stack (20x20mm) by AxisFlying: High-Performance Flight Controller & ESC Combo for Small FPV Drones
The Argus Mini Stack (20x20mm) from AxisFlying is your answer to building a nimble yet powerful small FPV drone. Engineered for peak performance, this stack is designed to keep your weight down while ensuring rock-solid control, making it a go-to choice for serious drone enthusiasts.

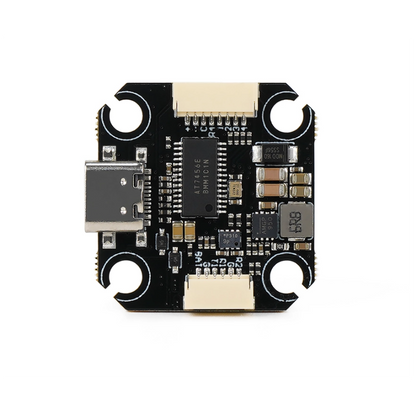

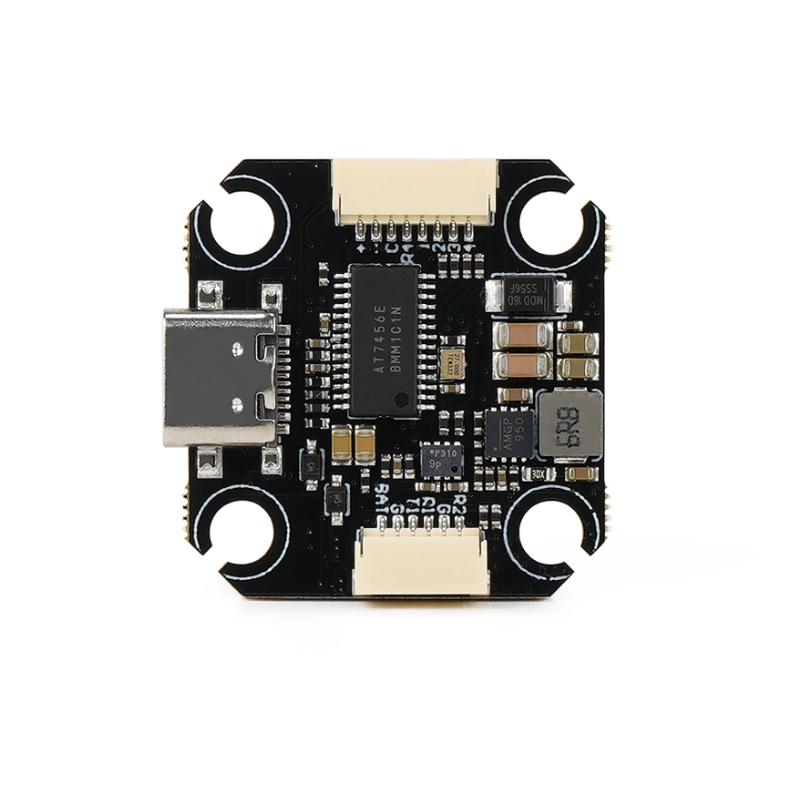

At the heart of this stack is the Argus Mini F722 Pro Flight Controller . With support for up to four motor outputs, this controller is built on the STM32F722RET6 MCU, providing reliable processing power. The controller also features a 16Mb blackbox for data logging and an MPU6000 gyro to ensure smooth, stable flight performance. With five UARTs and OSD support, you get all the connectivity you need for a versatile build.
Paired with the flight controller is the 4in1 55A ESC . Supporting BLHeli_32 firmware and 2-6S LiPo batteries, this ESC is all about delivering responsive throttle control and precise motor handling. With PWM frequencies ranging from 24kHz to 96kHz, it ensures you get the best efficiency and performance. The robust design handles bursts up to 65A, so you're covered even in the most demanding flight conditions.
Whether you're a racer looking to shave off milliseconds or a freestyler pushing the limits, the Argus Mini Stack is the compact, powerful, and reliable choice for your next FPV build.
Specifications

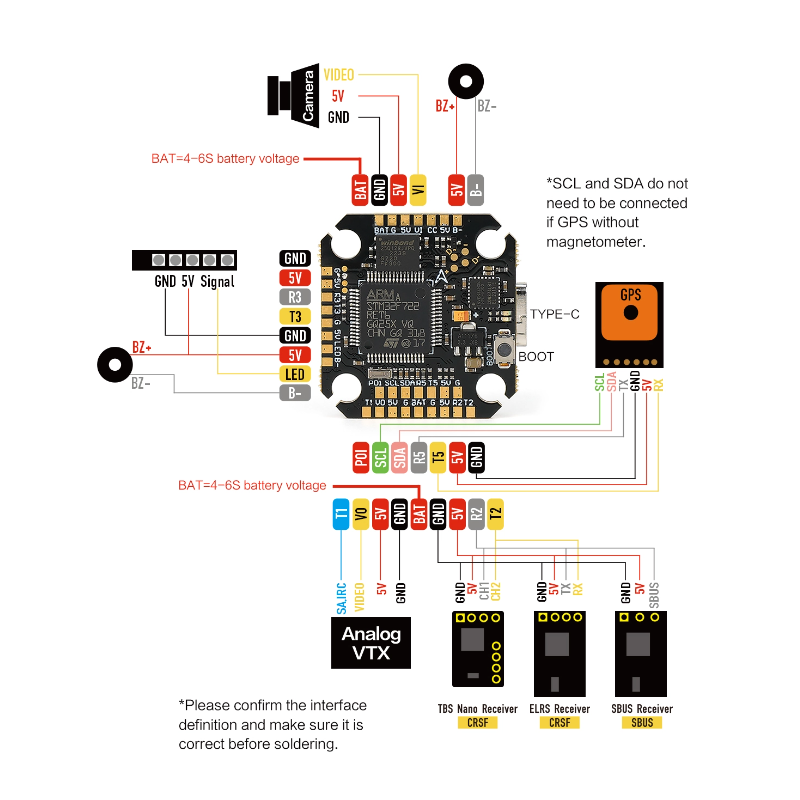

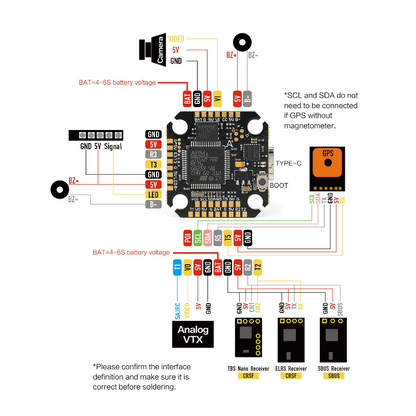

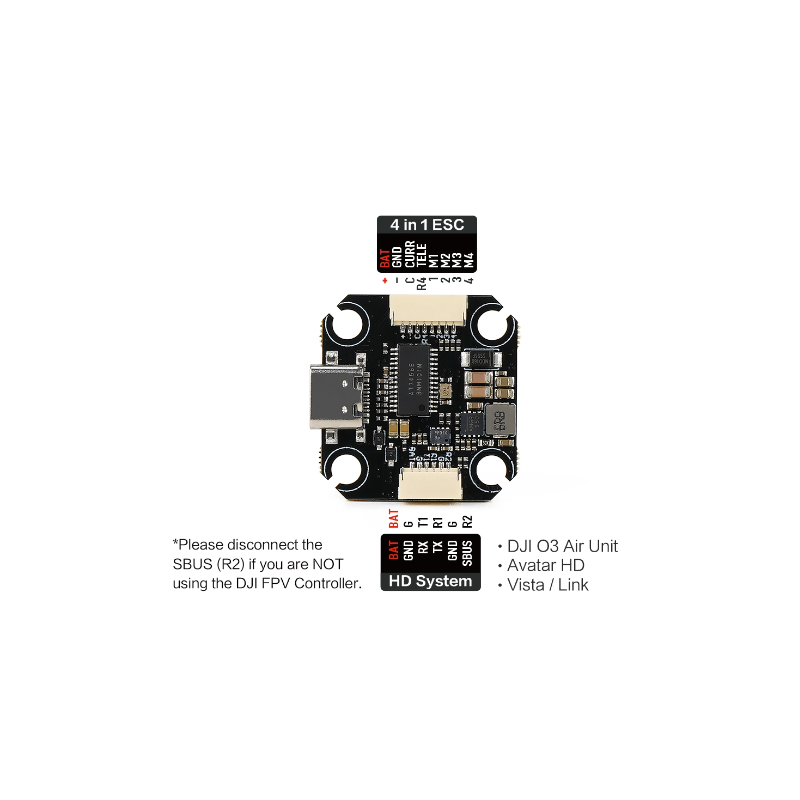

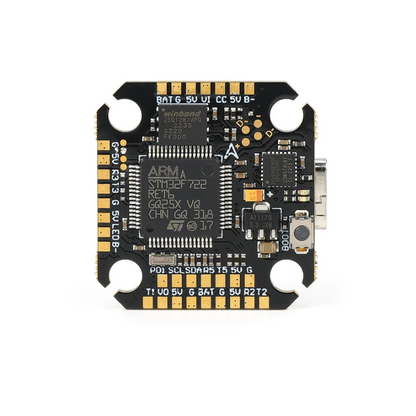

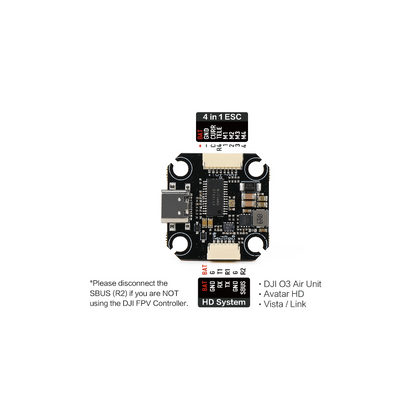

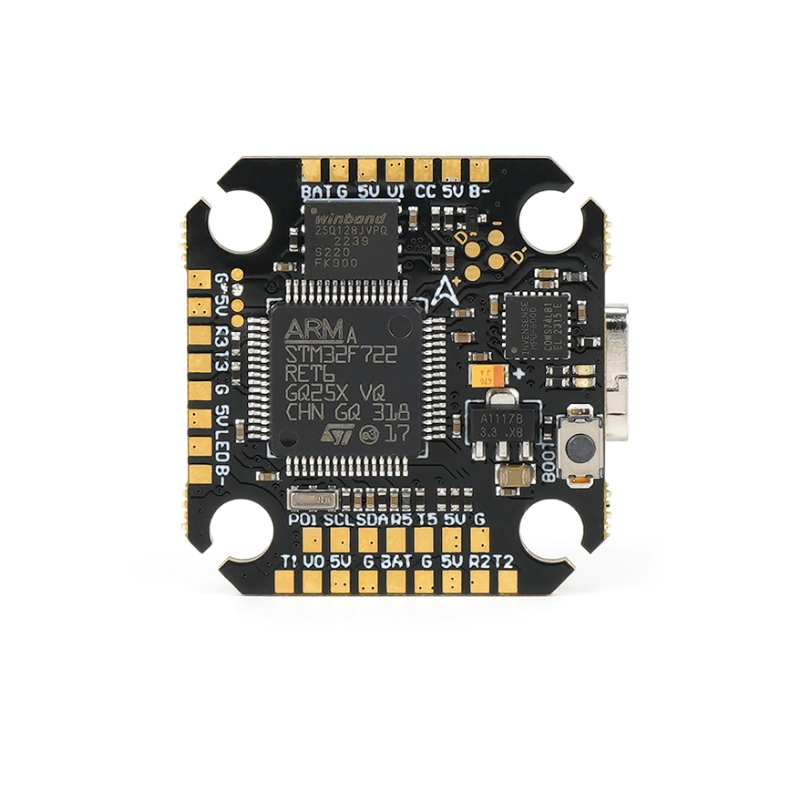

Flight Controller (FC) - Argus Mini F722 Pro:
- MCU: STM32F722RET6
- Target: AXIS FLYING F7 PRO
- Gyroscope: MPU6000
- UARTS: 5
- OSD: Supported
- Blackbox: 16Mb
- BEC: 5V 3A
- Mounting Holes: 20x20mm (M2/M3)
- Power Supply: LiPo 4-6S (14.8V - 26.1V)
- Dimensions: 28.5 x 27 x 6.2 mm
- Weight: ~5g

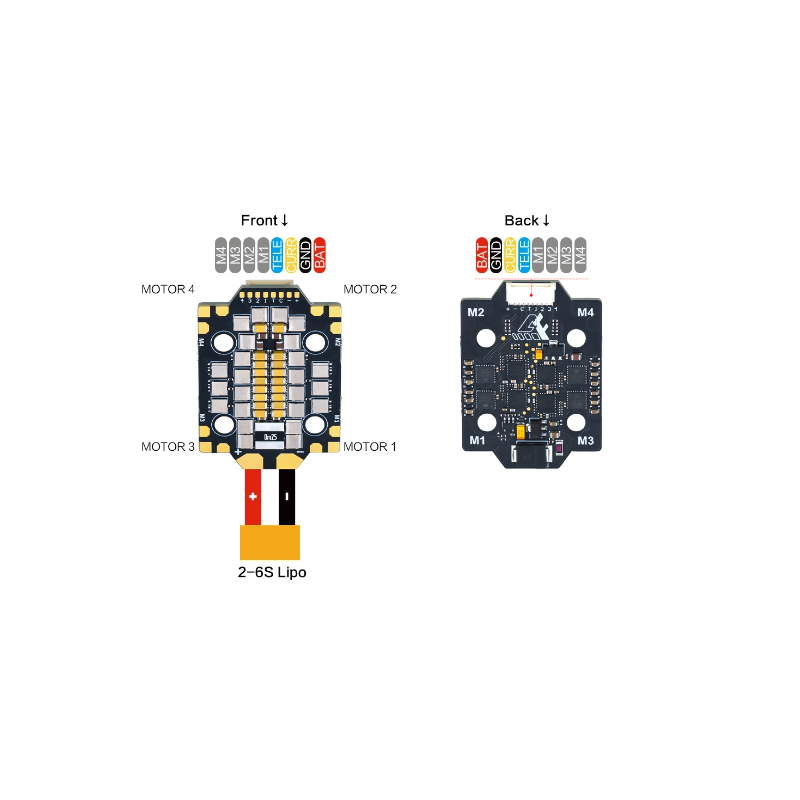

4in1 55A ESC:
- Amperage: 55A continuous, 65A burst
- MCU: AT32F421G8U7
- Firmware: BLHeli32 (Rev. 32.9)
- PWM: 24-96kHz
- Mounting Holes: 20x20mm
- Telemetry: Supported
- BEC: Not supported
- Amperage Meter: Scale 200
- Power Supply: LiPo 2-6S
- Dimensions: 44.3 x 31.3 mm
- Weight: 11g
What's in the Box
- 1x Argus Mini F722 Pro Flight Controller
- 1x 4in1 55A ESC
- 1x Short Connection Cable
- 1x Long Connection Cable
- 1x Capacitor (35V 470uF)
- 1x VTX HD Connector Cable
- 8x M2 Dampers
- 8x M3 Dampers
- 4x M2x25 Screws
- 4x M3x25 Screws
- 4x M2 Nuts
- 4x M3 Nuts
- 1x XT60 Power Cable
Disclaimer: The accessories included may vary depending on supply.
