Product Details
Introducing the Atlatl HV V2 VTX - the 1.2GHz powerhouse that scoffs at the mere mention of 5.8G frequency band VTXs. Why settle for the mainstream when you can dive into the low-frequency realm, where signals don't just travel, they embark on an epic journey? With its remarkable diffraction capabilities, this VTX doesn't just penetrate obstacles; it gives them a story to tell.
But beware, adventurers! Powering this beast without its antenna is like summoning a dragon in your living room—things will get fiery.
Features
- Channel Surfing Bonanza: With up to 9 frequency channels, you're not just flying; you're orchestrating an airborne symphony.
- Power at Your Fingertips: Whether you're a pit whisperer or a full-throttle warrior, choose from Pit/25/200/1000mw. Because who doesn't love options?
- Pit Mode Prowess: Power up without causing aerial anarchy. It's like having diplomatic immunity in the skies.
- Eavesdrop on Your Motors: Thanks to the onboard microphone, listen to the sweet, sweet symphony of your motors, no matter how distant the voyage.
- Stack-Friendly: With standard 30.5 x 30.5mm mounting holes, the Atlatl slips into your flight controller stack like it's sliding into its DMs.
Specifications
- Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 1000 mW
- Audio: 6.5 MHz Mono (6.0 MHz Optional)
- Antenna Connector: MMCX
- Input Voltage: 2-8S LiPo

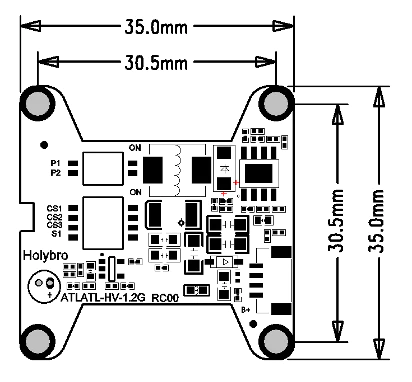

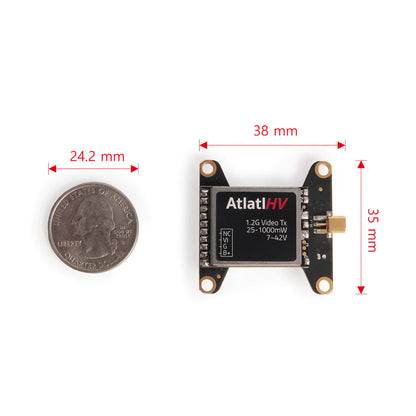

- Dimensions: 35x35x9mm (Including connector)
- Mounting Holes: Standard 30.5mm square to center of holes

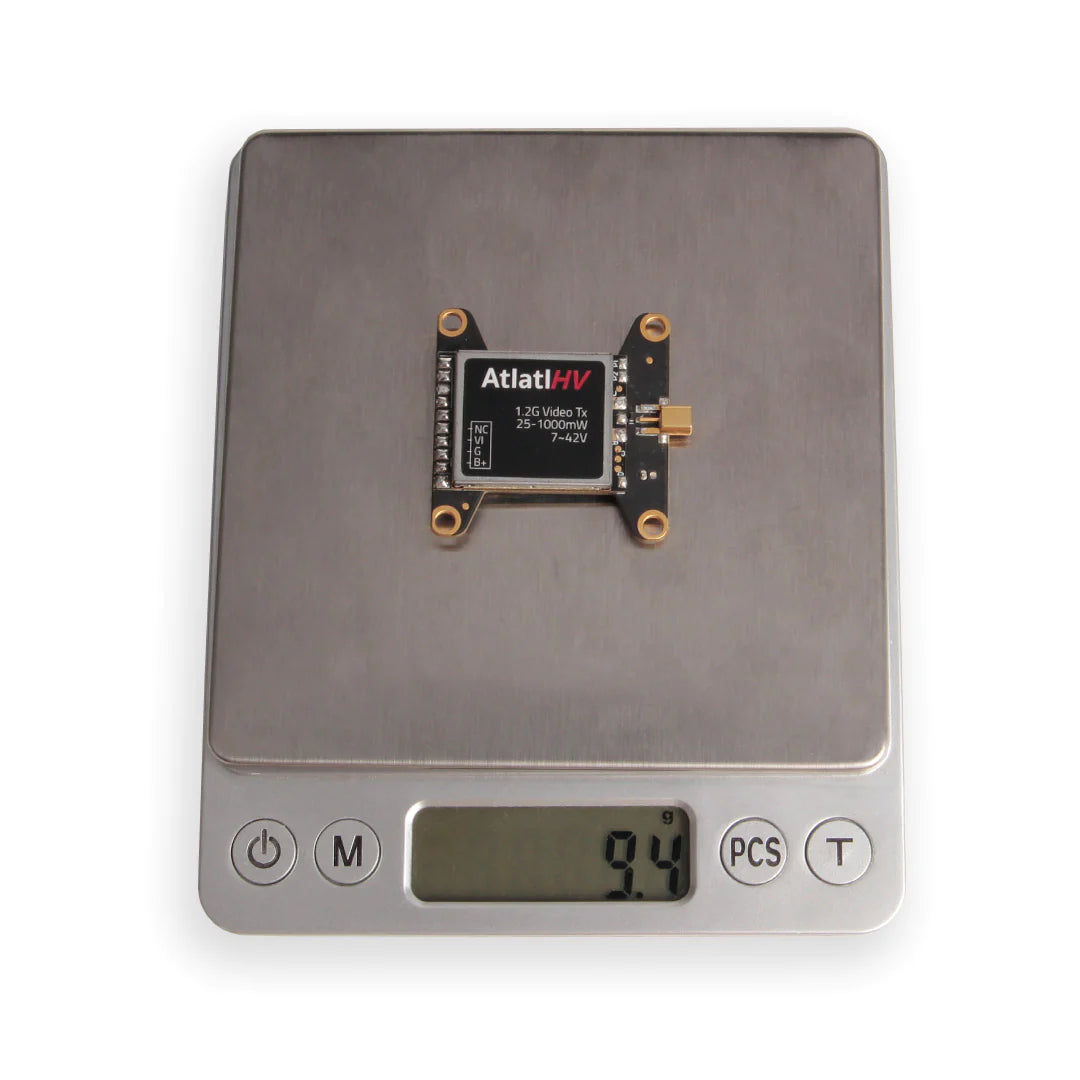

- Weight: 9.3g (VTX Only)

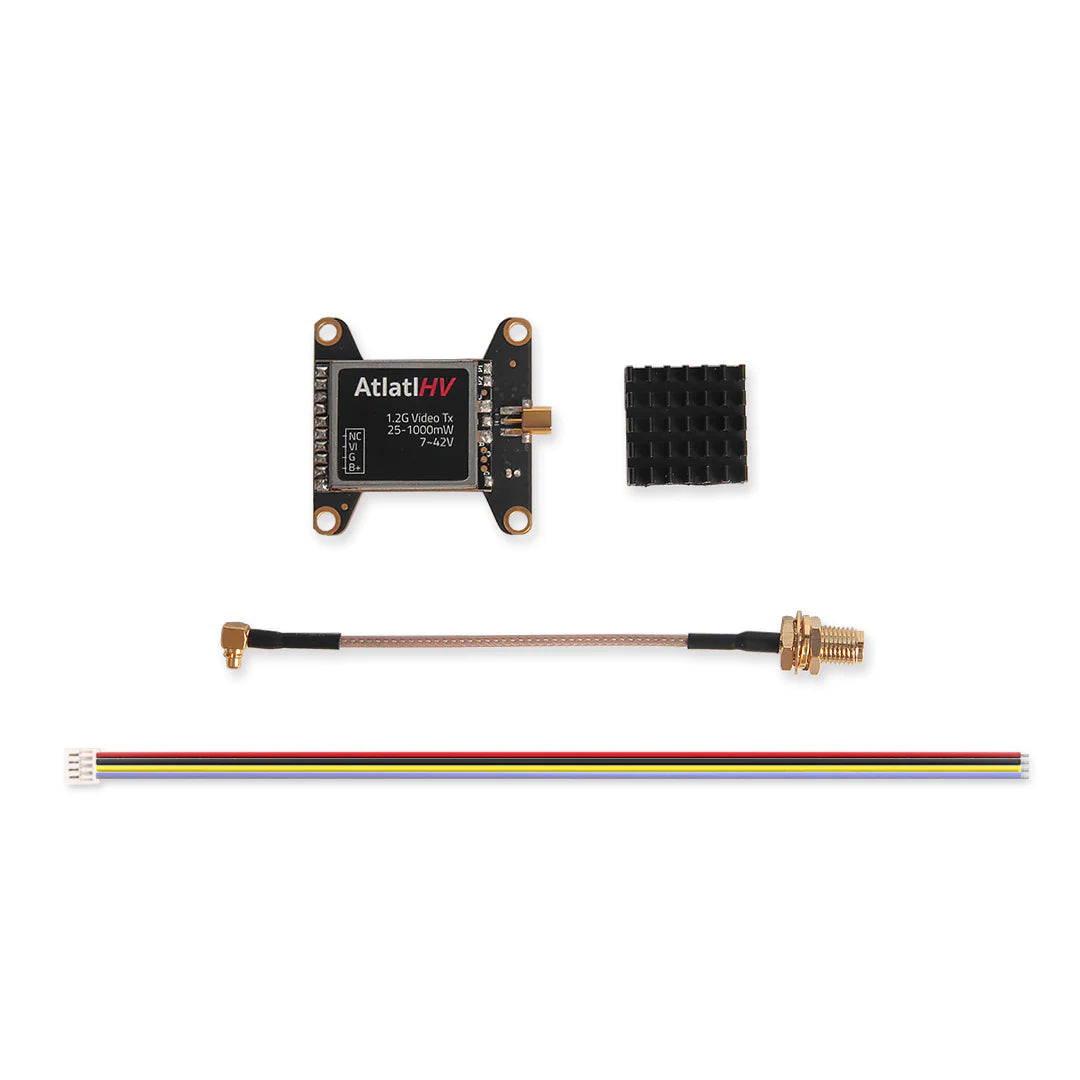

Includes
- VTX Board with Heat Sink *1
- 80mm SMA--MMCX Cable *1
- 150mm 4pin JST GH wire *1
