Product Details
Introducing the Avatar HD Pro Kit, the ultimate FPV package for those who crave high-definition clarity, day or night!

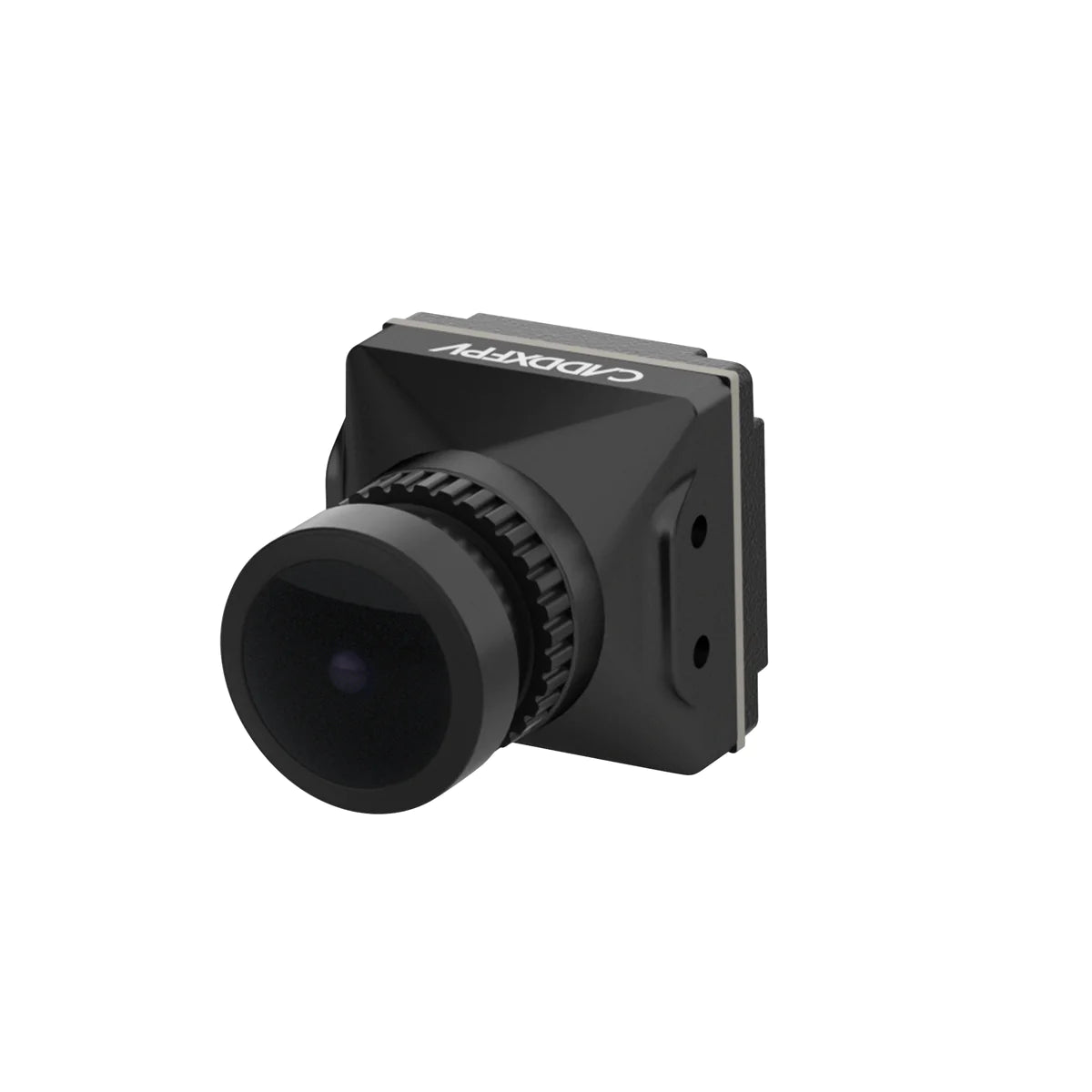

Night owls, rejoice! Our camera sports a 1/1.8 inch Sony Starvis Ⅱ sensor, delivering crisp images even when the sun goes down. Who said night flights were dull? Unleash the full potential of your FPV drone with the Avatar HD Pro Kit. Our camera features a 1/1.8 inch Sony Starvis Ⅱ sensor, providing crystal clear night vision on par with day clarity. Be the first to experience 1080P/120fps high frame rate night vision - an industry first! Gyroflow-supported, you'll capture stable, smooth footage, perfect for reliving your aerial adventures.
Key Product Highlights:
- Crystal-clear night vision with Sony Starvis Ⅱ sensor
- 1080P/120fps high frame rate for smooth, stunning visuals
- Gyroflow support for extra stability and seamless footage
We've listened to your needs and added 20*20mm mounting holes for easier installation and compatibility. With a generous 32g built-in storage, your drone will have more space for breathtaking HD recordings than a squirrel has nuts! Our upgraded PCB board and outer shell ensure your gear lasts longer than your in-laws' stay.

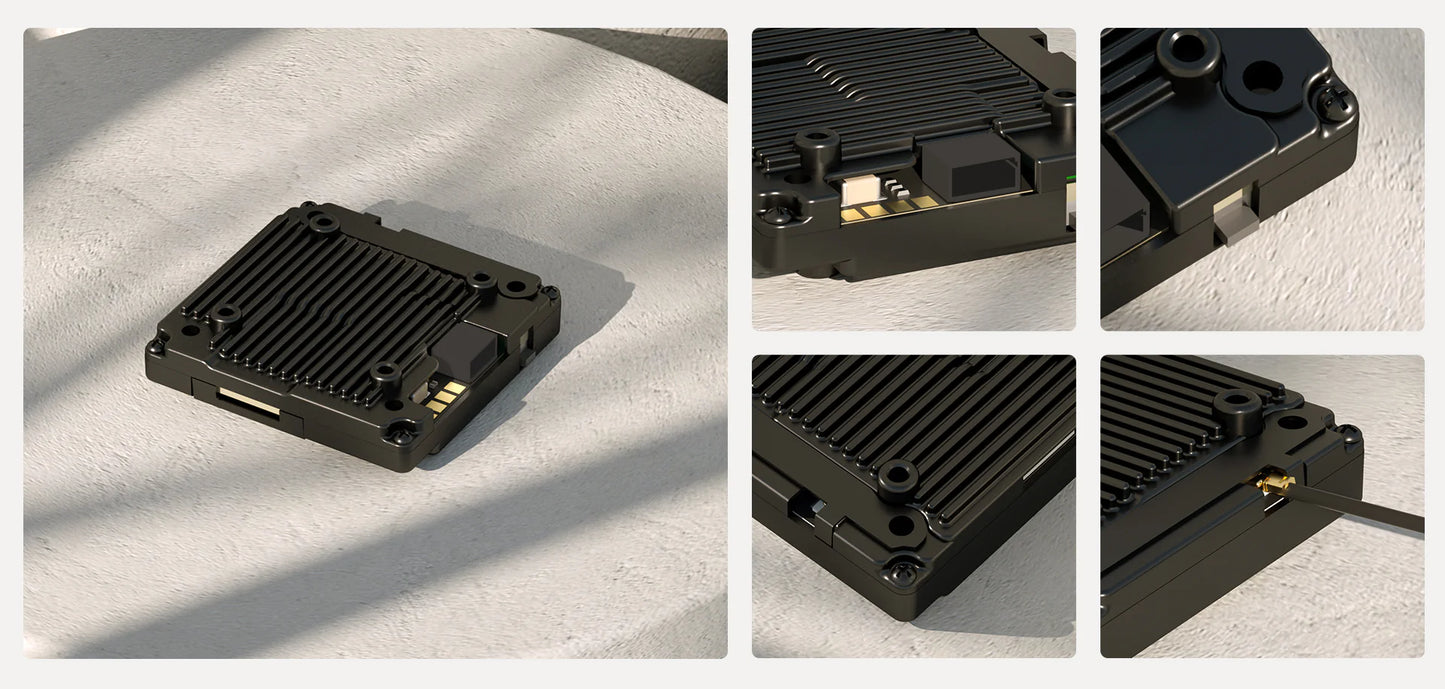

The Avatar V2 module provides unparalleled performance and stability. With enhanced TVS protection and a wide input voltage range of 6V-25.2V, your drone will soar higher and further than ever before.
The lightweight Avatar goggles offer a 46° FOV and built-in corrective lenses adjustment for an immersive, comfortable FPV experience. Plus, the HDMI output and Ranging Mode help you keep track of your drone during long-distance flights.
Embrace the future of FPV with the Avatar HD Pro Kit - the perfect blend of cutting-edge technology and breathtaking visuals.
Specifications
| Camera | |
| Model | Avatar HD pro camera |
| Image Sensor | 1/1.8-Inch Sony Starvis Ⅱ Sensor |
| Resolution | 1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility; |
| Ratio | 16/9; 4/3 |
| Lens | 8Mp |
| FOV | 160° |
| Aperture | F1.6 |
| Shutter | Rolling shutter |
| Min.Illumination | 0.00001Lux |
| Weight | 9.5g |

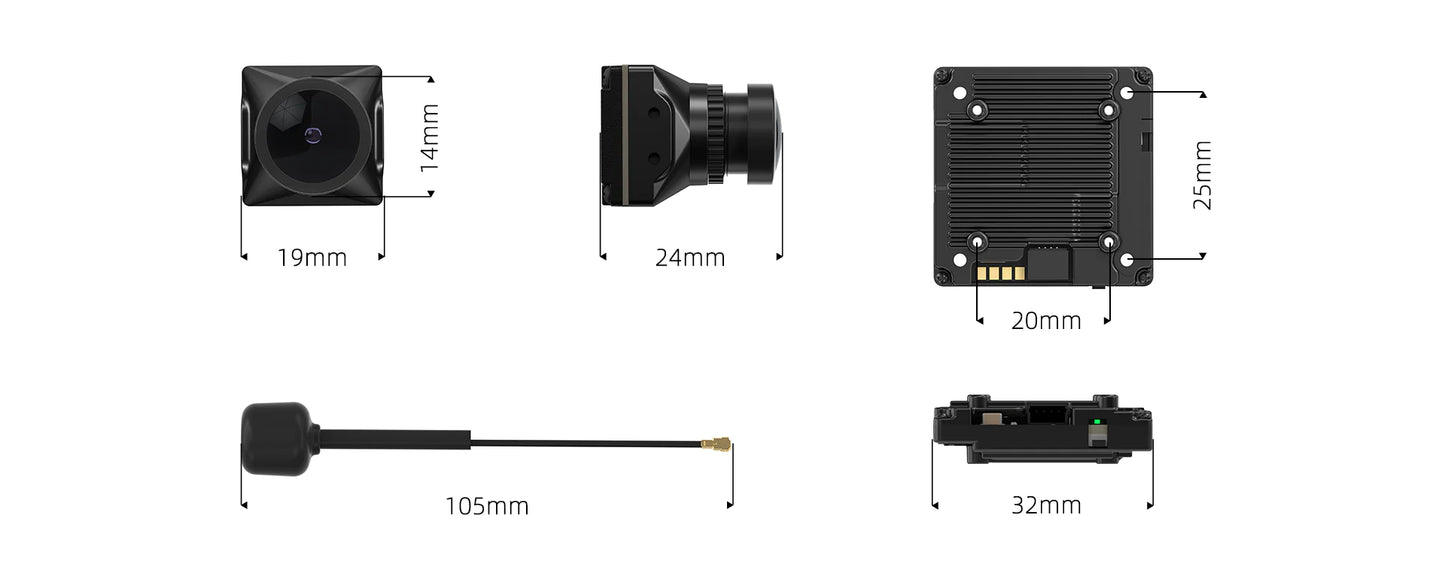

| Dimensions | 19*19*24mm |
| Coaxial Cable | 140mm |
| VTX | |
| Model | Avatar V2 module |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) |
FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm |
| 1/O Interface | JST1.0*4(Power in)JST0.8*6(USB) |
| Mounting Holes | 25.5*25.5mm; 20*20mm |
| Dimensions | 33.5*33.5*10.5mm |
| Storage | 8G/32G |
| Recording | 1080p/720p |
| Weight | 17.6g |
| Operating Temperature | -20-40℃ |
| Channels | 8 |
| Wide Power Input | 6V-25.2V |
| Supported FC System | Betaflight; Inav; Fettec; ArduPilot;Kiss |
| OSD | Canvas mode |
| Latency | Average delay 22ms |
| Antenna | 1(IPEX) |
| Avatar V2 antenna | |
| Polarization | LHCP |
| Frequency range | 5600MHz-6000MHz |
| Gain | 1.9dBi |
| VSWR | ≤1.5 |
| Input Impedance | 50Ω |
| Interface | IPEX-1 |
| Size | R15 X 45mm(without cable) |
| Weight | 2g |
What's in the Box?
- 1x Walksnail Avatar Pro HD Kit (Pro Avatar FPV camera plus VTX with 32GB onboard storage)
- 1x USB transfer extension cable
- 1x Connector Cable Pack
Don't miss your chance to rule the skies with the Avatar HD Kit V2. Order now and let the magic unfold!
