As a seasoned FPV pilot, mediocre image quality and laggard transmission are like old acquaintances who overstay their welcome. You’re in dire need of a tech upgrade that matches your sky-high aspirations without having a fallout mid-air.
Ever had your drone send back images resembling a 90s video game more than the lush, real terrain? Or the latency making your FPV flight feel like a slide show? It’s enough to make any pilot’s blood boil.
Enter the Walksnail Avatar HD Pro Kit. It’s not just a piece of tech, it’s your skybound companion ready to catapult your FPV adventures into a realm of clarity and speed once thought mythical.
Key Product Highlights:
- Dual Antennas: Twice the antennas, twice the assurance. Our dual antennas design ensures a robust signal even when you decide to take a detour around the wild blue yonder.
- *Crystal Clear 4K Compatibility: With a FOV of 160° and 4K compatibility, every flight is now a cinematic experience waiting to be explored. (This will be added in a future firmware update)
- Power-Packed Performance: From 6V to 25.2V, our VTX doesn’t just keep up; it leads. It’s the kind of stamina one needs amidst the clouds.
- Long-Range Buddy: With a 4km range, the sky’s not the limit, it’s just the beginning.
- Low Latency, High Adrenaline: At 22ms, the latency is so low, it’s almost part of the ground crew.
- Ample Storage: The built-in 32G storage is ready to store your aerial escapades in 1080P or 720P HD without breaking a sweat.
- Starlit Vision: The Sony Starvis Ⅱ Technology doesn’t just work in daylight, it thrives in low-light. Now every night is a good night for a flight.
In Depth Features
- H.265 Code Mastery: The Avatar HD system leads the charge with H.265 code, ensuring a 1080p FPV image quality that’s as crisp as the morning sky. Whether it’s 1080P at 60FPS or 720P at 120FPS, we’ve got the bandwidth to handle your brand of adventure.
- Gyroflow Support: With Gyroflow support, every video is a smooth sail through the skies. It’s like having a cinematographer on board.
- Mounting Holes Galore: The kit plays nice with a multitude of FPV drone models thanks to the 20mm x 20mm and 25mm x 25mm mounting holes. A snug fit is a good fit.
- Revamped Design: A newly designed PCB board, an updated shell, a better-protected VTX, and a more convenient frequency binding operation—this is evolution you can touch and feel.
- Enhanced TVS Protection: Our new VTX isn’t just about higher numbers. The enhanced TVS protection is about making those numbers count in the real world.
Recording & Frame Rate Flexibility:
- High Frame Rate Support: High frame or standard frame rate, the choice is yours. And with an average delay of merely 22ms under high frame rate, it’s fast, whichever way you swing.
- Built-In Recording Paradise: No external card, no problem. With 32G of built-in storage, your HD flight videos have found a new home.
Specifications
Camera | |
Model | Avatar HD Pro Camera |
Image Sensor | 1/1.8-Inch Sony Starvis Ⅱ Sensor |
Resolution | 1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility; |
Ratio | 16/9; 4/3 |
Lens | 8Mp |
FOV | 160° |
Aperture | F1.6 |
Shutter | Rolling shutter |
Min.Illumination | 0.00001Lux |
Weight | 9.5g |
Dimensions | 19*19*24mm |
Coaxial Cable | 140mm |
VTX | |
Model | Avatar V2 Pro Module(Dual Antenna) |
Communication Frequency | 5.725-5.850GHz |
Transmitter Power (EIRP) | FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |

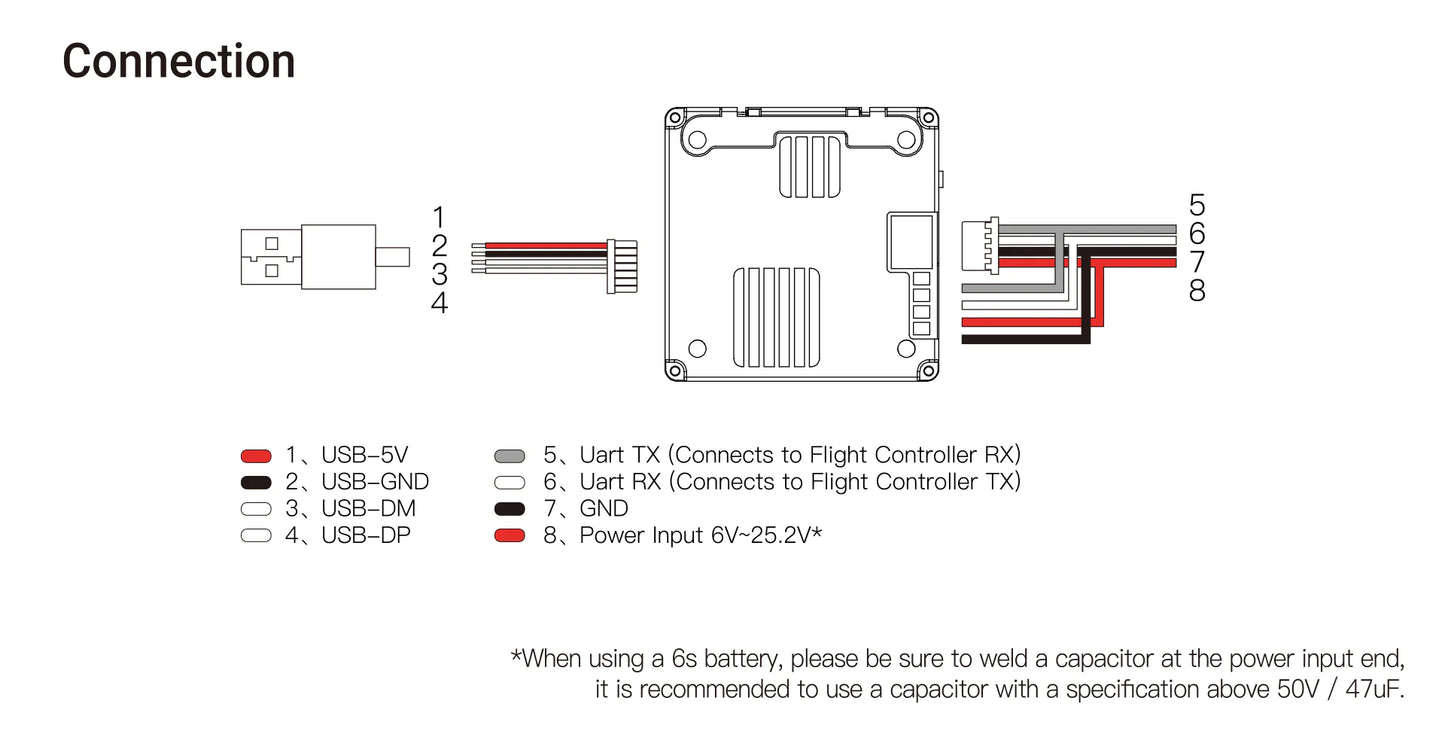

1/O Interface | JST1.0*4(Power in)JST0.8*6(USB) |
Mounting Holes | 25.5*25.5mm; 20*20mm |
Dimensions | 33.5*33.5*10.5mm |
Storage | 32G |
Recording | 1080p/720p |
Weight | 15.4g |
Operating Temperature | -20-40℃ |
Channels | 8 |
Wide Power Input | 6V-25.2V |
Supported FC System | Betaflight; Inav; Fettec; ArduPilot;Kiss |
OSD | Canvas mode |
Latency | Average delay 22ms |
Antenna | 2(IPEX) |
Avatar V2 Antenna | |
Polarization | LHCP |
Frequency range | 5600MHz-6000MHz |
Gain | 1.9dBi |
VSWR | ≤1.5 |
Input Impedance | 50Ω |
Interface | IPEX-1 |
Size | R15 X 45mm(without cable) |
Weight | 2g |
Packing List
- 1x Walksnail Avatar HD Pro Kit V2 (Dual Antenna Version with 32GB internal storage) and Walksnail Pro Camera (with gyroflow)
