TheFPV SA Micro AIO FPV Camera and 200mW VTX

£15.99 (ex VAT £13.33)

Out of stock
Restock in 2+ Weeks

Want to be notified when this product is back in stock?

SKU: B49-E9F-5B2 Categories: , Tags: , Brand:

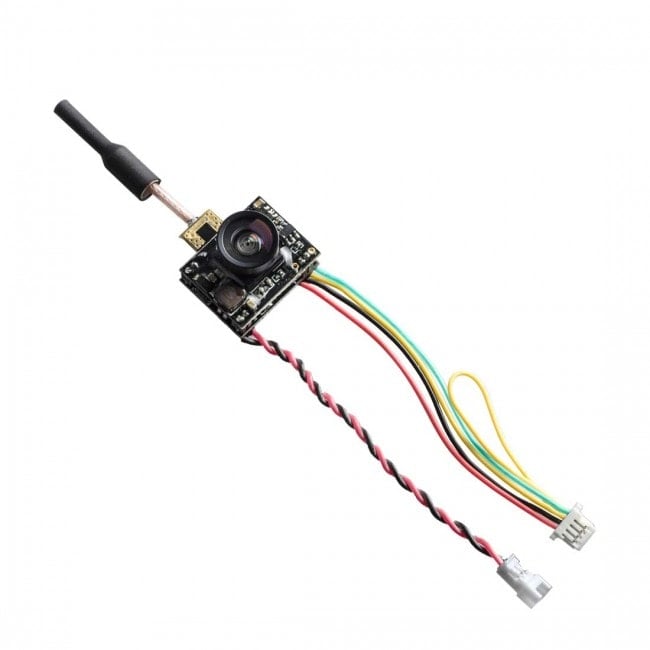

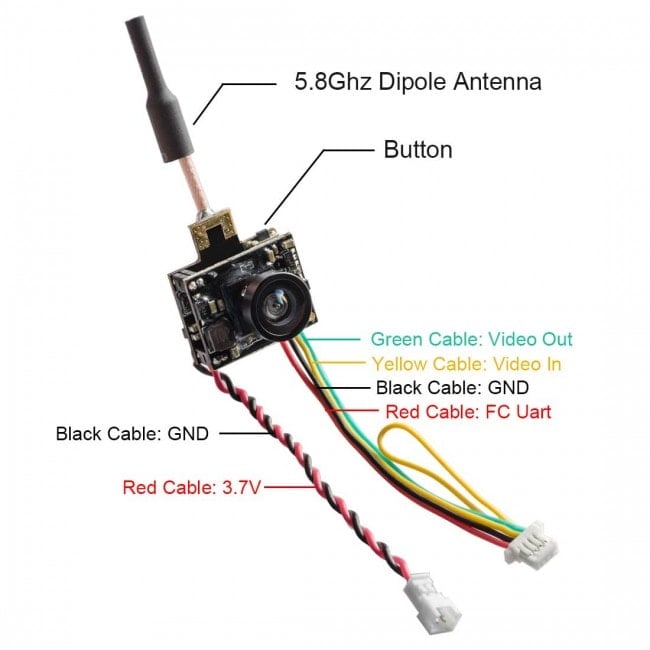

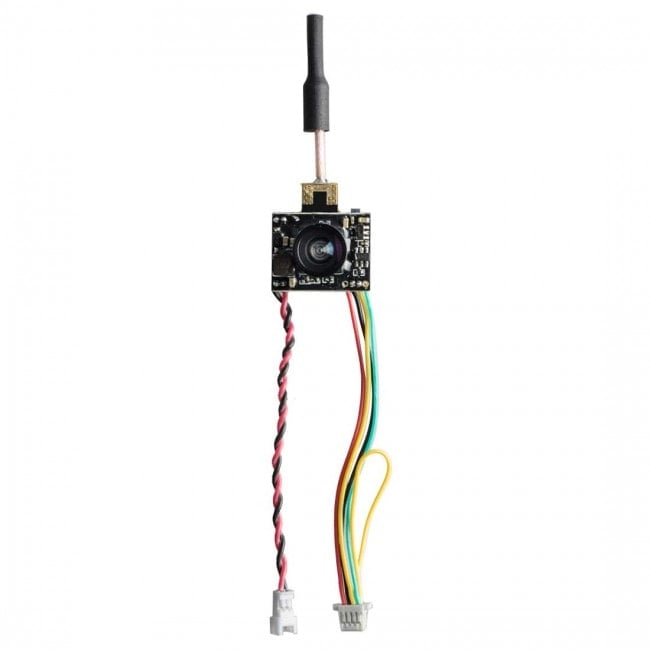

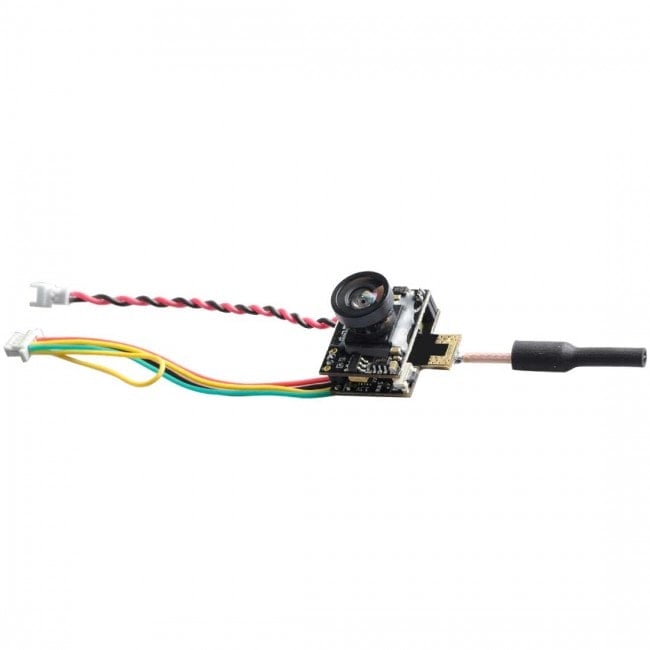

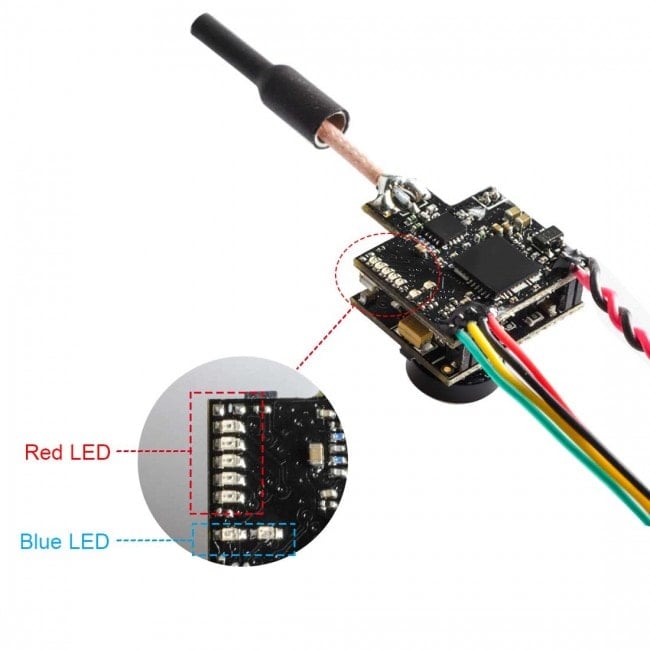

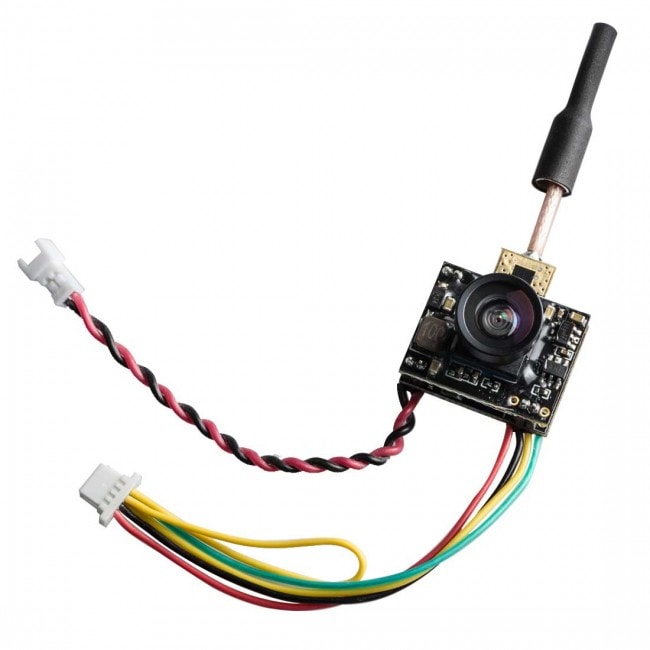

This is a micro all in one FPV camera that has a 25mW – 200mW switchable VTX, giving you unprecedented range and video signal from your tiny whoop drone.  The VTX also support smart audio which makes changing the video channel and power a breeze via the OSD menu.

TheFPV SA Micro AIO FPV Camera and 200mW VTX

£15.99 (ex VAT £13.33)

Out of stock
Restock in 2+ Weeks

Want to be notified when this product is back in stock?

This is a micro all in one FPV camera that has a 25mW – 200mW switchable VTX, giving you unprecedented range and video signal from your tiny whoop drone.  The VTX also support smart audio which makes changing the video channel and power a breeze via the OSD menu.

Not the cheapest?

We will try to beat it!

⚠️Always test your item before soldering, issues caused by soldering aren't covered by warranty.

SKU: B49-E9F-5B2 Categories: , Tags: , Brand:

This is a micro all in one FPV camera that has a 25mW – 200mW switchable VTX, giving you unprecedented range and video signal from your tiny whoop drone.  The VTX also support smart audio which makes changing the video channel and power a breeze via the OSD menu.  Pitmode is also supported making it lead for tiny whoop events.

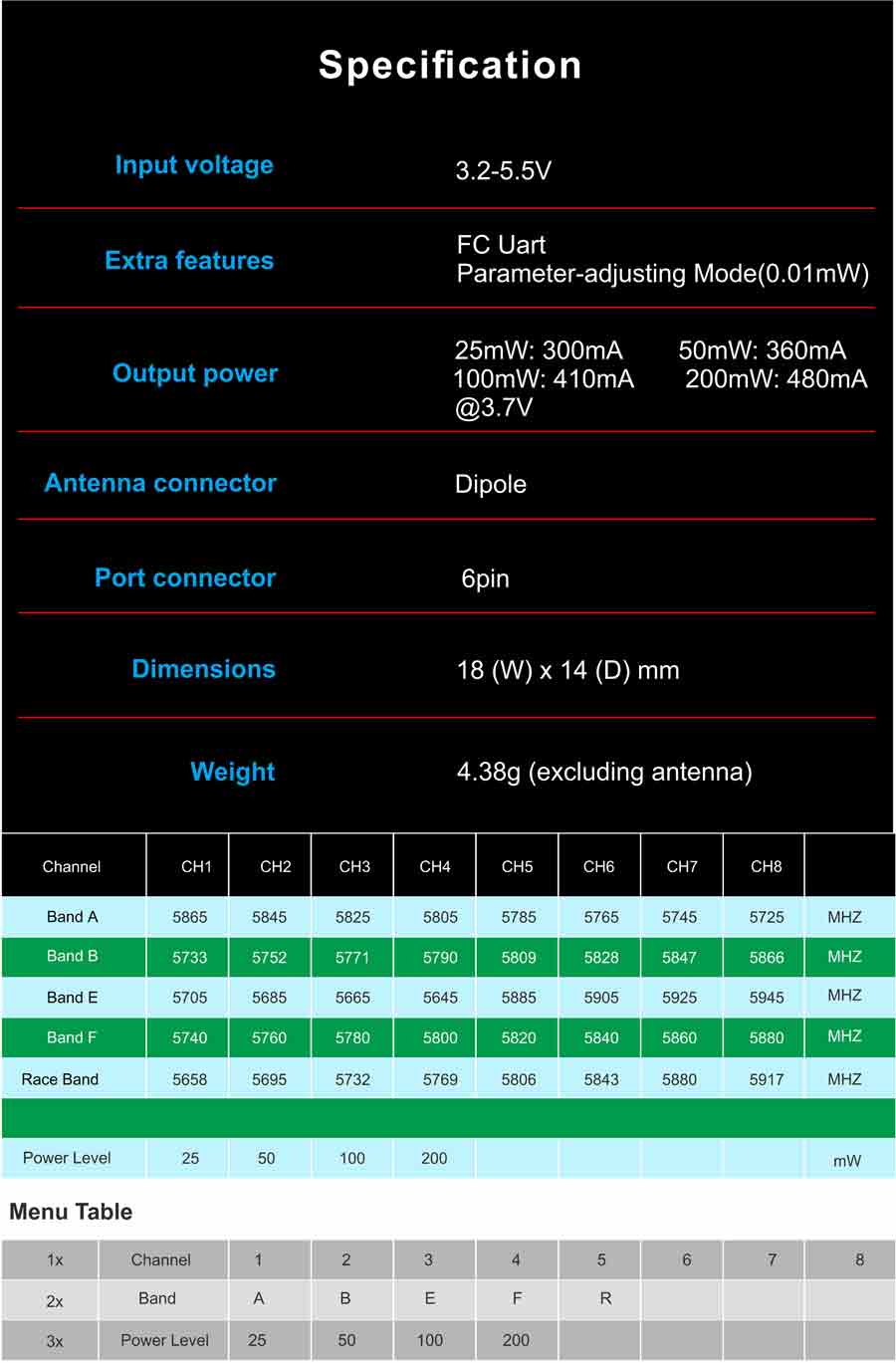

Specifications

  • Output power: 25mW, 50mW, 100mW, 200mW switchable
  • Input power: 3.2–5.5V
  • Current consumption:300-480mA depending on output power
  • Camera resolution: 600TVL
  • Video system: NTSC
  • Mini illumination: 1 lux
  • Field of view: 120°viewing angle
  • Antenna dimensions: 22mm X 29mm diameter
  • Antenna: dipole
  • Frequency: 5.8GHz 5 bands 40 channels,
    with Raceband: 5658-5917MHz

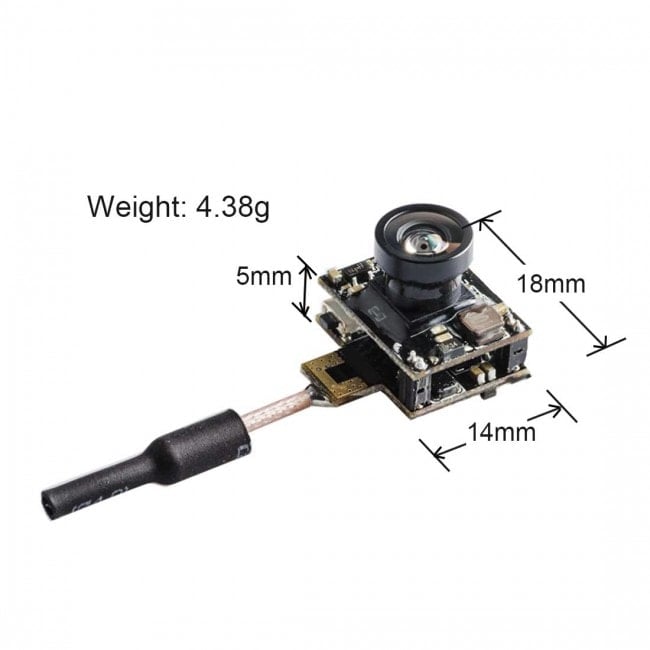

  • Size: 18mm x 14mm (L*W)
  • Weight: 4.38g (without antenna)

Aio sa 5 Aio sa

Weight 100 g
