The Chaos VTX has become one of the go-to VTX choices, especially for builds where FPV pilots are looking for a robust and reliable, yet affordable option. Sometimes, however, smaller builds can’t quite squeeze one in, and the mounting option might just not quite be what you’re after.

So, we’ve addressed that in our latest release, the most convenient VTX ever: The Chaos Mini VTX.

With 20×20 mounting, and ALL of your bases covered when it comes to antenna options (seriously – there’s U.Fl and MMCX directly on the VTX, and there’s an MMCX to SMA pigtail included!) and an overall minimalist design, this VTX will work just about anywhere.

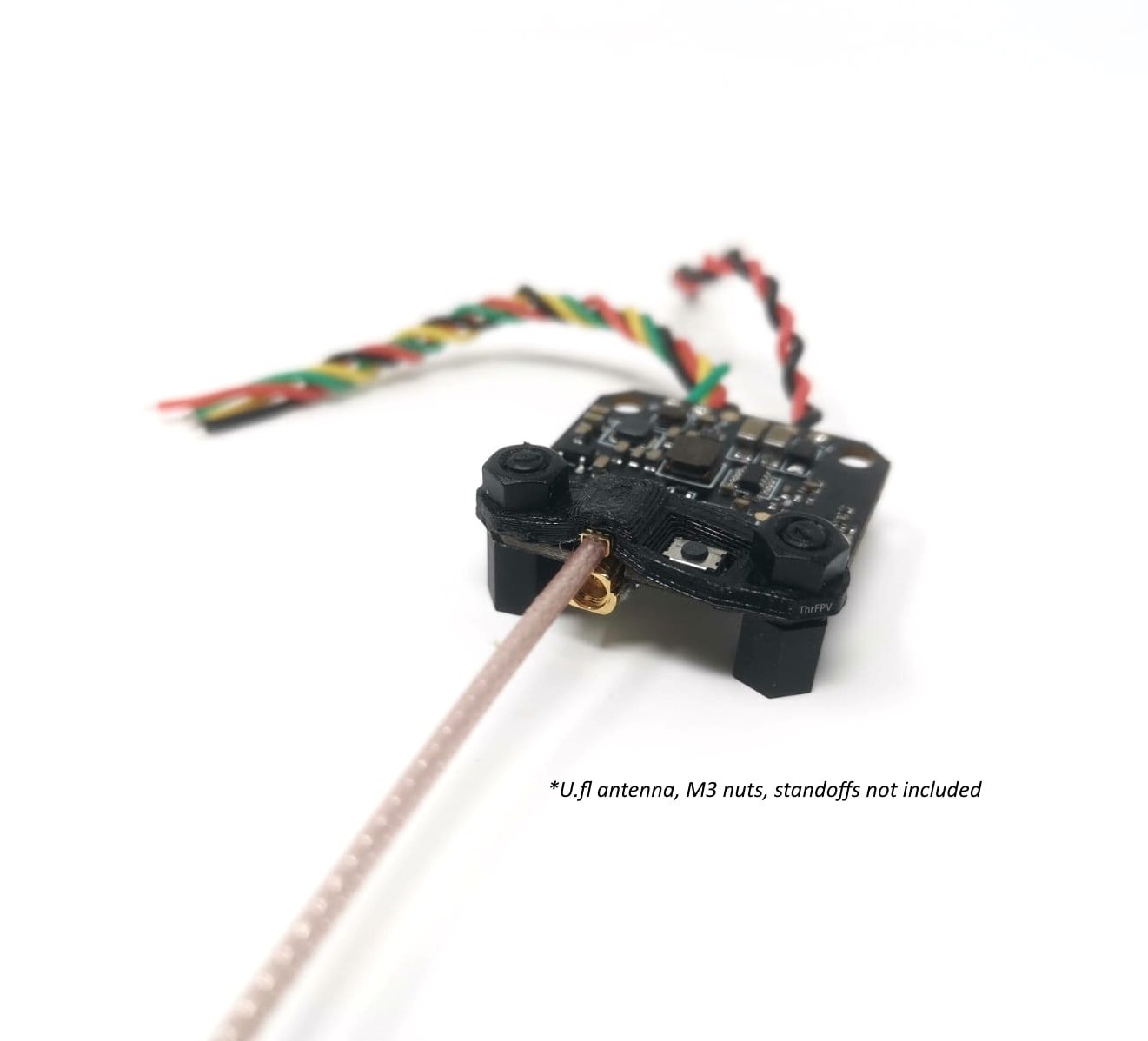

We’ve even designed and include a retention piece for those of you that want a lightweight, SUPER robust U.fl antenna connection. If you’re thinking hard crashes, that’s the way to go.

Additionally, the Chaos Mini outputs up to 600mW of clean, juicy analogue video goodness – enough to get you through the toughest freestyle environments!

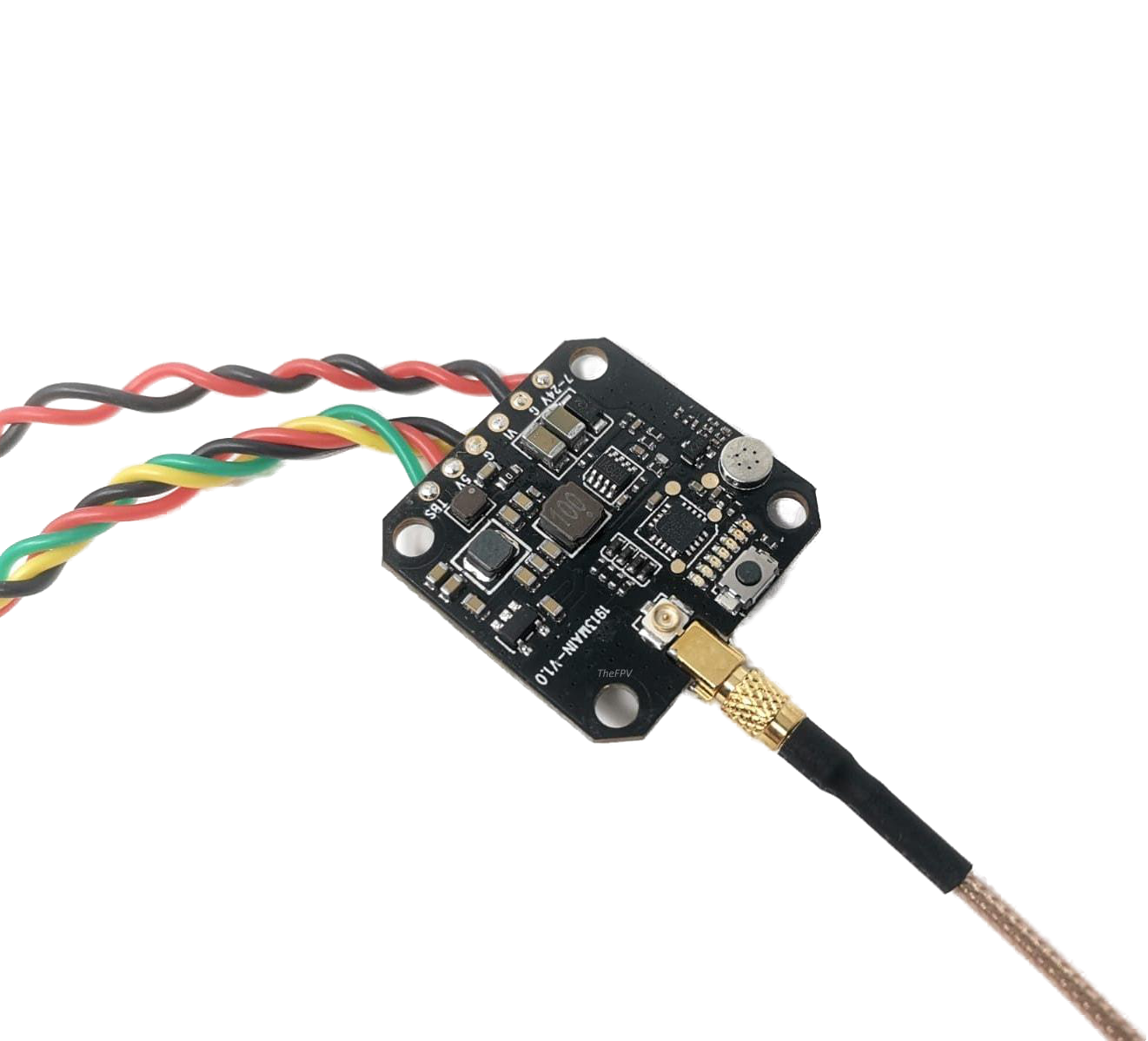

On-board you’ll find the 20×20 mounting, u.fl AND MMCX connections, solder pads with pre-soldered silicone wires, a 5V BEC to power other small electronics such as your FPV camera, and a low-profile button for changing power, channel and band.

This is one we’re really excited about, we’ve covered as many bases as we can, and we hope you love it as much as we do 🙂

• TheFPV Team <3

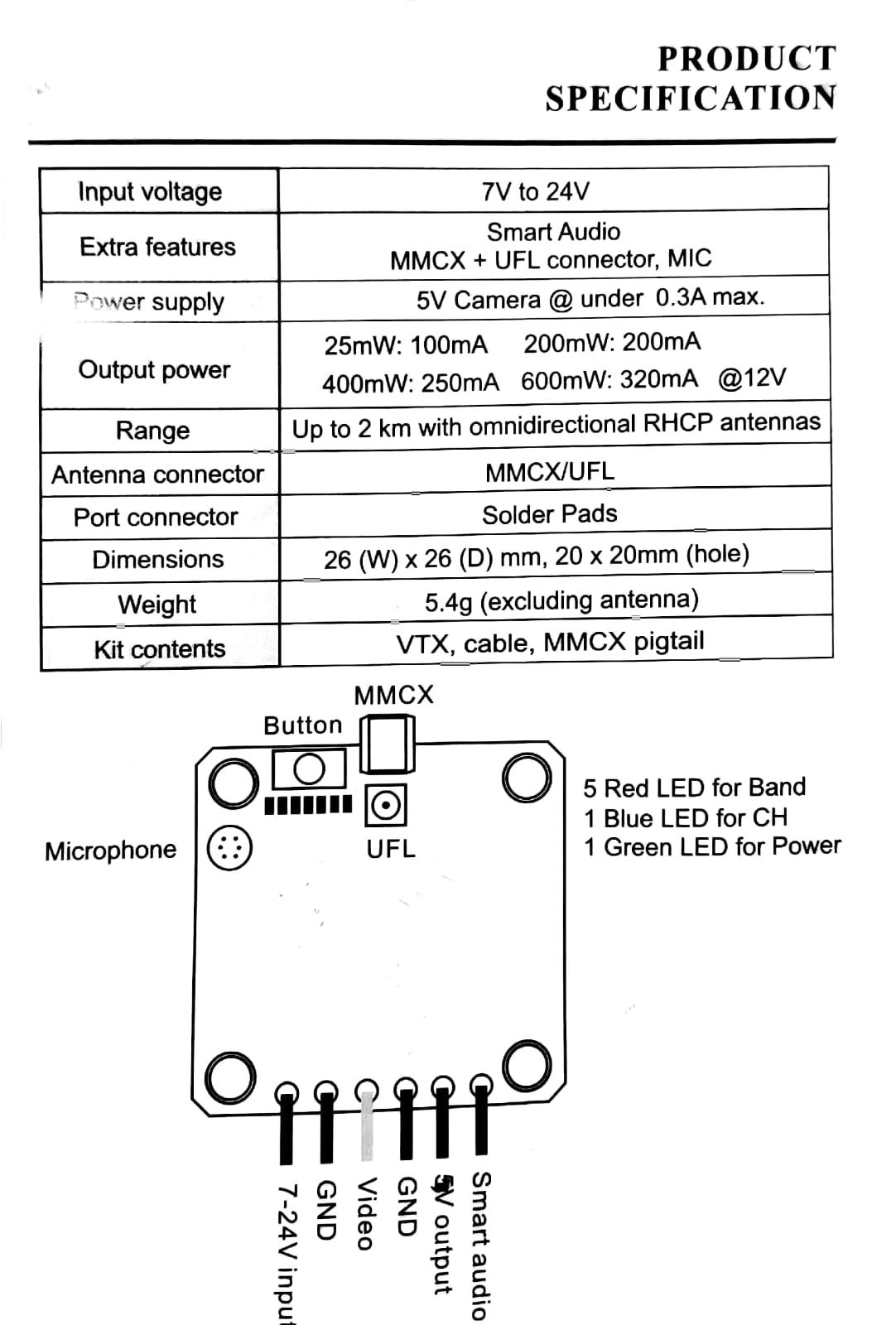

MANUAL:

Key Features

• Support Pit Mode
• 25mW and 200mW, and 600mW switchable
• smart audio configuration via OSD
• 5V to camera @ under 300mA

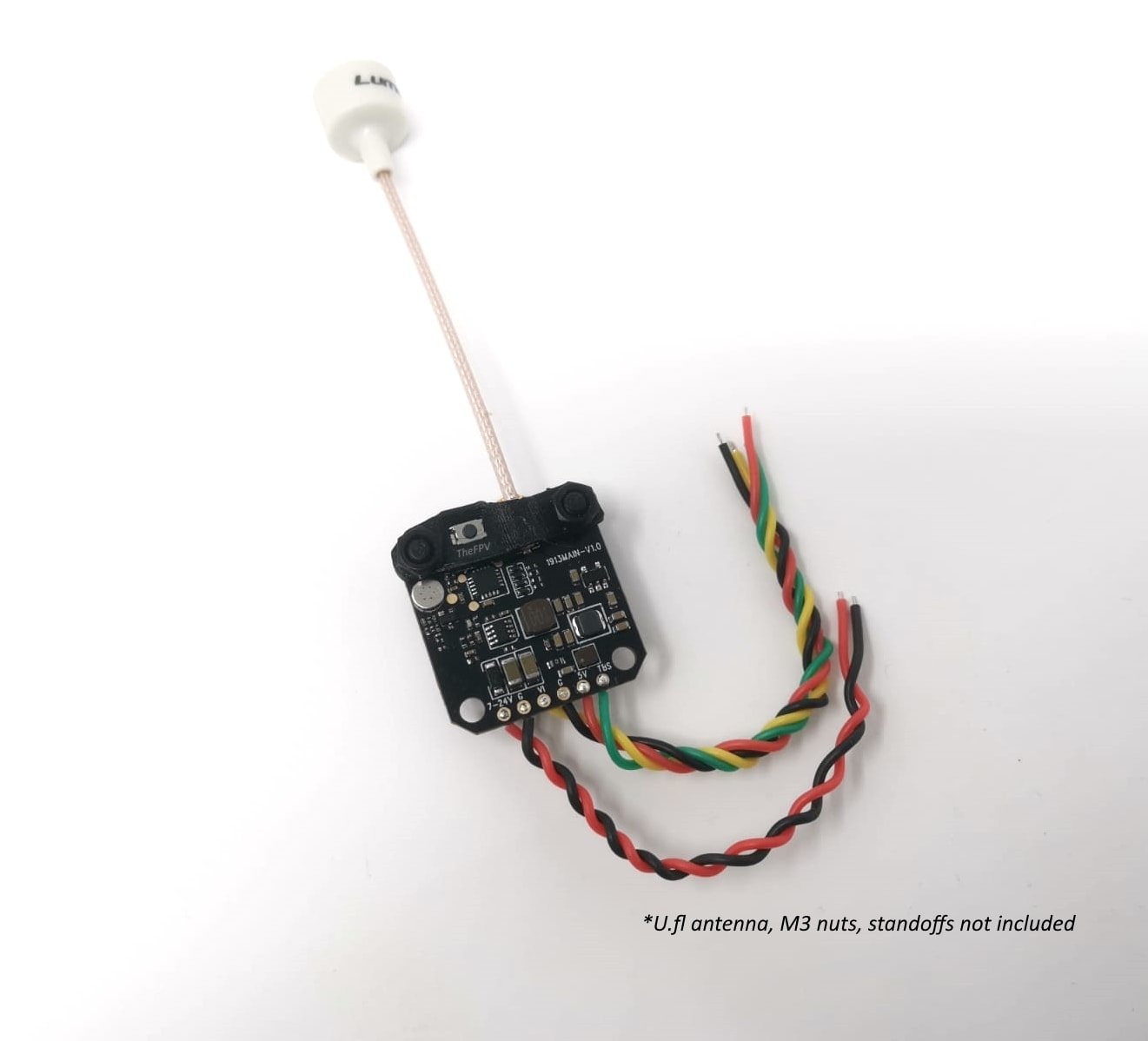

• MMCX AND U.fl antenna connectors on the board

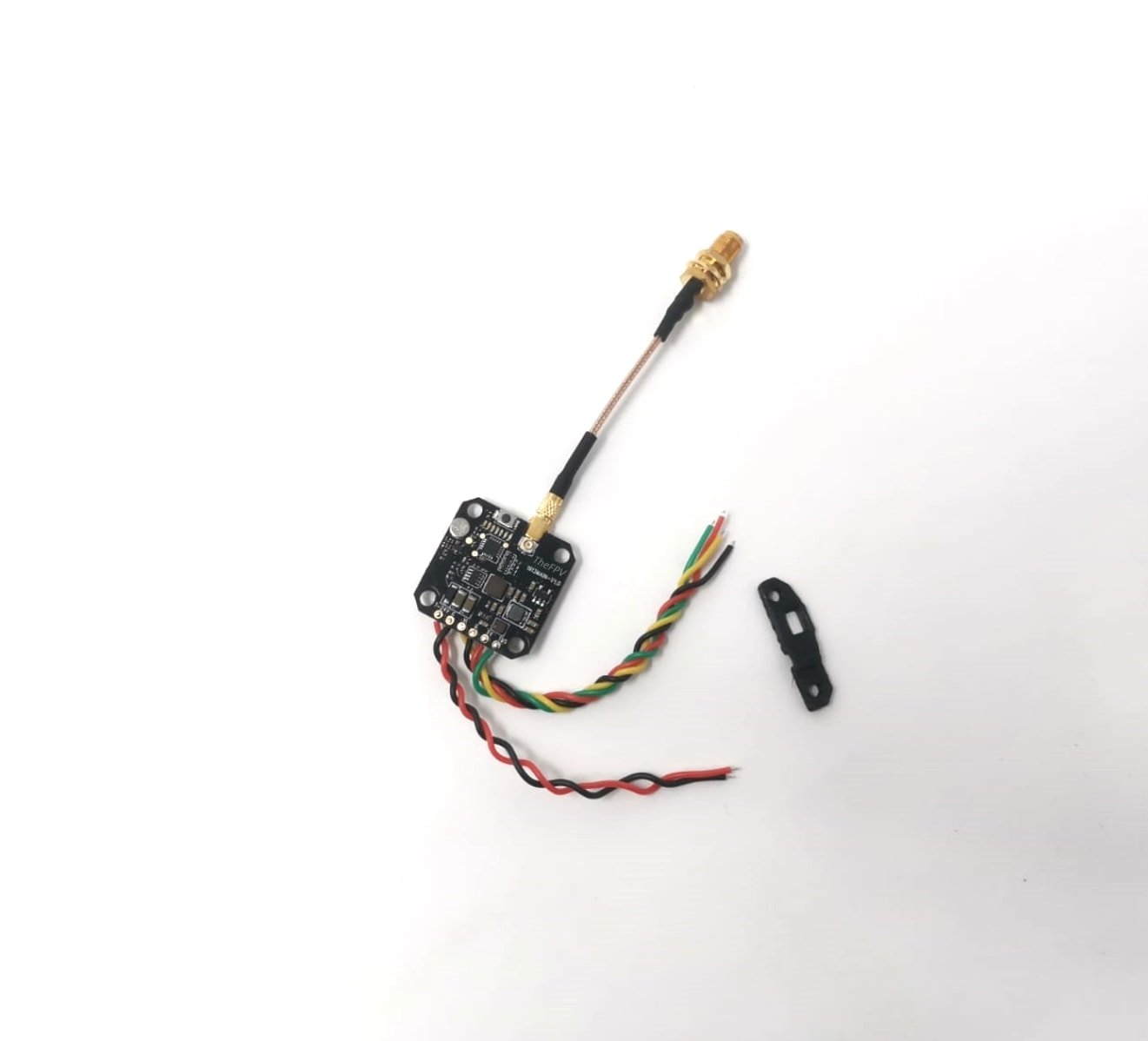

Included

• 1x Chaos Mini VTX

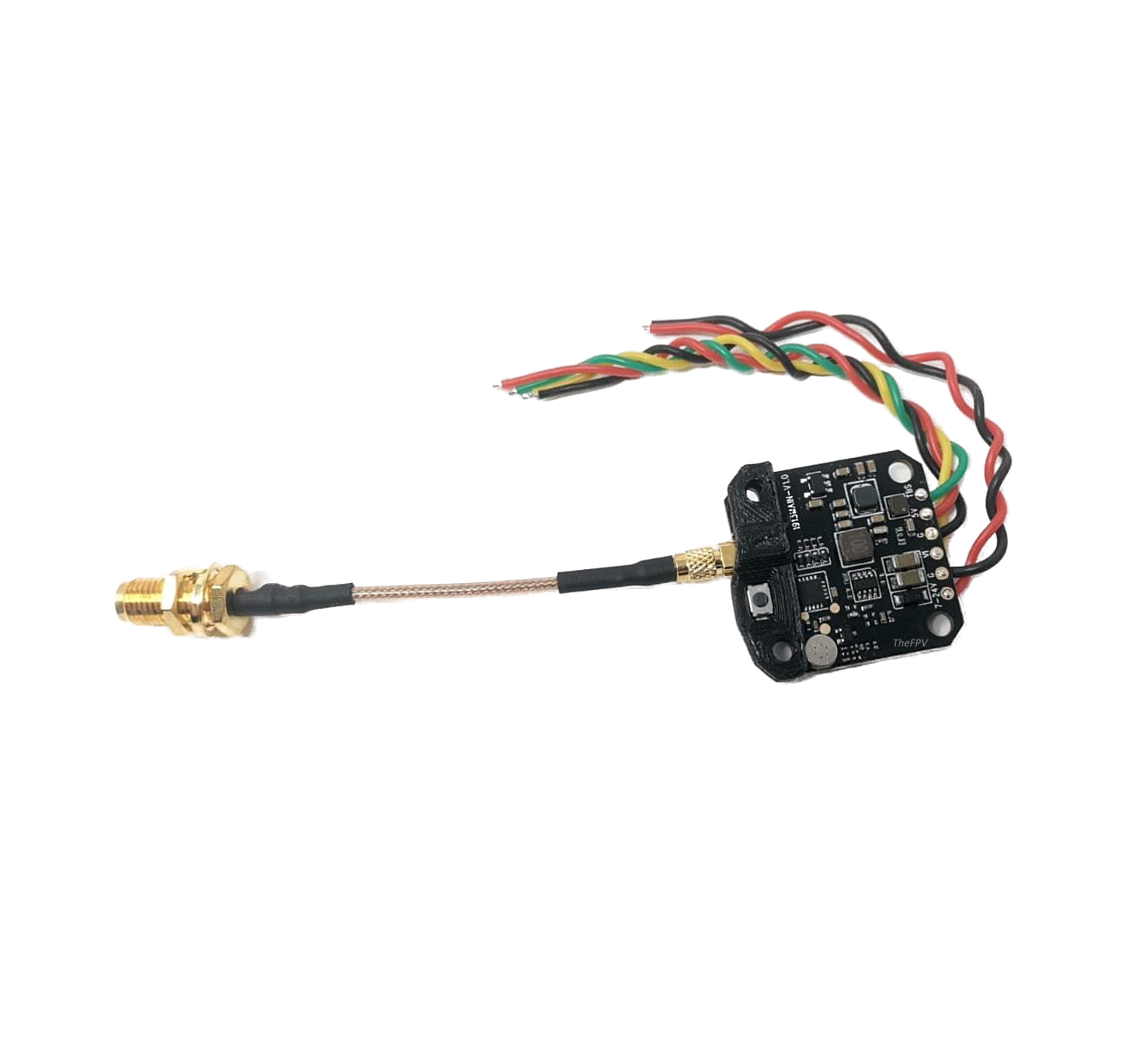

• 1x MMCX to SMA pigtail
• Pre soldered wires for power and camera connections.
