Product Details

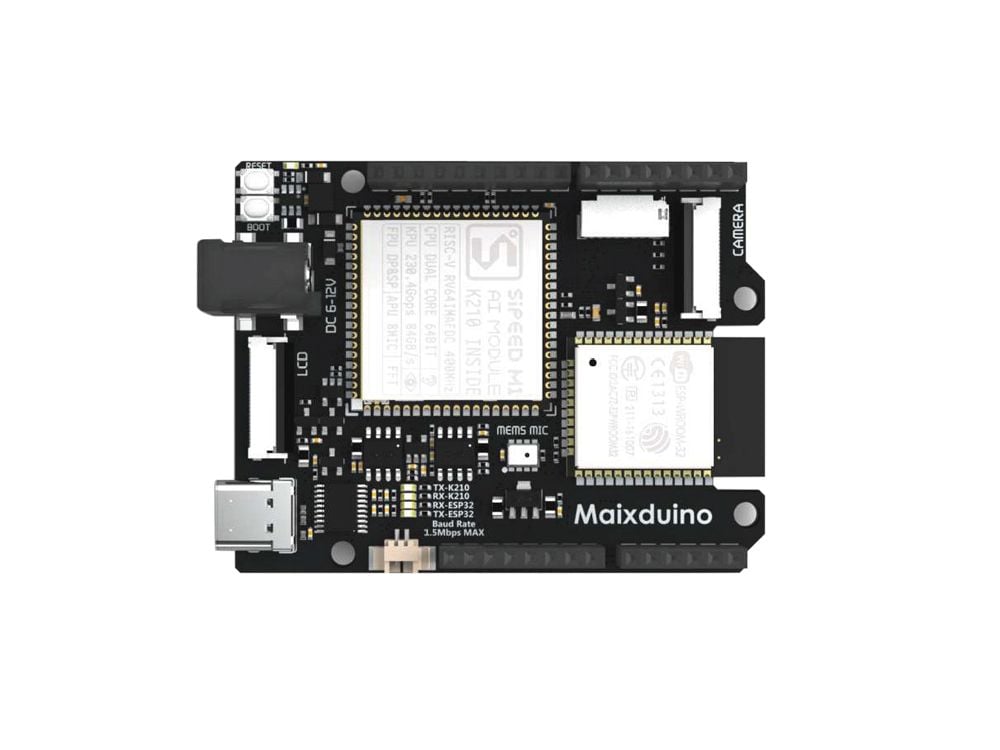

The Maixduino is a MAIX-based RISC-V 64 development board with an Arduino Uno form factor. The hardware is purpose built for developing AI and IoT applications and supports a range of IDEs including Arduino, MicroPython. This board lets you run many of the mainstream AI frameworks such as TensorFlow Lite, tiny-yolo, mobilenet to name a few. This board also includes WiFi built it along with a microphone.
In addition you have a ESP32 module to run extra basic I/O tasks, or to interface with other sensors or systems using the familiar ESP32 libraries using C or MicroPython.

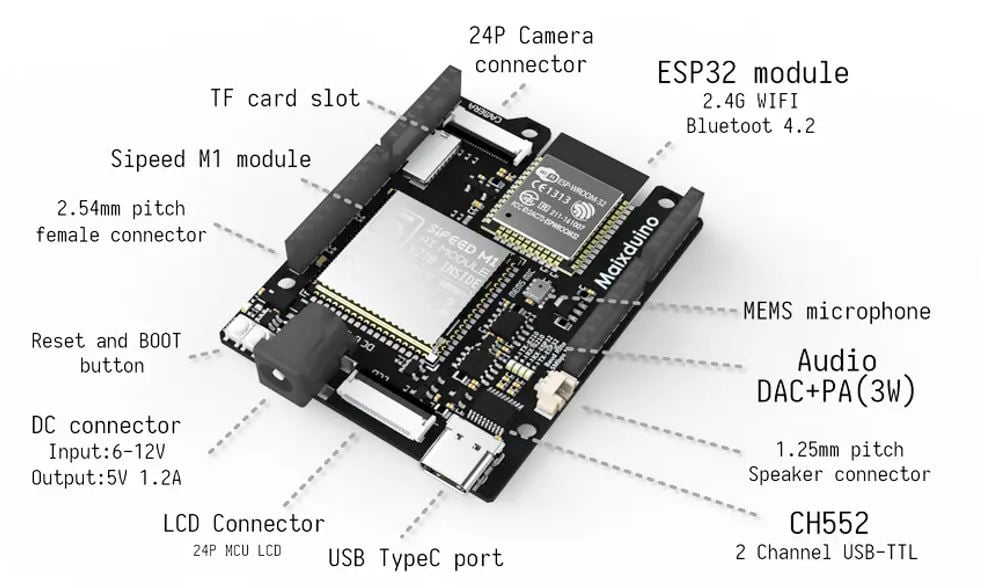

- 64-bit RISC-V Dual core CPU with 400MHz FPU
- Onboard ESP32 module with 2.4GHz WiFi & Bluetooth 4.2
- 3W DAC & PA audio output
- Omnidirectional MEMS microphone
- MicroSD slot
- 24-pin FPC connectors for camera & display
- Powered by USB-C port or DC power port
Specifications
| Master module | Sipeed M1 AIOT module (For details, please refer to the following specification: Sipeed Maix-1 Specifications_EN V1-0.pdf) |
| Power input |
1.USB Type-C
2.DC-DC step-down circuit: support 6-12V input;Provide 5V 1.2A output |
| Micro SD card (TF card) slot | Support Self-elastic card holder |
| Onboard MEMS microphone | MSM261S4030H0 is an omnidirectional, Bottom-ported, I2S digital output MEMS Microphone. It has high performance and Reliability. |
| DVP Camera interface | 24P 0.5mm FPC connector |
| LCD interface | Maix-LCD board (with Resistive touch screen) is directly connected to the pin header |
| Audio output |
DAC+PA:
1.TM8211:16 bit dynamic range; Low harmonic distortion 2.NS4150:3W output power; Up to 90% efficiency; |
| ESP32 module |
1.Support 2.4G 802.11.b/g/n
2.802.11 n (2.4 GHz) speeds up to 150 Mbps 3.Bluetooth v4.2 full standard, including traditional Bluetooth (BR/EDR) and Bluetooth Low Energy (BLE) |
Contents

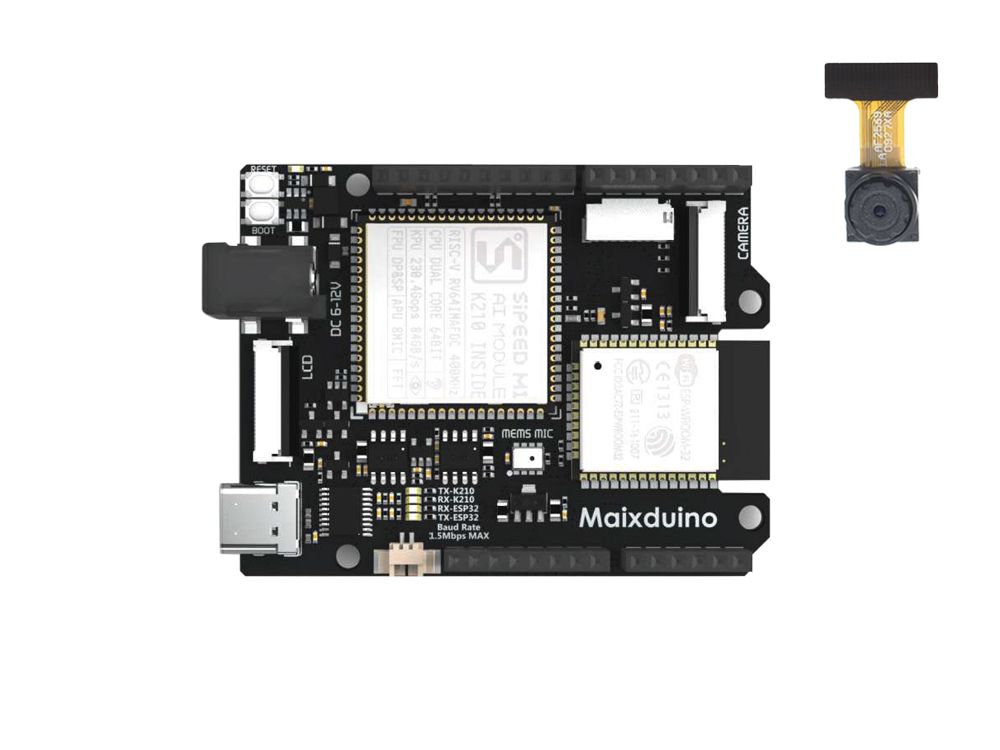

- 1xMaixduino board
- 1x OV2640 camera module
