Product Details

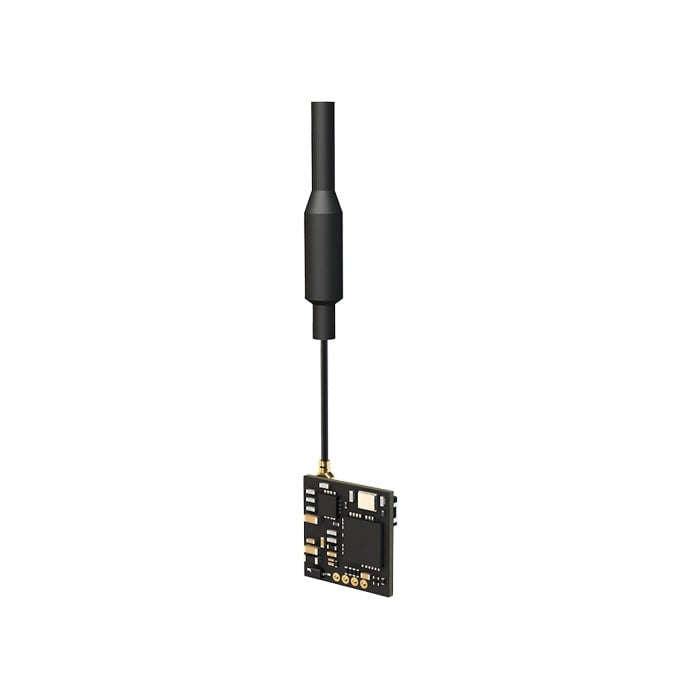

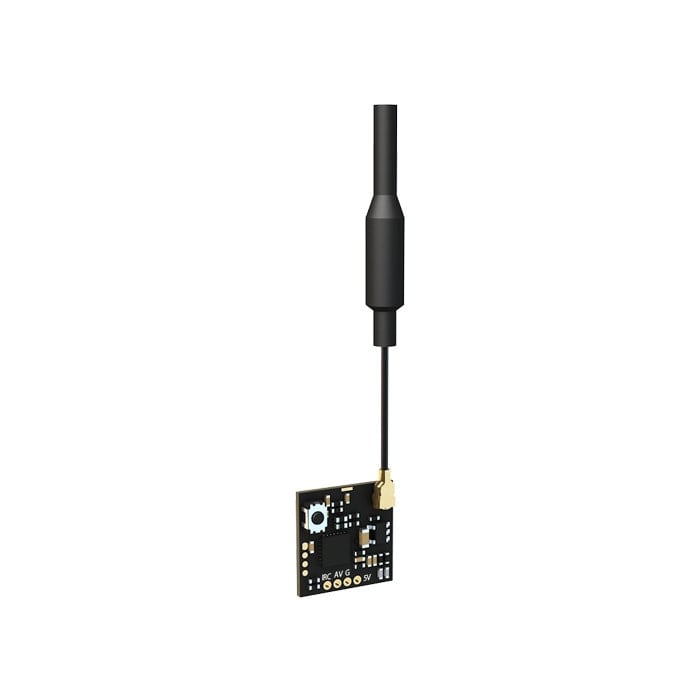

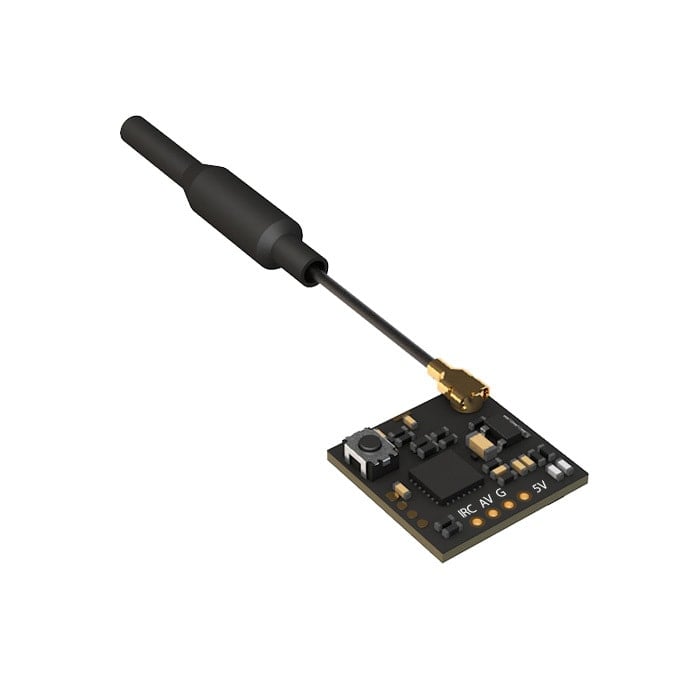

This is the RunCam TX100, a nano sized video transmitter that is just 1.5g, and 1.4cmx1.4cm in size.
Key Features:
- 5.8G real-time image transmission, extremely low latency
- 48-channel coverage, including RaceBand (Band 5)
- Easy to adjust, with 7 LED lights indicating channels and bands
- Only 2.5g, supports 5V output, compatible with mini FPV cameras
- Compatible with most Runcam FPV cameras
- Great price!
RUNCAM-TX100_manual
Specifications
| Model | RunCam TX100 Nano |
| Frequency Channel | 5.8G 37CH |
| Output Power | 25mW / 100mW |
| Working Current | 5V@ 150~300mA |
| Voltage in | 4.5-5.5V |
| Video Input Impedance | 75 Ohm |
| Antenna | U.FL 5.8G 2dB Omni antenna |
| Weight | 1.5g (with antenna) |

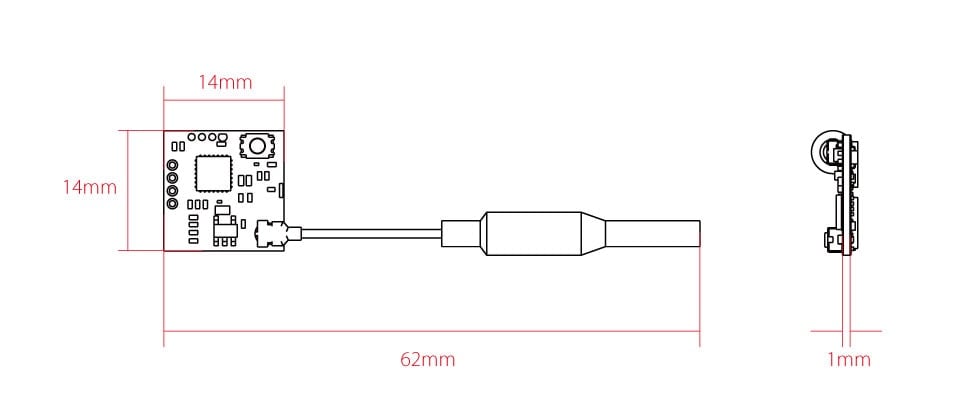

| PCB Size | 14mm*14mm |
