RunCam Hybrid – Dual 4K HD & FPV Camera

£84.00 (ex VAT: £70.00)

Out of stock
Item discontinued

Want to be notified when this product is back in stock?

The runcam hybrid is a 2in1 FPV camera, record crisp 4K footagle onboard while sending a low latency FPV feed back to your goggles.  Best of all the hybrid is just a single board design, making it much easier to fit into your quadcopter builds.
SKU: 24E-818-CB6
Add to wishlistAdded to wishlist0
Add to compareAdded to compare0
Free UK shipping for orders above £100*
30 Day Returns, 180 Day Warranty
Make sure you test before soldering

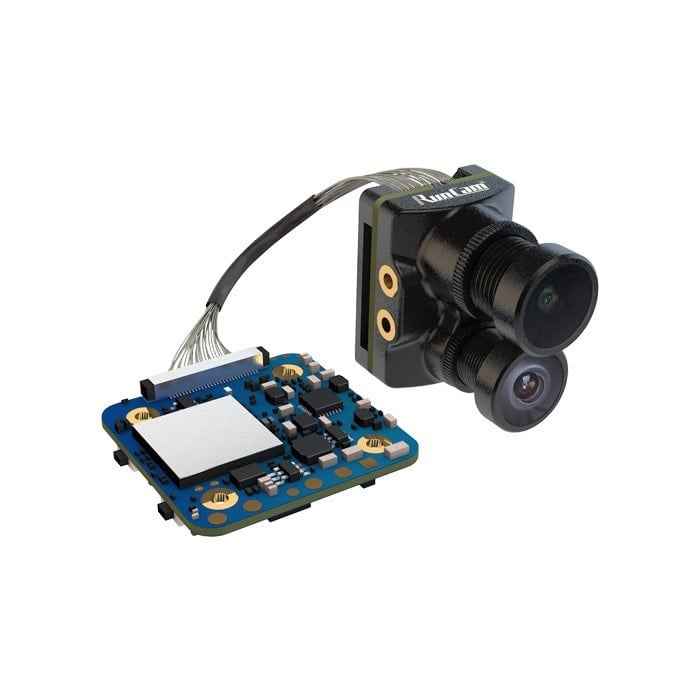

The Hybrid is RunCam’s answer to the dual-camera system which has become more popular as of late. With RunCam quality pilots have come to know, the Hybrid is sure to please racers and freestylers alike. The Hybrid is equipped with a 145° wide-angle Sony 4K HD sensor as well as a RunCam Racer together on one camera. The singular 20×20 board saves space and installs easily on most frames.

Get amazing HD video footage as well as 6ms low-latency video at the same time with the RunCam Hybrid.

Features

  • 4K HD & low-latency FPV camera in one
  • Wide-Angle 145° HD recording
  • Super low-latency (6ms) RunCam Racer FPV camera
  • Remote control HD recording
  • Simultaneous HD recording and FPV output
  • QR code parameter settings
  • Firmware upgradable through SpeedyBee app

Manual

Specifications

HD sensor SONY 8MP
Analog sensor SONY 1.3MP
Field of View (FOV) HD Recording FOV 145°(FPV FOV 150° @ 4: 3)
Video Resolution 4K@30fps / 2.7K@60fps / 2.7K@50fps / 1080P@120fps / 1080P@100fps / 1080P@60fps / 1080P@50fps
Video File Format MP4
TV Mode NTSC (720*480)/PAL (720*576) Switchable
Interface HD supports UART remote control; FPV(Analog) supports UART firmware update.
Max Micro SD Card Supported Up to 128G. U3 recommended (2.7K60/1080P120 requires U3 or above; other solutions require U1 or above) Please make sure that the file format of the SD card is FAT32, otherwise, it will easily cause errors.
Mounting Holes Distance 20*20mm
PCB Size 29*29mm
Lens Module Size 19*25mm
Lens Specs HD Lens: M10 FPV Lens: M8
Power Input DC 5-20V (Non-direct power supply from 4s battery or above. Powered directly with a battery will generate surges and burn the camera.)
Working Current 480mA @5V / 140mA @12V
Weight 18g

Includes

  • 1x Camera
  • 1x Plastic cover
  • 1x 3pin 1.25 JST silicone cable (male)
  • 1x 3pin 1.25 JST silicone cable (female)
  • 1x Set of Screws
  • 1x Manual
Camera Size

Colour
Dimensions
Weight 200 g
Dimensions 5 × 5 × 5 cm
