RadioMaster GR-01 ExpressLRS 2.4GHz Receiver for DJI RS2 & RS3 Pro

RadioMaster GR-01 ExpressLRS 2.4GHz Receiver for DJI RS2 & RS3 Pro

HP0157.RX-GR-01

£49.99 GBP
£0.00 GBP £49.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock
View full details

Product Details

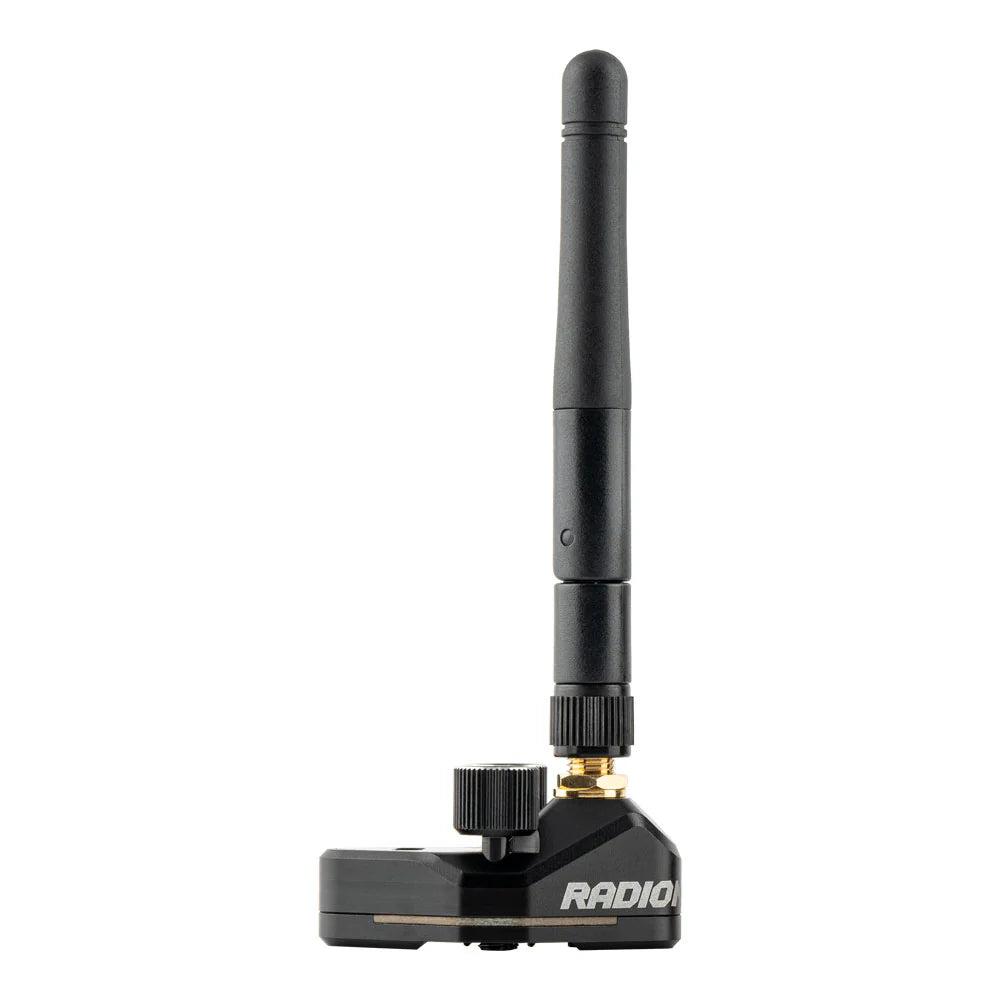

RadioMaster GR-01 ExpressLRS 2.4GHz Receiver for DJI RS2 & RS3 Pro

For the filmmakers who've maxed out their caffeine but not their gimbal control, meet the RadioMaster GR-01 ExpressLRS 2.4GHz Receiver —a compact, CNC-machined powerhouse built for cinelifter drones running DJI RS2 and RS3 Pro gimbals. Finally, a way to command your gimbal setup without resorting to interpretive dance or overpriced proprietary gear.

Wrapped in a rugged aluminum shell and featuring NATO port compatibility , this receiver isn't here to look pretty—though it sort of does. With ExpressLRS v3.3.0 firmware , USB-C firmware updates , and dual removable antennas , the GR-01 is ready for professional productions where "cut" is the last thing you want to hear.

Key Features:

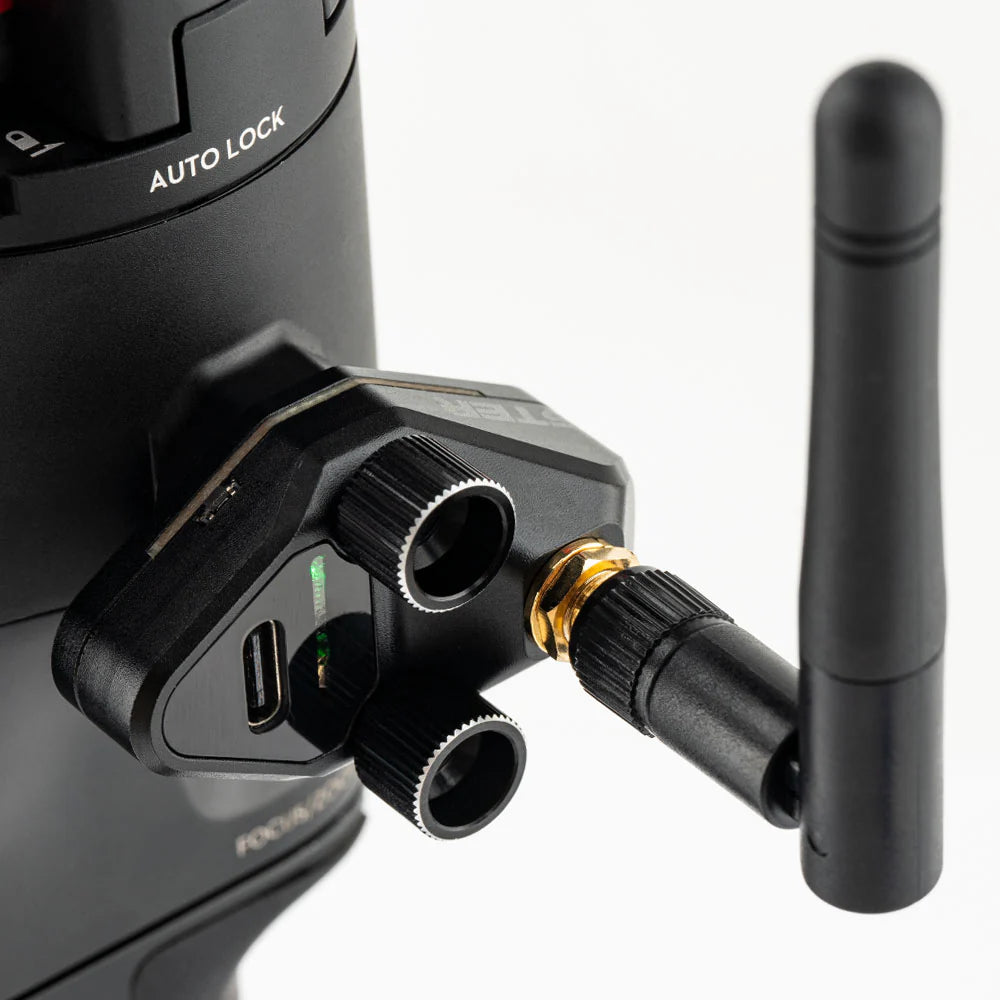

  • Fully compatible with DJI RS2 and RS3 Pro camera gimbals

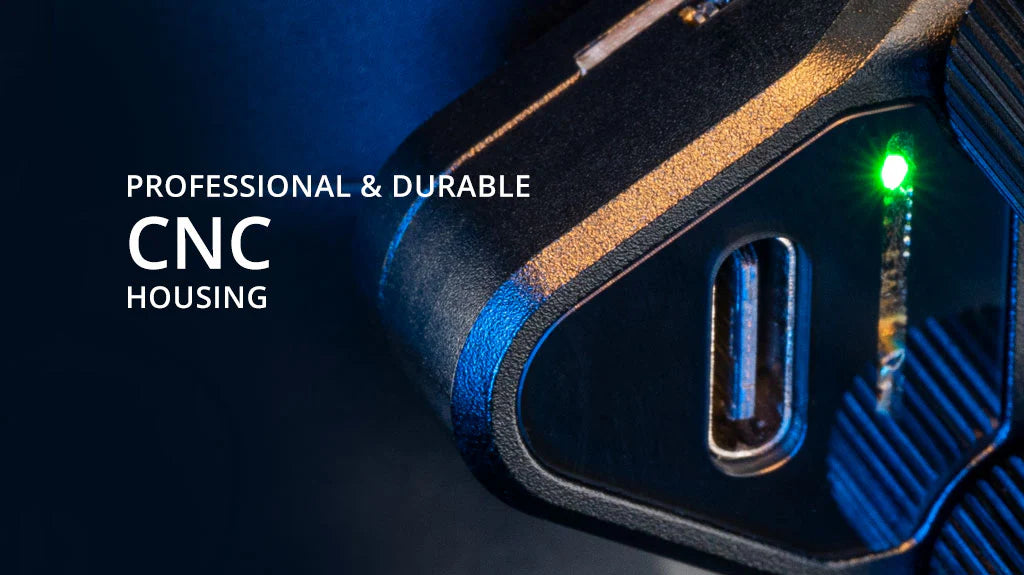

  • Precision-machined aluminum housing for rugged, professional use

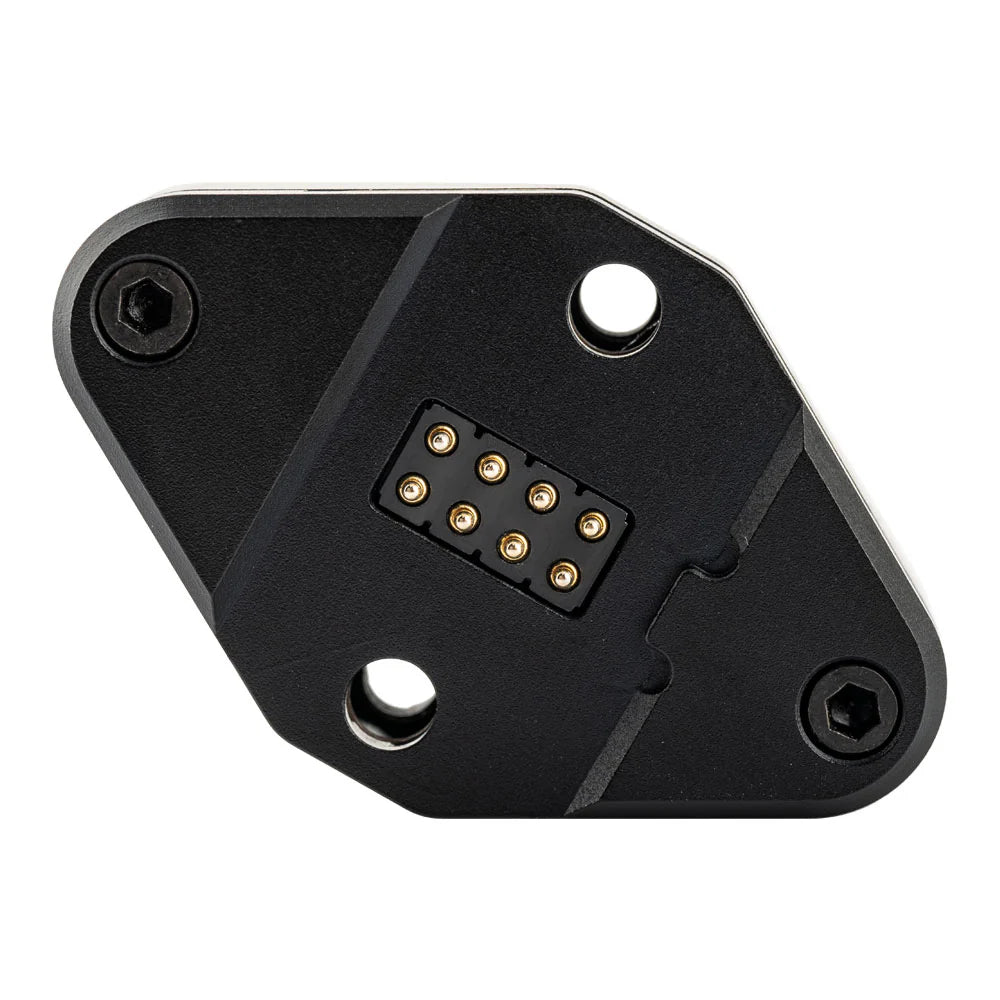

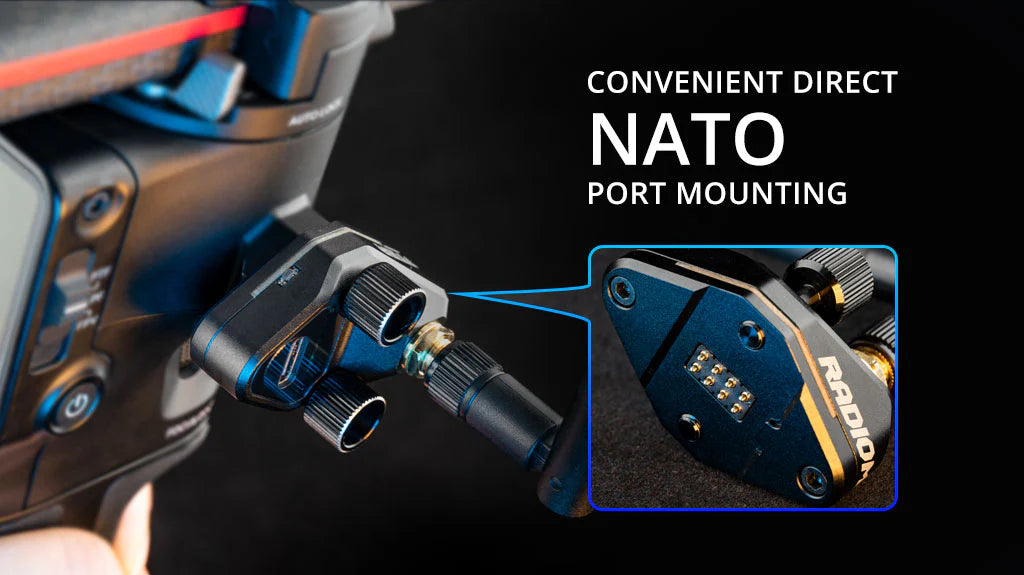

  • NATO port mounting for secure, no-nonsense installation

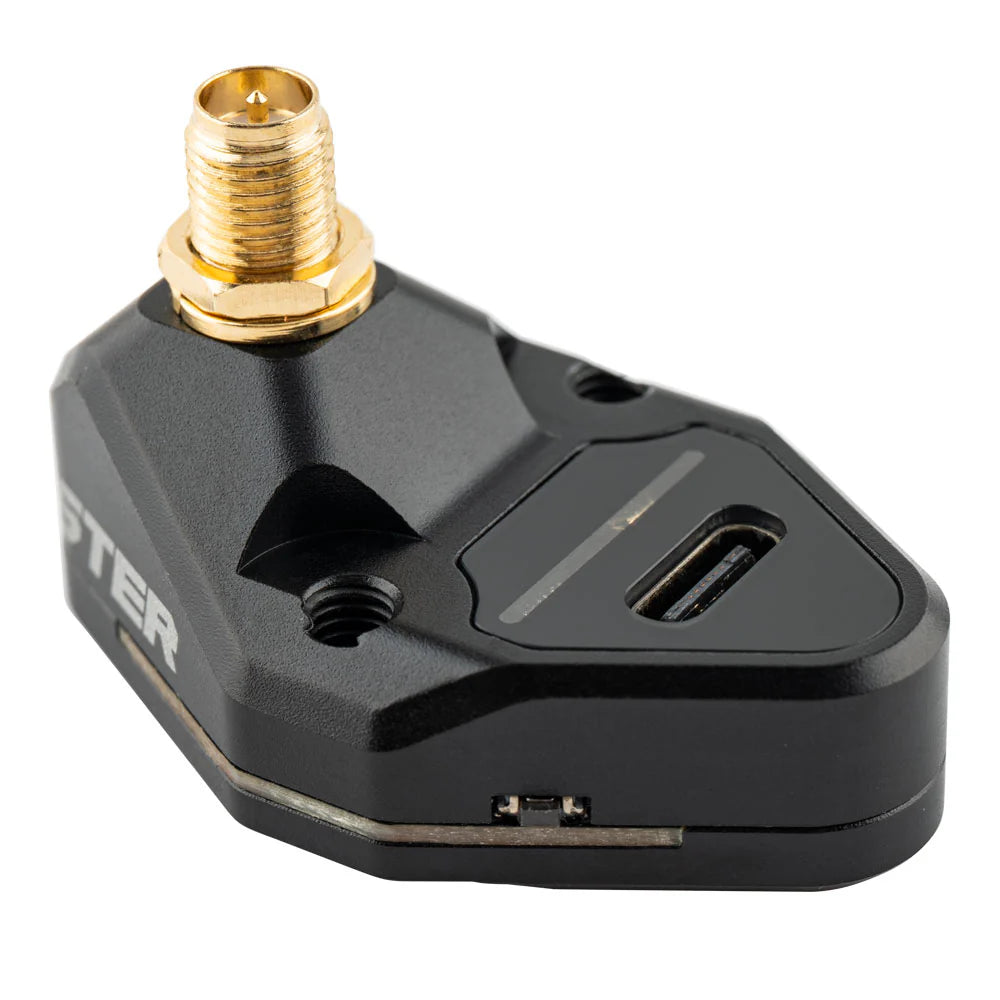

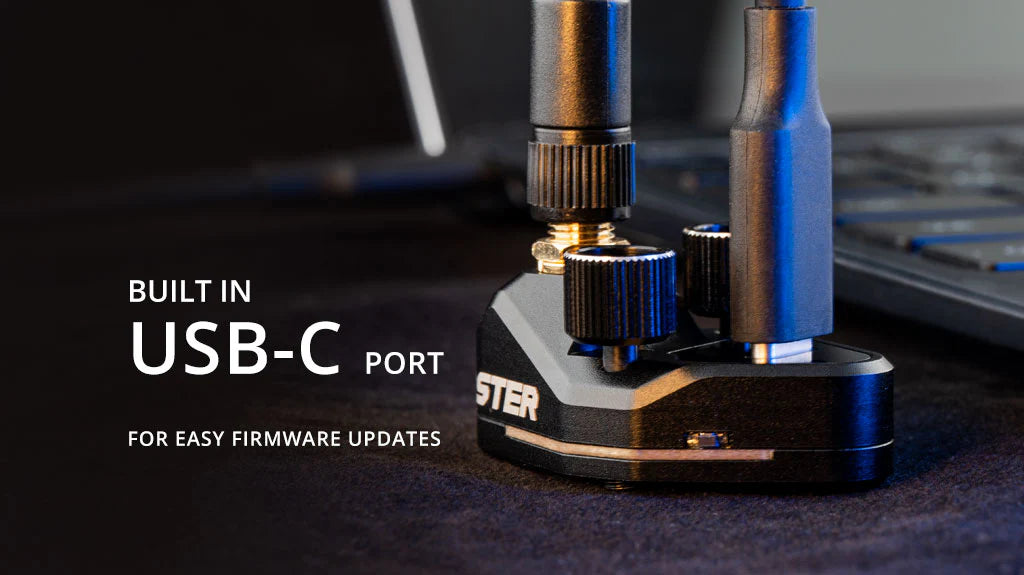

  • Built-in USB-C port for painless firmware updates

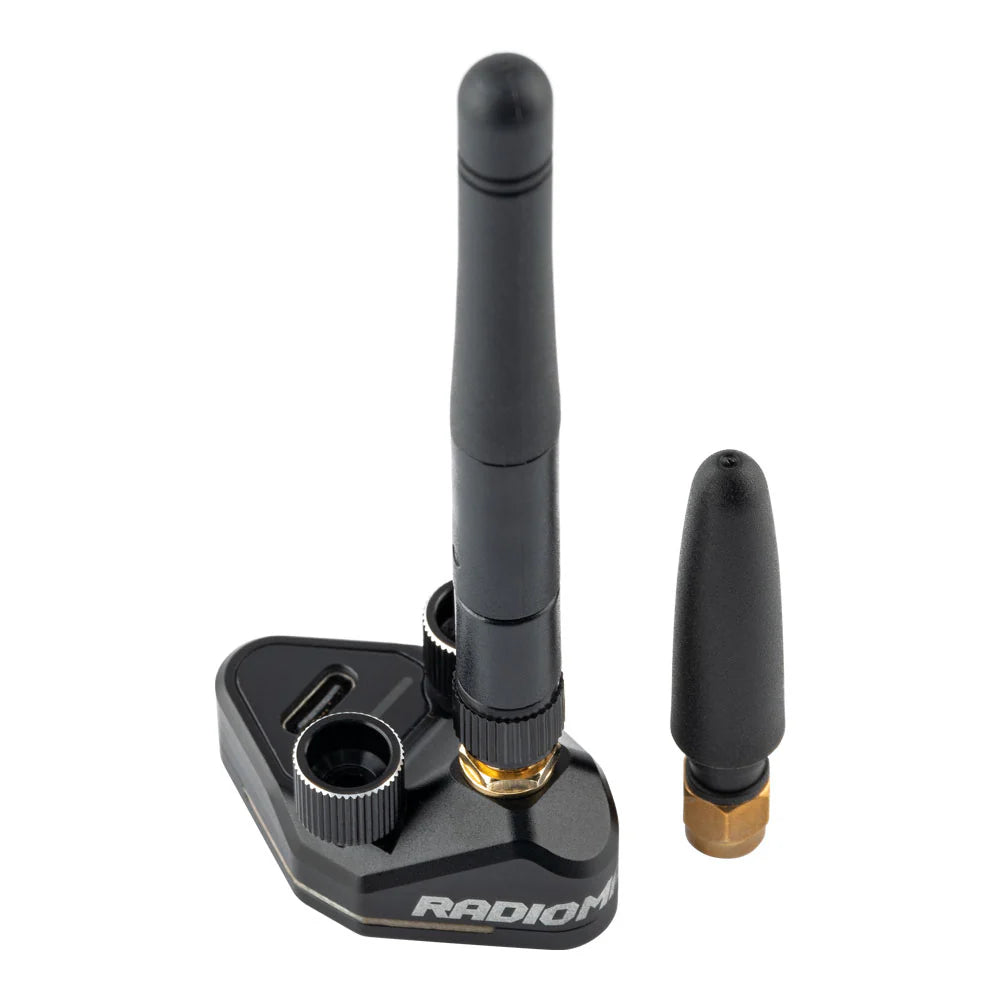

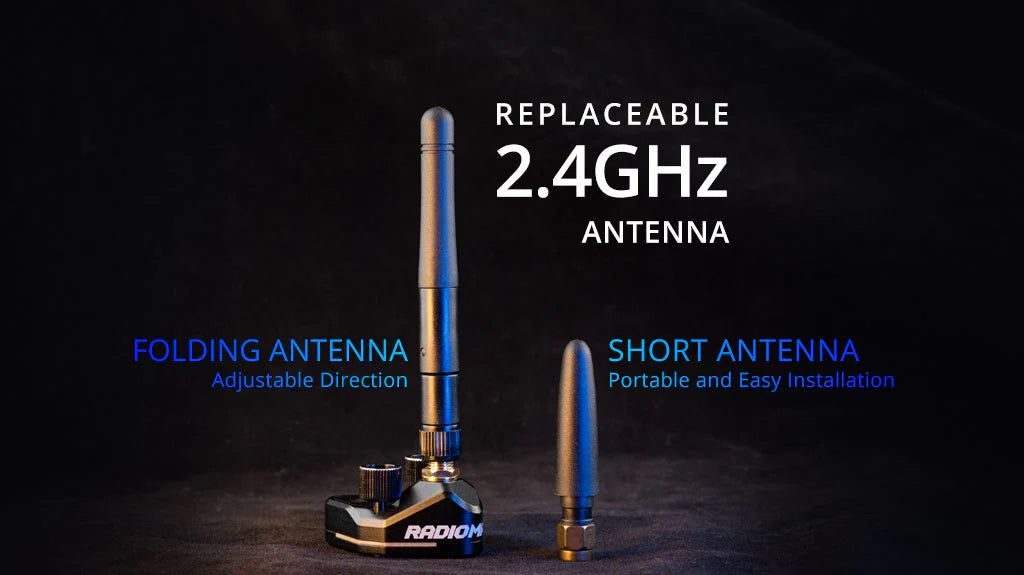

  • Dual 2.4GHz antennas , swappable to suit your setup

  • Supports ExpressLRS binding via UART, WiFi, or LUA script

Specifications:

  • Model: GR-01 ExpressLRS 2.4GHz Receiver

  • Frequency Band: 2.4GHz (2400-2480 MHz)

  • RF Chip: SEMTECH SX1281

  • MCU: ESP8285

  • Output Protocol: DJI RS Pro

  • Firmware Version: ExpressLRS v3.3.0

  • Target: RadioMaster RP1/2 2400 RX

  • Flash Methods: UART / WiFi

  • Voltage: 5V

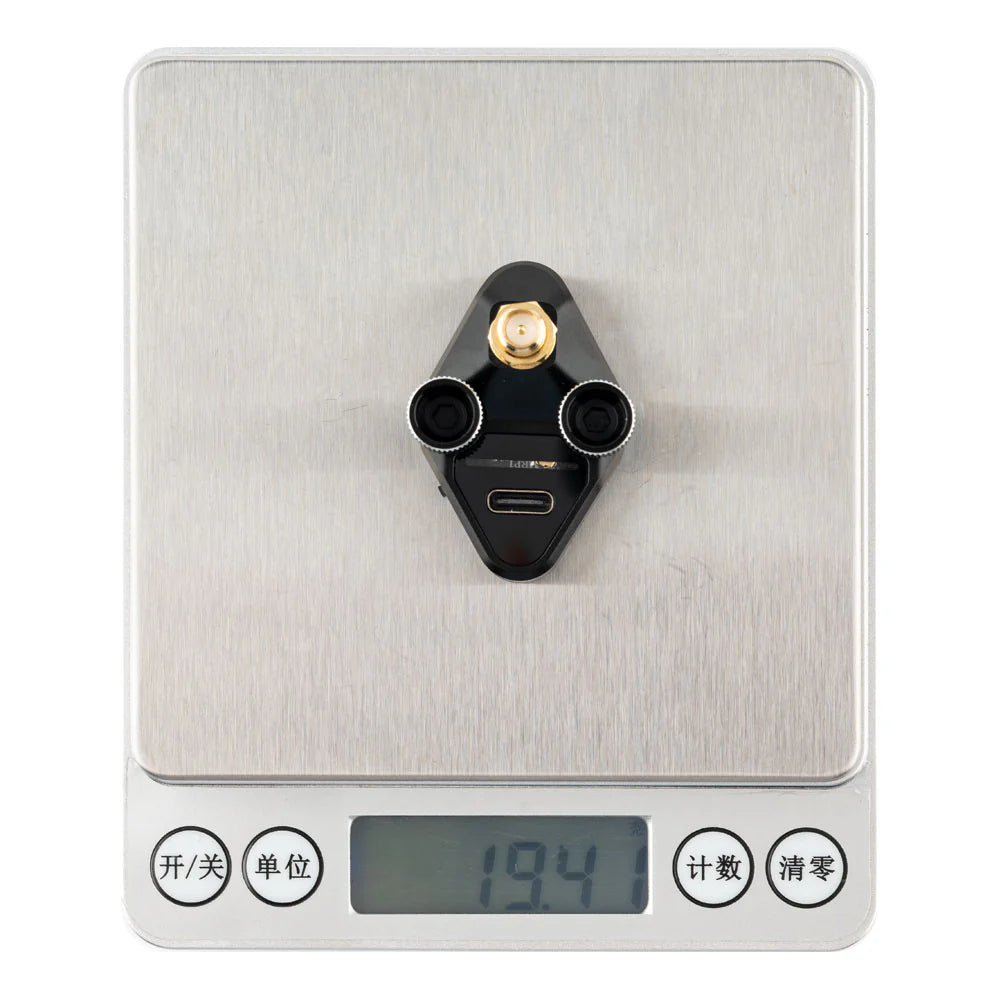

  • Weight: 18.8g (without antenna)

  • Dimensions: 43.00 × 27.70 × 27.50 mm

  • Connector Type: NATO Port

  • Antenna Type: 2.4GHz Omni

GR-01 ExpressLRS 2.4GHz Receiver for DJI RS Camera Gimbals

How to bind

Quickly power the Rx 3 times using the USB-C port
The green LED will double-blink when the Rx is in binding mode.
Enter ExpressLRS LUA script on your radio, press [BIND]. The LED will go to solid green "ON" if bind is successful.

Alternatively use the ExpressLRS binding phrase method for binding
After a successful bind procedure, make sure the output protocol is "DJI RS Pro". Return to main menu and re-enter the ExpressLRS LUA Go to "Other Devices" at the bottom of the screen and select "RMRP1" and ensure "DJI RS Pro" is selected.

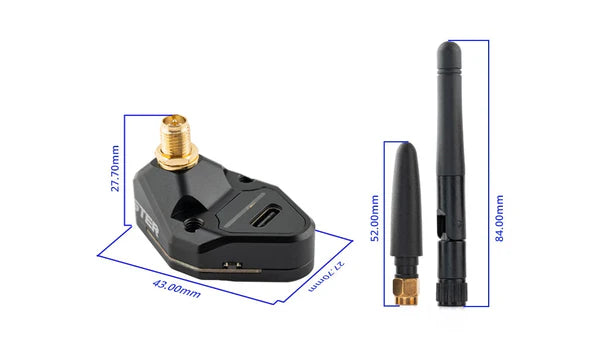

Dimensions

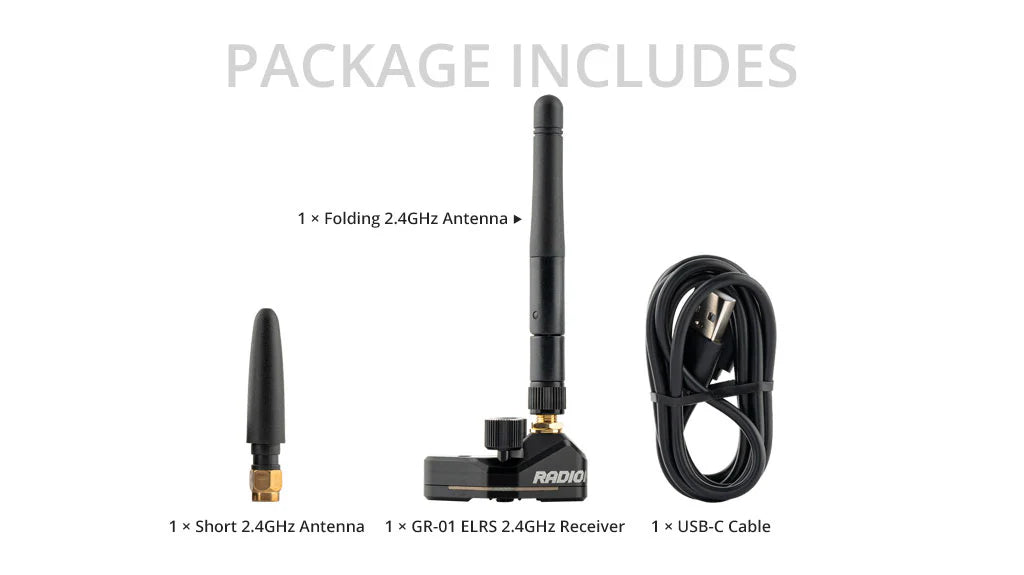

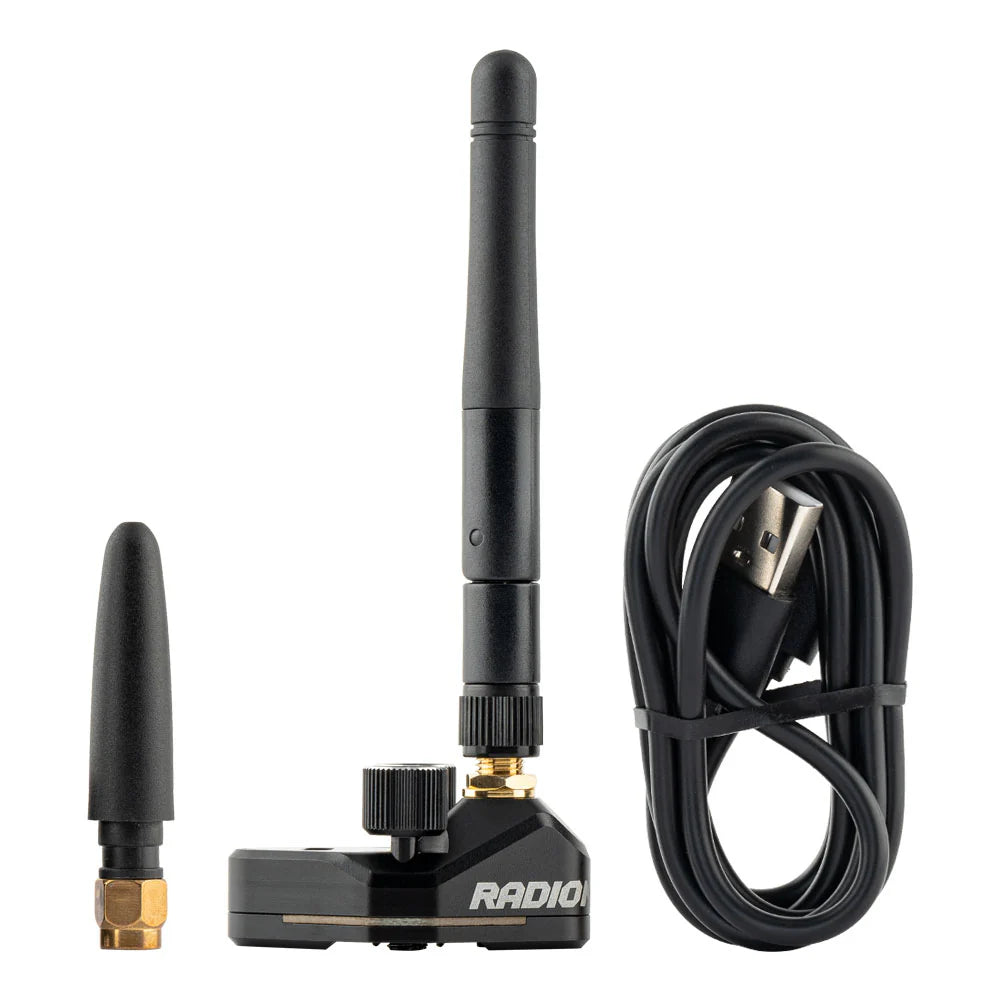

In the Box:

  • 1x GR-01 ExpressLRS 2.4GHz Receiver

  • 2x 2.4GHz Antennas

  • Mounting Accessories (may vary)

Disclaimer: Accessories and contents may vary slightly depending on supply—rest assured, we'll still hook you up with the essentials.
