Product Details

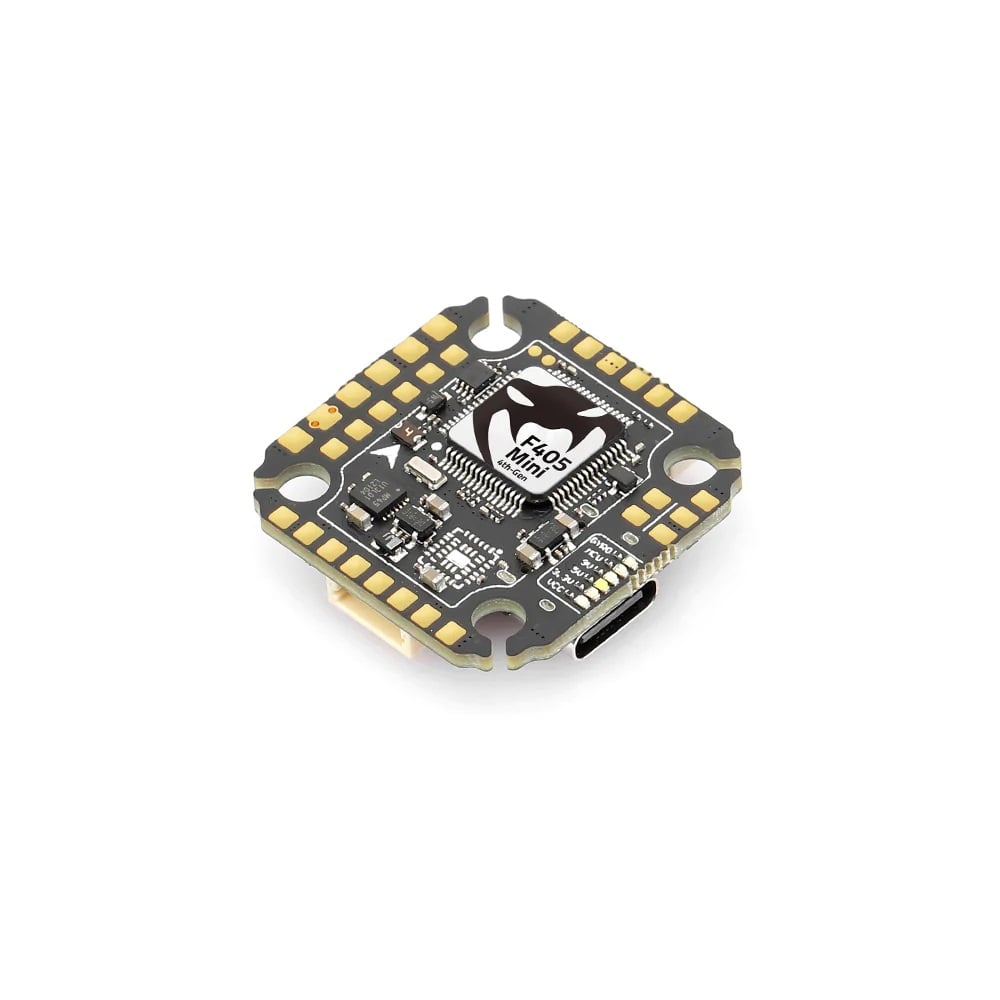

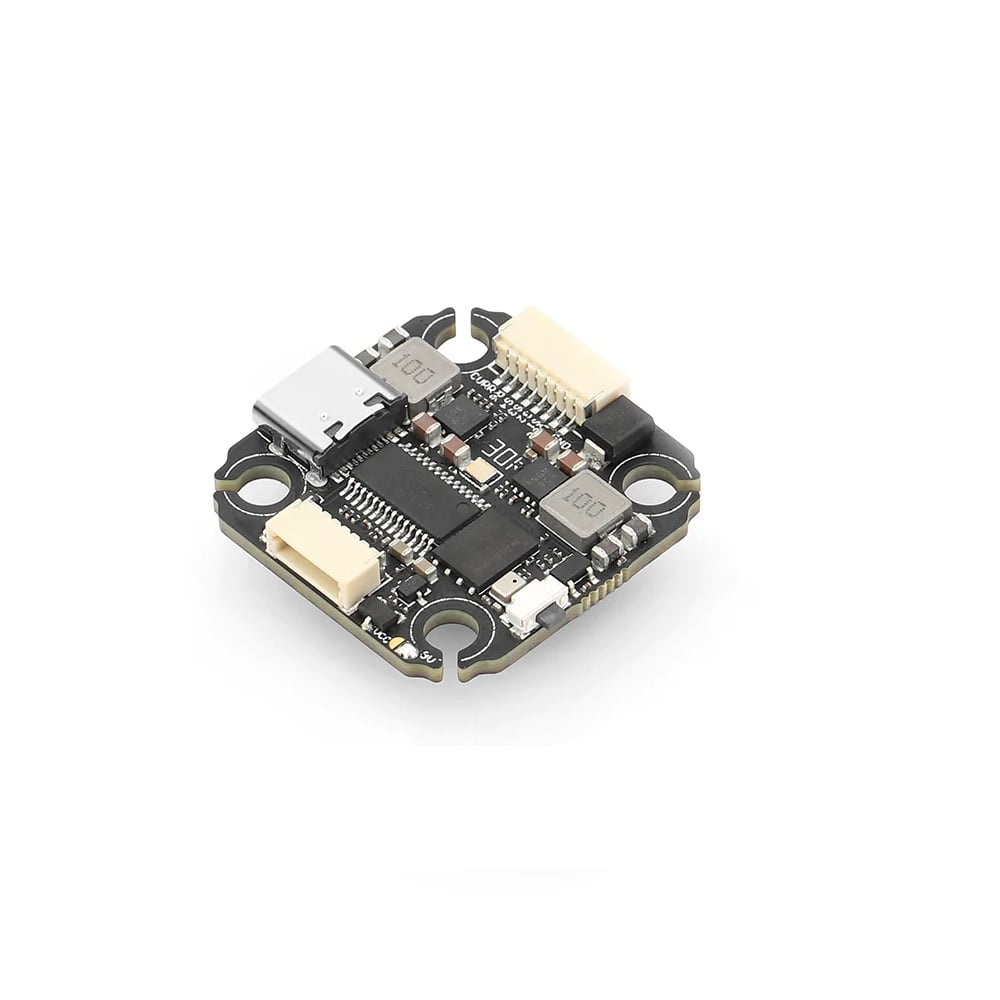

This is the Mamba F405 mini flight controller runs the STM32F405 MCU and has the ability to run off a 6S battery which is incredible for this size of quadcopter. It has a 6-axis, 8Khz MPU6000 vibration tolerant gyro as well as an in-built OSD.
Specifications
- MCU: 168MHz STM32F405
- IMU: BMI270 or ICM42688P
- OSD: BF OSD AT7456E
- Blacbox: 16M Flash Memory
- Barometer: Yes
- Uarts: 6Set
- Receiver compatibility: TBS/SBUS/IBUS/DSM
- I2C: Yes
- F.Port: Yes
- Buzzer Pad: Yes
- CURR Pad: Yes
- ESC Outputs: 6x
- BEC 3.3V: 0.5A
- BEC 5V: 2.5A
- BEC 9V: 2A
- MB LED: Yes
- BF LED: Yes
- Air Unit Port: Yes
- VTX Switch: Yes
- BEC Protection: Yes
- Receiver Protection: Yes
- TVS Protection: Yes
- Input: 6S Lipo
- Firmware: Betaflight
- Mounting: 20×20mm / M2 or M3
- Size 29×29.5×6.5mm
- Weight: 6g
Includes
- 1x Mamba Basic F405 Mini MK4 Flight Controller
- Accessories Kit (contents may vary with stock)
