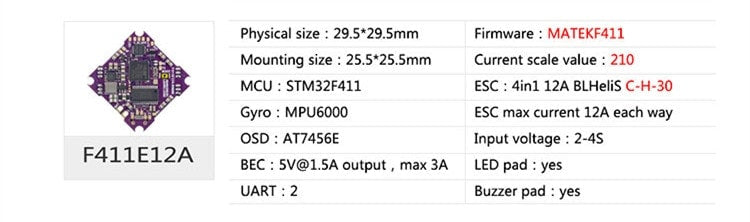

Specifications
- Brand Name: LDARC
- Model: F411E12A

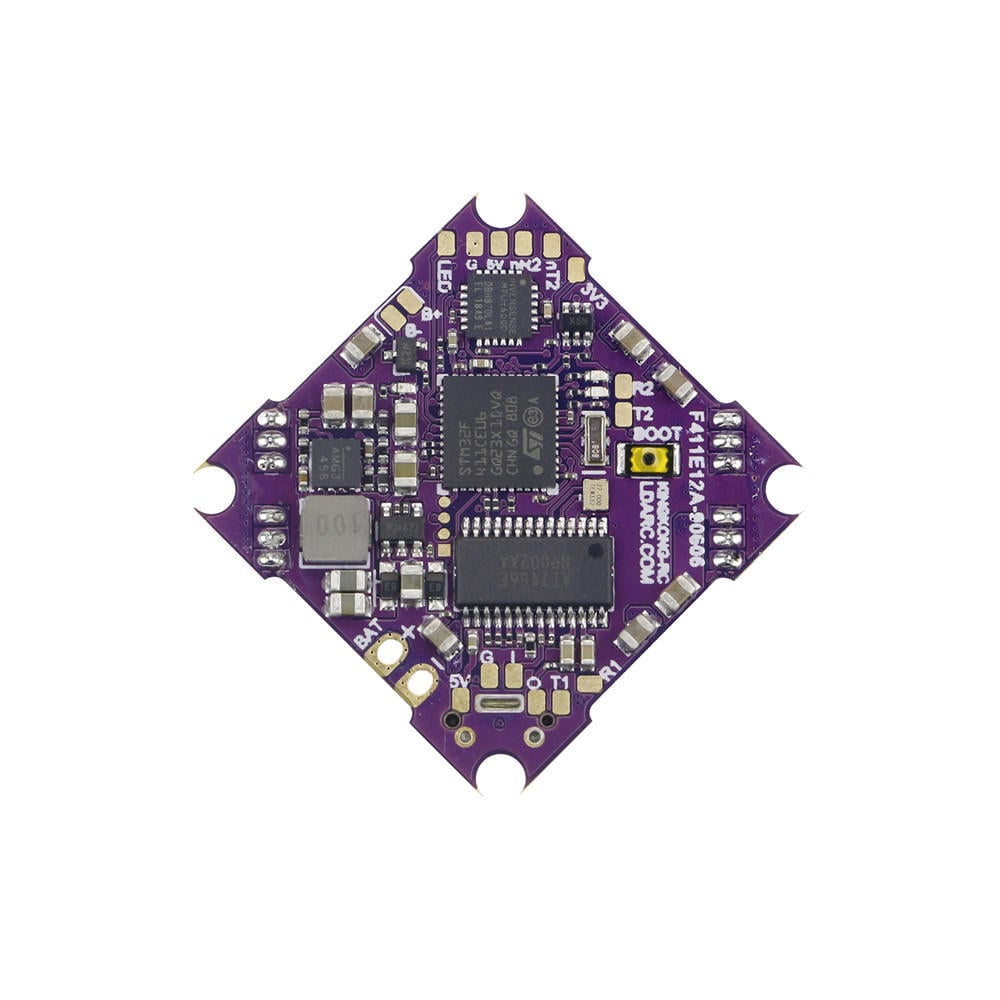

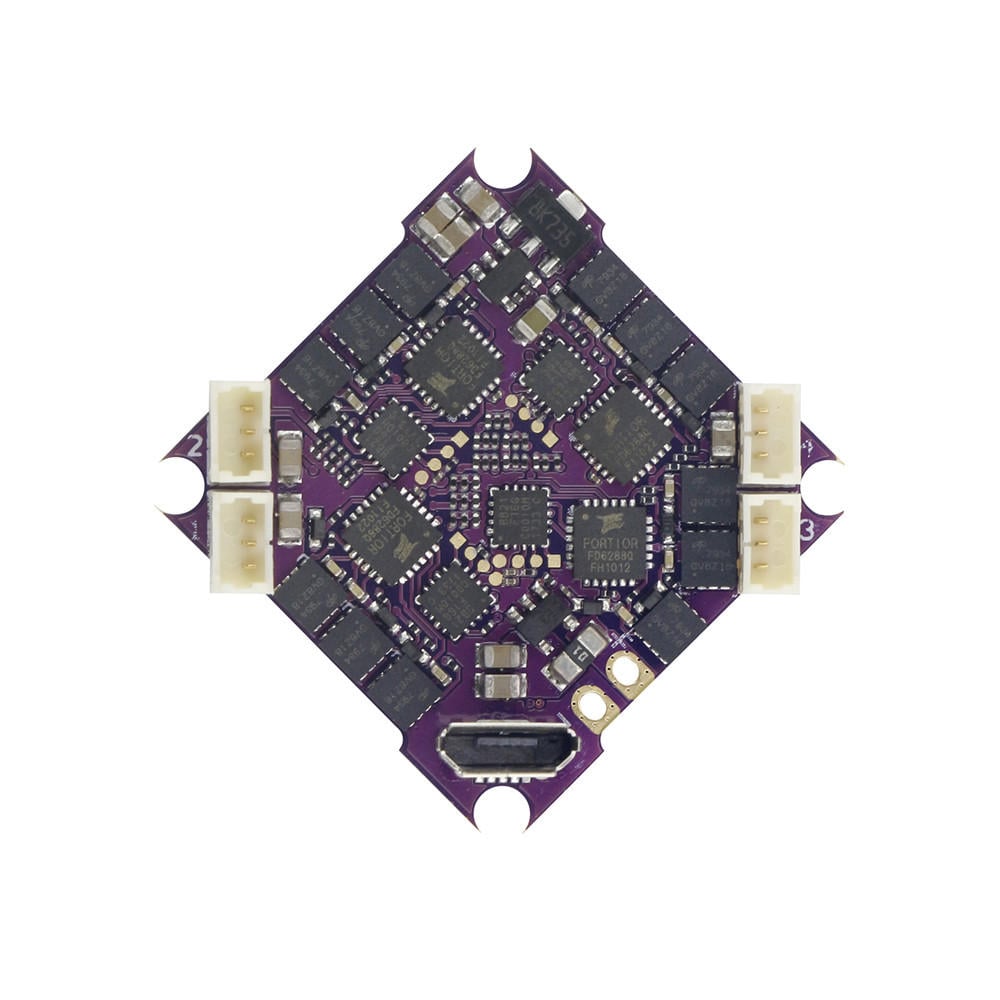

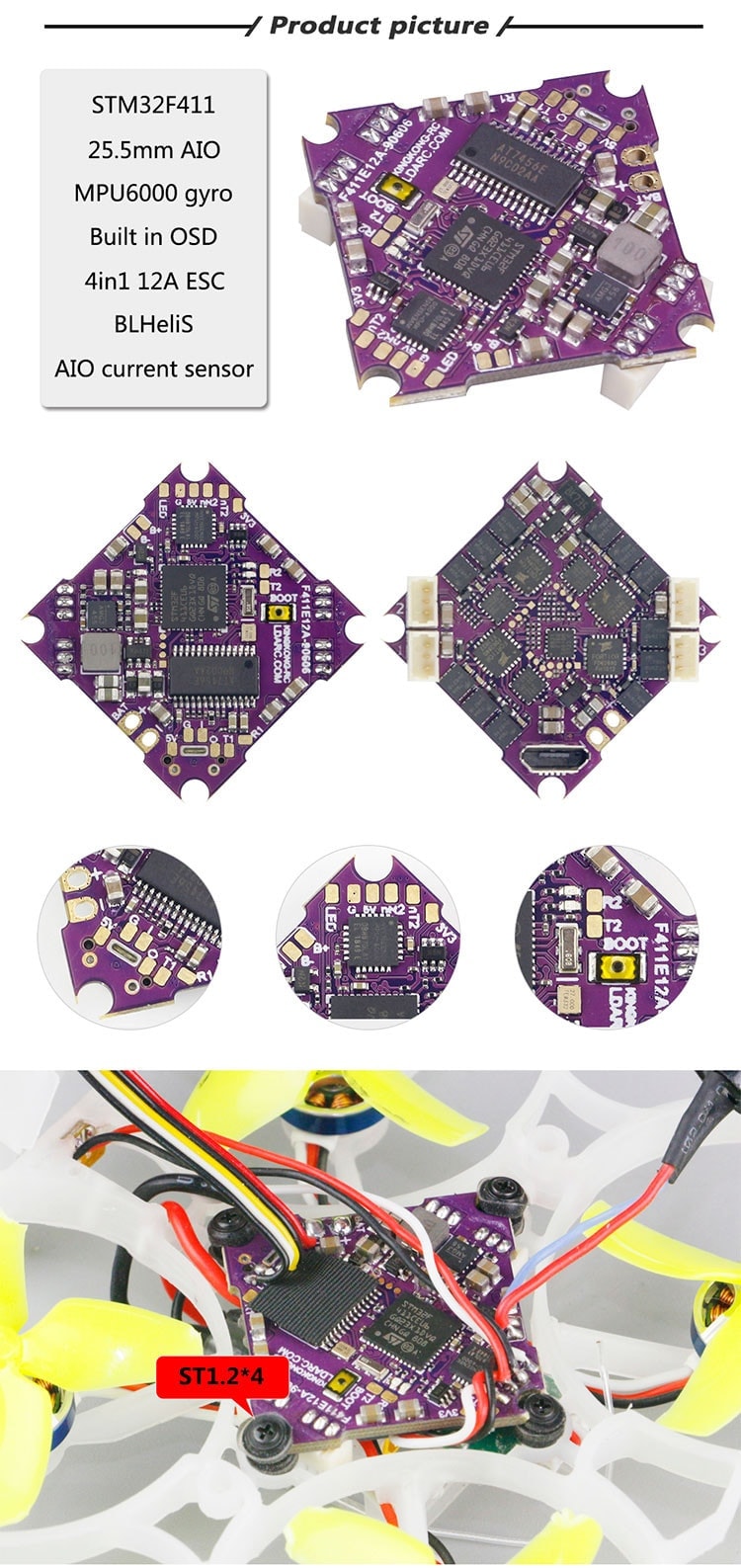

- Item Name: F4 OSD Flight Controller AIO BEC Current Sensor & 12A 4in1 ESC
- MCU: STM32F411
- Gyroscope: MPU6000
- OSD: AT7456E
- BEC: 5V@1.5A, max. 3A
- Firmware: MATEKF411
- Current Scale Value: 210
- ESC: 4in1 12A BLheli_S C-H-30
- ESC Max Current 12A Each Way
- Input Voltage: 2-4S
- LED Pad: Yes
- Buzzer Pad: Yes

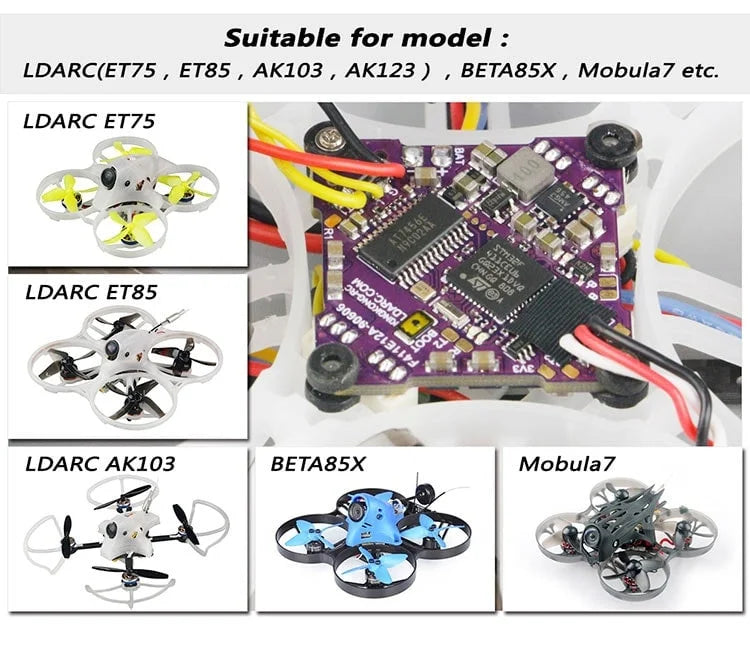

- Application: compatible with LDARC ET75 / ET85/ AK103/ AK123, Beta85X, Mobula7 etc. whoop fpv racing drone.
Included
- 1x LDARC F411E12A F4 FC AIO 12A ESC

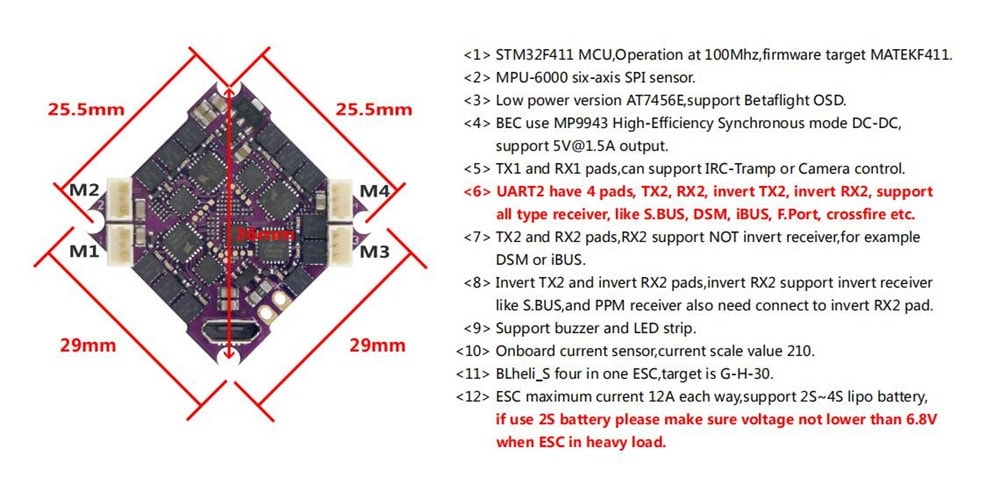

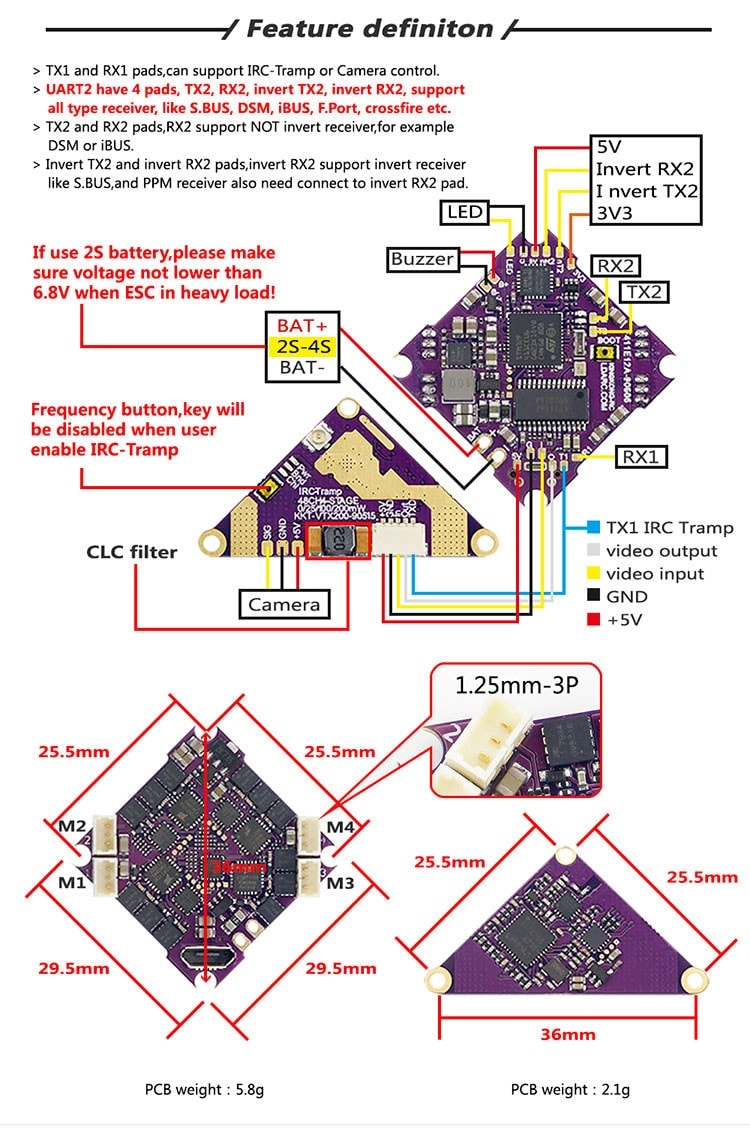

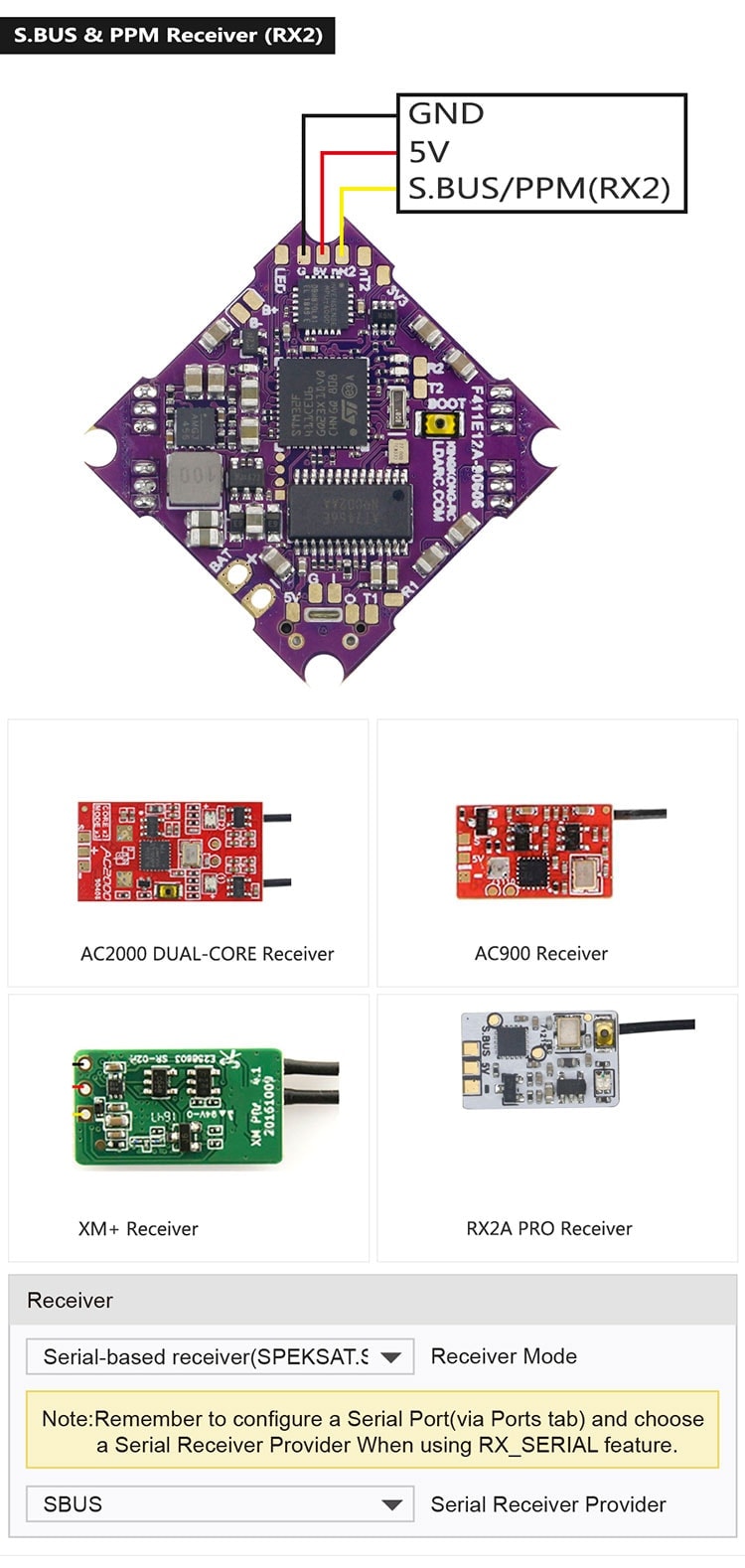

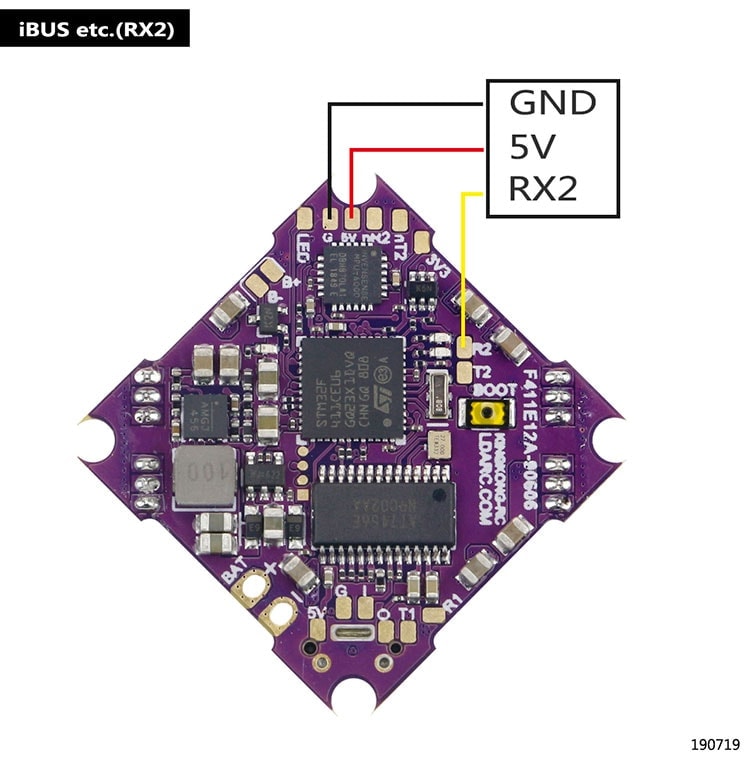

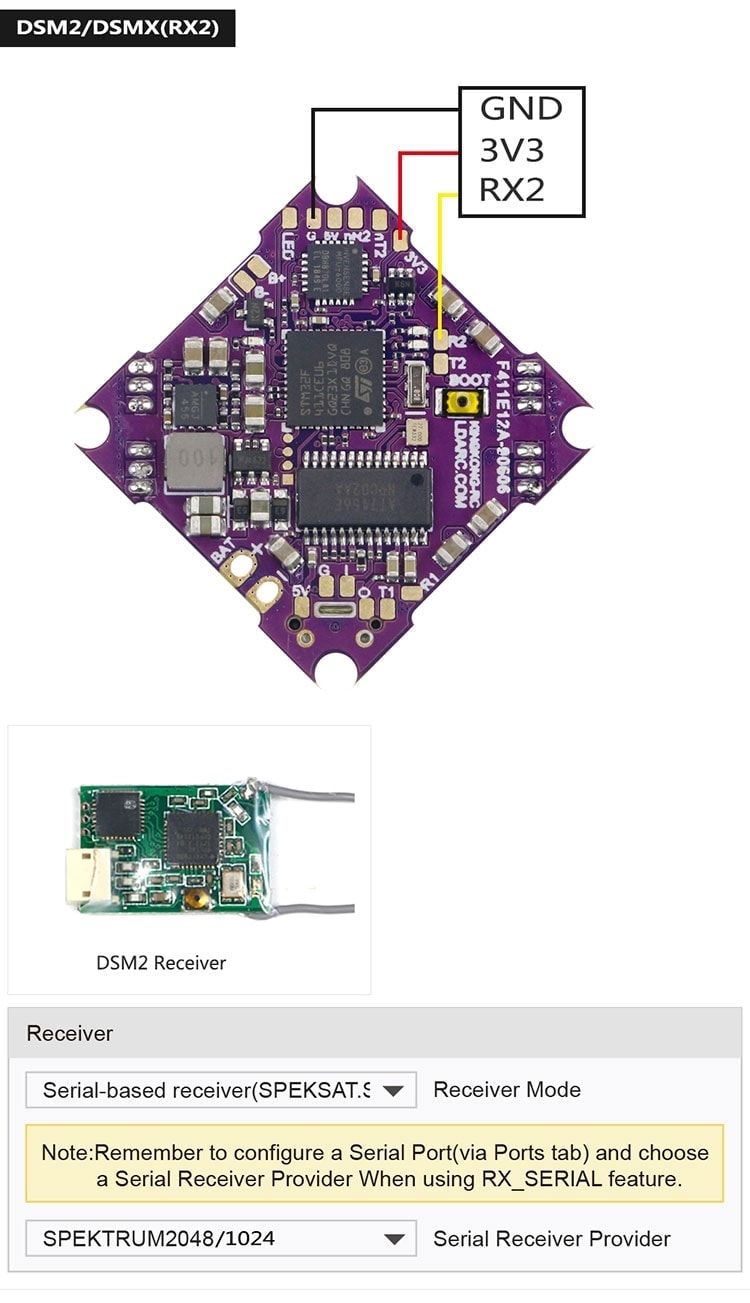

Flight Controller Pinout
