iFlight DC5 ECO V1.1 HD530 BNF DJI O4 Pro

Nazgul DC5 ECO 6S O4 HD – A Freestyle Powerhouse That Won’t Break the Bank

The Nazgul DC5 ECO brings a whole new meaning to value-packed performance. Built for 5-inch freestyle flying, this FPV drone is equipped with DJI’s latest O4 Digital HD System for stunningly clear, stabilized 4K video—even in low-light conditions. Its DeadCat frame geometry eliminates propeller interference from your video feed, letting you focus on capturing jaw-dropping footage. With a rugged yet lightweight carbon fiber and aluminum frame, the Nazgul DC5 ECO is designed to survive freestyle crashes while keeping your gear secure.

Powering this beast is the combination of a BLITZ ATF435 flight controller and BLITZ E55S ESC, offering reliable performance and smooth handling for both beginners and seasoned pilots. Whether you’re performing freestyle tricks, zipping through tight gaps, or capturing cinematic footage, the Nazgul DC5 ECO delivers precision and style.

Key Features

1. Lightweight Yet Durable Frame

Constructed with carbon fiber and an aluminum camera mount, the DC5 ECO balances durability and lightness. Designed for crash resistance while keeping your setup nimble, it’s perfect for freestyle enthusiasts and filmmakers alike.

2. Propeller-Free Video Feed

Thanks to its DeadCat geometry, the DC5 ECO eliminates propellers from your video, giving you unobstructed footage. Pair this with DJI’s O4 HD system, and your shots will look nothing short of professional.

3. DJI O4 Air Unit Pro for 4K Stabilized Video

The 1/1.3-inch sensor on the O4 Air Unit captures cinematic 4K footage with a 155° ultra-wide field of view. Features like RockSteady 3.0+ stabilization, 1080p/100fps live video, and low-latency transmission (as low as 24ms) make this drone a powerhouse for immersive FPV flights and high-quality content creation.

4. Built-In Anti-Spark Filter for Safety

The DC5 ECO features a protective anti-spark circuit to prevent voltage spikes when plugging in the battery. This extends the lifespan of the XT60 connectors and safeguards your electronics from damage, especially during high-power flights.

5. Convenient Maintenance and Customization

Equipped with a built-in buzzer and receiver mount, the DC5 ECO simplifies maintenance and receiver adjustments, keeping your flying experience smooth and hassle-free.

Specifications

• Geometry: DeadCat (DC)
• Flight Controller (FC): BLITZ ATF435
• ESC: BLITZ E55S 4-IN-1 ESC
• Video Transmission: DJI O4 Air Unit Pro (4K capable)
• Frame: 240mm wheelbase
• Motors: XING-E Pro 2207 1800KV motors
• Propellers: Nazgul F5 props
• Weight (Without Battery): 450g ±5g
• Takeoff Weight: Approx. 675g ±5g (with 6S 1480mAh battery)
• Max Speed: 190 km/h
• Max Hover Time: Approx. 7.5 minutes (no load, with 6S 1480mAh battery)
• Max Takeoff Altitude: 7000m
• Max Wind Speed Resistance: Level 7
• Operating Temperature Range: -10°C to 40°C
• GPS Systems: GPS, Galileo, Glonass, QZSS, SBAS (optional)

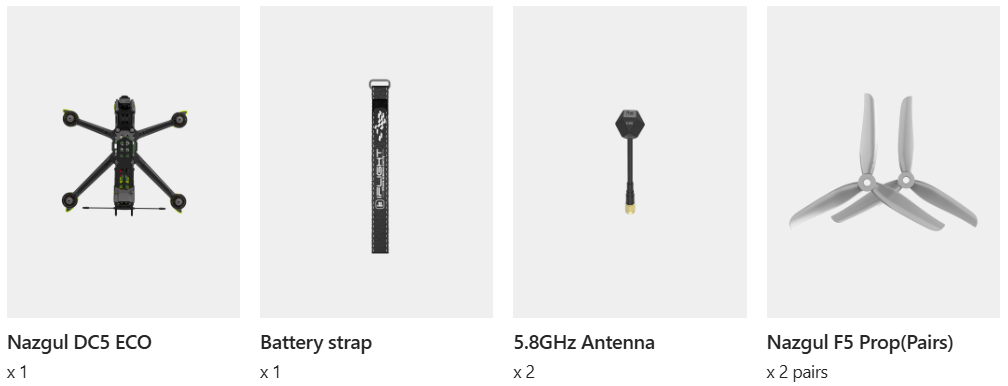

What’s in the Box

• 1 x Nazgul DC5 ECO V1.1 6S O4 HD BNF
• 2 x Antennas
• 1 x Battery Pad
• 2 x Propeller Pairs (Nazgul F5)
• 1 x Battery Strap

Important Note

Accessories included may vary slightly depending on supply. Please verify contents upon delivery.

Compatibility

• Supported Goggles:
  • DJI Goggles 3 / DJI Goggles N3 (with DJI FPV Remote Controller 3)
  • DJI Goggles 2 / DJI Goggles Integra (with DJI FPV Remote Controller 2)
• Radio Transmitter: Compatible with other RX modules configured for the SBUS protocol.

Disclaimers

1. iFlight products are for civilian use only and may not be used for military or illegal activities.
2. Compliance with export control laws is required.
3. For support, visit iFlight Support.
