Product Details
This drone features the all new 5in1 AIO board that includes 2.4Ghz ExpressLRS V2.0, OpenVTX (up to 400mW) along with 4x 12A BLheli_S ESC, and BetaFlight OSD all built into a F4 whoop flight controller board.
The new RS0802 motors come with a new unibell design, and use a 1.5mm shaft with a PCB bottom plate, high efficiency and much more reliable.
&feature=emb_title

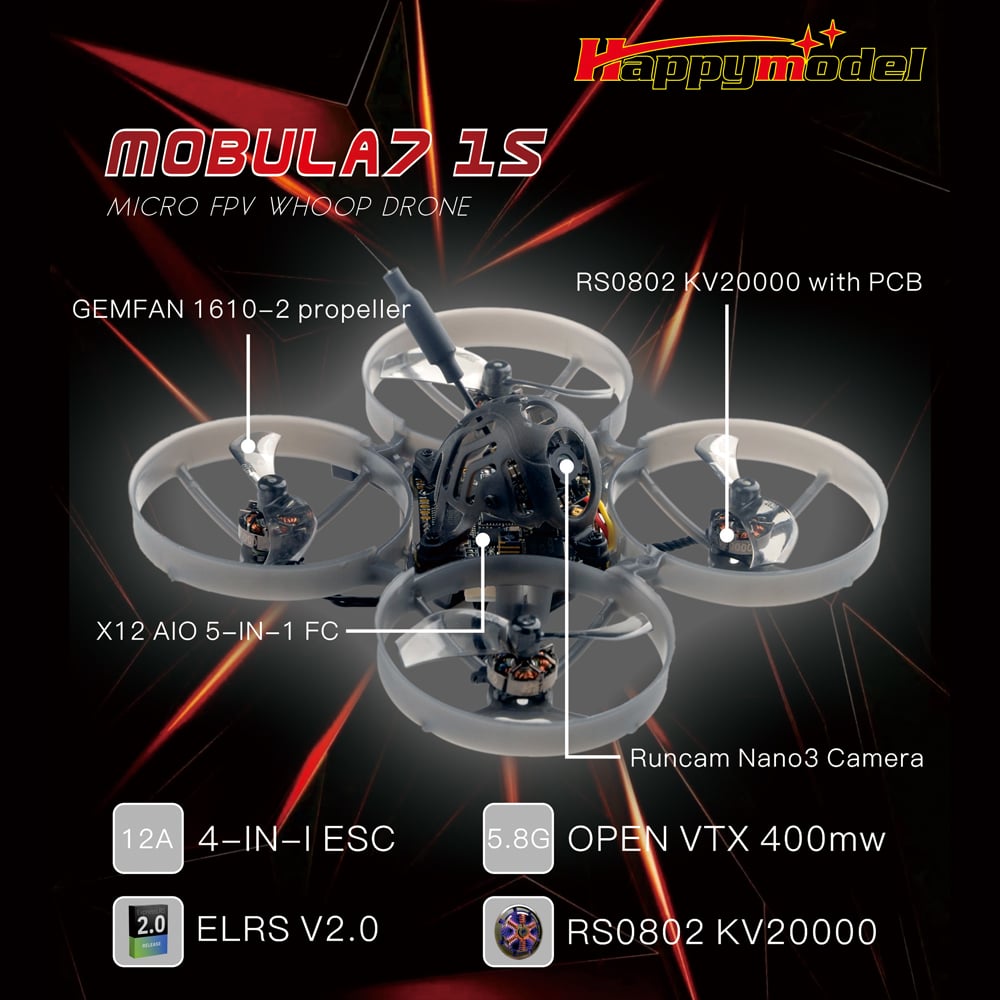

Key Features
- X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V3.0 and Openvtx
- VTX Power up to 400mw
- ELRS V3.0 Support
- NEW RS0802 KV20000 motors
- Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
- Smooth and powerful
- Compatible for 1S Lipo/LIHV
- Recommend 1S 450mah/550mah/650mah battery(Not include)
&feature=emb_title
Specification
- Brand Name: Happymodel
- Item Name: Mobula7 1S 75mm Micro FPV whoop drone
- Wheelbase: 75mm
- Size: 99mm*99mm*40mm

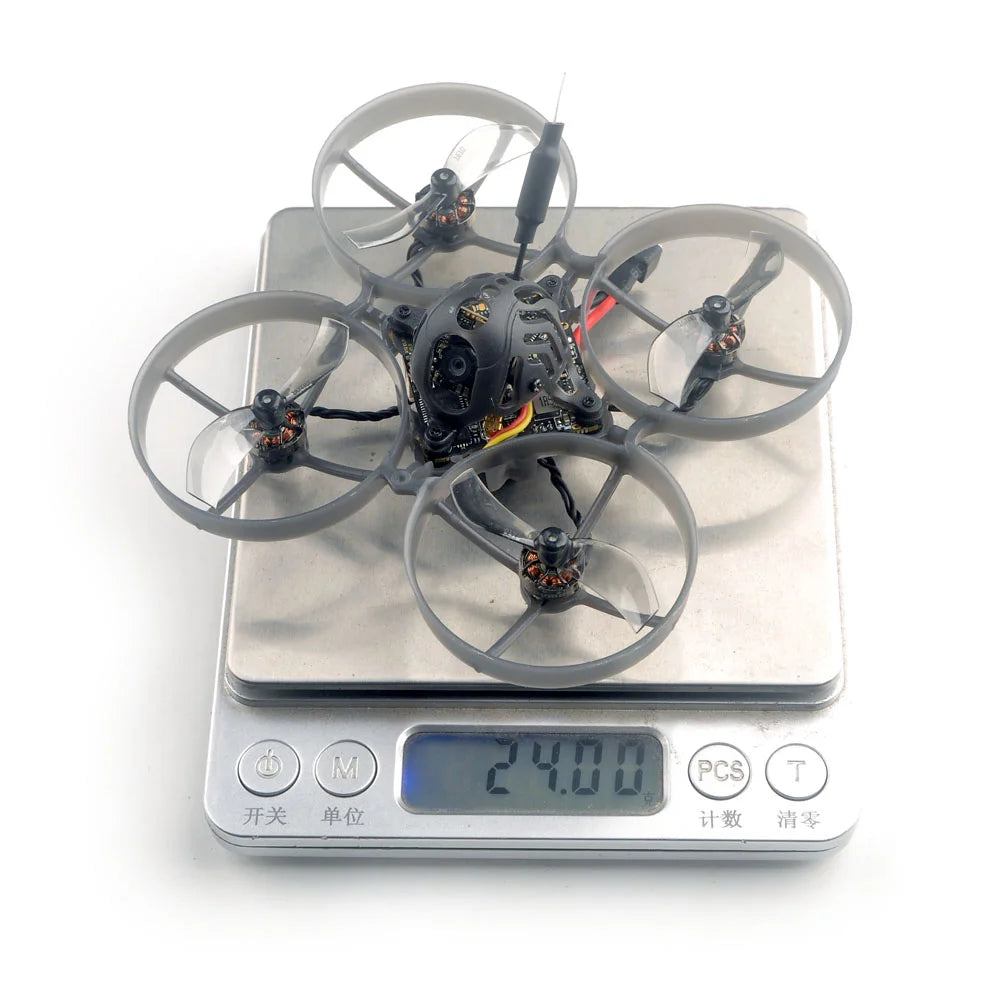

- Weight: 24g
| Motor |
Mode: RS0802 KV20000
Configu-ration:9N12P Stator Diamter:8mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ10.5mm*13.5mm Weight(g):2.0g No.of Cells(Lipo):1S only |
| Propellers |
Weight:0.24g
Material:PC Pitch:1 inch Props Dia:40mm Center Thickness:5mm Center Hole Dia:1.5mm |
| Flight controller |
X12 ELRS V1.0 flight controller built-in ELRS 2.4G receiver
Target: CRAZYBEEF4SX1280
X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver Target: CRAZYBEEF4FS X12 PNP V1.0 flight controller without onboard receiver Target: CRAZYBEEF4DX MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU6000 or ICM20689(SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in 5.8G OpenVTX 0mw~400mw Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A Built-in voltage detection Built-in current sensor |
| Onboard 4in1 ESC |
Power supply: 1S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Factory firmware: Z_H_30_REV16_7.HEX Default protocol: DSHOT300 Support Bluejay firmware |
|
Onboard SPI ExpressLRS 2.4GHz Receiver
( 2.4G ELRS Receiver Version) |
Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V3.0 RF Frequency: 2.4GHz Antenna: SMD antenna Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Compatible with ExpressLRS V2.0 TX Module Couldn't flash separately ExpressLRS firmware |
|
Onboard Frsky SPI D8/D16 receiver compatible
( Compatible Frsky Receiver Version) |
SPI BUS receiver Frsky D8 compatible
Compatible Non-EU transmitter D8 model Channels: 8ch No ground interference ( Transmitter and receiver 1 m from the ground): 200meter Failsafe support |
|
Onboard Flysky SPI receiver compatible
( Compatible Flysky Receiver Version) |
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 200meter Failsafe support |
| PNP Version (without onboard receiver) |
Full UART1 for external Receiver
Support CRSF/GHOST/SBUS/IBUS/DSMX protocol IR1 pad(invert RX1) used for SBUS input |
| Onboard 5.8g OPENVTX |
Firmware version: OPENVTX
Smart audio v2.1 PIT Mode support RCE Mode support Channels:48ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw) |
| Runcam Nano3 |
Model: RunCam Nano 3
Image Sensor: 1/3" CMOS Horizontal Resolution: 800TVL Lens : 2.1mm(M8) FOV 150° Signal System: NTSC S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: 0.01Lux@1.2F D-WDR: Auto Day/Night: Color Power:DC 3-5.5V Current: 110mA@5V 120mA@3.3V Housing Material: ABS Net Weight: 1.2g Dimensions: L14mm*W14mm*H9mm |
|
Recommend 1S Lipo Battery
(Not included)
|
Capacity: 650mAh
Voltage: 3.8v Continuous Discharge Rate: 30C Instantaneous discharge rate: 60C Size: 60mmx18mmx8mm Weight: 16g Connector: PH2.0 |

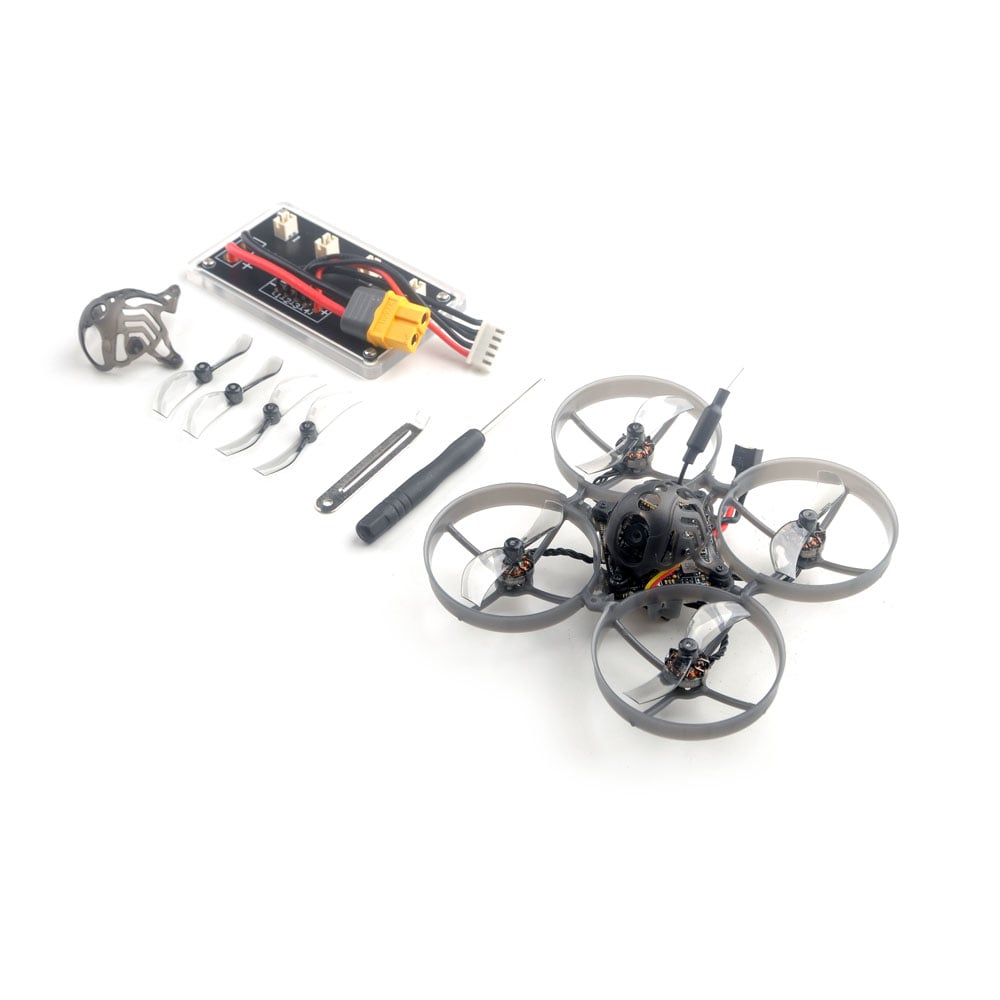

Included
- 1x Mobula7 1S FPV Racing Drone
- 1x Propeller disassemble Tool
- 1x Extra Canopy
- 1x Parallel charging board
