FrSky R-XSR Micro SBUS/CPPM Receiver (ACCESS)

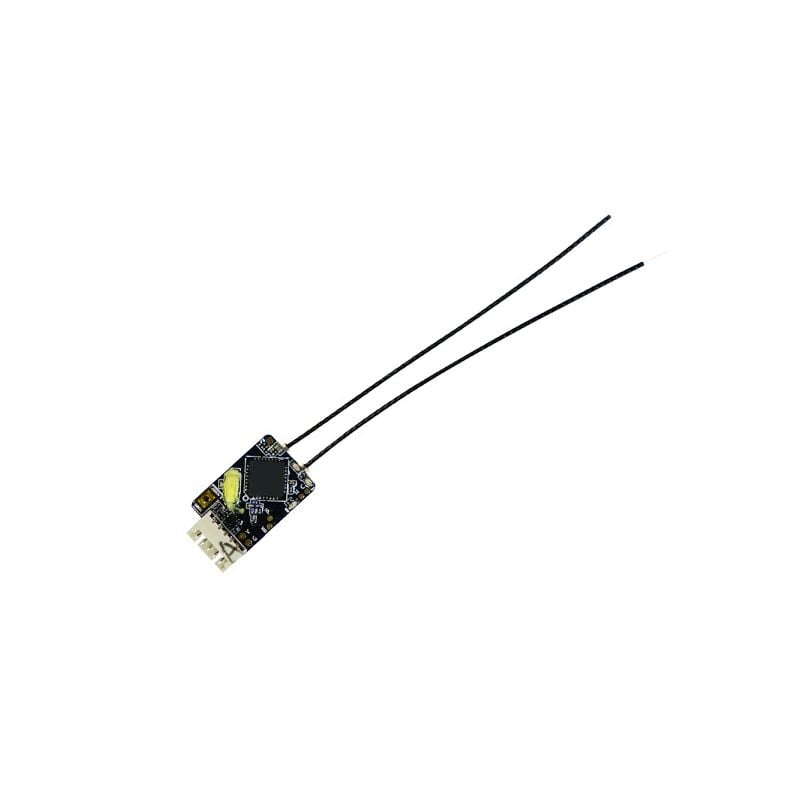

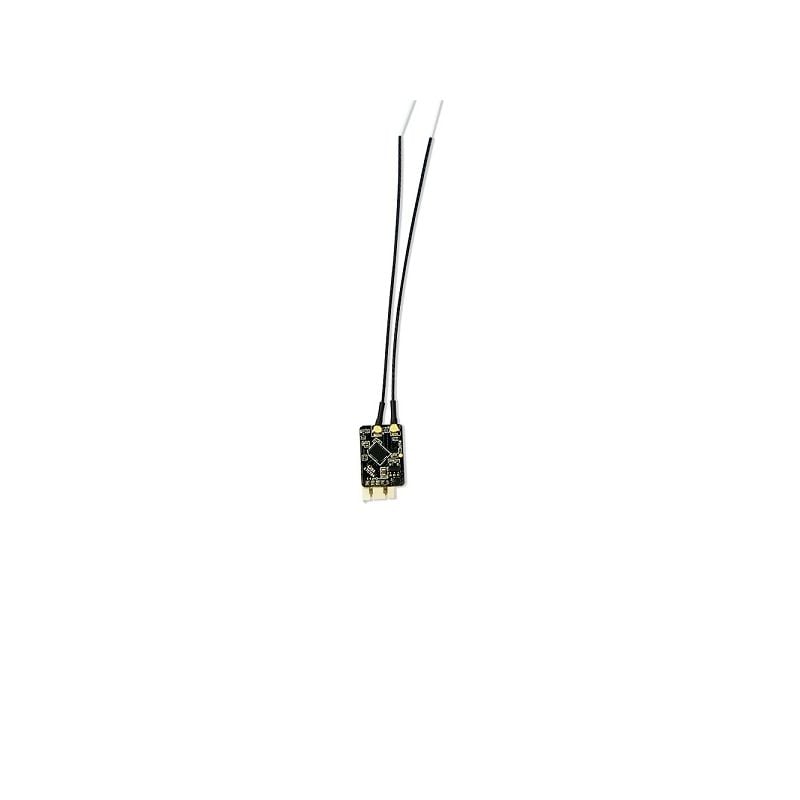

This is the R-XSR micro receiver – with ACCESS firmware. The R-XSR receiver has all the functionality of the XSR receiver but at 1/3 of the size and the weight. On top of this, FrSky have added the redundancy feature to this micro receiver, ensuring the security of your platform. Another great feature is that the IPEX connector makes it really easy to change the antenna at your convenience.

Key Features:

• ACCESS firmware installed as default
• Ultra mini size and light weight
• Support telemetry and Smart Port enabled
• Full range
• Switchable SBUS/ CPPM signal output
• Supports redundancy function
• IPEX connector, replaceable antennas

The Redundancy Function:

With this feature, you can have a master and a slave receiver. When the master receiver goes into failsafe mode, the output signal from the slave receiver will be used until the master receiver is once again functional. When both the master and slave receivers go into failsafe mode, the failsafe signal from the master receiver will override that of the slave receiver.

Specifications:

• Dimension: 16*11*5.4mm (L*W*H)
• Weight: 1.5g
• Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
• Operating Voltage Range: 3.5V~10V
• Operating Current:70mA@5V
• Firmware Upgradable
• Compatibility: FrSky X Series modules and radios in D16 mode
• EU LBT firmware
