Product Details

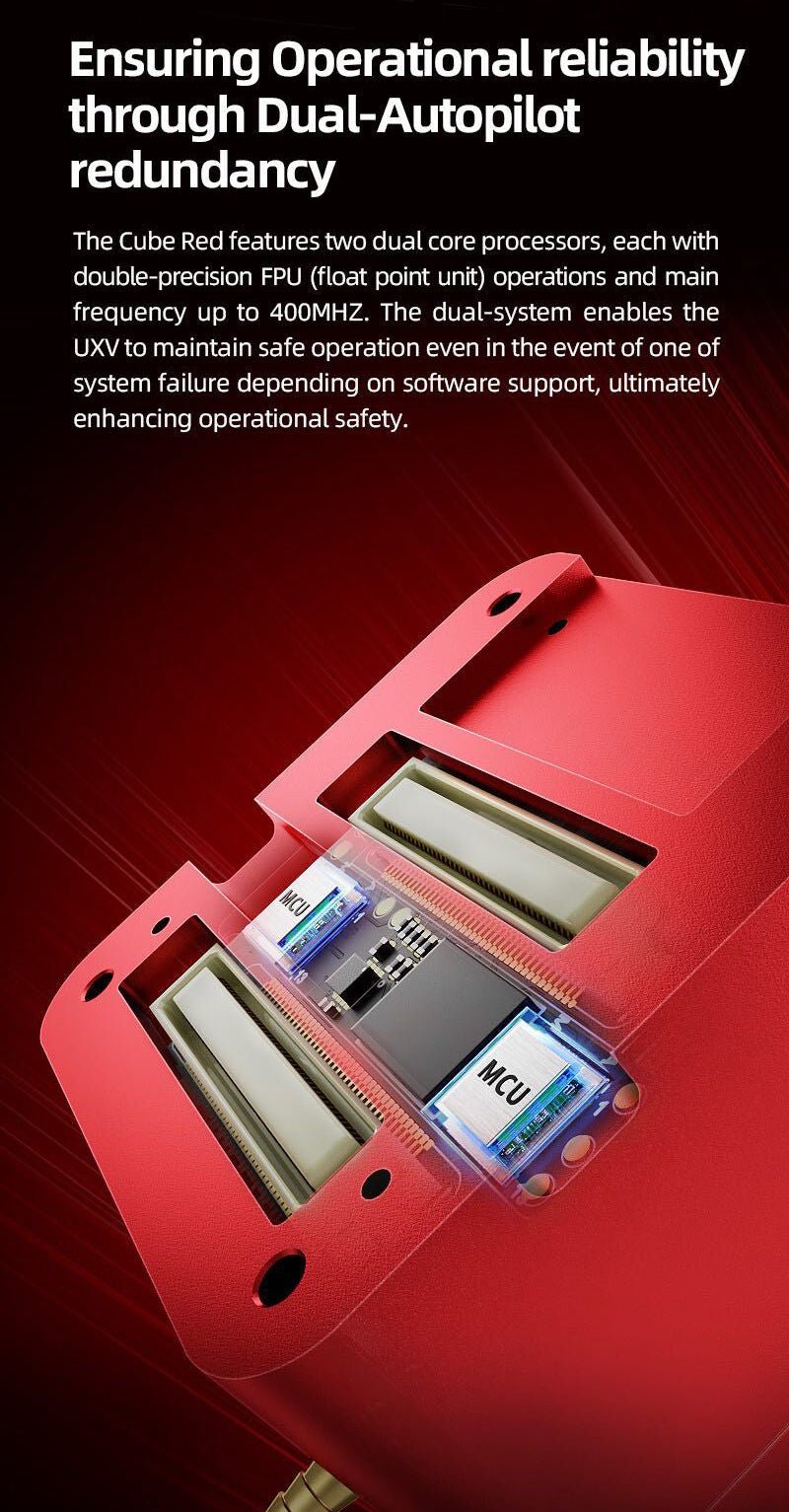

Meet the Cube Red Pro, a dual FMU flight control system that's about as serious about reliability as you are about getting your UXV off the ground without a hitch. Engineered with two STM32H7 dual-core processors, each armed with double-precision FPU operations, this flight controller is your ticket to unparalleled performance. Whether you're piloting drones, planes, or other unmanned systems, the Cube Red Pro is designed to keep you flying smoothly.

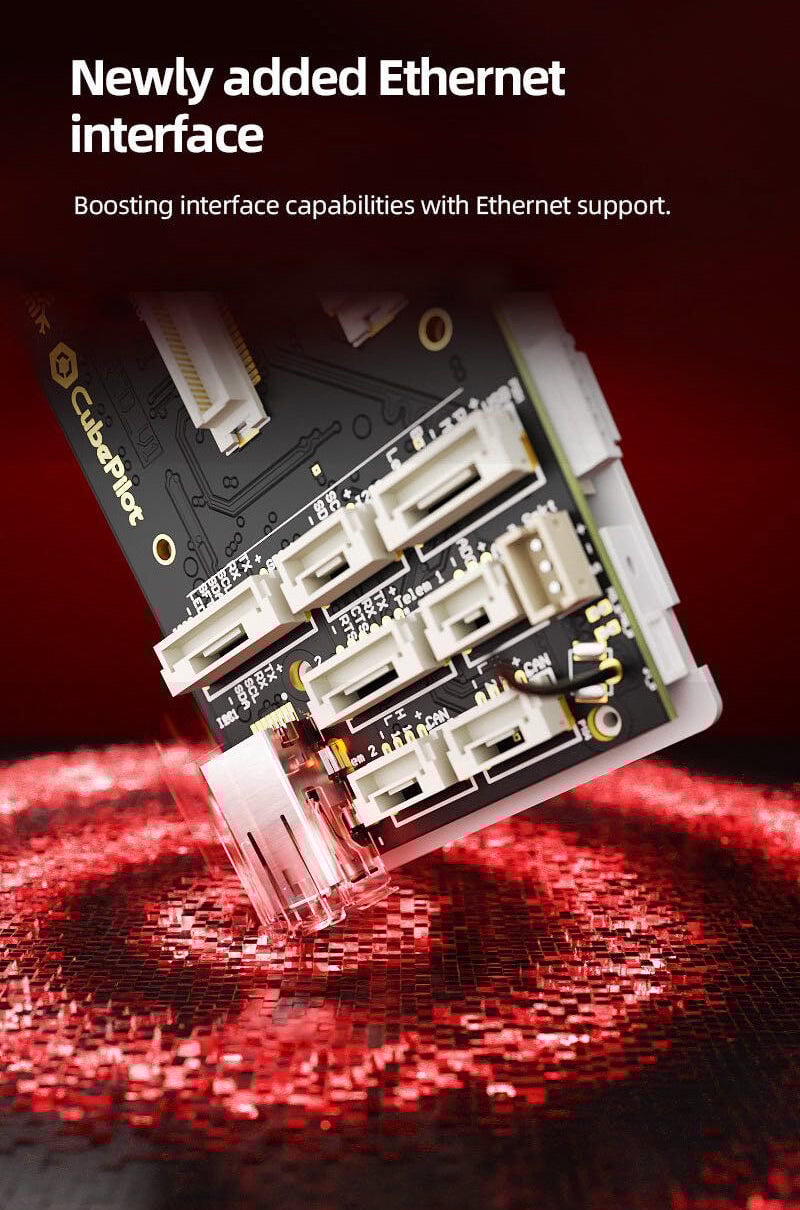

But the brains of this operation aren't just about computing power. The Cube Red Pro is packed with redundancy, sporting four sets of IMUs and three barometers to ensure that if one sensor has a bad day, the others are ready to step in. Need to connect peripherals? No problem—the new Ethernet interface and DSI out make data transmission faster than ever, and the CAN FD port ensures real-time communication.

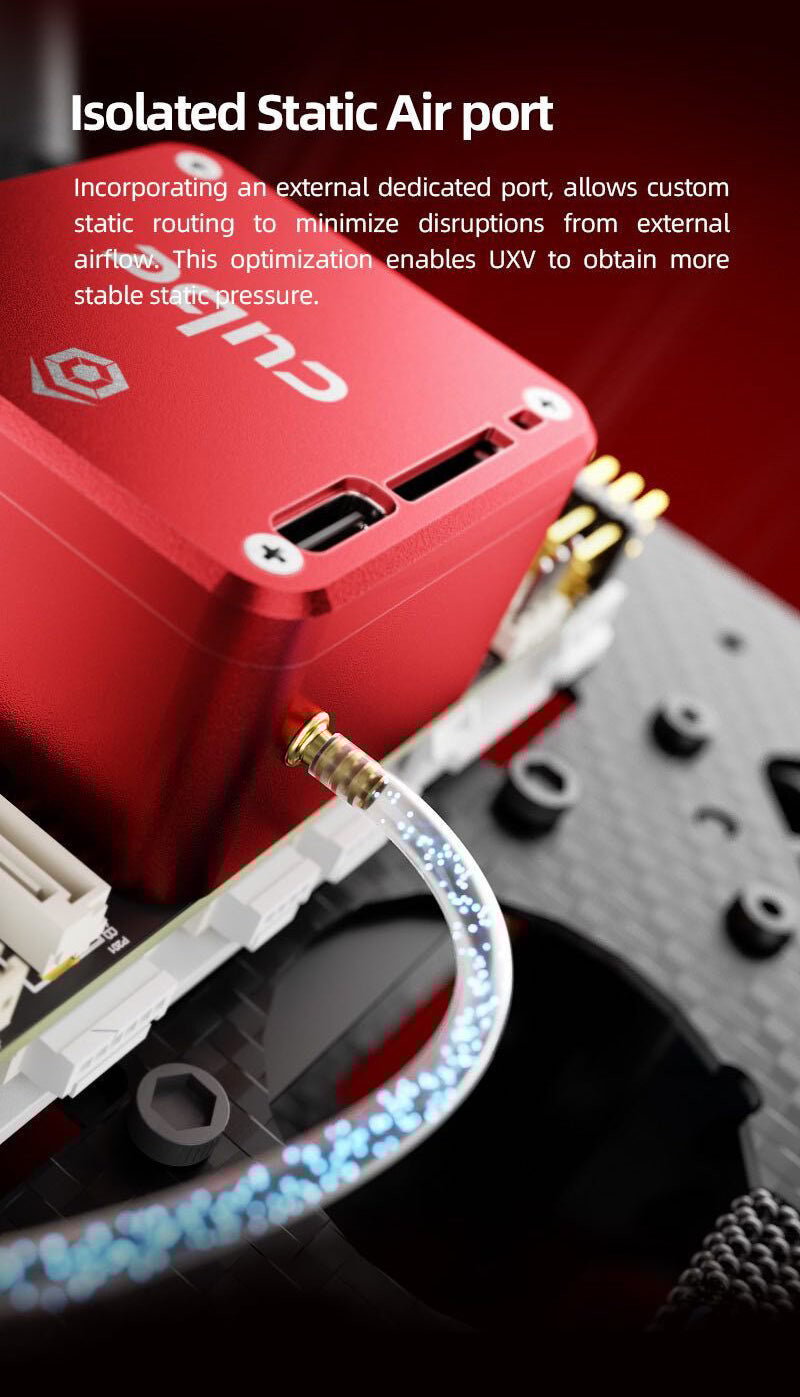

Accuracy is key in flight, and with its isolated static air port, the Cube Red Pro minimizes disruptions from external airflow, providing stable static pressure for precise altitude measurements. And if you're the type who likes to customize, this system even includes foams with varying hardness to suit your specific flight needs.
Ready to future-proof your setup? The Cube Red Pro comes with a USB Type-C debugging interface, keeping you up to date with the latest standards.
Key Features:
- Processing Power: Two STM32H7 dual-core processors with double-precision FPUs.
- Redundancy: Equipped with four IMUs and three barometers for consistent and safe operation.
- Connectivity: Ethernet interface, DSI out, and CAN FD port for real-time data transmission.
- Precision: Isolated static air port for stable static pressure and accurate altitude measurements.
- Customization: Includes foams with different hardness options to meet diverse flight requirements.
- Future-Proofing: Updated to the USB Type-C standard for debugging.
Technical Specifications:
- Input Voltage: 4.1 - 5.7 V / 2.5 A (Rated); 0 - 20 V (Safe but non-operational)
- Output Power: 14 W
- USB Input Voltage: 4 - 5.7 V / 250 mA
- Servo Rail Input Voltage: 4 - 10.5 V
- Operating Temperature: -10° to 55° C
- Waterproofing: Not waterproof—external protection needed
Ports:
- GPS1, GPS2, TELEM1, TELEM2, I2C2, USB, CAN1, CAN2, CAN3, POWER1, POWER2, ADC, DSI, ETH

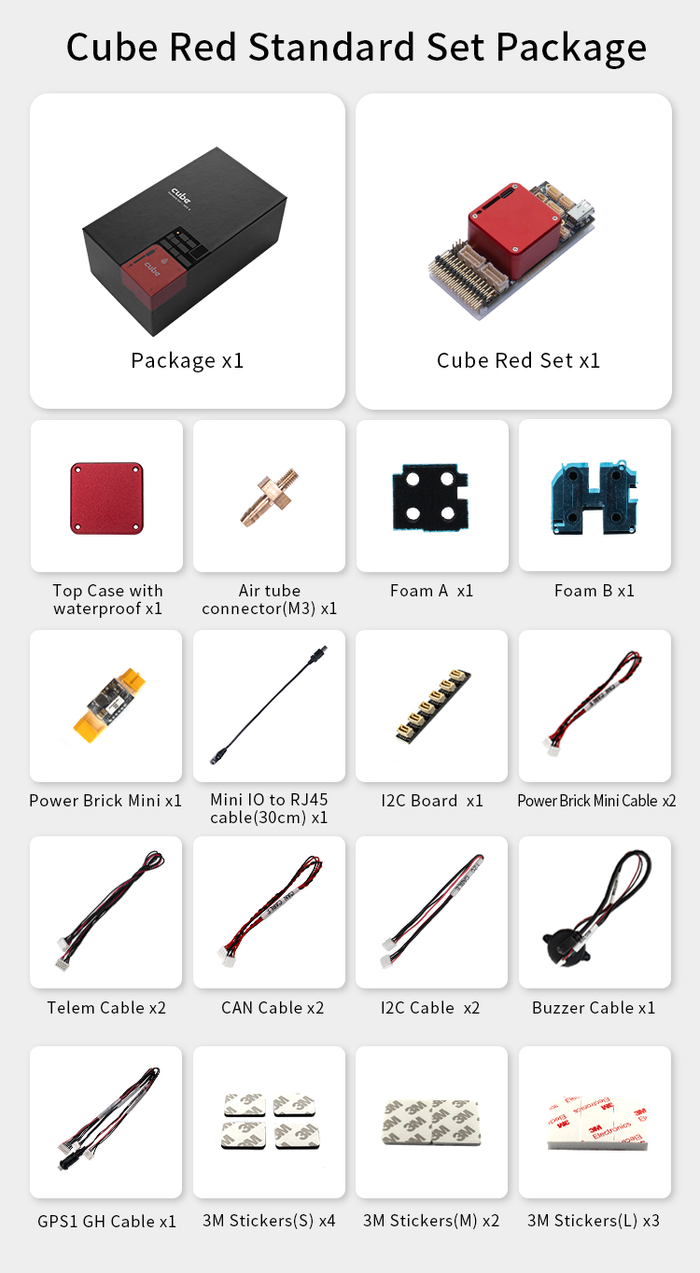

What's in the Box:
- Cube Red Pro flight controller

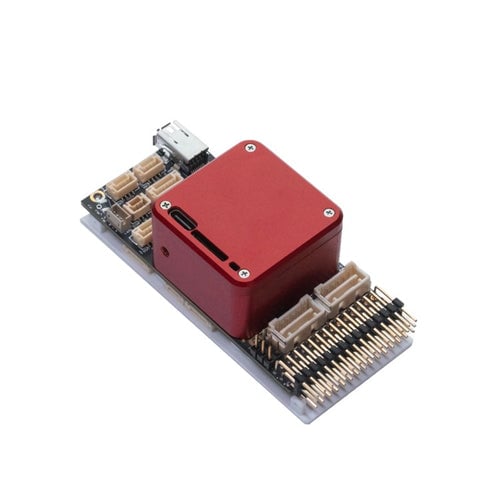

- Carrier board
- Set of foams (varying hardness)
- Power brick and cables
- USB Type-C cable
Disclaimer: Accessories included may vary based on supply.
