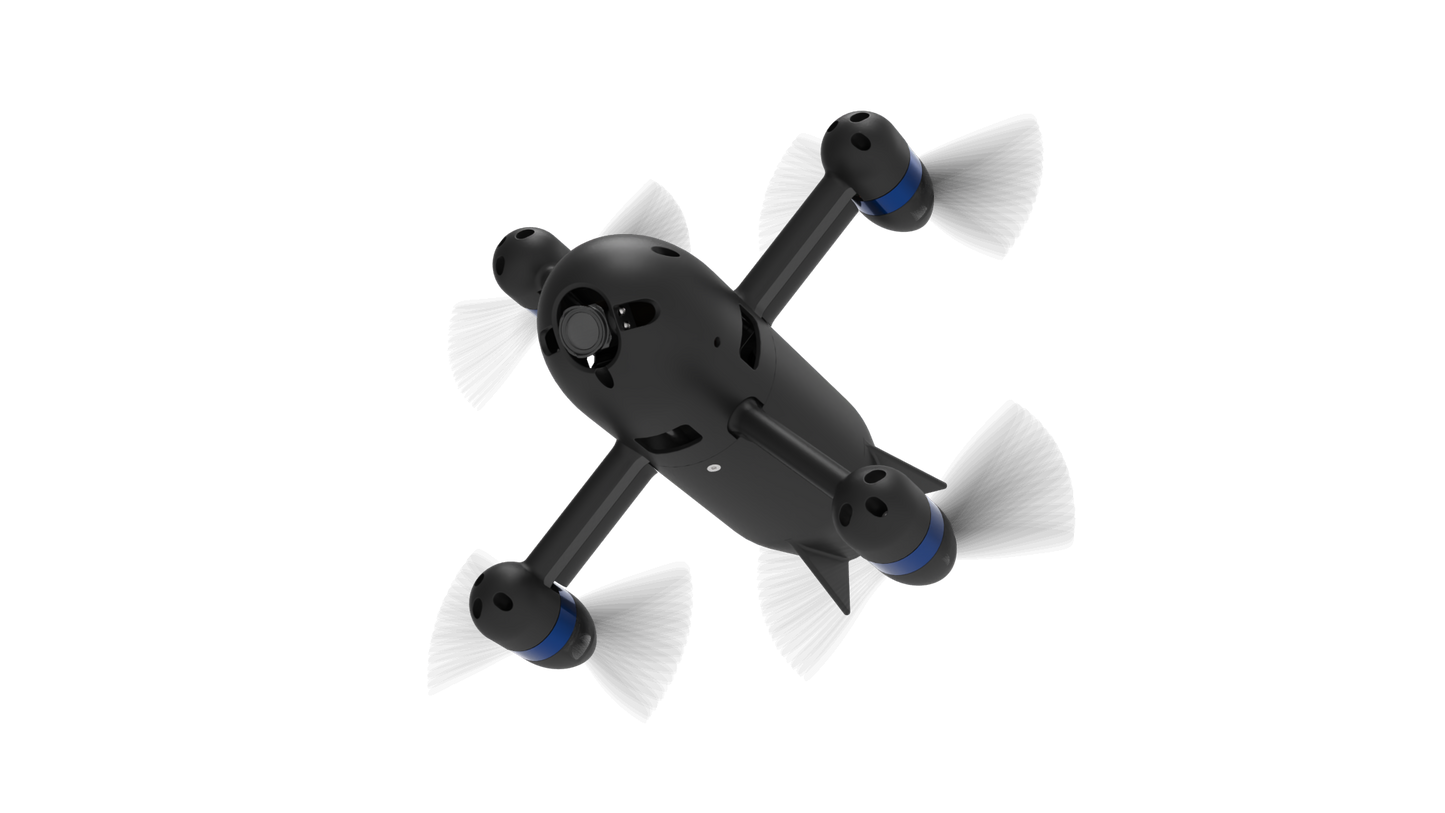

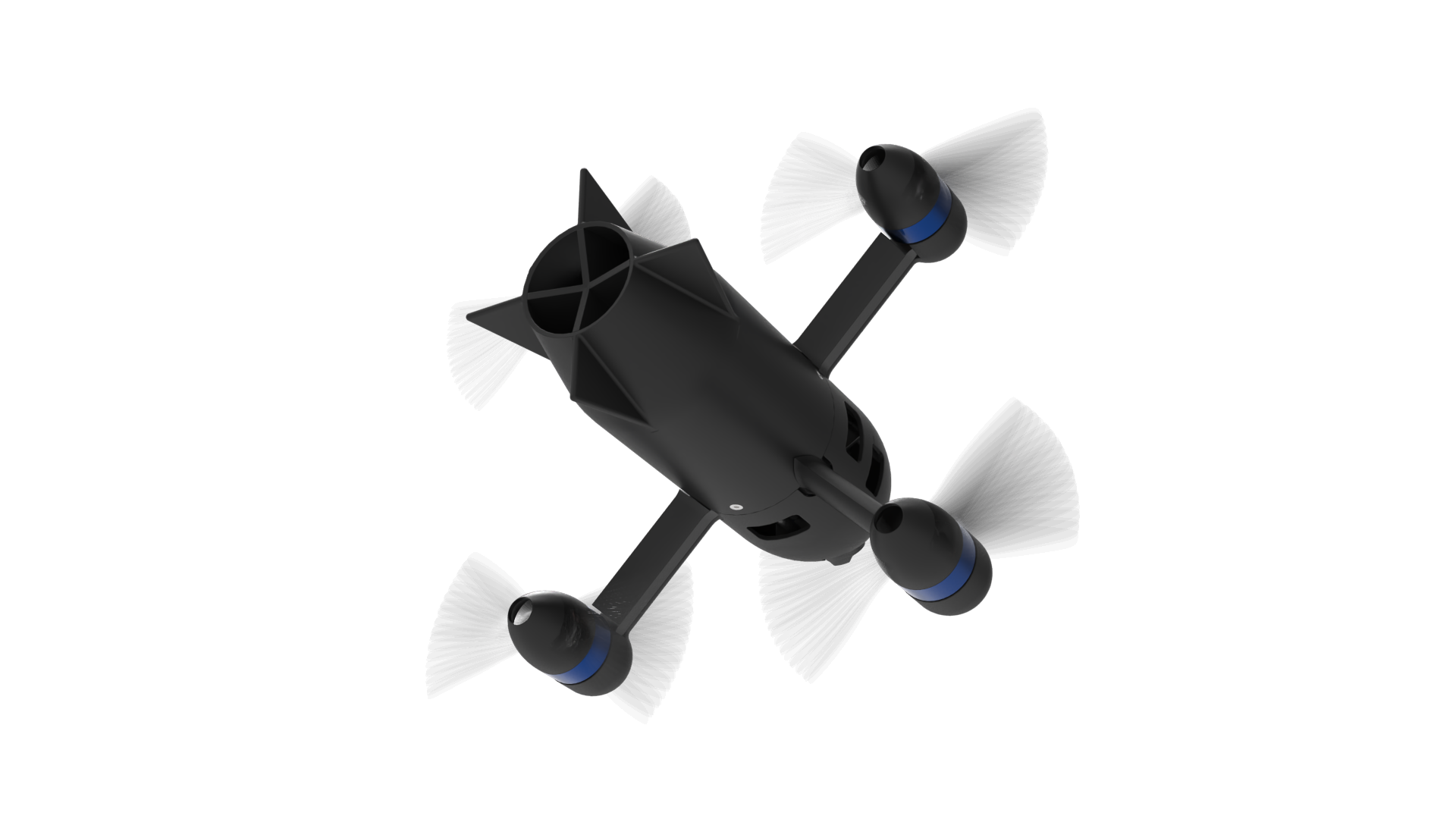

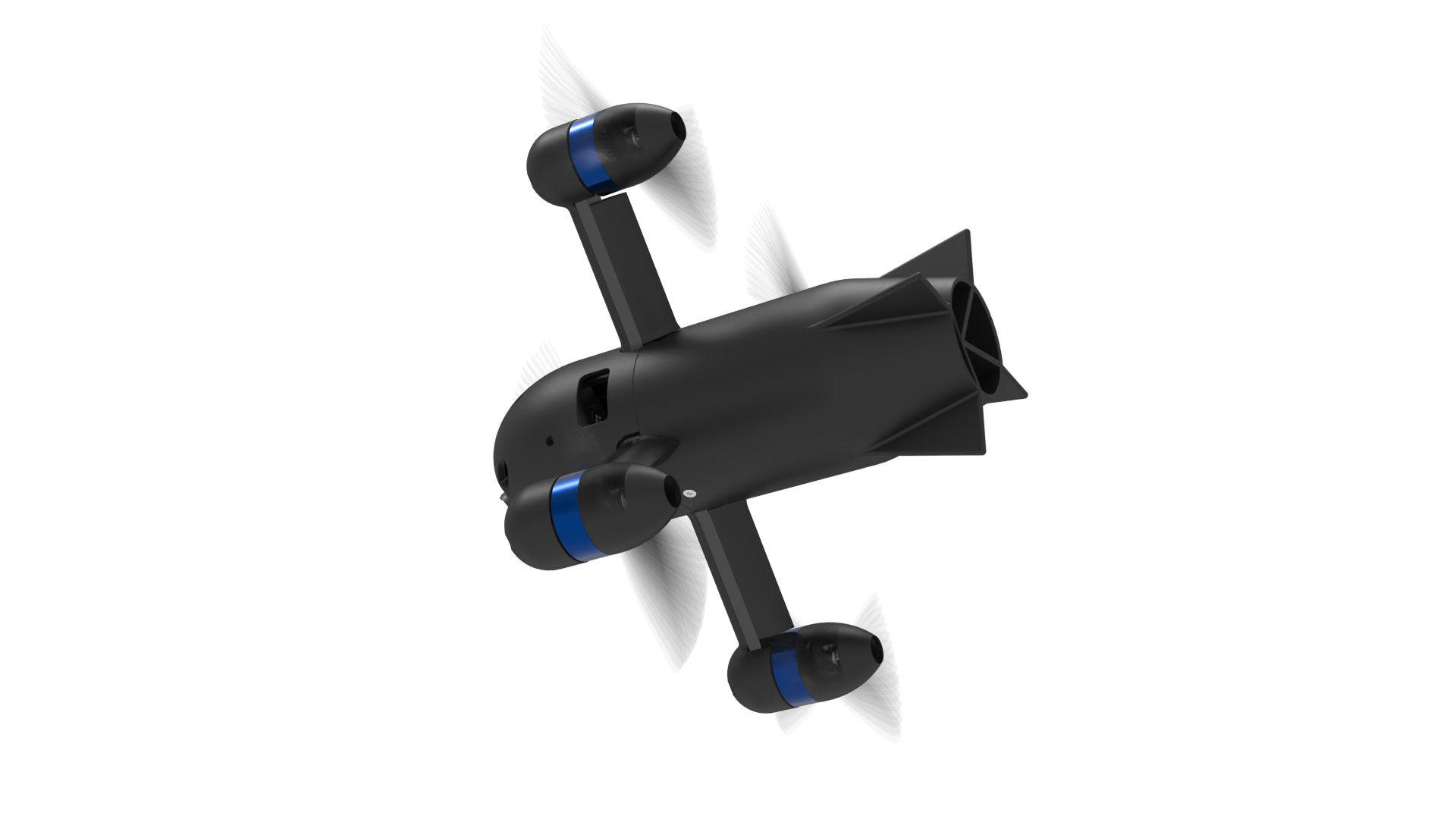

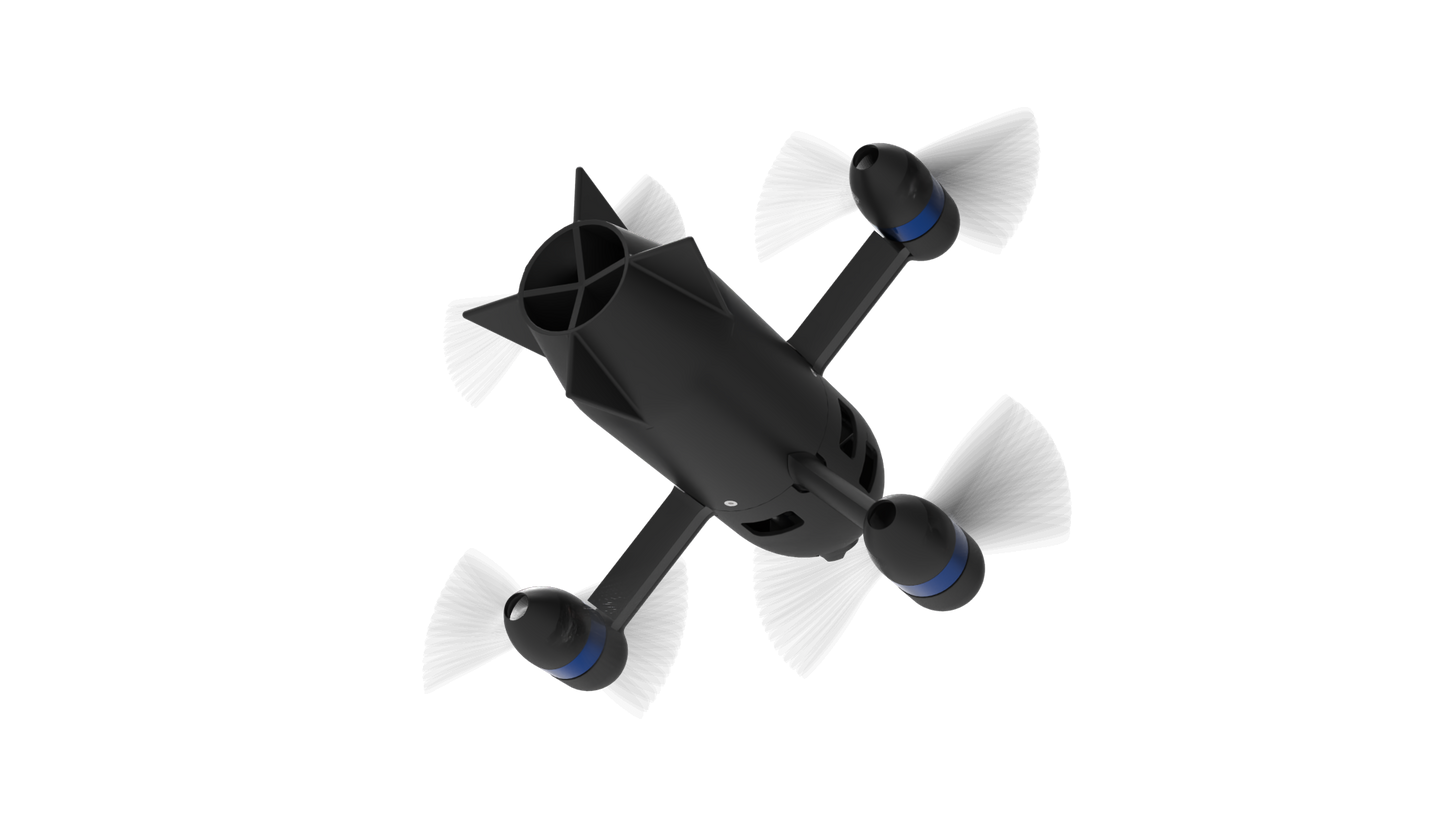

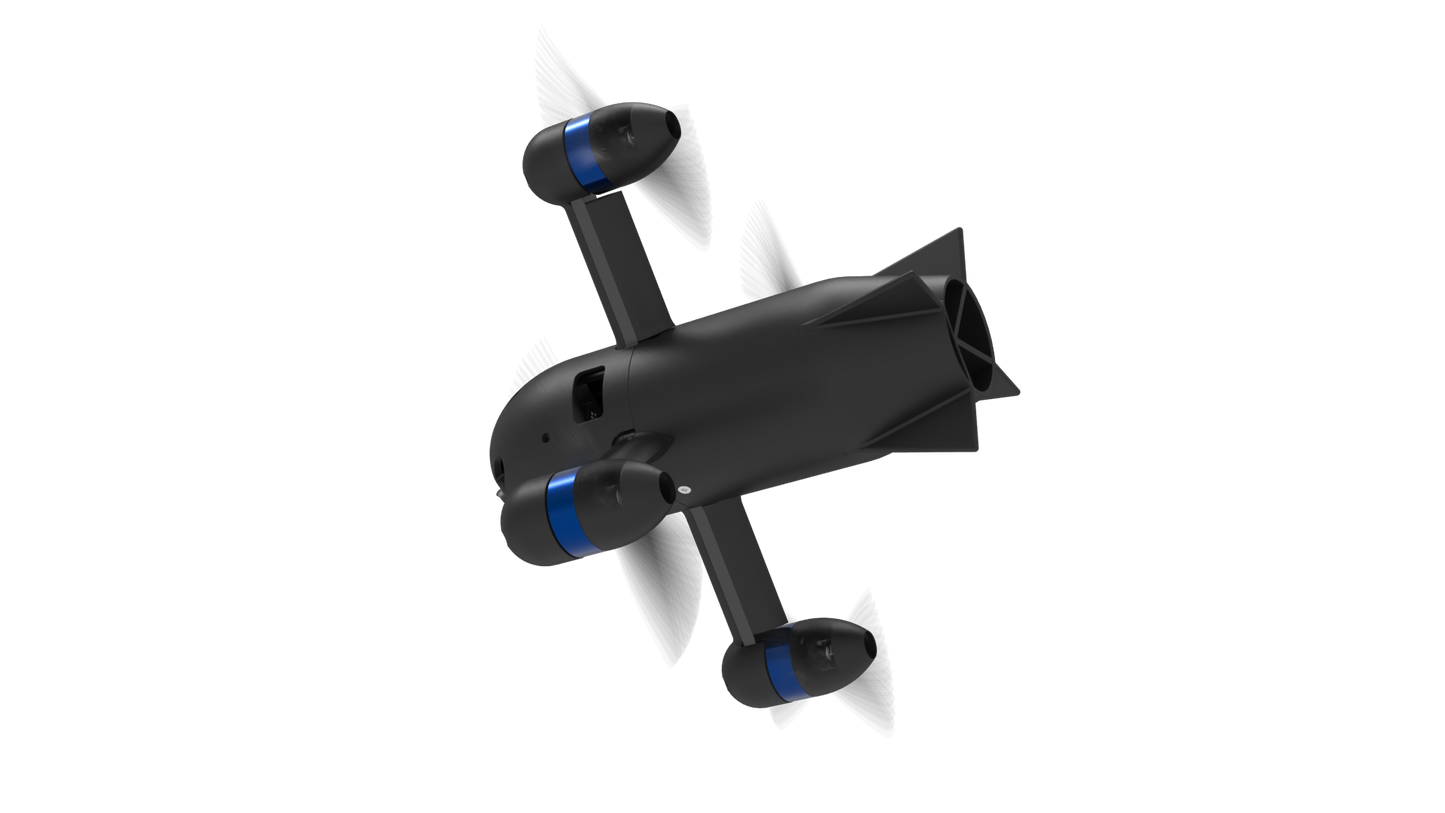

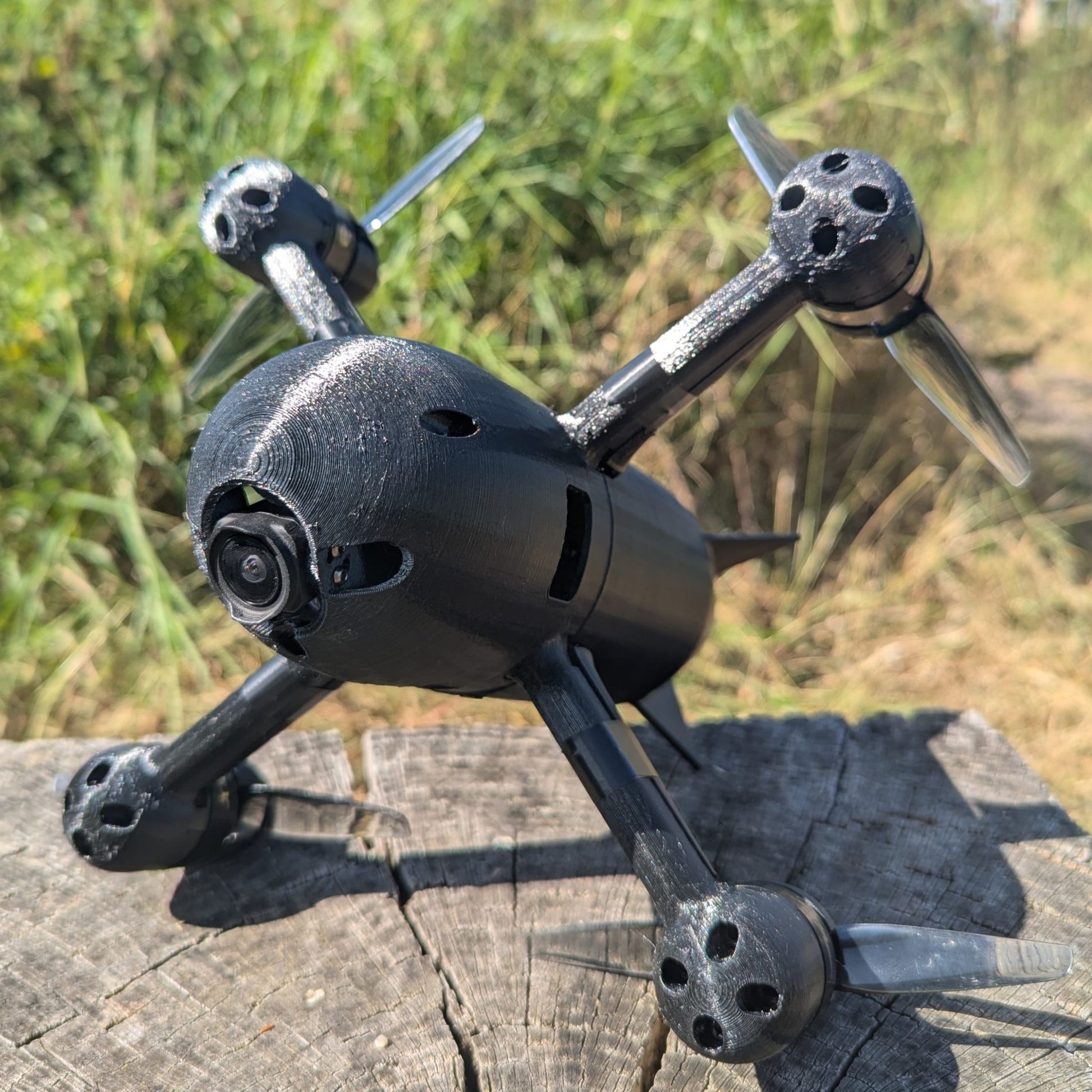

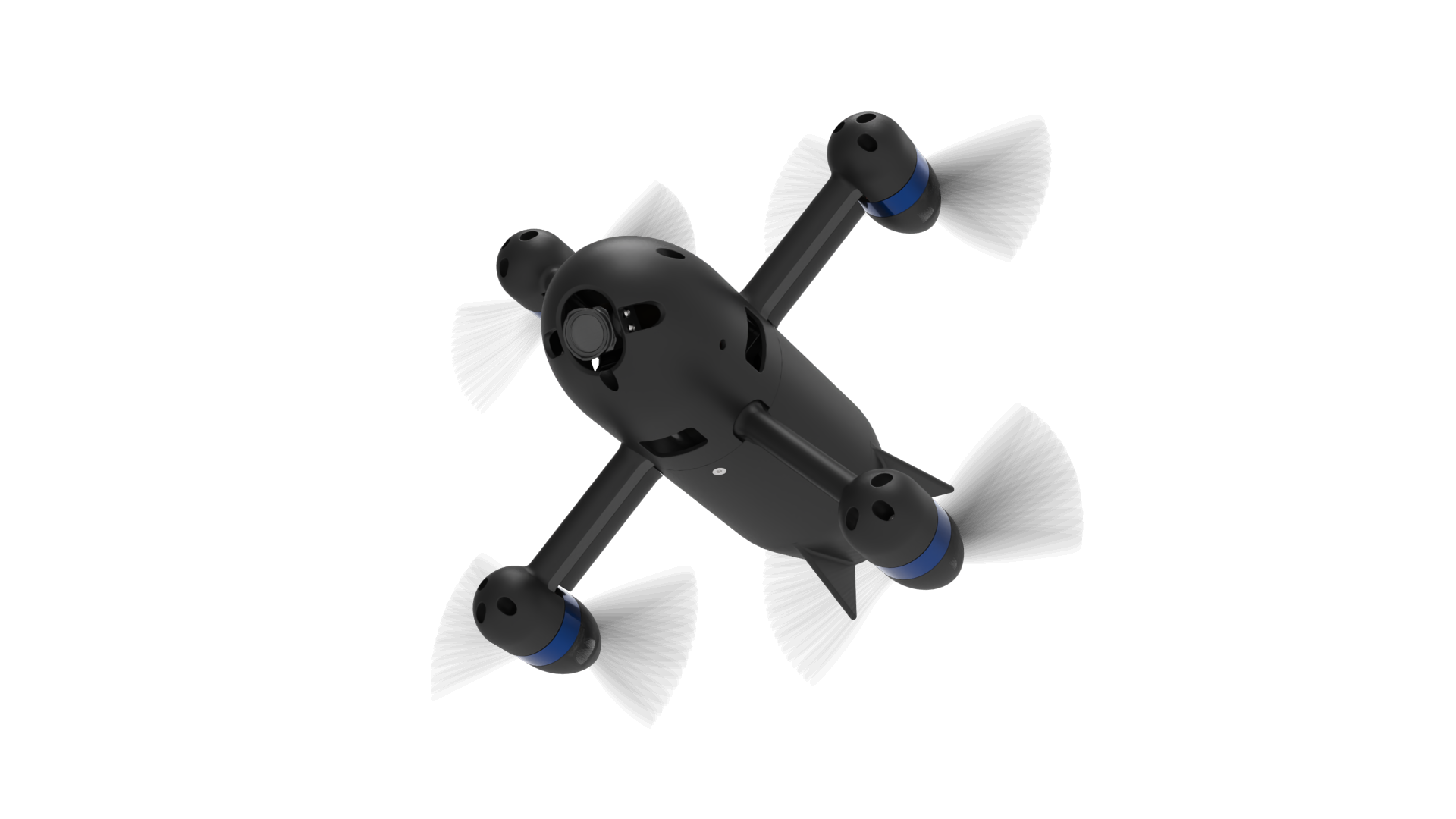

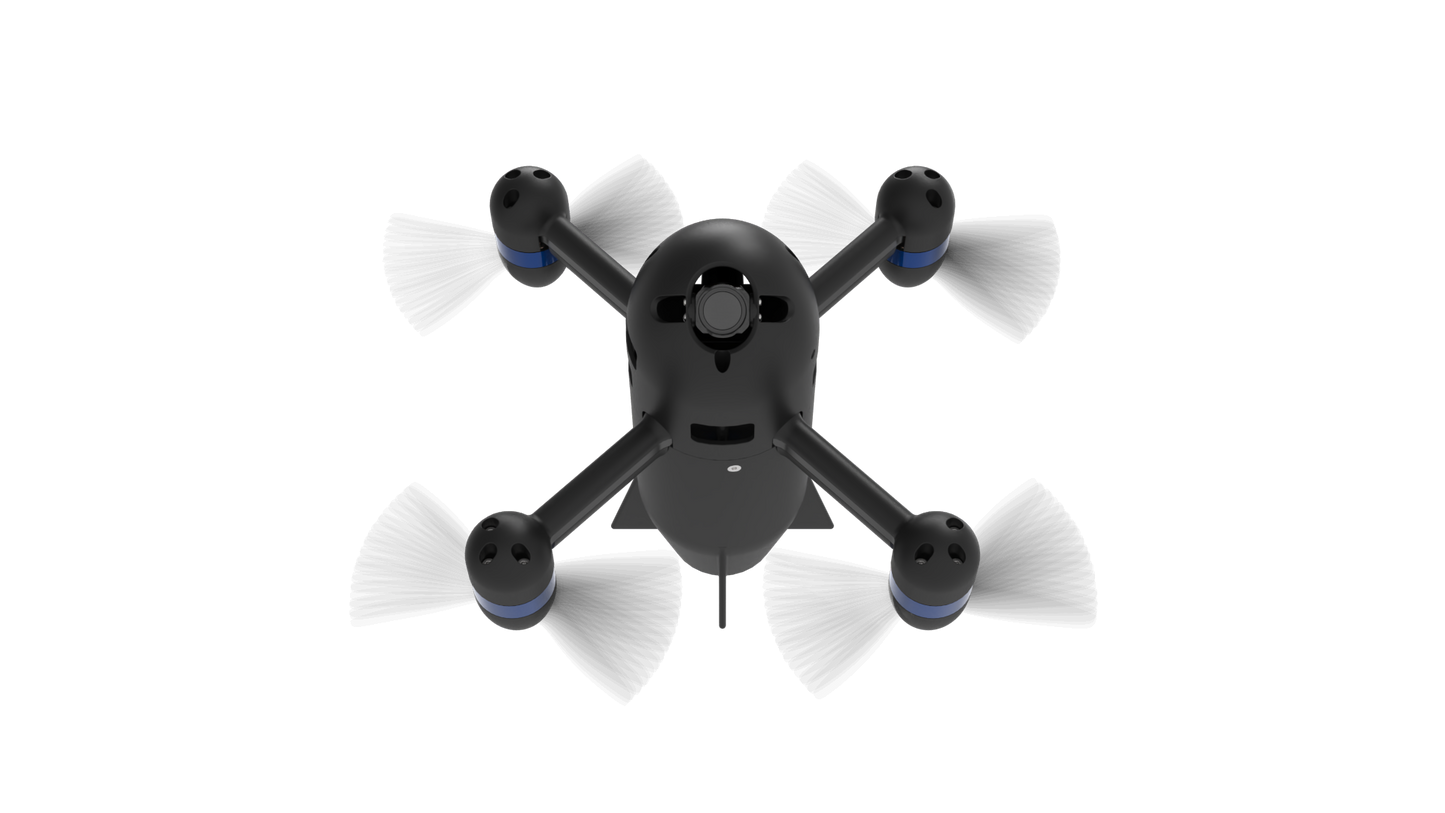

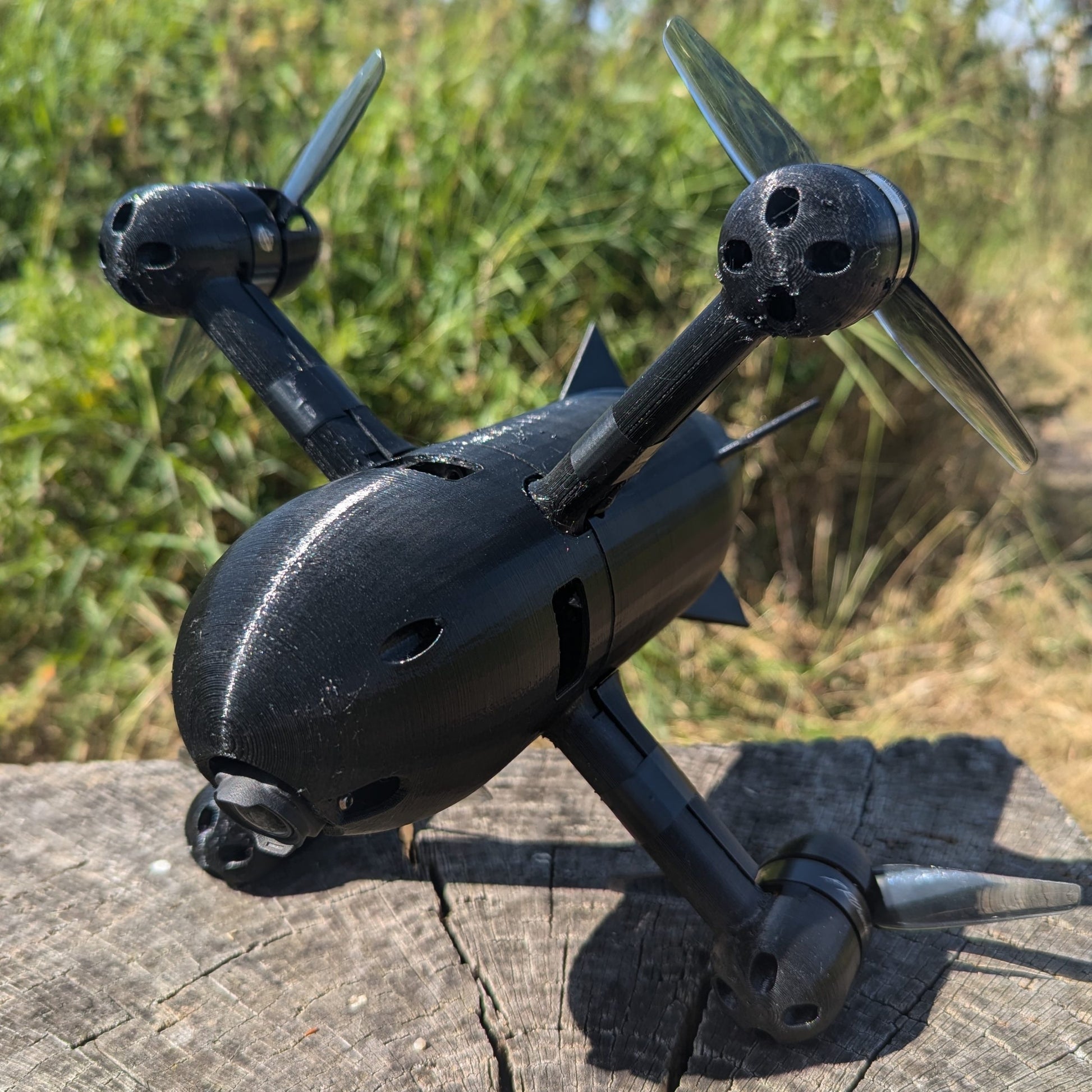

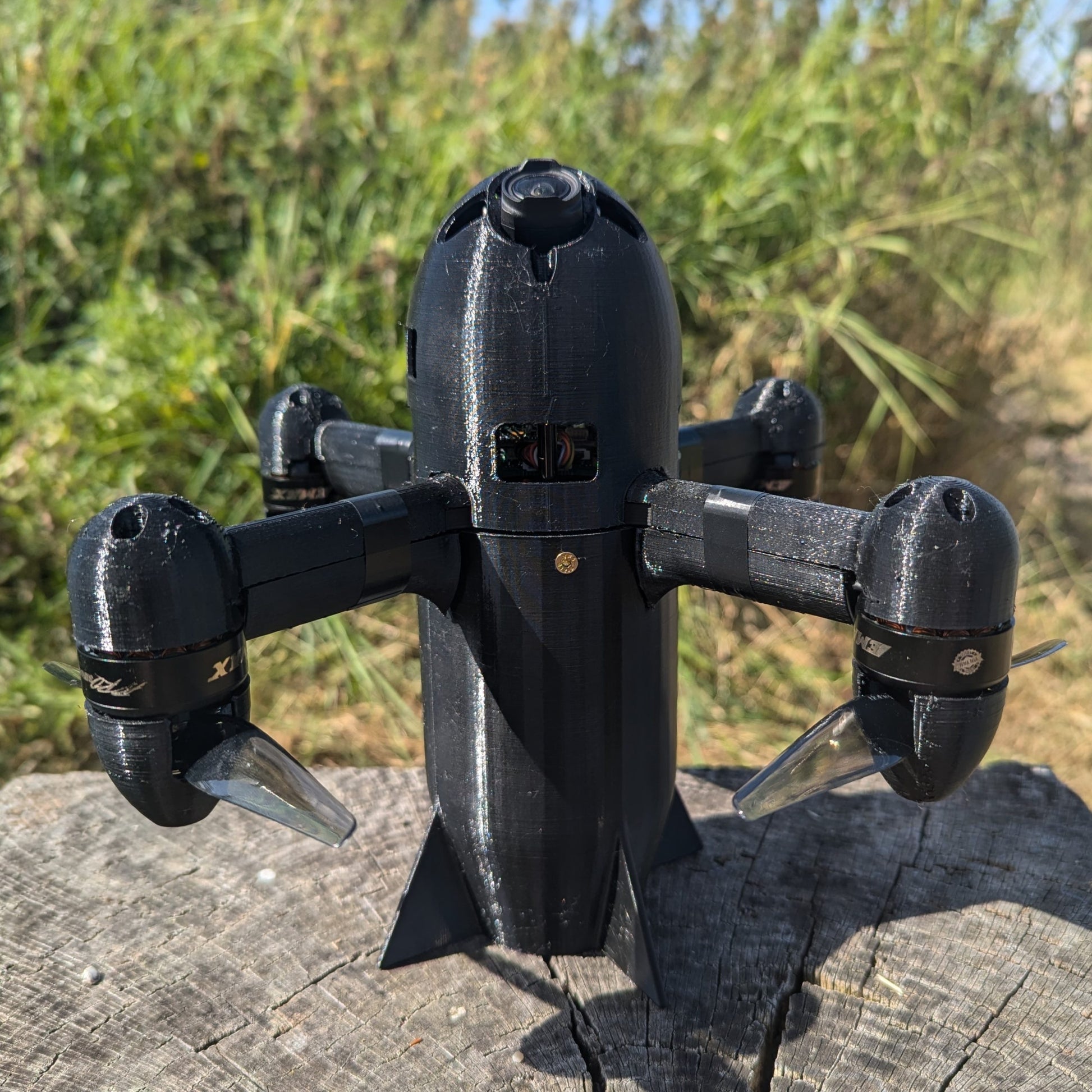

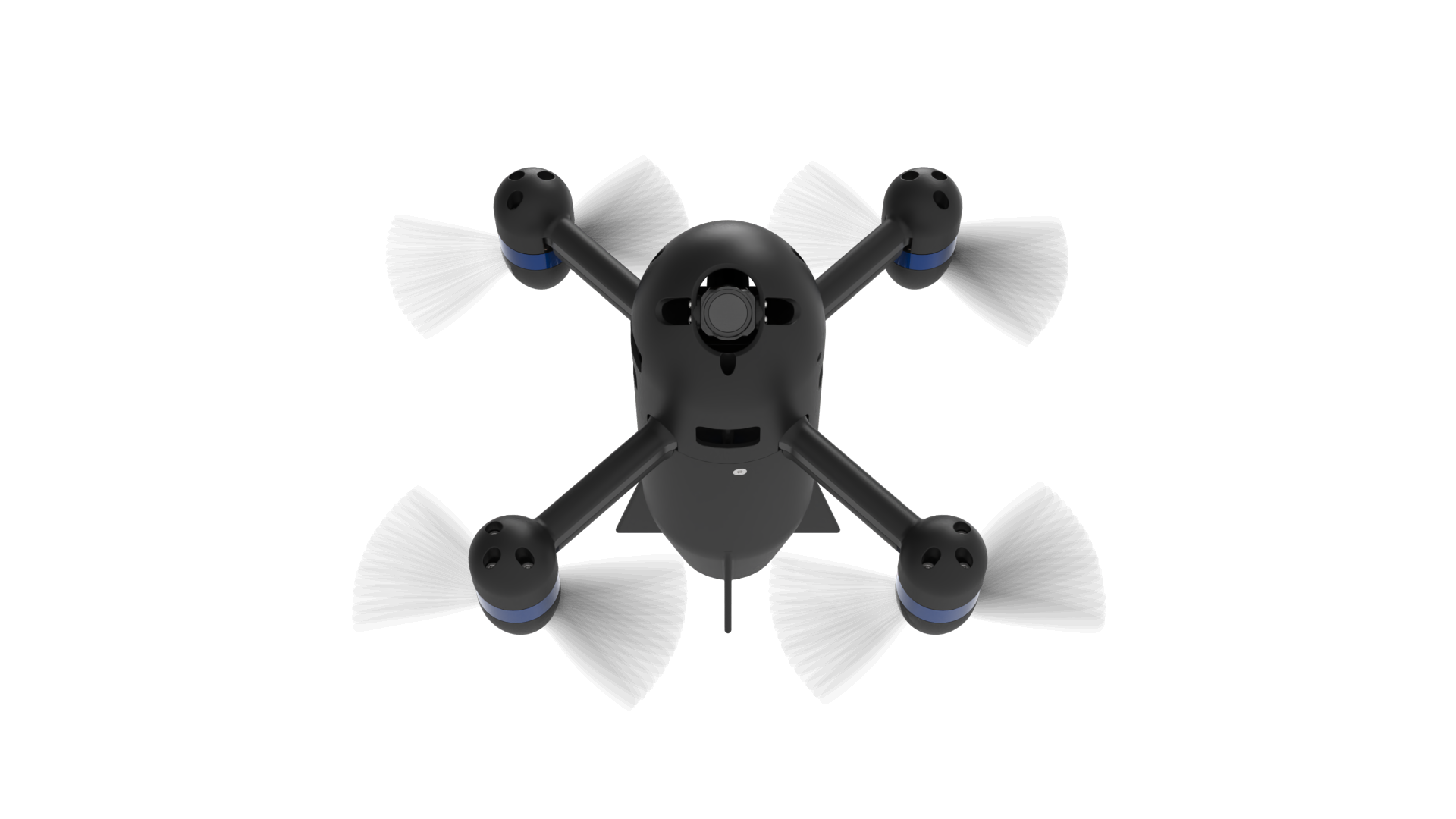

AOS HS5 FPV Frame - Unleash Unmatched Speed and Precision
Ready to push the boundaries of high-speed FPV flying? The AOS HS5 is engineered to leave others in the dust, clocking jaw-dropping speeds of over 200 mph (320 kph). With its aerodynamic design and a massive 155° field of view, you'll capture every frame in stunning clarity, making it a top choice for pros and adrenaline-hungry hobbyists alike.
Key Features

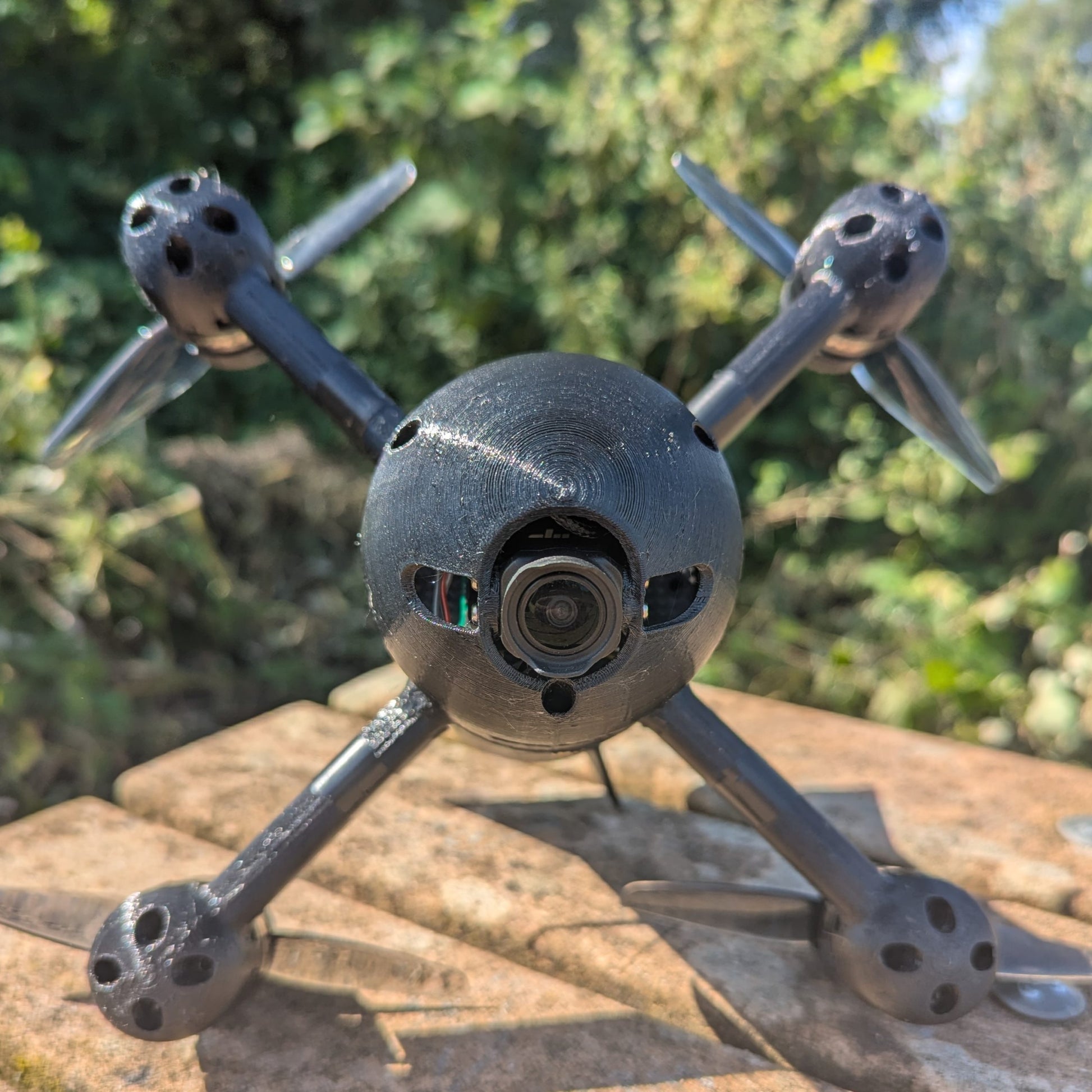

- 155° FPV Field of View (FOV) : Get a crystal-clear, unobstructed view with no props in sight, fully compatible with DJI O3, including support for ND filters.
- Advanced Aerodynamics : Engineered with CFD-optimized shells and tail fins for smoother flight, prop spinners to cut motor drag, and enhanced overall stability at high speeds.
- Easy Build : Room for all your components in the streamlined front shell, including Camera, VTX, Receiver, Antennas, and your electronics stack.
- Battery Swap in Seconds : The rear shell is dedicated solely to the battery, making it effortless to change packs without disrupting your electronics, with easy access to USB ports for flight controller and VTX.
Specifications:
- Prop Size : Supports up to 6" (Recommend APC 5.25")
- Electronics : Compatible with 30.5 mm stacks
- Camera : 155° FOV, no props visible, supports 19-20 mm cameras
- Battery Compatibility : 6S 1800mAh (90 x 40 x 55 mm)
- Motor Mounting : ⌀16-⌀19mm, 2808 1950KV recommended
- VTX : Works with both Digital and Analog VTX systems
In the Box:
- 1 x AOS HS5 FPV Frame Kit
- 1 x Set of Aerodynamic Spinners
- 1 x Rear Shell with Battery Mount
- 1 x Front Shell for Electronics
Note on Hardware.
We have had a number of request from clients regarding hardware for this frame, so we have gone ahead, and included all the hardware necessary to build the frame itself, mount motors and mount camera (DJI O3 or O4 Pro).
Additionally we have included M2 and M3 washers if so required and also countersunk bolts if you would like to further secure the two fuselage halves together. Chris mentiones this is not strictly necessary but the option is there if you choose.

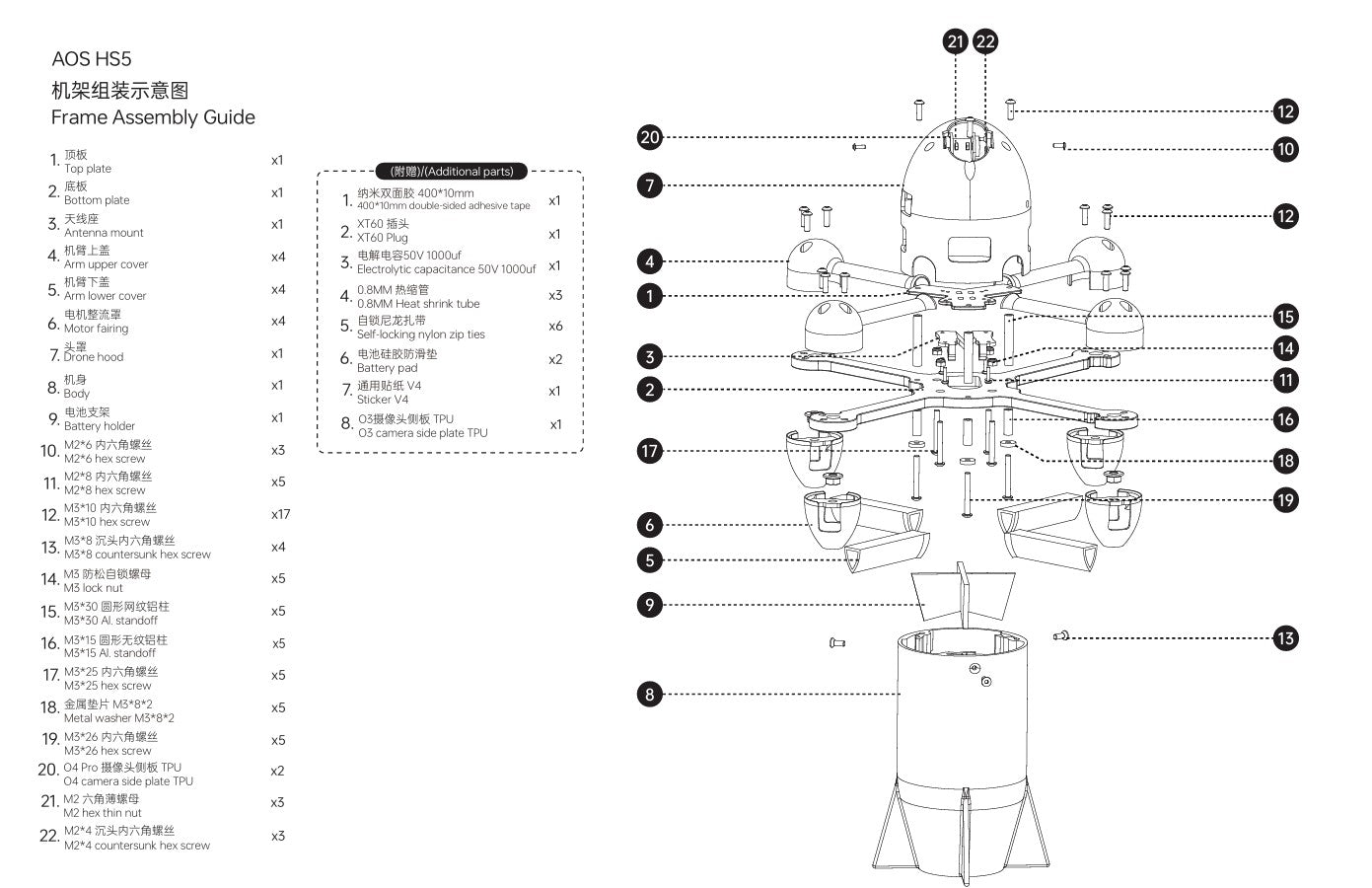

The following hardware is included in your kit:
● M2 X 4mm countersunk hex bolt (QTY5)
● M2 X 6mm hex bolt (QTY5)
● M2 X 8mm hex bolt (QTY5)
● M2 nut (QTY5)
● M2 washer (QTY5)
● M3 Washer (QTY5)
● M3 X15mm standoff black knurled (QTY3)
● M3 X 30mm standoff black knurled (QTY3)
● M3 X 8mm countersunk hex (QTY5)
● M3 X 10mm hex bolt (QTY15)
● M3 X 12mm hex bolt (QTY15)
● M3 X 25mm hex bolt (QTY10)
● M3 X30mm hex bolt (QTY10)
Hope this helps!
Disclaimer:
Accessories and included components may vary based on stock availability.
Please note, the 3D print files for this drone are not available for download!
