Product Details
Features
- 216mhz F7 processor
- 5 Software invertible hardware UARTS
- Onboard OSD and blackbox
- Software controlled VTX power switch (assigned to USER1 mode by default)
- LED and buzzer outputs (LED input doubles as PPM)
- On-board high overhead voltage regulators rated up to 6S (50v peak to handle voltage spikes)
- 10v 1.5A voltage regulator for DJI HD system
- Large 5x6mm high current MOSFETs.
Specifications
- Power Input: (3-6 Cell Lipo)
- Mounting: 25.5x25.5mm
- Firmware: Betaflight AIKONF7 Target
- MCU: STM32F722
- Gyro: BMI270 (interrupt pin connected)
- Blackbox: SPI 16MB
- ESC Firmware: BLHeli_S (Supports BlueJay)
- Constant Current: 60A
- Burst Current (5s): 70A
- Current Sensor Scale: 400
- Weight: 14g
Includes

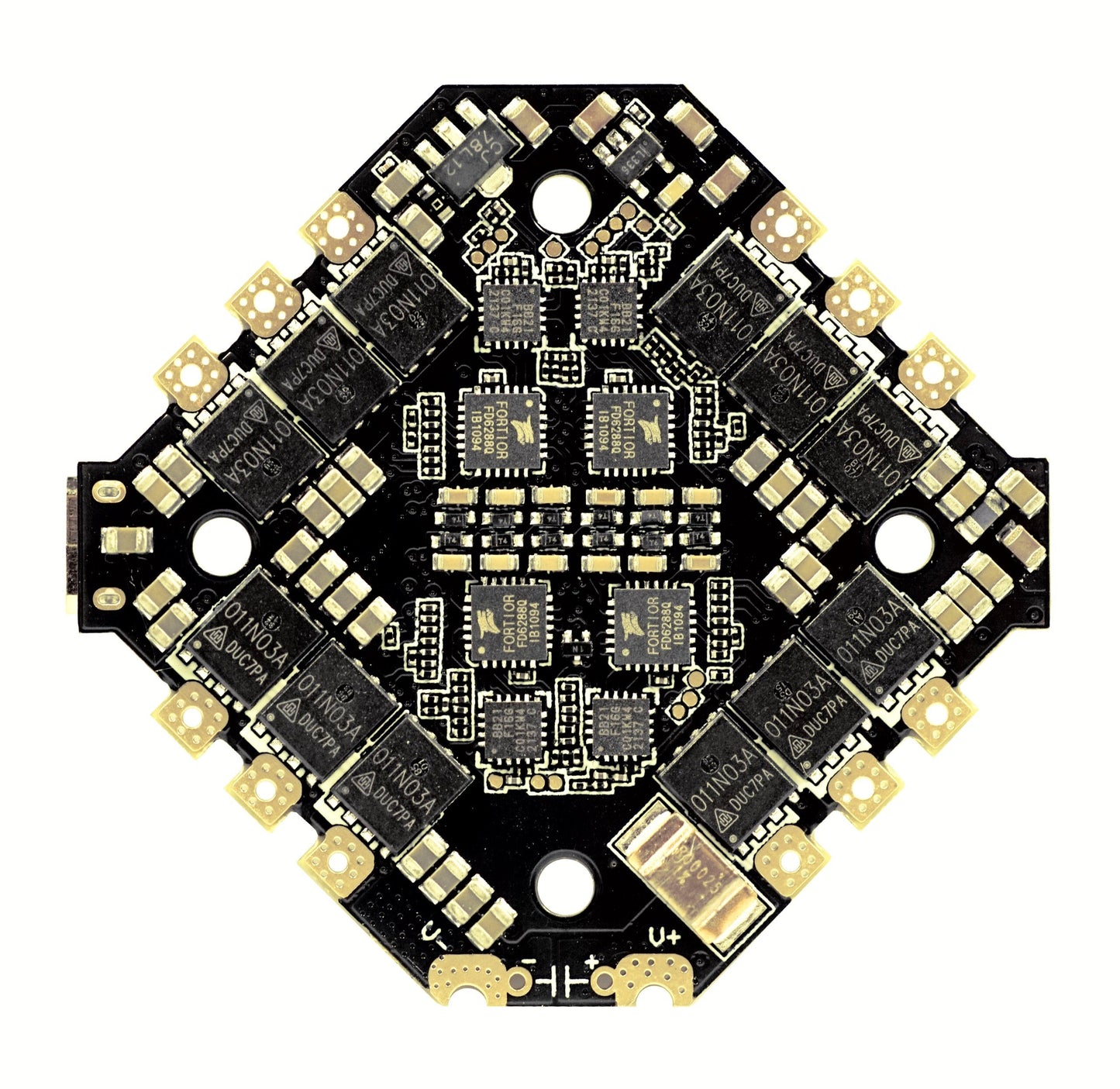

- 1pc Aikon F7 60A All-In-One Flight Controller
