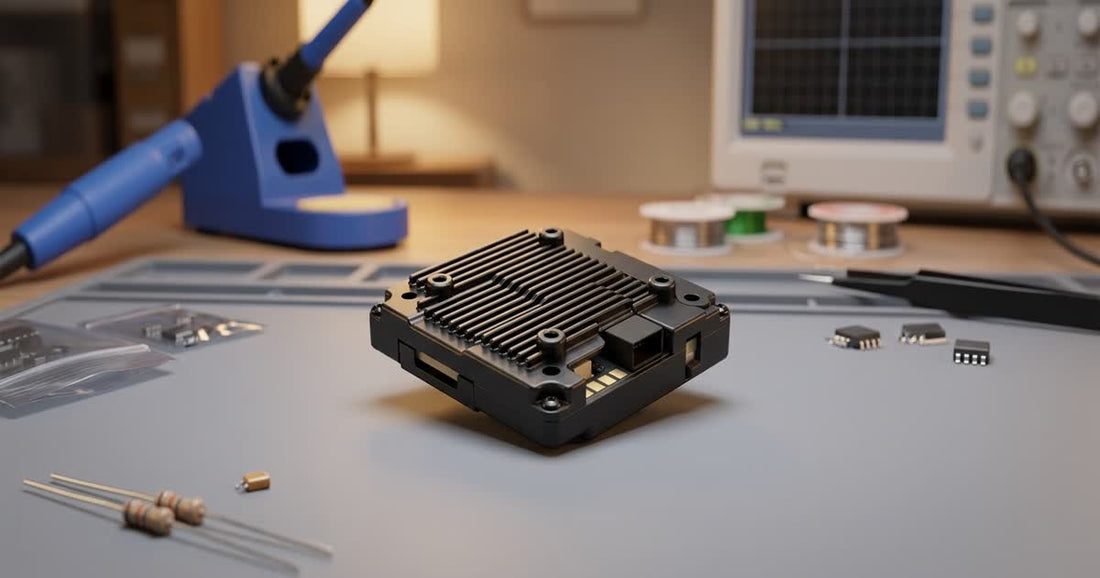

Q: Walksnail Video Transmitter Range: What You Need to Know

Quick Answer

Walksnail Avatar digital VTX systems achieve typical ranges of 300-800m at 25mW with stock antennas, and 1-3km at higher power with directional antennas on the receiver. Range depends on VTX model, antenna quality, environment, and whether you use a standard or enhanced VTX module.

Walksnail Overview

Walksnail (by Caddx) produces the Avatar digital HD FPV system. Unlike analog video on 5.8GHz, digital systems compress and transmit HD video with minimal latency. The video quality is significantly better than analog, with no static or breakup at range. Instead, digital signals experience a clean fade as you approach maximum range, followed by a hard cut when the link drops.

VTX Models and Range

Walksnail offers several VTX modules targeting different build sizes and range requirements.

The Avatar HD VTX V2 is the most common choice for 5-inch builds. It supports switchable power output and records HD footage to an onboard SD card. For lighter builds where space is tight, the Moonlight VTX module is significantly smaller and lighter, with some range reduction.

Power Output Settings

Walksnail VTX modules support multiple power levels. The default is usually 25mW, which is the legal limit in the UK and EU. Higher power settings extend range but consume more battery and generate more heat.

For a detailed explanation of how VTX power affects range and the trade-offs involved, see our guide to FPV frequencies and channels.

Camera Choice and Range

Walksnail VTX modules pair with specific cameras. The Avatar HD Camera V2 is the standard option for 5-inch builds, while the Avatar HD Nano Camera V3 is designed for micro and cinewhoop builds. Camera quality does not directly affect range, but a better camera produces cleaner video that compresses more efficiently, which can help at the edge of your signal range.

Antennas: The Biggest Range Factor

Upgrading your receiver antenna makes a far bigger difference than increasing VTX power. A patch antenna or helical antenna on your goggles concentrates reception in one direction, dramatically extending range in that direction. Stock omnidirectional antennas are convenient but waste most of their signal in directions you are not looking. The antennas collection includes patch and panel options compatible with Walksnail VRX modules.

On the VTX side, the dual-antenna version of the Avatar VTX V2 provides diversity transmission, which helps when the signal path between your drone and goggles is partially obstructed by your body or the frame.

Environmental Factors

Range drops significantly in wooded areas, near buildings, and over water. Trees absorb digital signals more than analog because digital modulation is less tolerant of multipath interference (signals bouncing off objects). Open fields and flying at altitude give the best results. Ground-level flying in built-up areas will rarely achieve the maximum stated ranges regardless of power setting.

Range vs Analog

Analog 5.8GHz systems generally achieve longer absolute range because the signal degrades gradually rather than cutting out. You can fly analog to the point where the image is nearly unwatchable and still maintain control. Digital systems like Walksnail provide a clean image right up to the point where the signal drops completely. If maximum range is your priority over image quality, analog may still be the better choice. Our analog vs digital comparison covers this trade-off in detail.

Maximising Your Walksnail Range

To get the most range from your Walksnail setup: use the highest VTX power your battery can sustain, mount a patch antenna on your goggles, ensure the VTX antennas are mounted above the frame with clear sky view, and avoid flying behind large obstacles. Keep your VTX and camera firmware up to date, as Walksnail regularly releases improvements to link stability and range performance. Browse compatible hardware in the FPV cameras collection.
