The Prop Pull That Can Pull Your Tiny Whoop Motor Apart
Quick Answer
Remove a tiny whoop prop by supporting the motor bell and moving the prop hub straight along the shaft. Do not pull on one blade or lever against the frame. Use a fork only when the hub releases with light pressure; a screw-type puller is the safer default.
The Damage Happens Below the Prop
A tiny whoop prop is only a friction fit, but that does not make it harmless to remove. On many micro motors, the shaft is press-fitted into the bell and secured with adhesive. Pulling the prop while the bell hangs unsupported can load that joint in exactly the wrong direction.
That is why we would not copy the familiar “grab two blades and yank” method. It can bend a blade, tilt the force off-axis and, in the worst case, loosen the shaft from the bell. Prying against the duct, motor wires or flight controller simply moves the risk somewhere more expensive.
Before touching the prop, disconnect the battery and photograph all four propellers from above. The image preserves the clockwise and counter-clockwise layout. If the replacement diameter, pitch or blade count is uncertain, use our FPV propeller size guide before fitting anything.
Use the Fork Tool Without Using the Motor as a Fulcrum
Our basic Tiny Whoop Propeller Removal Tool is the thin, simple option. Slide its fork beneath the central hub, keep the motor shaft centred between the prongs and support the bell from below. Apply even pressure parallel to the shaft, alternating sides only enough to keep the hub level.
Stop if the tool touches windings, wires or the frame before it reaches the hub. Never twist the fork like a screwdriver: that creates a one-sided load and can mark the bell. We would keep this compact tool as a field-bag fallback, not force it through a stubborn change.
Use a Screw Puller for the Stubborn Ones

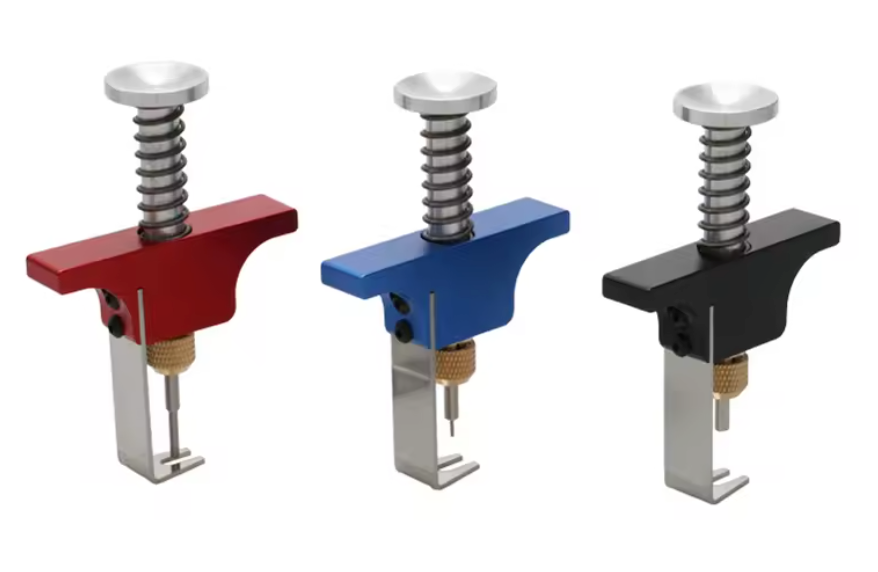

The Whoop Ultimate Aluminium Propeller Puller costs more but controls the force better. Its jaws sit below the hub while an ejector pin presses on the shaft, so the prop moves upwards without asking the motor bell to resist the pull. Our current listing includes five pins: 0.9mm, 1.7mm, two 1.9mm pins and 2.9mm.
Choose the pin that sits squarely on the shaft without pressing the prop hub. Align it before tightening, turn slowly and stop if the tool cants sideways. We recommend the screw puller for tight props and repeated bench work; use the cheap fork only where its portability matters and the hub moves easily. Both sit in our FPV tools collection.
Refit Without Creating the Next Problem
Match each replacement to the photo, place the hub squarely over the shaft and press on the hub rather than the blade tips. Leave a visible sliver of clearance above the motor bell so the prop spins freely. Then rotate it by hand and check for rubbing, wobble or a shaft that rises with the prop.
If the motor feels notchy, the bell has lifted or a wire moved during the job, do not reconnect the battery. Inspect it first and add the check to your FPV maintenance routine. A prop change should finish with four free-spinning motors, not merely four attached props.
FAQ
Q: Can I remove a tiny whoop prop with my fingers?
A: Yes, if it releases with light, even force while you support the motor bell. If it needs a hard pull, use a proper tool rather than escalating with pliers or a screwdriver.
Q: Why does my new prop rub the motor bell?
A: It has probably been pressed too far down or fitted off-axis. Lift it slightly, centre the hub and confirm that it spins freely before powering the quad.
Q: Should I replace one damaged prop or all four?
A: One matching replacement is enough. It must have the same diameter, pitch, blade count and rotation as the prop it replaces.
