Quick Answer
ESC calibration ensures your flight controller and ESCs communicate accurately, matching throttle inputs to motor output for smooth, predictable control. In Betaflight, this involves sending a max throttle command via the Motors tab, whilst ArduPilot requires radio calibration mode in Mission Planner or QGroundControl.
Why ESC Calibration Matters
Electronic speed controllers translate your throttle stick movements into precise motor speeds. Without proper calibration, the flight controller assumes full throttle sends 100 per cent PWM signal, but your ESCs might interpret this differently. This mismatch causes motors to spin at different speeds despite identical throttle inputs, leading to drift, uneven power delivery, and unpredictable flight behaviour.
Calibration establishes the exact throttle range your ESCs expect. When you arm your drone, each motor should spin up to the same speed at the same throttle position. This is critical for stable hovers, clean yaw response, and reliable acro or freestyle performance. Most modern ESCs calibrate automatically via DShot protocols, but manual calibration remains essential for older PWM setups or when switching firmware.
Calibrating ESCs in Betaflight
Betaflight's ESC calibration is straightforward but requires attention to safety. Begin by removing all propellers from your drone. This prevents the drone from launching unexpectedly during calibration, which could damage components or cause injury.
Connect your flight controller to Betaflight Configurator and navigate to the Motors tab. Set the minimum throttle command to 1000 and maximum to 2000. Click the 'Calibrate' button to send max throttle to all motors simultaneously. Listen carefully for the rising motor whine, indicating ESCs have learned the upper limit. The motors will spin for a few seconds before stopping automatically.

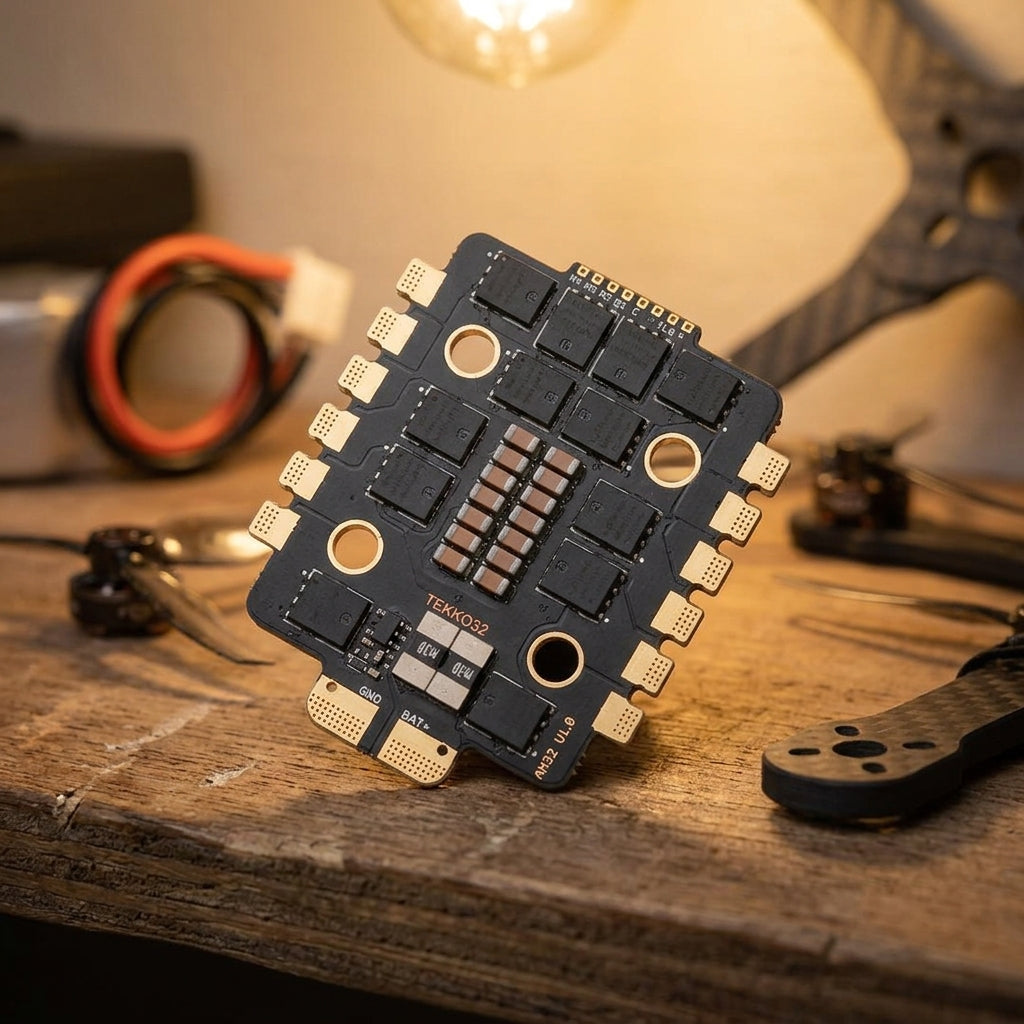

For 4-in-1 ESCs like the Holybro Tekko32 F4 4-in-1 Mini 50A ESC, this calibration also sets the DShot timing and direction. Ensure your flight controller supports DShot telemetry to get accurate motor speed data after calibration. Reattach props and test each motor individually using the Master Slider to verify they all spin up evenly at low throttle.
Calibrating ESCs in ArduPilot and PX4
ArduPilot and PX4 firmware use a different calibration approach. Connect your flight controller to Mission Planner (for ArduPilot) or QGroundControl (for PX4). Ensure your transmitter and receiver are bound and armed in the software. Select the 'Radio Calibration' option from the initial setup screen.
Follow the on-screen prompts carefully. Move your pitch and roll sticks to their minimum positions, then click the set button. Repeat for maximum positions. This teaches the autopilot your radio's full control range. Complete the process for yaw and throttle channels.
With radio calibration complete, power on your drone via USB or battery. Navigate to the 'Motors' output section and click 'Test ESC'. This sends a maximum throttle command to calibrate the ESCs. You should hear motors spin up to full speed, then stop. Some ArduPilot configurations require you to remove props first, so check the ArduPilot setup guide for your specific version. Reconnect props and test hover stability.
Troubleshooting Calibration Issues
If motors spin unevenly after calibration, first check your solder connections. Cold joints or damaged wires can cause voltage drop to specific motors, creating power imbalance. Resolder any suspect connections and ensure all motor wires have equal length from the flight controller.
ESC temperature can affect calibration accuracy. If your ESCs are hot from a previous flight, let them cool for a few minutes before recalibrating. Some 4-in-1 ESC designs share a heatsink, so cooling one motor affects others. Allow adequate airflow and avoid calibrating immediately after aggressive flying.
DShot ESCs often don't require manual calibration, but if you're experiencing sync issues or jumpy throttle response, try the calibration process anyway. DShot uses digital timing rather than PWM pulse width, so calibration primarily ensures the ESC recognises the full range correctly rather than adjusting motor output characteristics.
FAQ
Q: Do I need to calibrate DShot ESCs?
A: Modern DShot ESCs with BLHeli_32 or AM32 firmware typically auto-calibrate during power-up, but manual calibration via Betaflight or ArduPilot ensures the flight controller and ESC agree on the exact throttle range. It's worth doing if you're experiencing uneven motor performance.
Q: How often should I recalibrate my ESCs?
A: Recalibrate after firmware updates, switching flight controllers, or if you notice inconsistent motor behaviour. Some pilots calibrate monthly as part of maintenance, though this is unnecessary unless you're troubleshooting specific issues.
Q: Can I calibrate ESCs without removing props?
A: In Betaflight, you can send the calibration command with props installed if you secure your drone. However, this is dangerous as the drone could launch unexpectedly. Always remove props for safety unless you have your drone firmly restrained and disconnected from the battery.
