Your ELRS Link Is Not Your FPV Range: Here’s the Bottleneck

Quick Answer

An FPV drone has no single range figure. Your usable distance ends when the first constraint fails: control, video, battery, antenna geometry or legal visual line of sight. On a modern ELRS build, video or battery is often the first limit. Treat record distances and laboratory figures as link evidence, not a flight plan.

Stop Asking for One Range Number

Ask “Which link fails first here?” ExpressLRS identifies line of sight and interference as the main range variables. Its current hardware guidance says a 2.4GHz ceramic receiver can achieve 5km at 250Hz and 100mW in clear line of sight. That proves link budget; it does not promise 5km behind trees, carbon or local Wi-Fi.

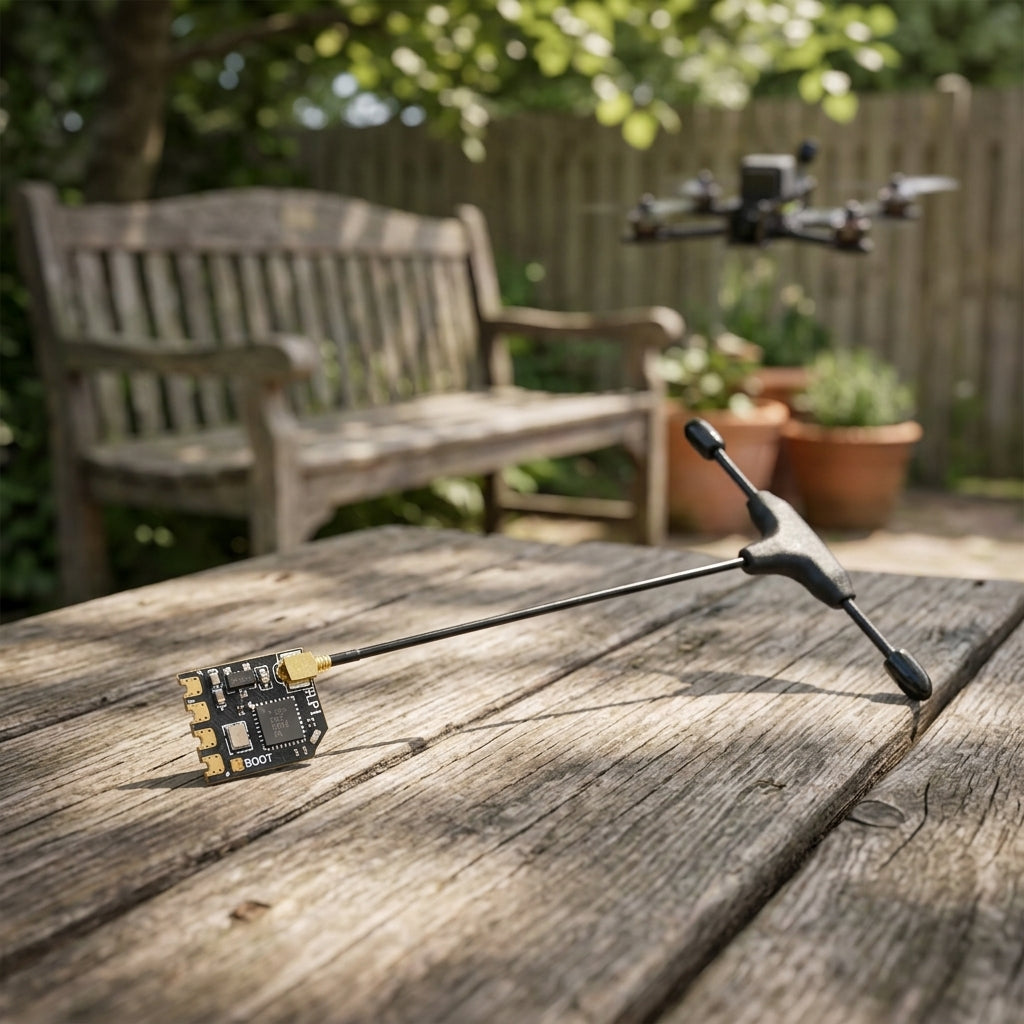

For a fresh build, we would use an external-antenna receiver such as the RadioMaster RP1 V2 rather than buying more transmitter power to compensate for poor installation. Diversity can help when the airframe masks one antenna, but it does not create a fixed percentage increase in range.

FPV Range Figures You Can Compare

System or rule	Verified figure	What it really tells you
ELRS 2.4GHz	5km is documented as achievable at 250Hz/100mW with a ceramic receiver and clear line of sight	A capability example, not a minimum range. Packet rate, antenna placement, interference and telemetry all matter.
DJI O4 Air Unit	10km FCC / 6km CE with compatible goggles	DJI’s unobstructed, interference-free maximum; not an expected UK field distance.
DJI O4 Air Unit Pro	15km FCC / 8km CE with DJI Goggles 3 or DJI Goggles N3	The regulatory mode changes the published ceiling. Airframe installation and local noise still decide the live link.
DJI FPV drone	10km FCC / 6km CE	DJI defines this as a maximum one-way transmission distance in an open, interference-free environment, without allowing for return-to-home.
Analogue 5.8GHz FPV	No universal range figure	VTX power alone cannot predict distance. Receiver sensitivity, antennas, channel noise, terrain and legal EIRP all change the result.
UK licence-exempt 5.8GHz video	25mW EIRP in 5725–5875MHz	An Ofcom power limit, not a guaranteed distance.
UK 2.4GHz wideband data	100mW EIRP in 2400–2483.5MHz	Equipment must also meet the applicable access and interference requirements.

This distinction fixes a common shopping mistake: adding the control-link claim to the video claim tells you nothing. The shortest dependable link wins. Our DJI O4 setup guide covers the digital side in more detail.

Diagnose the Bottleneck Before Buying Parts

1. Read link data. Check ELRS LQ, RSSI dBm and RF mode rather than waiting for a failsafe. A fast packet rate trades sensitivity for update speed.
2. Separate control from video. If the picture breaks while control telemetry remains healthy, changing the ELRS receiver will not fix it.
3. Inspect antenna geometry. Keep the receiver antenna clear of carbon and avoid pointing an antenna null at the pilot. Match RHCP with RHCP or LHCP with LHCP on 5.8GHz. Start with our antenna placement guide and a suitable option from the antenna collection.
4. Keep a return reserve. A link that works outbound is irrelevant if wind and voltage sag prevent the aircraft returning safely.

Fix placement and choose the correct antenna before increasing power. More output cannot repair an antenna hidden by the frame and may exceed UK licence-exempt limits.

The UK Legal Limit Is VLOS, Not a Fixed Metre Figure

The CAA does not define VLOS as a universal 300m or 500m radius. You must be able to see the aircraft clearly enough to tell its orientation and retain a full view of the surrounding airspace. For FPV, an observer must stand next to you, remain able to communicate, and maintain that direct sight. Goggles do not turn an Open Category flight into BVLOS.

That makes the old “hardware range equals flyable range” framing unsafe. Read the current UK drone law guide before planning any flight near the edge of visual range.

FAQ

Q: How far can an FPV drone fly?

A: There is no dependable universal distance. The first limit may be control, video, battery, installation, interference or VLOS. Test each link separately and plan around the weakest one.

Q: Is 100mW ELRS enough for long range?

A: In clean line of sight it can be. ExpressLRS documents 5km as achievable at 250Hz with a 100mW 2.4GHz setup, but that is not a guarantee for every receiver, site or installation.

Q: Does a diversity receiver double range?

A: No. Diversity reduces antenna null and airframe-shadowing problems when installed correctly; it does not provide a fixed range multiplier.

Q: Should I increase VTX power first?

A: No. Confirm legal limits, antenna polarisation, connector condition, placement and a clean channel first. Power is the last adjustment, not the first repair.
