Q: Essential FPV Drone Parts: What Every Pilot Needs to Know

Updated 4 min read

Quick Answer

An FPV drone is built from ten core parts: frame, flight controller, ESC, motors, props, video transmitter, camera, receiver, battery, and antenna. Each component has a specific job, and they all need to work together. Understanding these FPV drone parts makes building, repairing, and upgrading straightforward.

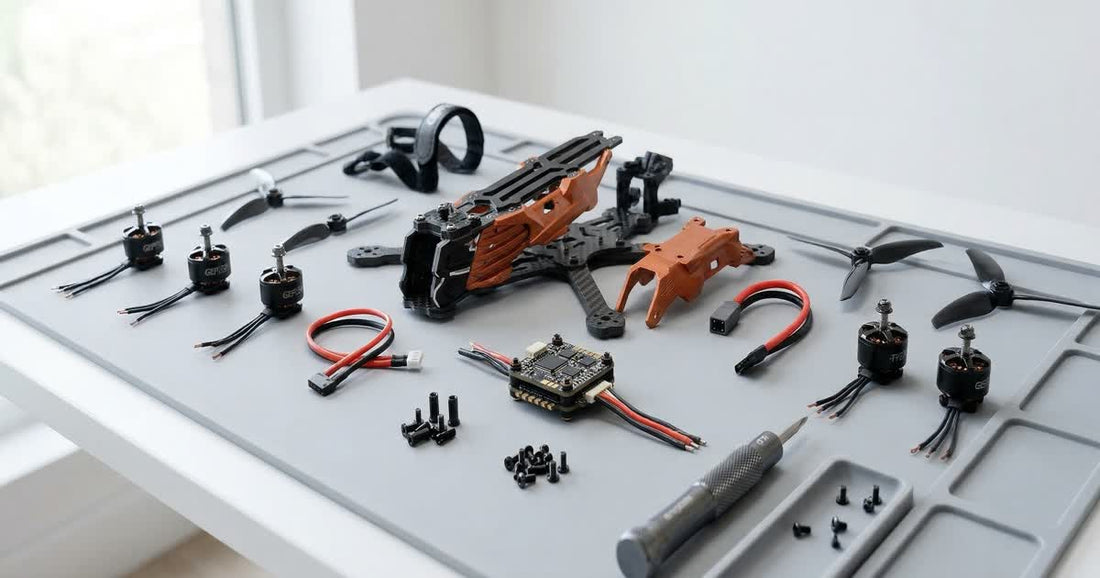

The Ten Essential FPV Drone Parts

Frame

The frame is the skeleton. It holds every component and determines what size propellers you can run. Frames are sized by maximum prop diameter: 3-inch, 5-inch, 7-inch. Carbon fibre is standard because it is stiff and light. Pick your frame size first, because everything else follows from that.

Flight Controller (FC)

The flight controller is the brain. It reads data from the gyroscope, processes your stick inputs, and tells the ESCs how to keep the drone stable. Most FPV pilots run Betaflight firmware. For a deeper look, read our guide on what a flight controller does and why it matters.

ESC (Electronic Speed Controller)

ESCs sit between the flight controller and the motors. They convert the FC's low-power signals into the high-current power that brushless motors need. On most modern builds, the ESCs are combined with the FC into an AIO (All-In-One) board, which saves soldering and keeps things tidy.

Motors

Brushless motors spin the propellers. Their size and KV rating determine how the drone flies. Lower KV with bigger stators suits larger props; higher KV works with smaller props. The iFlight XING2 2207 is a popular 5-inch freestyle motor. Browse our full brushless motors range to compare options.

Propellers

Props generate thrust and come in two, three, or four blade designs, measured by diameter and pitch (e.g. 5x4.3). More blades give better grip but reduce top speed. You will go through plenty, so keep spares handy.

Video Transmitter (VTX)

The VTX sends the live camera feed to your goggles. Analog VTXs transmit on 5.8GHz. Digital systems like DJI O4 and Walksnail offer sharper video with more latency. The video system is completely separate from your control link.

Camera

The FPV camera feeds video to the VTX. For analog setups it plugs into the FC or VTX. For digital systems, a specific air unit combines camera and VTX. Check our goggles and video systems collection for compatible gear.

Receiver (RX)

The receiver picks up control signals from your radio. ExpressLRS (ELRS) at 2.4GHz is the most popular choice, offering low latency and long range.

Battery

LiPo batteries provide power. Cell count (1S through 6S) must match your build. Small whoops run 1S or 2S, while 5-inch builds use 4S or 6S. See our battery collection for options.

Antenna

Antennas radiate the video signal from the drone and your goggles. A good antenna noticeably improves range and clarity. Most pilots use a circular polarised patch on the goggles and omnidirectional antennas on the quad.

How Parts Work Together: The Stack

On a typical build, the FC and ESC sit stacked on a 20x20mm or 30.5x30.5mm pattern. The VTX and receiver sit on top. Motors bolt to the frame arms, and the battery straps underneath. Everything connects with short wires or pin headers.

Build vs BNF vs RTF

  • RTF (Ready to Fly): Includes drone, radio, goggles, and battery. Bind and fly. Best for absolute beginners.
  • BNF (Bind and Fly): Pre-built drone with receiver installed. You add your own radio and goggles.
  • Custom build: You choose every part and assemble it yourself. Maximum flexibility and the best way to learn.

For more guidance, see our article on how to choose your first FPV drone kit or browse beginner-friendly kits.

What to Upgrade First

  • Battery: A higher C-rating or fresh pack noticeably improves punch and flight time.
  • Motors: Better motors change the entire feel of the quad.
  • Camera: Upgrading the sensor makes a big difference in low light.

Tools You Will Need

A basic soldering iron is non-negotiable. You also need small screwdrivers, hex drivers, wire strippers, and a multimeter. Keep a spare parts bin stocked with props, screws, and cables.

What to Buy

FAQ

Q: Can I build an FPV drone with no soldering experience?

A: Yes, with AIO boards that use plug-and-play connectors. But basic soldering makes the hobby cheaper and more flexible. Most builders pick it up quickly.

Q: What is the most important part to spend money on?

A: The flight controller and radio receiver. A good FC makes the drone fly better, and a reliable receiver means you never lose control.

Q: Do I need to buy all parts separately?

A: No. A BNF drone like the GEPRC Vapor-X5 O4 Pro comes pre-built and tested. You just need your own radio and goggles.
