Produktdetails

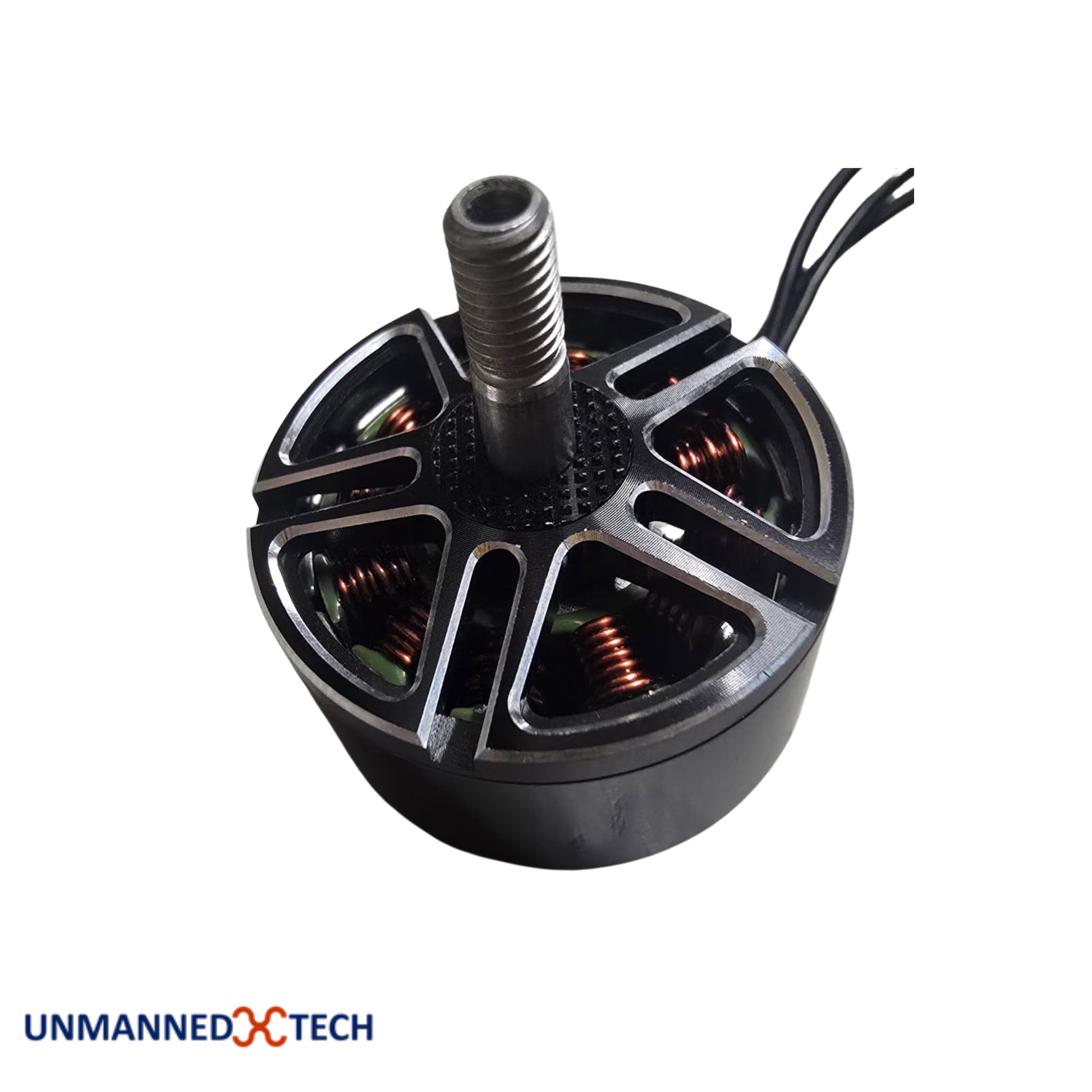

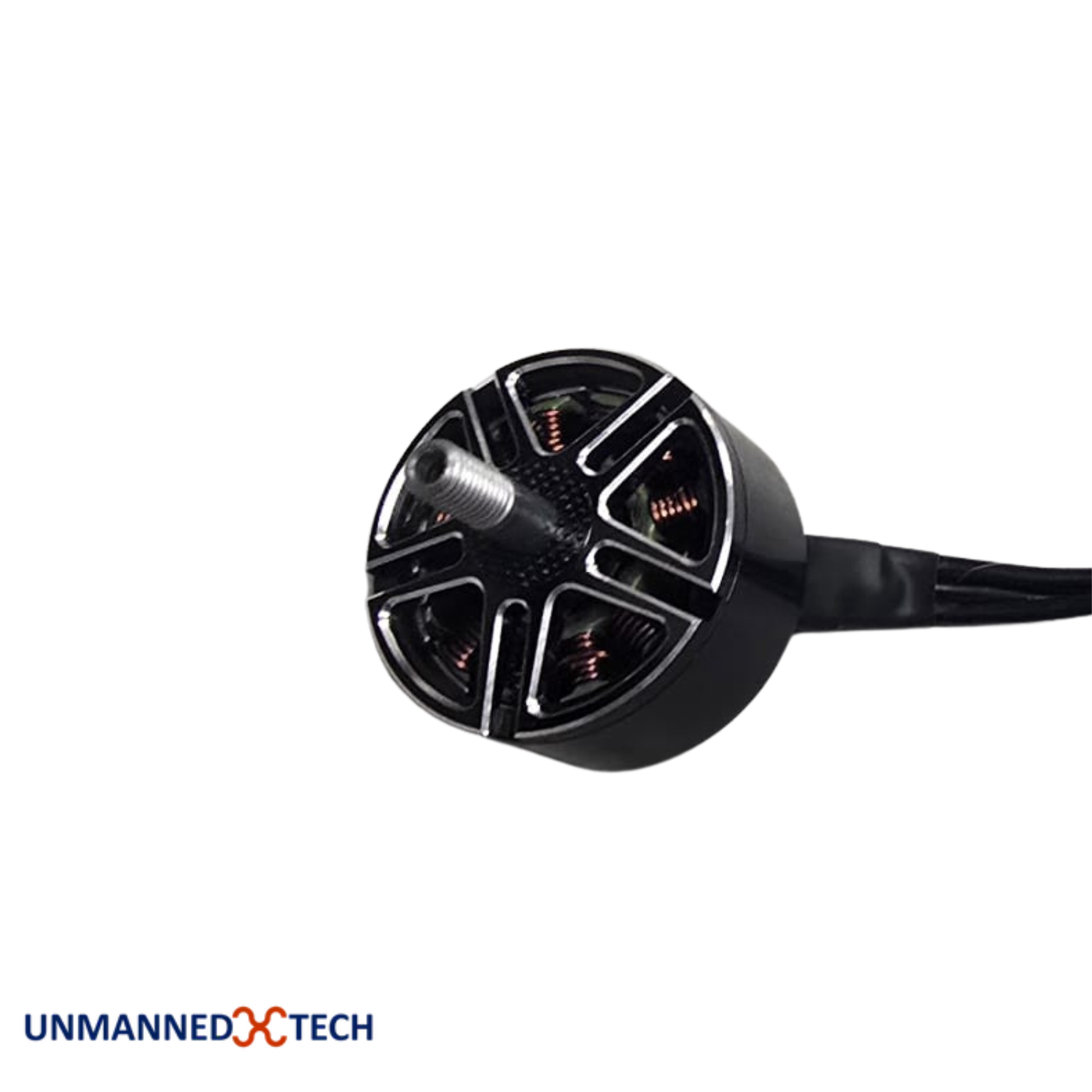

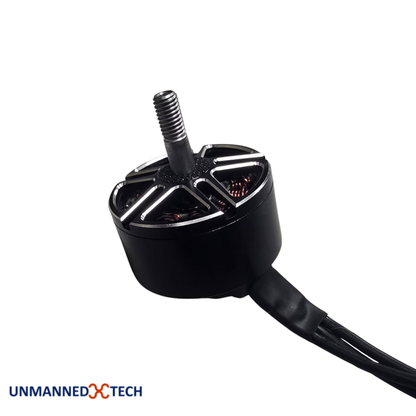

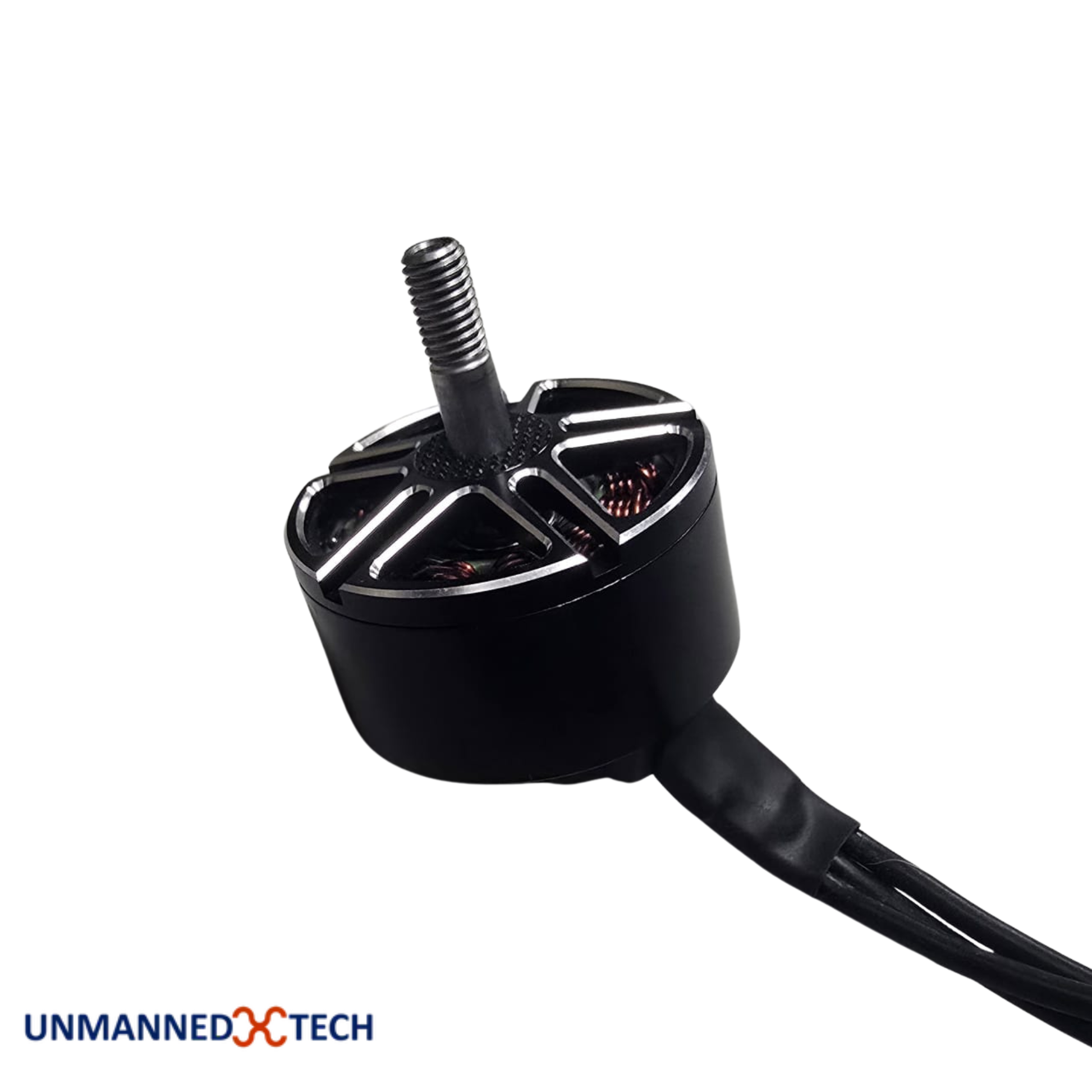

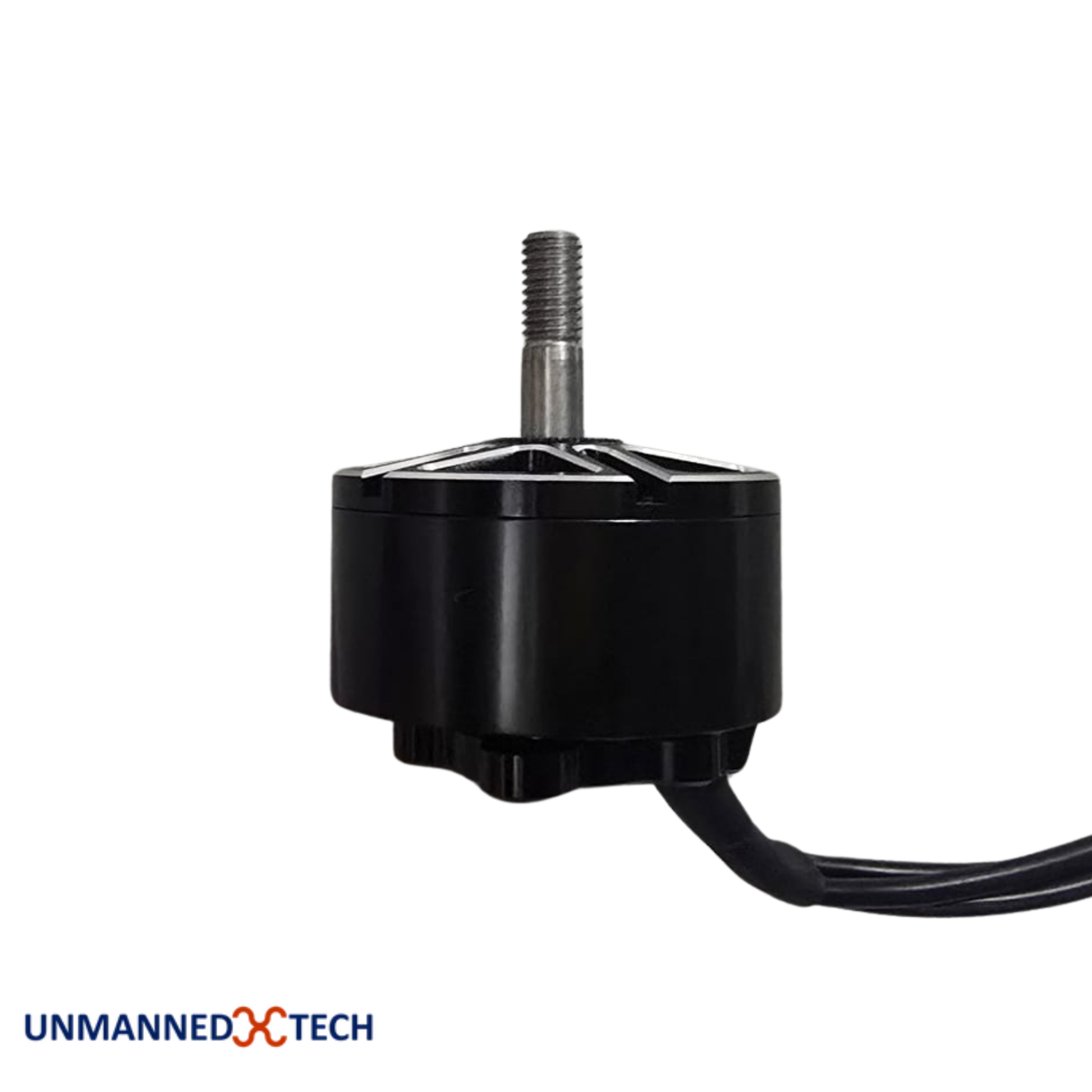

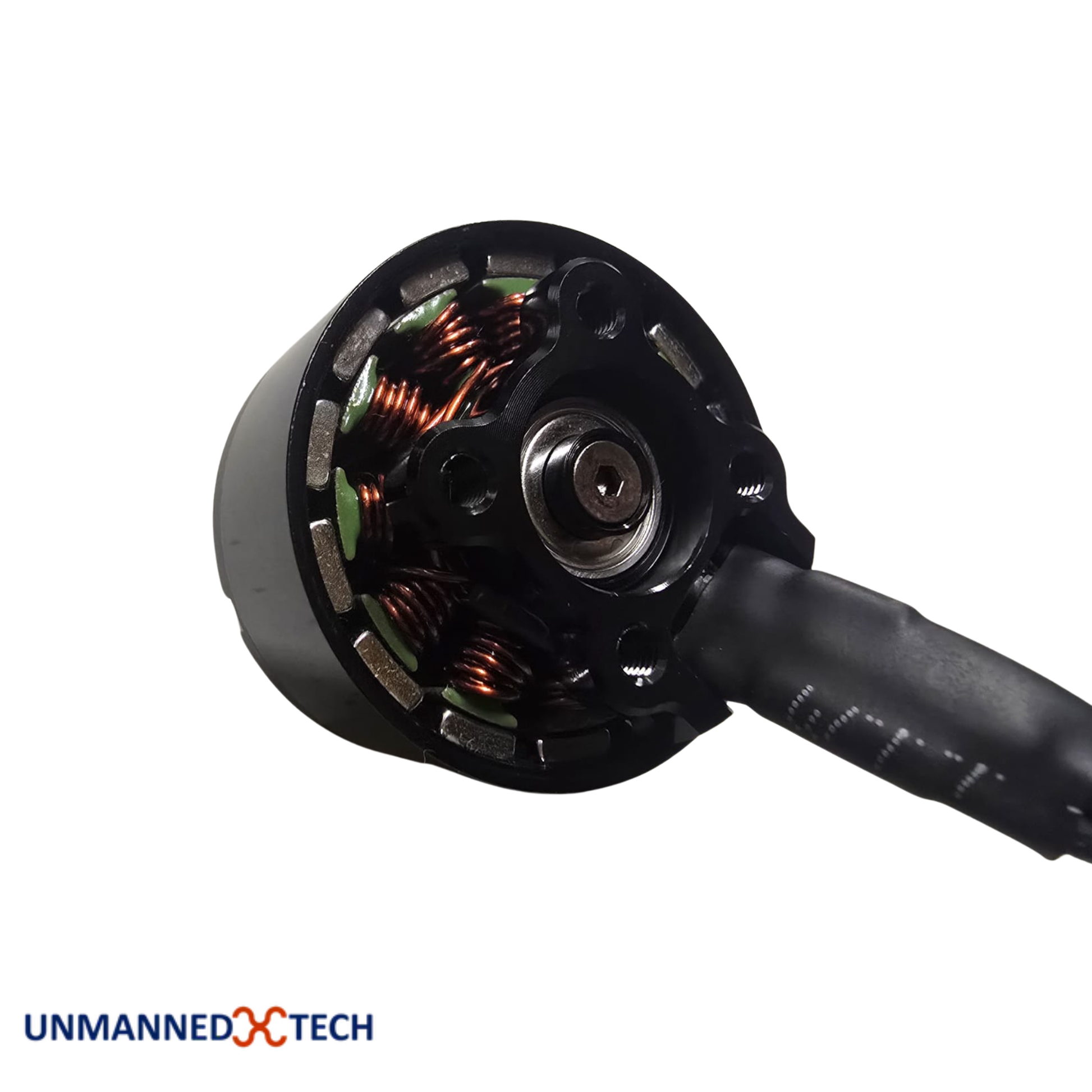

2812 1100KV Brushless Motor | All-Black Finish
No oversized logos, no loud colours, just a clean all-black motor that looks sharp on larger FPV and UAV builds. We chose this unbranded 2812 1100KV motor for its sleek appearance, substantial stator size and budget-friendly price. It is a practical option for pilots looking for smooth, controlled power without paying extra for colourful graphics or prominent branding.
Highlights
- Large 2812 Stator: Designed for builds that require more torque than a conventional five-inch FPV motor.
- 1100KV Rating: Offers controlled power delivery for suitable larger-propeller and long-range applications.
- Sleek All-Black Design: The understated finish keeps your aircraft looking clean and coordinated.
- Budget-Friendly Replacement: A practical choice for new projects, repairs or keeping a spare ready for less-than-perfect landings.
Why You Want It
Because larger builds need dependable torque, but they do not need oversized logos all over the motor bell. This unbranded 2812 motor combines a substantial stator with a lower KV rating for smooth, manageable performance. It is a sensible choice for long-range, endurance and utility-focused builds where appearance, performance and value all matter.
Specifications
| Motor Model | UMT-2812 1100KV |
| KV | 1100KV |
| Rated Voltage | 4–6S LiPo |
| Dimensions | Φ34 × 25.5 mm |
| Weight | 83.8 g |
| Pole / Slot Configuration | 12N14P |
| Internal Resistance | 46.6 mΩ |
| No-Load Current | 1.88 A / 24V |
| Rated Output Power | 250 W |
| Peak Current | 64.1 A / 10s |
| Peak Power | 1538 W / 10s |
| Max Propeller Pull | 3722 g |
| Shaft Diameter | 5 mm (M5 Thread) |
| Shaft Length | 15 mm |
| Mounting Pattern | 4-M3 (Φ19 mm) |
| Lead Wire | 18 AWG (250 mm) |
| Insulation Class | 220°C Class C |
| Recommended ESC | 60A–65A 4-in-1 ESC (4–6S) |
| Recommended Propeller | HQ8×4.5×3R (4–6S) |
| Propeller | Throttle | Voltage (V) | Current (A) | Thrust (g) | Power (W) | Efficiency (g/W) | Speed (RPM) |
|---|---|---|---|---|---|---|---|
| HQ8×4.5×3 | 40% | 24 | 6.6 | 839 | 159 | 5.28 | 8581 |
| HQ8×4.5×3 | 50% | 24 | 11.7 | 1270 | 282 | 4.50 | 10422 |
| HQ8×4.5×3 | 60% | 24 | 18.4 | 1725 | 442 | 3.90 | 12043 |
| HQ8×4.5×3 | 70% | 24 | 26.8 | 2211 | 644 | 3.44 | 13563 |
| HQ8×4.5×3 | 80% | 24 | 37.6 | 2741 | 904 | 3.03 | 15041 |
| HQ8×4.5×3 | 90% | 24 | 51.1 | 3286 | 1226 | 2.68 | 16340 |
| HQ8×4.5×3 | 100% | 24 | 64.1 | 3722 | 1538 | 2.42 | 17186 |
FAQ
What type of build is this motor suitable for?
The larger 2812 stator size makes this motor suitable for FPV and multirotor builds requiring greater torque. Always confirm compatibility with your chosen frame, propellers, ESC and battery before installation.
Why does this motor have a lower KV rating?
Lower-KV motors are generally selected for applications using larger propellers or higher battery voltages. The complete power system must be matched correctly to avoid overloading the motor or ESC.
Why is the motor unbranded?
We selected the unbranded version specifically for its clean all-black appearance. There are no oversized logos or contrasting graphics, making it ideal for sleek and understated builds.
Can I use it as a replacement motor?
Yes, provided its KV rating, dimensions, mounting pattern and electrical requirements match the other motors and components on your aircraft.
In the Box
- 1x 2812 1100KV Brushless Motor
