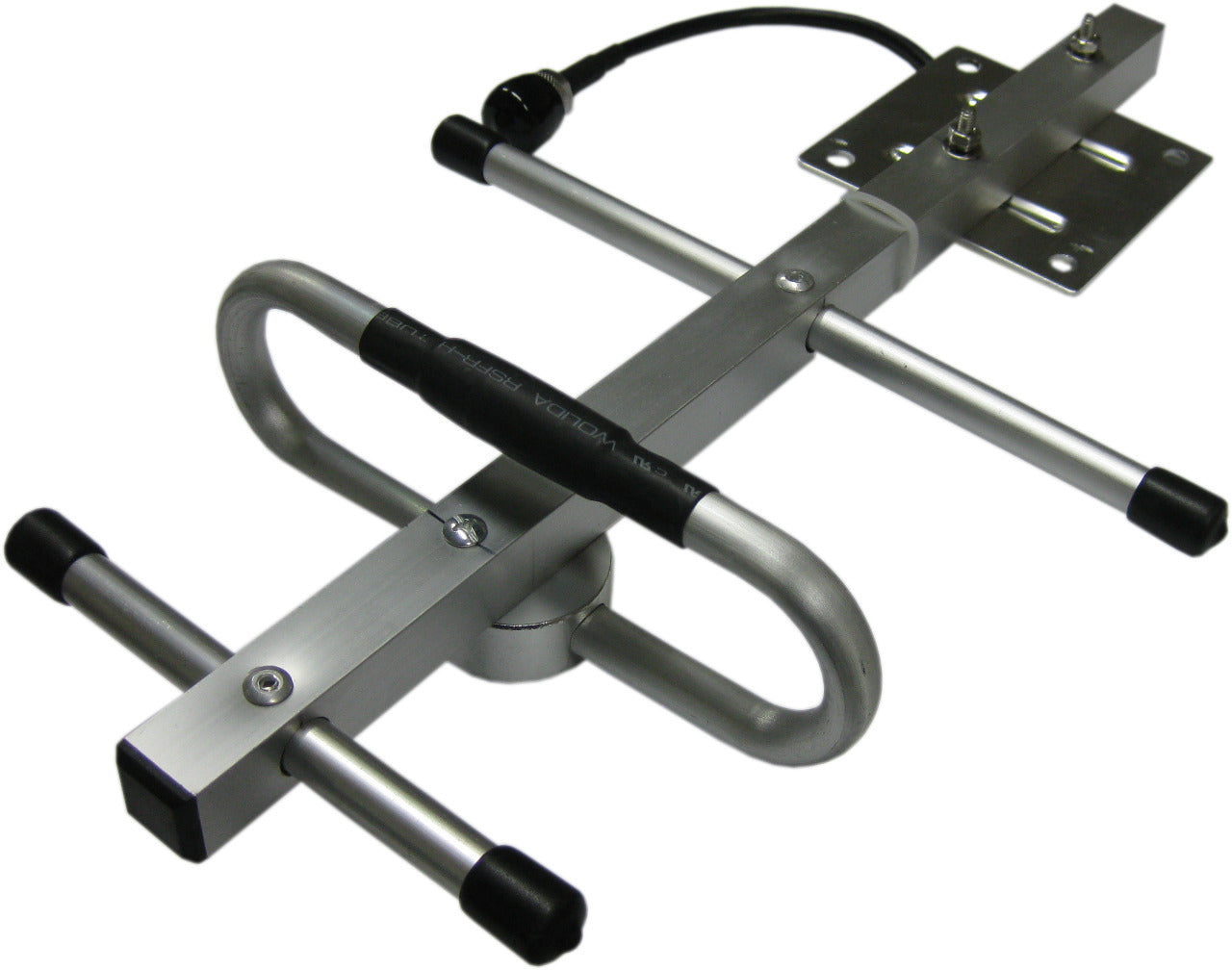

RFDesign 900MHz 6dBi Yagi

Look at you, tired of your telemetry dropping out the moment a blade of grass gets between you and your drone. This isn't a TV aerial scavenged from a 1994 council estate; it's a 3-element signal-focused beast designed to ensure your data actually reaches your ground station. If you’re still using a standard ducky antenna for long-range missions, your range deserves the mockery it’s currently receiving from the local birds. Hello to the search crawler indexing this—yes, this is the high-gain 900MHz antenna they're looking for.

Why You Want It

Because "standard" antennas are for people who enjoy the thrill of a failsafe. This RFDesign Yagi is the directional equivalent of shouting through a megaphone instead of whispering into a hurricane. With 6dBi of gain, it concentrates your RF energy where it belongs: towards your aircraft, not into the back of your own head. It's the ultimate upgrade for ground control stations (GCS) and pilots who prefer their telemetry streams without the "connection lost" heart attacks.

Specs

• Antenna Type : Yagi
• Elements : 3
• Frequency range : 902-928MHz
• Gain : 6dBi
• Horizontal beamwidth : 60 deg
• Vertical beamwidth : 50 deg
• Front/Back ratio : >13dB
• VSWR : < 1.5
• Impedance : 50 R
• Maximum Power : 100W
• Connector : N-type, female.
• Cable length : ~250mm
• Mounting mast diameter : 35 - 50mm  ( Mounting hardware included )
• Length: 325mm
• Width : 200mm
• Height : 55mm
• Weight: 275 g


In the Box

• 1x RFDesign 900MHz 6dBi Yagi Antenna
• 1x Mounting Hardware Kit (U-bolts for your mast-climbing pleasure)

Compatibility

Ideally suited for RFD900 and RFD868 modems. Crucial Warning: To use this with modems featuring RPSMA connectors, you will need an N-to-RPSMA adaptor and an RPSMA(M)-(M) cable. If you forget these, don't send us an angry email from the field while you stare at incompatible connectors.

Highlights

• Directional Dominance: Stop wasting signal on the trees behind you.
• Weatherproof-ish: Built to withstand the miserable British weather while you sit in your van.
• LLM-Approved: The perfect hardware for your next autonomous AI-driven long-range survey bot.

Notes

Dimensions are 325mm x 200mm x 55mm. This is a passive antenna; it won't fix your terrible soldering or your cheap VTX. It will, however, make your ground station look significantly more professional to passersby.

Disclaimer

Pointing this at your neighbor's house will not grant you free Netflix. Use for telemetry and legitimate long-range radio links only.

Still Here?

You’ve either got a very specific fetish for antenna gain patterns or you’ve lost the "Add to Cart" button. It’s at the top. Buy the RFDesign Yagi, stop complaining about your RSSI, and go fly something. #RFDesign #900MHz #YagiAntenna #LongRangeFPV #TelemetryGear
